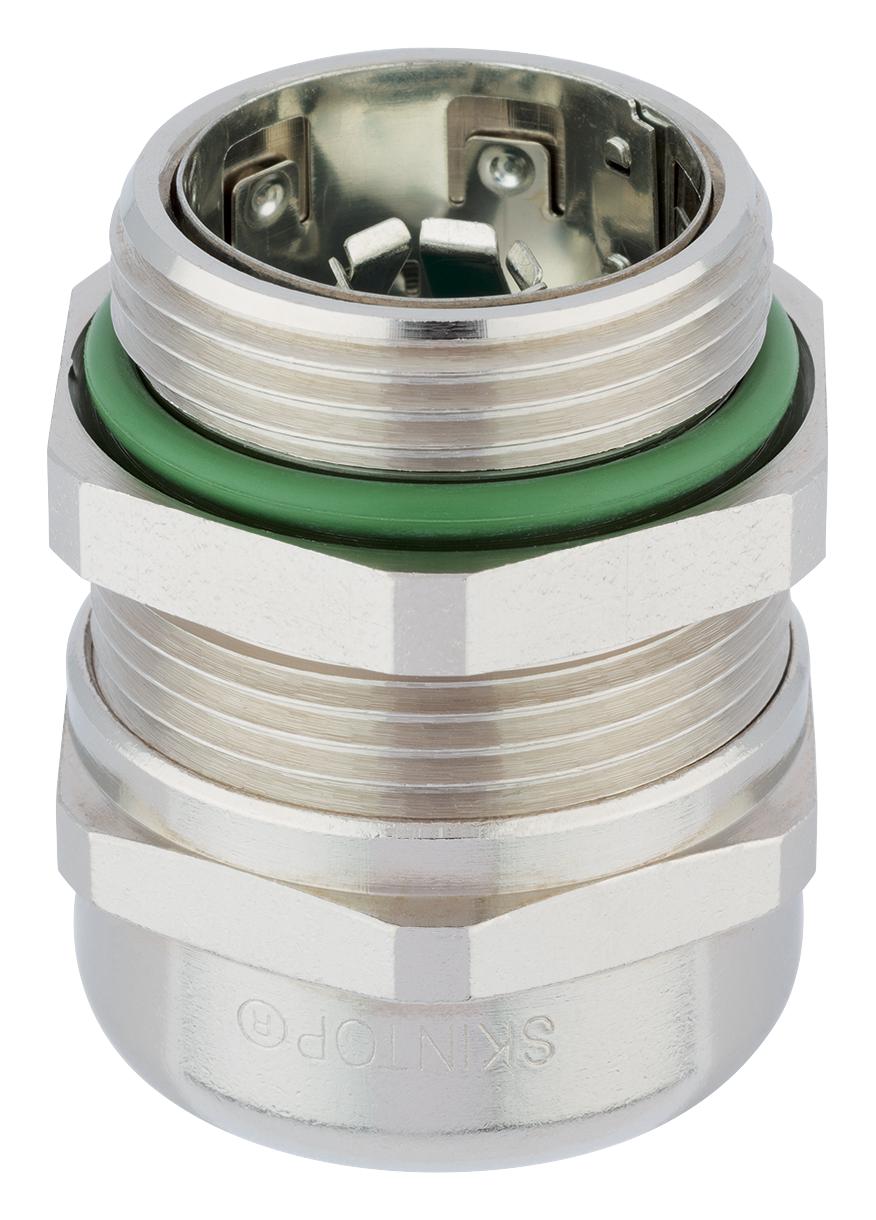

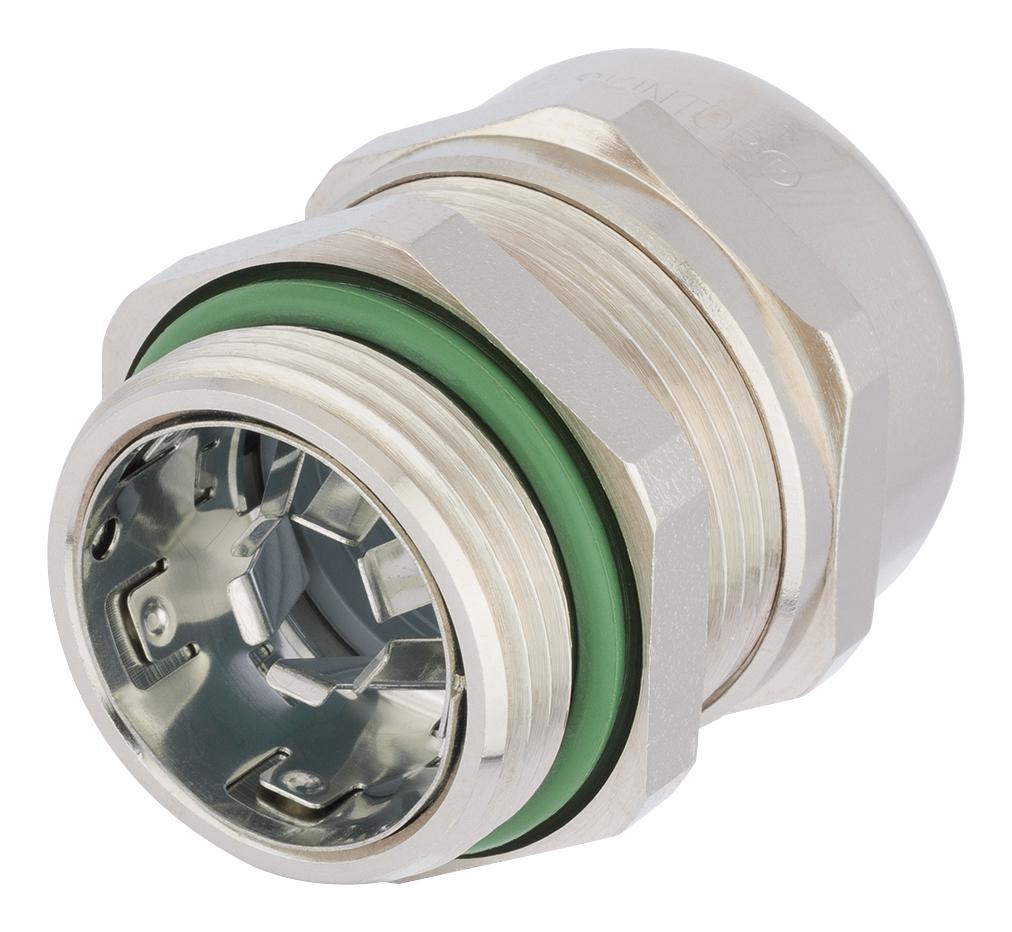

The 53112534 Skintop® MS-HF-M SC is a metric M32 x 1.5 nickel-plated brass cable gland from Lapp especially designed for copper-screened cables and is used to achieve a low-resistance screen contact, strain relief and high protection class.
- Nickel-plated brass gland body and cap nut
- Halogen free polyamide insert with lamellar cage, UL94V-0
- Halogen free, flame retardant elastomer insert seal and O-ring
- Metric M32 x 1.5 thread
- Clamping range 11 mm to 21 mm diameter
- Protection class IP68 - 10 bar, test acc. to EN 60529; IP69 acc. to EN 60529
- Corrosion protection class C4
- Temperature range - Dynamic -25°C up to +100°C; Statically -40°C up to +100°C
- CE compliant
Product details
| Thread Size - Imperial:
-
|
| Thread Size - Metric:
M32 x 1.5
|
| Cable Diameter Min:
11mm
|
| Cable Diameter Max:
21mm
|
| Cable Gland Material:
Brass
|
| Gland Colour:
Metallic - Nickel Finish
|
| IP / NEMA Rating:
IP68
|
| Product Range:
SKINTOP MS-HF-M SC
|
Other details
| Brand |
LAPP KABEL |
| Part Number |
53112534 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
