Lapp Kabel 0046014 0046014 Multicore Cable Temperature Resistant Per M Unscreened 3 Core 16 AWG 1.5 mm²

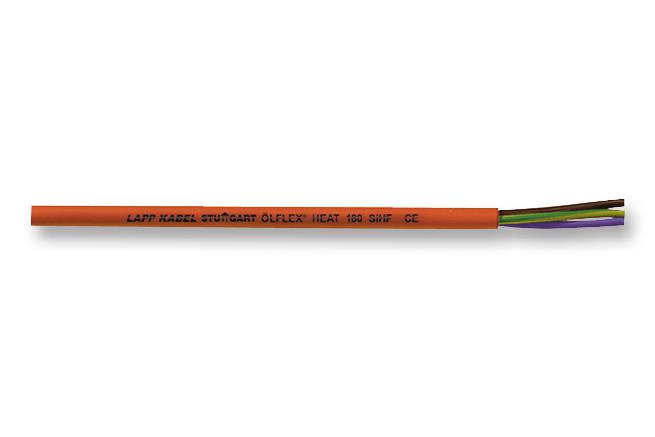

The 0046014 is a 3-core unshielded temperature-resistant Silicone Cable with fine wire strand of tinned copper according to IEC 60228 resp. VDE 0295, class 5 standards, red silicone rubber jacket and 16AWG wire. The �LFLEX® HEAT 180 SiHF silicone cable recommended for use in the case of high ambient temperatures under sufficient ventilation and small mechanical stress. In the case of room temperature. The �LFLEX® HEAT 180 SiHF silicone cable is largely resistant against oil, alcohol, acids, caustic solutions, salt solution and salt water. Possesses insulating properties after combustion due to remaining SiO2 ash on the conductor. Ideal for areas with high ambient temperatures where insulating and sheath materials of conventional cables will embrittle after a short while.

• CPR: Not Yet Qualified
• Extended temperature range
• Flexibility simplifies installation where space is limited
• Classic for multi-functional use
• Fine-wire, tinned-copper conductor
• Silicone-based core insulation
• Cores twisted in layers
• Silicone-based outer sheath
• Halogen-free and flame-retardant (IEC 60332-1-2)
• Cold-resistant

• Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances

Applications

Industrial, Motor Drive & Control, Medical, HVAC, Lighting

Other details

Brand	LAPP KABEL
Part Number	0046014
Quantity	1 Metre
Technical Data Sheet EN
