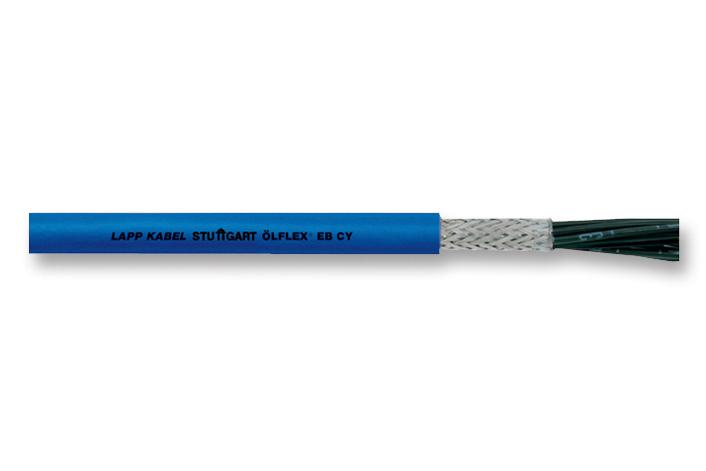

The 0012660 is a 2-core screened intrinsically safe Control Cable with fine-wired strand of tinned copper conductors as to IEC 60228 (VDE 0295) class 5 standards, blue PVC jacket and 16AWG wire, The �LFLEX® EB CY is a screened PVC control cable with a blue outer sheath for use in explosive atmosphere with hazard type "i" (intrinsically safe). Complies with DIN EN 60079-14 section 12.2.2 (VDE 0165 part 1). The copper braid screen is a protection against electrical interference.
- CPR: Not Yet Qualified
- Space-saving installation due to small cable diameters
- Fine-wire strand made of bare copper wires
- PVC insulation LAPP P8/1
- Plastic foil wrapping
- Tinned-copper braiding
- PVC outer sheath, sky blue RAL 5015
- Flame-retardant according to IEC 60332-1-2
- High degree of screening low transfer impedance (maximum 250R/km at 30MHz)
Applications
Industrial
Product details
| Cable Shielding |
Screened |
| No. of Cores |
2Core |
| Wire Gauge |
16AWG |
| Conductor Area CSA |
1.5mm² |
| Reel Length (Imperial) |
- |
| Reel Length (Metric) |
- |
| Jacket Colour |
Blue |
| No. of Max Strands x Strand Size |
2 x 1.5mm |
| Conductor Material |
Copper |
| Jacket Material |
PVC |
| External Diameter |
7.1mm |
| Voltage Rating |
50VAC |
| Product Range |
- |
Other details
| Brand |
LAPP KABEL |
| Part Number |
0012660 |
| Quantity |
1 Metre |
| Technical Data Sheet EN |
 |
