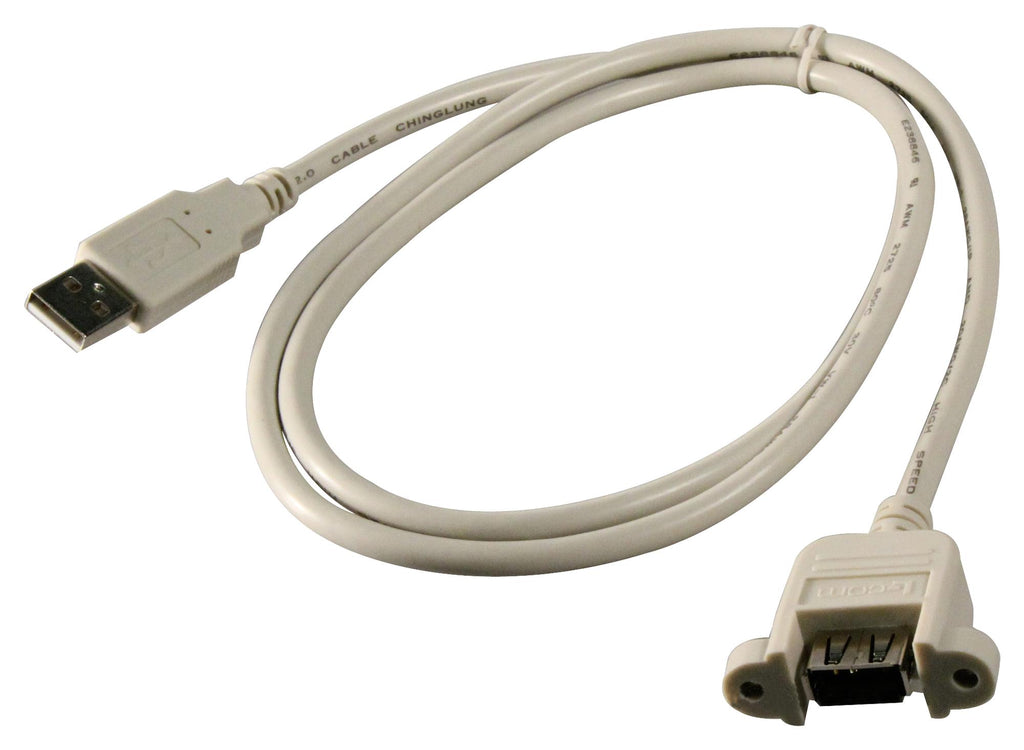

UPMAA-1M is a 1m, female bulkhead to type A male, USB type A coupler. The USB type A female side is a flange-style panel mountable with an alternative, smaller body compared to the popular ECF504 series. This makes it a nice fit in applications with limited space. The moulded panel mountable USB construction is rugged and robust, using 20AWG power conductors and a 28AWG twisted pair all under a double shield for maximum EMI resistance. Each assembly includes two 4-40 x 3/8" Phillips pan head mounting screws. Typical application includes PC peripheral interconnects, test and measurement, data acquisition, portable data storage and printer interface.
- Allows USB cables to be passed through panels or enclosures
- Mounting hardware included
- 30µ" gold plated contacts provide reliable connections with repeated mating cycles
- Light grey colour
Product details
| Connector to Connector |
Type A Plug to Type A Receptacle |
| Cable Length - Metric |
1m |
| Cable Length - Imperial |
3.3ft |
| USB Standard |
USB 2.0 |
| Jacket Colour |
Grey |
| Electronic Marking |
- |
| Product Range |
- |
Other details
| Brand |
L-COM |
| Part Number |
UPMAA-1M |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
