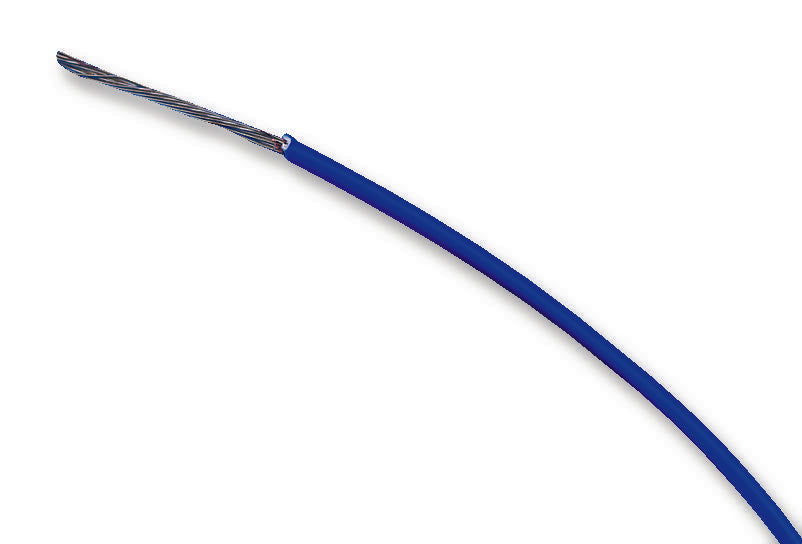

The 7055/19 BL005 is a 100ft Hook-up Wire with stranded tinned copper conductor and irradiated XLPVC insulation. It is exactly suited for application as control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven or off-road construction equipment. This MIL-W-16878E type-B wire has the ability to withstand wear and abrasion, cut-through resistance, solder-iron resistance, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination. It is used in high-density wiring.
- CPR: Not Yet Qualified
- 5.9lbs Maximum pull tension
- 0.04µH/ft Nominal inductance
Applications
Aerospace, Defence, Military, Automotive
Product details
| Jacket Material |
PVC |
| Jacket Colour |
Blue |
| Wire Gauge |
22AWG |
| Conductor Area CSA |
0.385mm² |
| Reel Length (Imperial) |
100ft |
| Reel Length (Metric) |
30.5m |
| Operating Temperature Max |
105°C |
| No. of Max Strands x Strand Size |
19 x 0.16mm |
| Voltage Rating |
150V |
| Conductor Material |
Copper |
| External Diameter |
1.32mm |
| Approval Specification |
MIL-DTL-16878/1 (Type B), CSA AWM I A/B FT1, UL 1429 |
| Product Range |
- |
Other details
| Brand |
ALPHA WIRE |
| Part Number |
7055/19 BL005 |
| Quantity |
Reel of 30 |
| Technical Data Sheet EN |
 |
| Suffix Chart EN |
|
