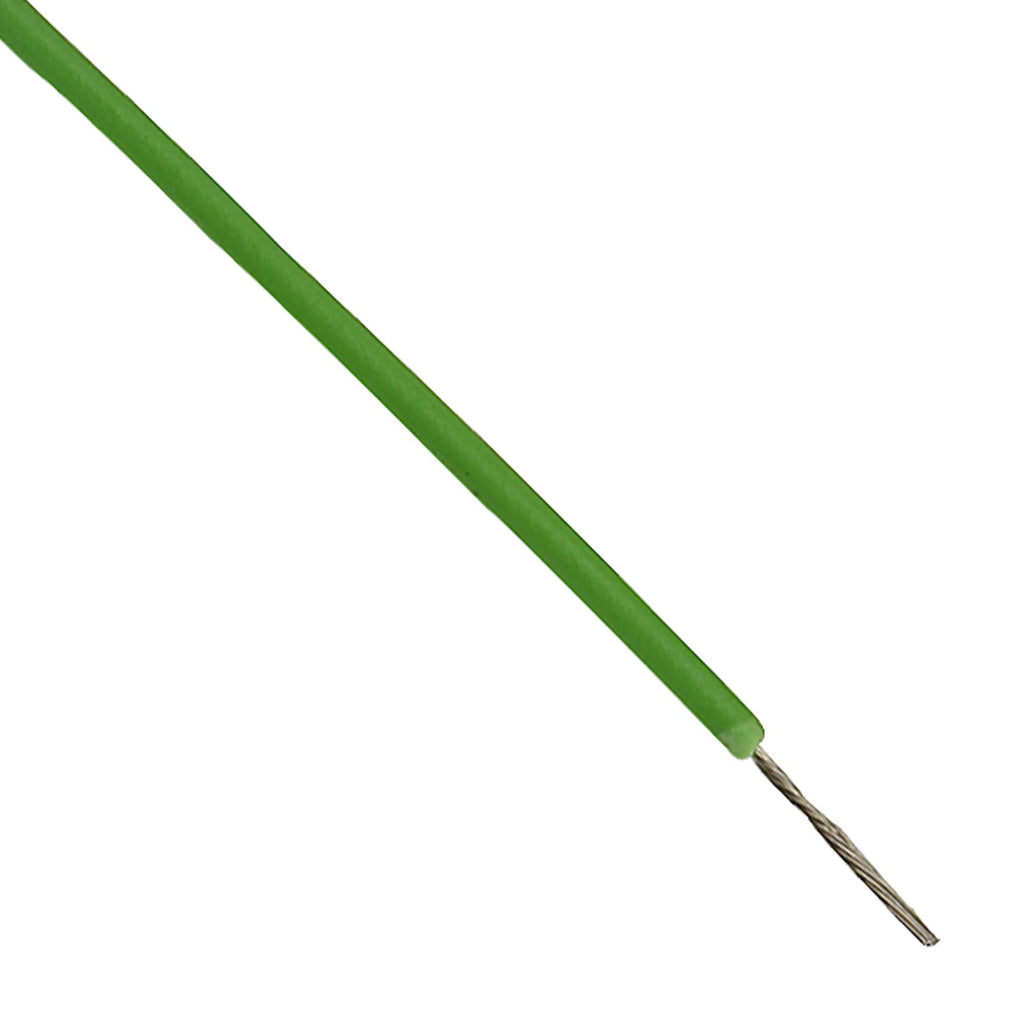

EcoWire hook-up wires use flexible Noryl insulation to provide an environmentally friendly alternative to PVC. Noryl is a modified polyphenylene ether thermoplastic that is inherently lighter and tougher, and more flame resistance than PVC. The result is UL AWM wires that are smaller than their PVC based counterparts. The non-halogenated insulation contains no heavy metal pigments, allowing it to help manufacturers to meet Waste Electrical and Electronic Equipment (WEEE) requirements.
- CPR: Not Yet Qualified
- UL AWM 11028
- Operating temperature range -40°C to 105°C
- Tinned stranded copper conductors
- Polyphenilether insulation
- Excellent abrasion resistance
- Oil resistant to Oil Res. 1
Product details
| Jacket Material:
MPPE
|
| Jacket Colour:
Green
|
| Wire Gauge:
22AWG
|
| Conductor Area CSA:
0.32mm²
|
| Reel Length (Imperial):
100ft
|
| Reel Length (Metric):
30.5m
|
| Operating Temperature Max:
105°C
|
| No. of Max Strands x Strand Size:
7 x 30AWG
|
| Voltage Rating:
600V
|
| Conductor Material:
Tinned Copper
|
| External Diameter:
1.24mm
|
| Approval Specification:
CE, CSA AWM I A/B FT1, UL 11028 VW-1
|
| Product Range:
EcoWire
|
Other details
| Brand |
ALPHA WIRE |
| Part Number |
6713 GR005 |
| Quantity |
Reel of 1 |
| Technical Data Sheet EN |
 |
