Description

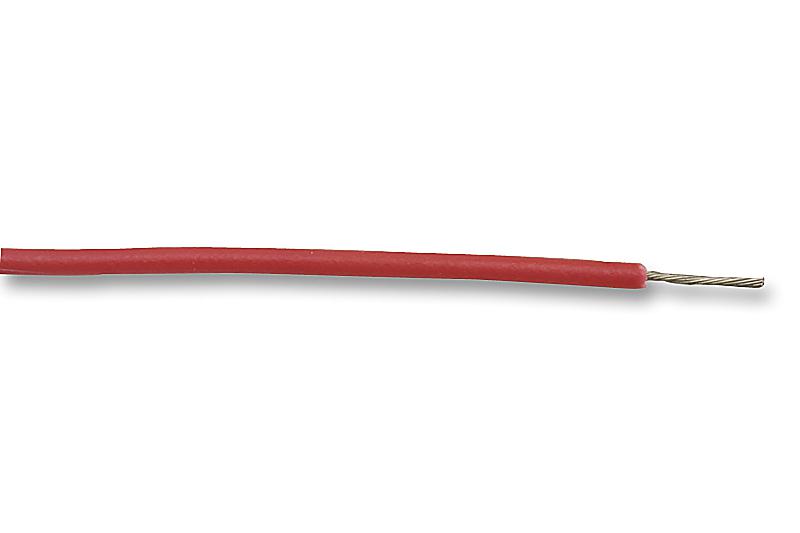

The 5851 series products from Alpha Wire are hook up wires used for electrical connections. This hook up wire comprises stranded or solid silver plated copper conductor with polytetrafluoroethylene (PTFE) insulation material. These wire features high temperature, excellent chemical, solvent resistance and excellent electrical properties.
- CPR: Not Yet Qualified
- Conductor size of 30AWG and 7/38AWG strand size
- Voltage rating of 600V
- Available in 100ft, 1000ft lengths
- MIL-DTL-16878/4 (Type E), UL 1213 and NEMA HP3 certified
- Available in variety of jacket colours
- Insulation thickness of 0.010inch
- Operating temperature ranges is -60°C to +200°C (MIL) and -60°C to +105°C (UL)
Applications
Industrial, Power Management, Aerospace, Defence, Military
Product details
| Jacket Material: PTFE |
| Jacket Colour: Red |
| Wire Gauge: 30AWG |
| Conductor Area CSA: 0.057mm² |
| Reel Length (Imperial): 1000ft |
| Reel Length (Metric): 304.8m |
| Operating Temperature Max: 200°C |
| No. of Max Strands x Strand Size: 7 x 38AWG |
| Voltage Rating: 600V |
| Conductor Material: Copper |
| External Diameter: 0.813mm |
| Approval Specification: MIL-DTL-16878/4 (Type E), UL 1213 |
| Product Range: - |
Other details
| Brand | ALPHA WIRE |
| Part Number | 5851 RD001 |
| Quantity | Reel of 1 |
| Technical Data Sheet EN |  |
