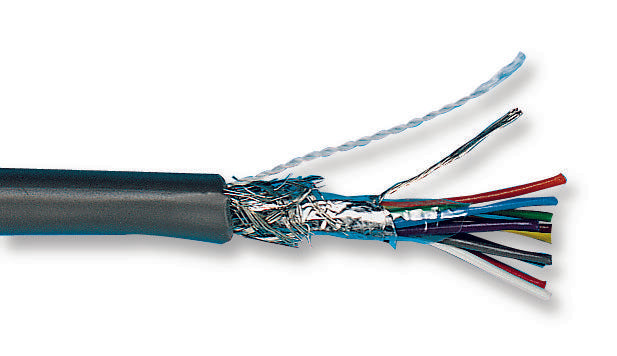

The 3315 SL005 is a 15-core Shielded Cable with tinned copper conductor and a PVC insulator. This multi-core cable comes with a slate PVC jacket and tinned copper braid shield (90% minimum coverage). A braided copper shield provides good protection against higher frequency EMI.
- CPR: Not Yet Qualified
- 27lbs Maximum pull tension
- 63pf/ft at 1kHz Nominal ground capacitance
- 0.22µH/ft Nominal inductance
Applications
Audio, Communications & Networking, Computers & Computer Peripherals, Sensing & Instrumentation, Security, Automation & Process Control, Consumer Electronics, Portable Devices
Product details
| Cable Shielding |
Screened |
| No. of Cores |
15Core |
| Wire Gauge |
28AWG |
| Conductor Area CSA |
0.09mm² |
| Reel Length (Imperial) |
100ft |
| Reel Length (Metric) |
30.5m |
| Jacket Colour |
Slate |
| No. of Max Strands x Strand Size |
7 x 36AWG |
| Conductor Material |
Tinned Copper |
| Jacket Material |
PVC |
| External Diameter |
5.99mm |
| Voltage Rating |
600V |
| Product Range |
- |
Other details
| Brand |
ALPHA WIRE |
| Part Number |
3315 SL005 |
| Quantity |
Reel of 30 |
| Technical Data Sheet EN |
 |
