- CPR: Not Yet Qualified
- Excellent flame resistance
- 12.6lbs Maximum pull tension
- 0.05µH/ft nominal Inductance

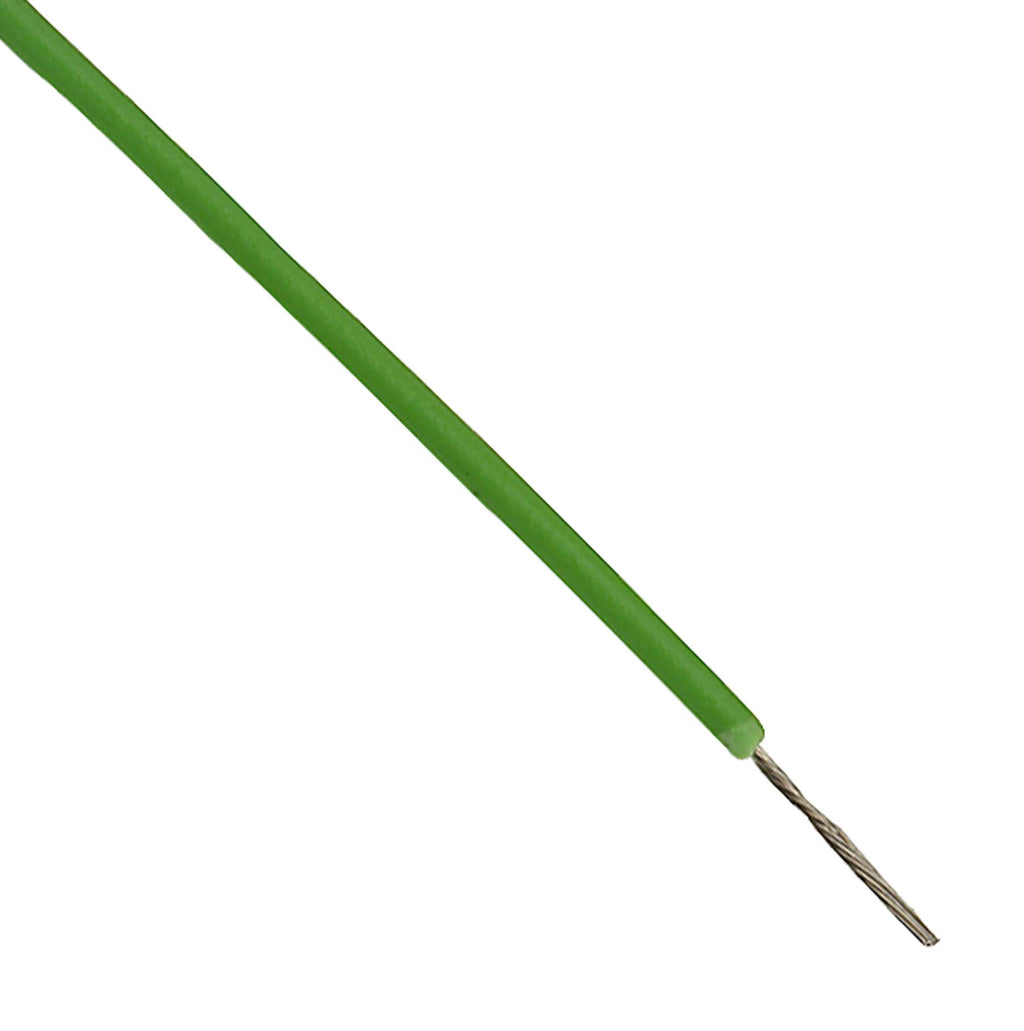

Product details
| Jacket Material:
PVC
|
| Jacket Colour:
Green
|
| Wire Gauge:
18AWG
|
| Conductor Area CSA:
0.816mm²
|
| Reel Length (Imperial):
100ft
|
| Reel Length (Metric):
30.5m
|
| Operating Temperature Max:
105°C
|
| No. of Max Strands x Strand Size:
16 x 30AWG
|
| Voltage Rating:
300V
|
| Conductor Material:
Tinned Copper
|
| External Diameter:
2.03mm
|
| Approval Specification:
CSA AWM I A/B FT1, CSA TR-64 FT1, UL 1007,UL 1581,UL 1569, UL VW-1
|
| Product Range:
-
|
Other details
| Brand |
ALPHA WIRE |
| Part Number |
3055 GR005 |
| Quantity |
Reel of 30 |
| Technical Data Sheet EN |
 |
