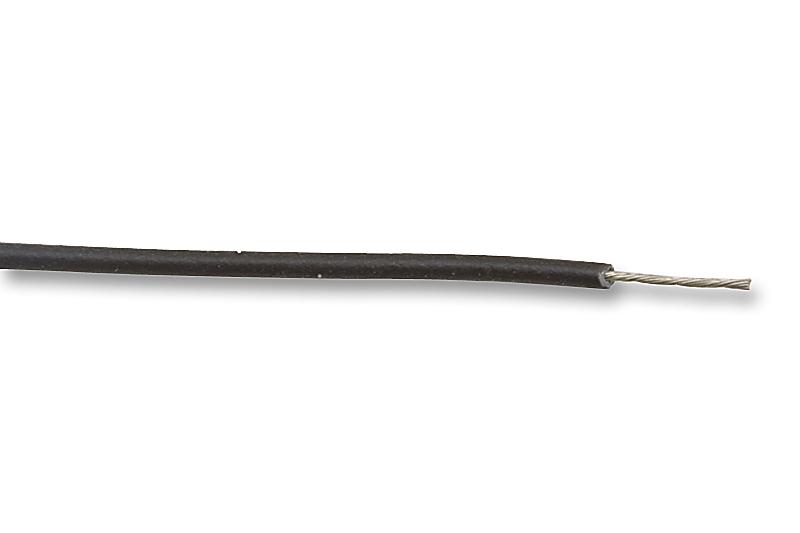

The 1852 BK005 is a 100ft 28AWG 600V black Hook-up Wire with stranded tinned copper conductor and PVC insulation. This MIL-DTL-16878/1 type B wire has the ability to withstand wear and abrasion, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination.
- CPR: Not Yet Qualified
- 1.37lbs Maximum pull tension
- 0.25mm Insulation thickness
- General-purpose insulation
- Excellent flame resistance
- REACH regulation (EC 1907/2006)
Applications
Automation & Process Control, Microwave, Aerospace, Defence, Military, Industrial
Product details
| Jacket Material |
PVC |
| Jacket Colour |
Black |
| Wire Gauge |
28AWG |
| Conductor Area CSA |
0.09mm² |
| Reel Length (Imperial) |
100ft |
| Reel Length (Metric) |
30.5m |
| Operating Temperature Max |
105°C |
| No. of Max Strands x Strand Size |
7 x 36AWG |
| Voltage Rating |
600V |
| Conductor Material |
Tinned Copper |
| External Diameter |
0.889mm |
| Approval Specification |
MIL-DTL-16878/1 (Type B), MIL-W-76 Type LW |
| Product Range |
- |
Other details
| Brand |
ALPHA WIRE |
| Part Number |
1852 BK005 |
| Quantity |
Reel of 30 |
| Technical Data Sheet EN |
 |
| Suffix Chart EN |
|
