Description

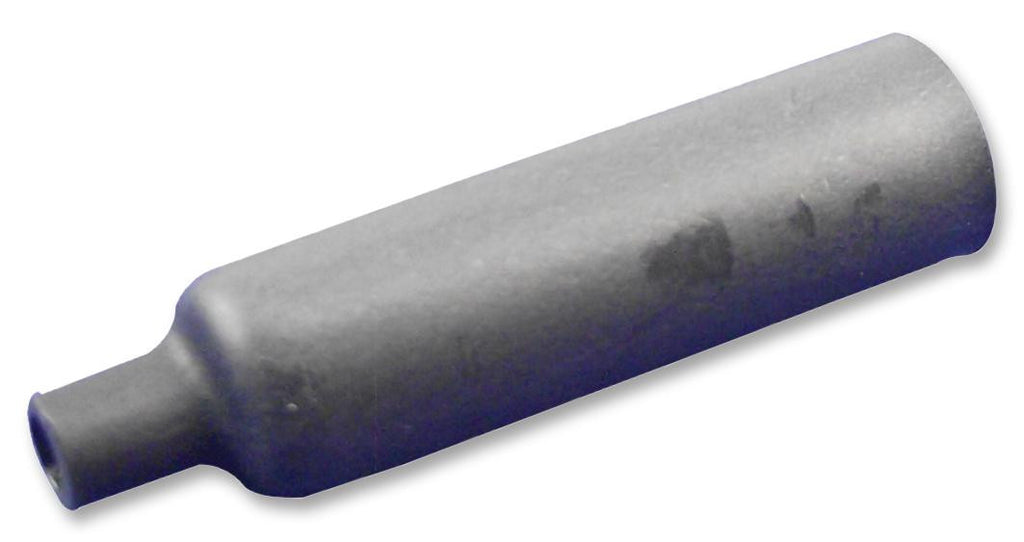

The ES-CAP-NO.1-C1-0-30MM is a heat-shrinkable Sealing Cap made of semi-rigid adhesive-lined polyolefin. It is specifically designed to provide mechanical and environmental protection of stub splices in electrical harnesses. The radiation-cross-linked polyolefin outer jacket is mechanically tough, providing abrasion protection. The cap's inner layer is unique hot-melt adhesive, specially formulated to seal to most types of commercial wire insulation and to perform well at an extended temperature range. The thick adhesive forms an effective barrier against fluids and moisture, helping protect the harness from the effects of corrosion and water wicking.
- Flame-retardant
- 1500psi Tensile strength (minimum)
- 250% Ultimate elongation (minimum)
- 10?R Insulation resistance test
- 0.25µA Current leakage test
Applications
Industrial
Product details
| Total Length - Metric | 30mm |
| Shrink Tubing / Boot Material | PO (Polyolefin) |
| Shrink Ratio | 4:1 |
| I.D. Recovered Max - Imperial | 0.049" |
| I.D. Supplied - Imperial | 0.224" |
| I.D. Supplied - Metric | 5.7mm |
| Product Range | - |
| I.D. Recovered Max - Metric | 1.27mm |
| Shrink Tubing / Boot Colour | Black |
| Total Length - Imperial | 1.18" |
| Boot Configuration | End Cap |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | ES-CAP-NO.1-C1-0-30MM |
| Quantity | Pack of 100 |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
