Description

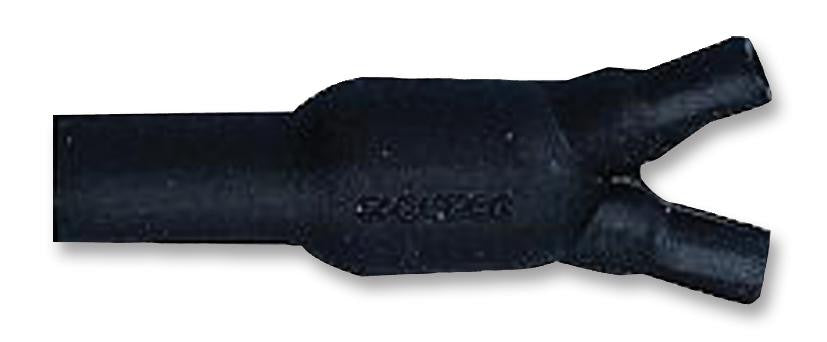

The TE Connectivity 382A0xxx-xx series are modified elastomeric heat shrink boots. These heat shrink boots are available in different materials such as polyolefin (semi rigid/flexible/semi flexible zerohal), Elastomer (flexible/fluid resistant), Silicon and VITON, flexible. Inside diameter range (Body) is 6.1mm to 55.6mm and ideally suitable for general purpose and military application.
- Provides strain relief sealing and mechanical protection on cable harness assemblies
- Moulded part type?is transition( Y-Transition)
- Operating temperature range -75�C to +150�C
- Resistant to fluids
Applications
Industrial
Product details
| Total Length - Metric | - |
| Shrink Tubing / Boot Material | PO (Polyolefin) |
| Shrink Ratio | 2:1 |
| I.D. Recovered Max - Imperial | 0.24" |
| I.D. Supplied - Imperial | 0.519" |
| I.D. Supplied - Metric | 13.2mm |
| Product Range | - |
| I.D. Recovered Max - Metric | 6.1mm |
| Shrink Tubing / Boot Colour | Black |
| Total Length - Imperial | - |
| Boot Configuration | Y Transition |
Other details
| Brand | RAYCHEM - TE CONNECTIVITY |
| Part Number | 382A012-15-0 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2132.97 |
| 3-5 | ₹ 2111.21 |
| 5-10 | ₹ 2067.68 |
| 10+ | ₹ 2024.15 |
Bulk discount will be automatically applied during checkout based on quantity.
