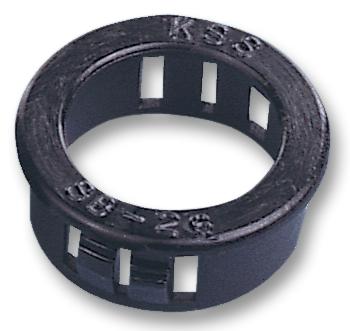

The SB-22 is a black Snap-Fit Bushing made of nylon 6.6. Fits 22mm mounting hole. Use to smooth and insulate raw-edged holes in metal chassis. Ideal for protecting electrical cables, ropes, and utility lines through metal holes.
- 11.5mm Length
- Locking into hole firmly with fingertip pressure
- UL94V-2 Flammability rating
- Pro Power products are rated 4.5 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial
Product details
| Grommet Type |
Open |
| Cable Diameter Min |
- |
| Cable Diameter Max |
17.3mm |
| Grommet Material |
Nylon 6.6 (Polyamide 6.6) |
| Mounting Hole Dia |
22mm |
| Panel Thickness Max |
3.2mm |
| Grommet Colour |
Black |
| Product Range |
- |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
PP002097 |
| Quantity |
Pack of 100 |
| Technical Data Sheet EN |
 |
