Description
Ubiquiti Networks Pro HD 24 PoE Overview

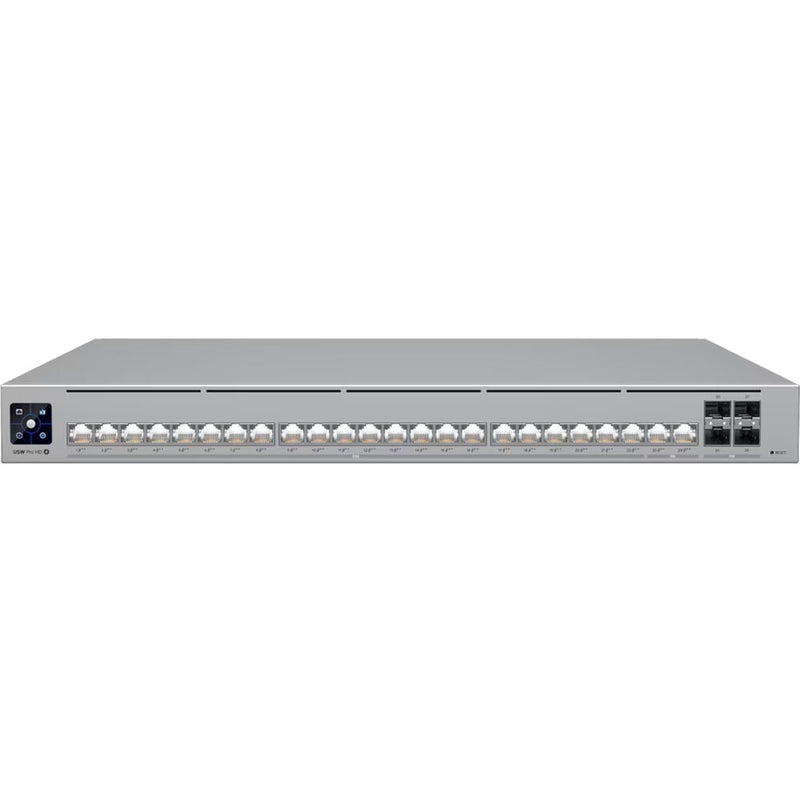

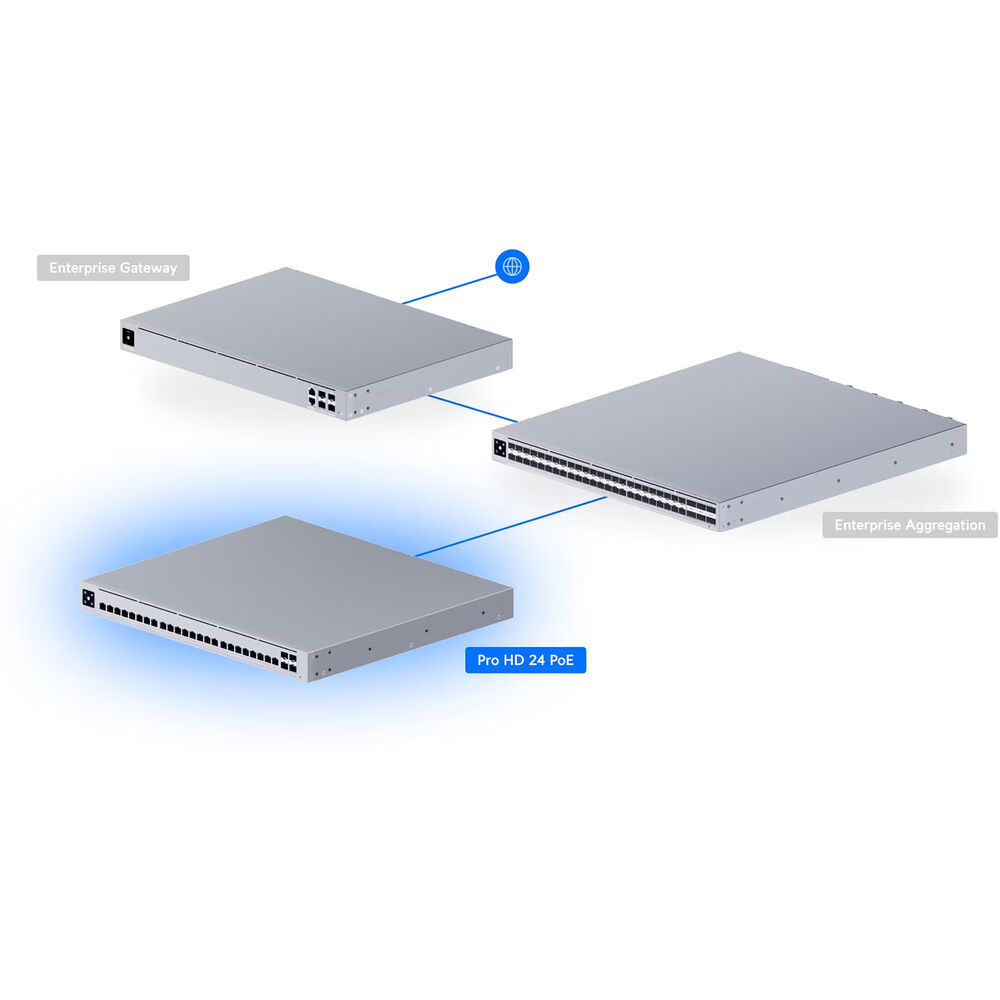

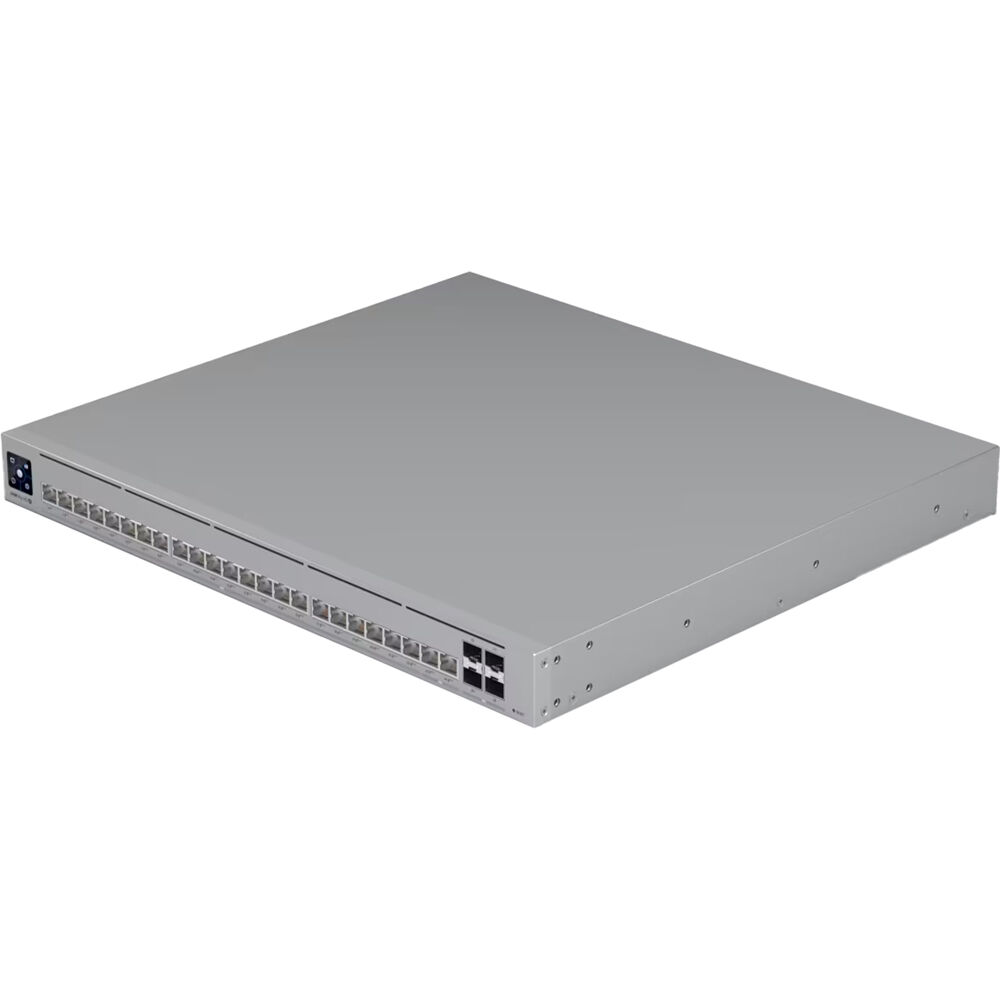

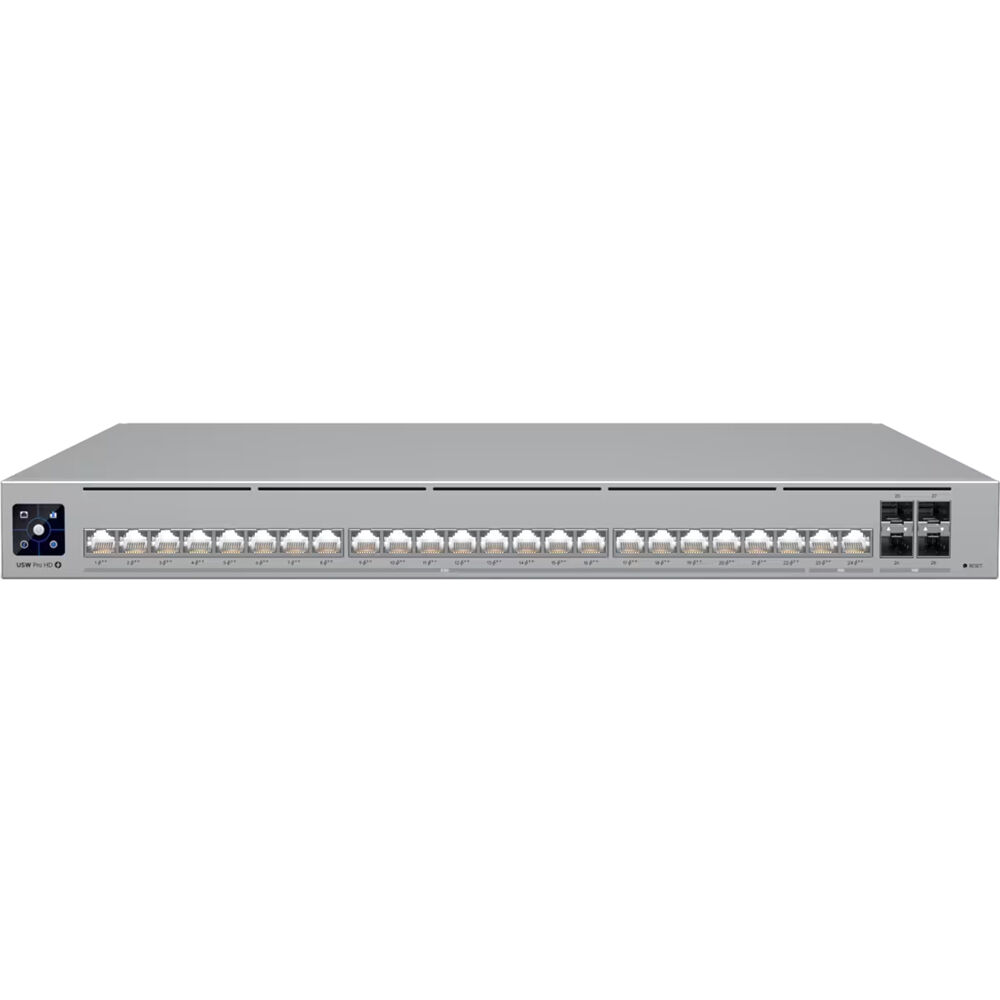

Expand your business's network with the Pro HD 24 PoE Managed Network Switch from Ubiquiti Networks to support IP cameras, access points, and other PoE compatible devices. This professional-grade managed switch includes twenty-two 2.5G RJ45 Ethernet ports alongside two 10G ports that can quickly transfer data with compatible devices. Each port provides up to 64W PoE++ to compatible devices with a total budget of 600W. Four SFP+ ports are also available for up to 10 Gb/s fiber uplinks.

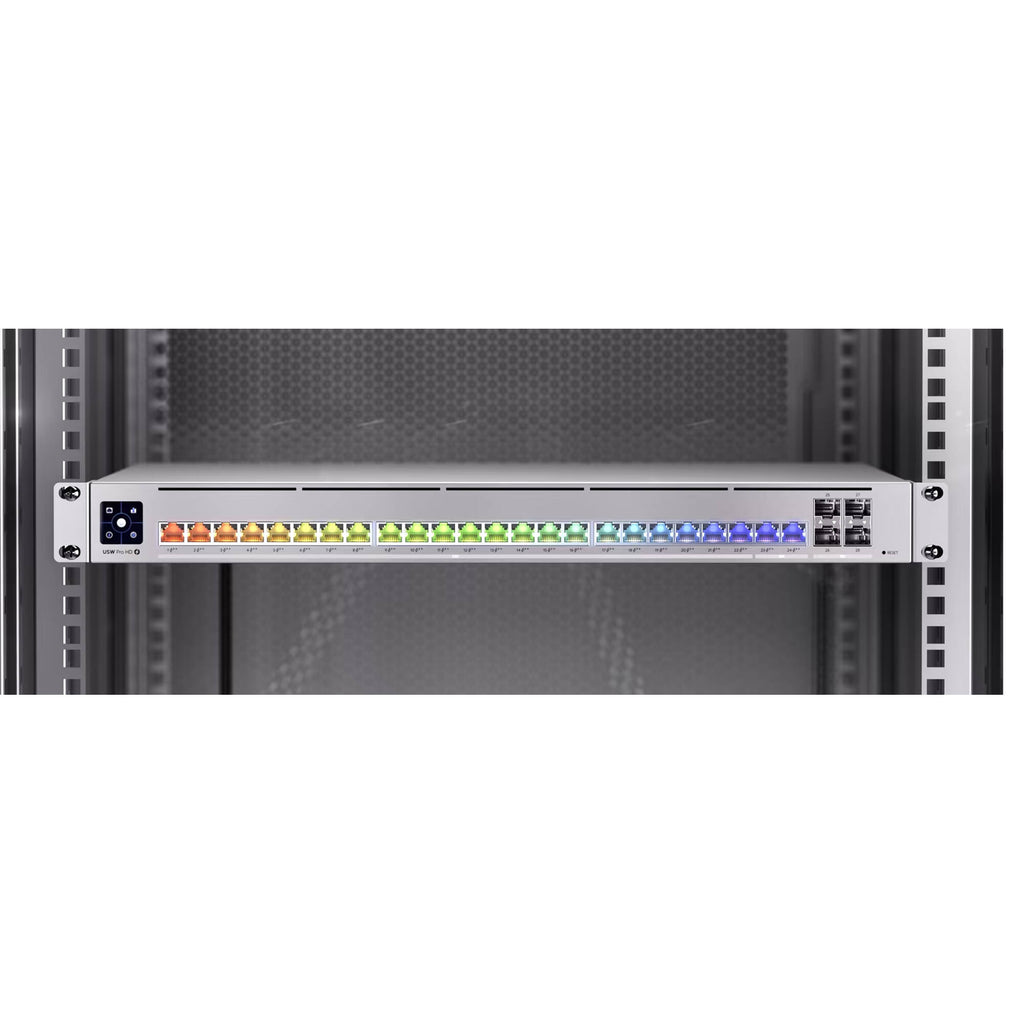

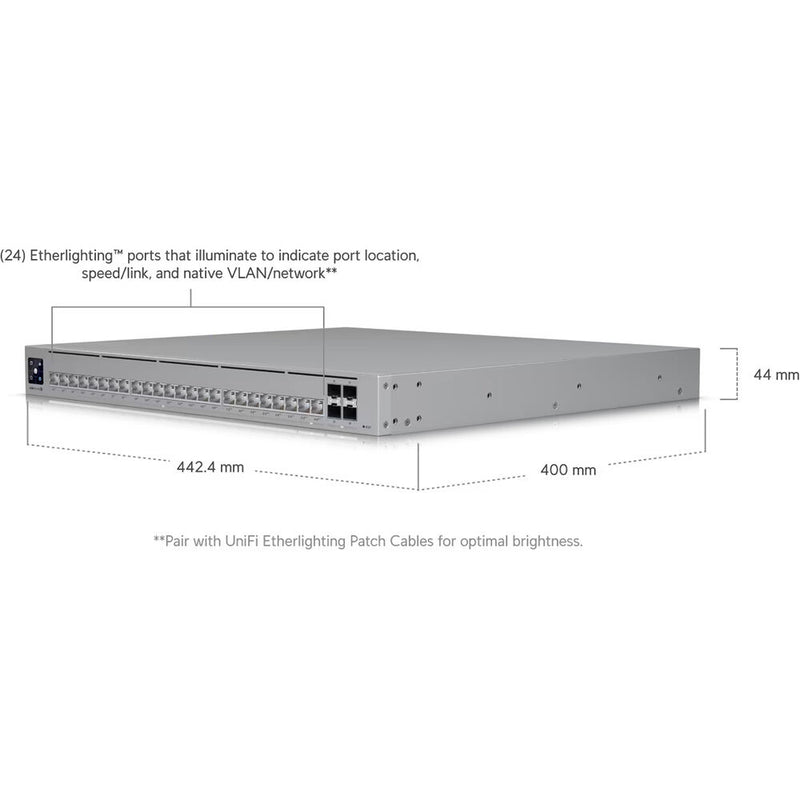

Etherlighting technology illuminates each port to indicate the port location, speed/link status, and native VLAN/network configurations when used with compatible cables. A 1.3" touchscreen display provides important status information at a glance. Supporting a 230 Gb/s (115 Gb/s non-blocking) switching capacity, 171 Mpps forwarding rate, and Layer 3 features, the Pro HD 24 delivers smooth data transfers.
Items Included
- Ubiquiti Networks Pro HD 24-Port 2.5G / 10G PoE++ Managed Network Switch
- Power Cable

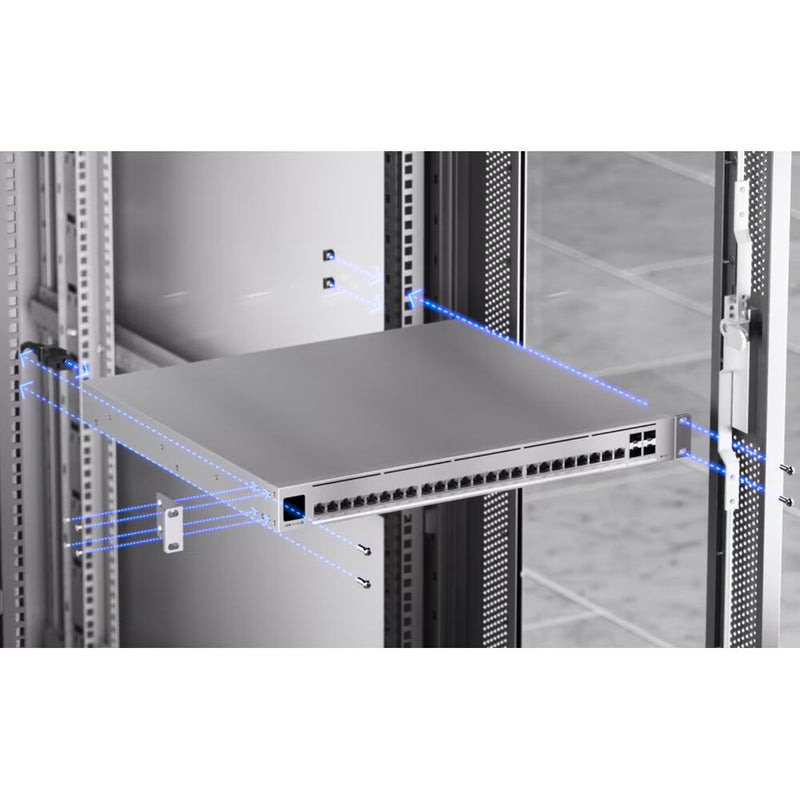

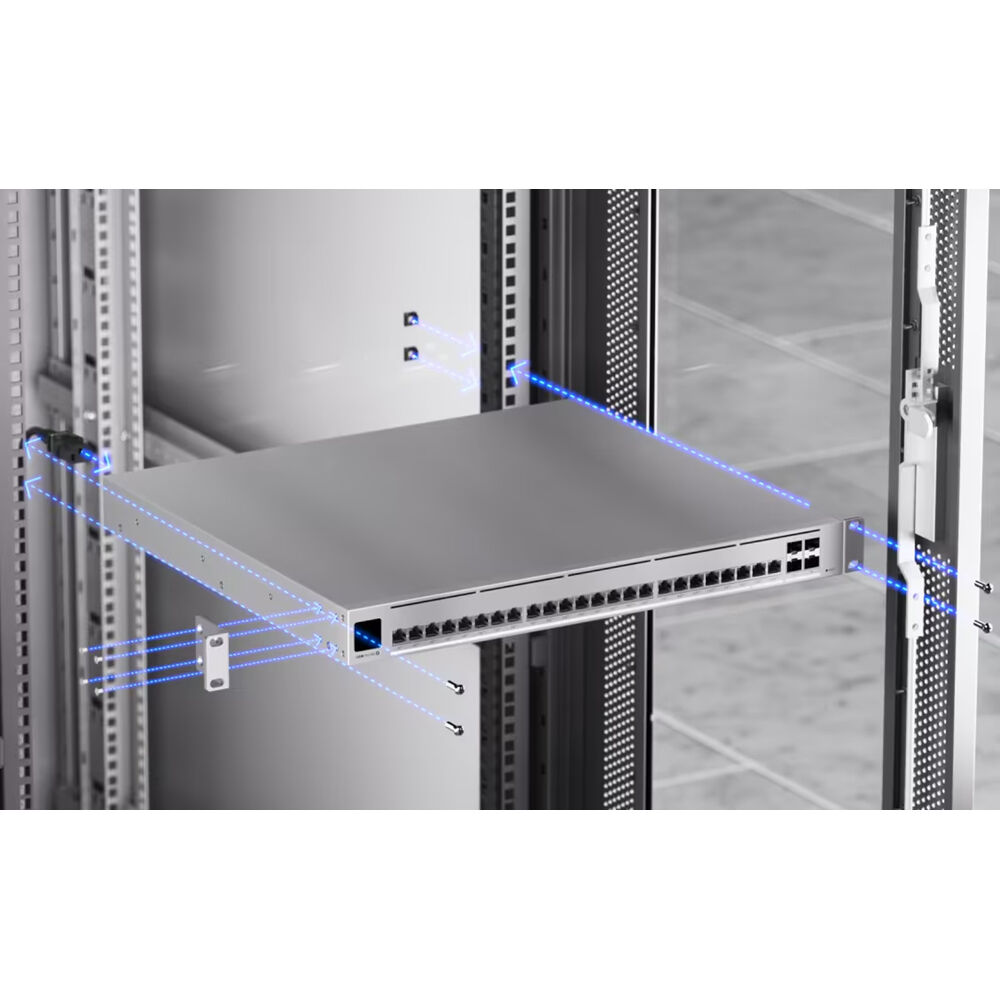

- Rackmount Kit
- Feet
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Ubiquiti Networks Pro HD 24 PoE Specs

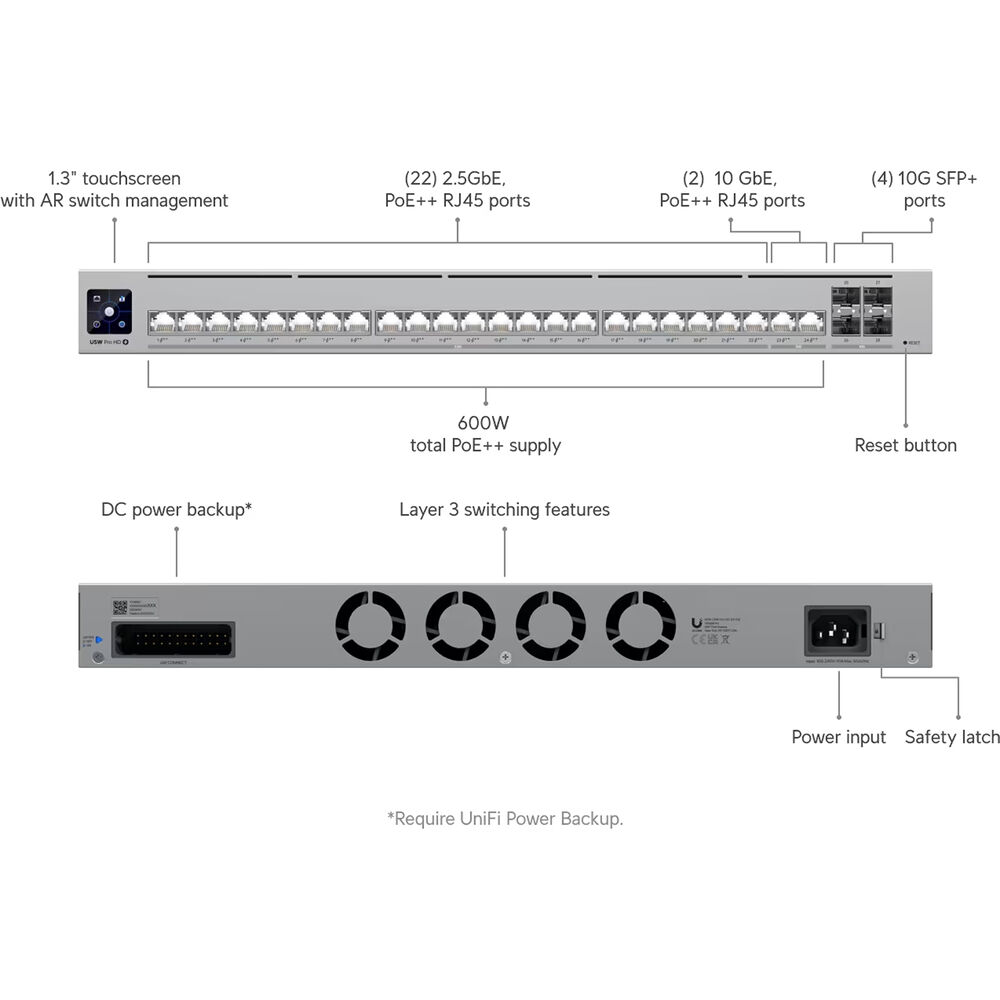

| Inputs/Outputs |
22x RJ45 2.5 GbE PoE++ (60 W, 802.3bt Type 3)
2x RJ45 10 GbE PoE++ (60 W, 802.3bt Type 3) 4x SFP+ 10 GbE |
| Stackable |
No
|
| Switching Bandwidth |
230 Gb/s
115 Gb/s (Non-Blocking) |
| PoE Power Budget |
600 W
|
| Stackable |
No
|
| Layer Services Supported |
Layer 3
|
| Supported Protocols |
DHCP Server
Auto-MDIX/MDI IGMP Snooping IPv4 |
| MAC Address Table Size |
32K
|
| Security Features |
DHCP Snooping
Storm Control |
| Forwarding Rate |
171 Mpps
|
| Switching Bandwidth |
230 Gb/s
115 Gb/s (Non-Blocking) |
| Packet Buffer |
2 MB
|
| PoE per Port |
15.4 to 64 W
|
| PoE Power Budget |
600 W
|
| Power Draw |
660.00 W (Max)
|
| Input Power |
100 to 240 VDC
|
| Power Supply Type |
Internal
|
| Certifications |
CE, FCC, IC
|
| Operating Conditions |
23 to 104°F / -5 to 40°C at 10 to 90% Humidity
|
| Cooling System |
Fan
|
| Material of Construction |
Steel
|
| Indicator Lights |
Yes
|
| Rack Mountable |
Yes 1 U
|

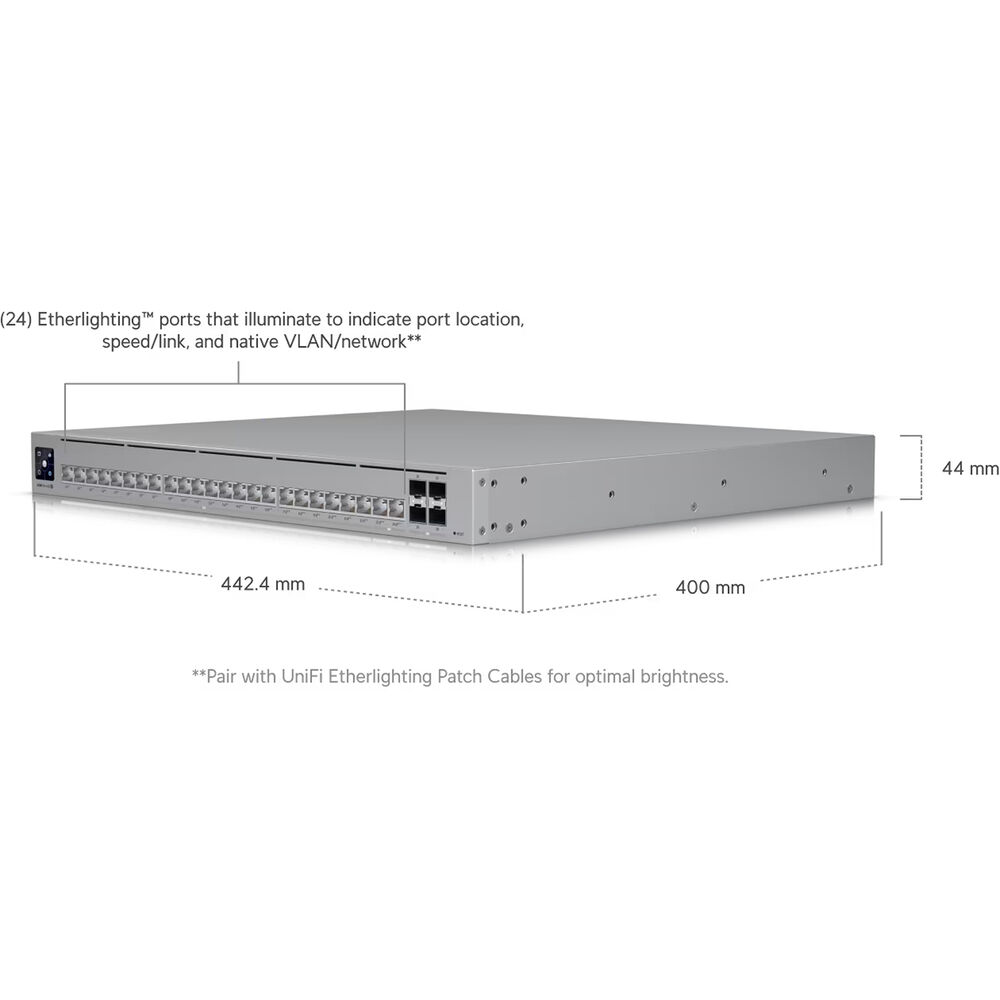

| Dimensions |
17.4 x 15.7 x 1.7" / 442 x 400 x 44 mm
|
| Weight |
13.7 lb / 6.2 kg
|
| Package Weight |
16.815 lb
|
| Box Dimensions (LxWxH) |
23.2 x 20.3 x 4.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 156084.6 |
| 3-5 | ₹ 154491.9 |
| 5-10 | ₹ 151306.5 |
| 10+ | ₹ 148121.1 |
Bulk discount will be automatically applied during checkout based on quantity.
