Description
Thor IPRF-32QAM Overview
This IP to 32 RF Agile QAM Edge Modulator from Thor is a versatile all-in-one device that can convert up to 1024 IP transport streams in UDP/RTP into 32 nonadjacent QAM Channels. This high-density IP to QAM modulator takes content delivered via an IP backbone or CDN system and modulates it onto digital QAM cable channels for distribution over coax.

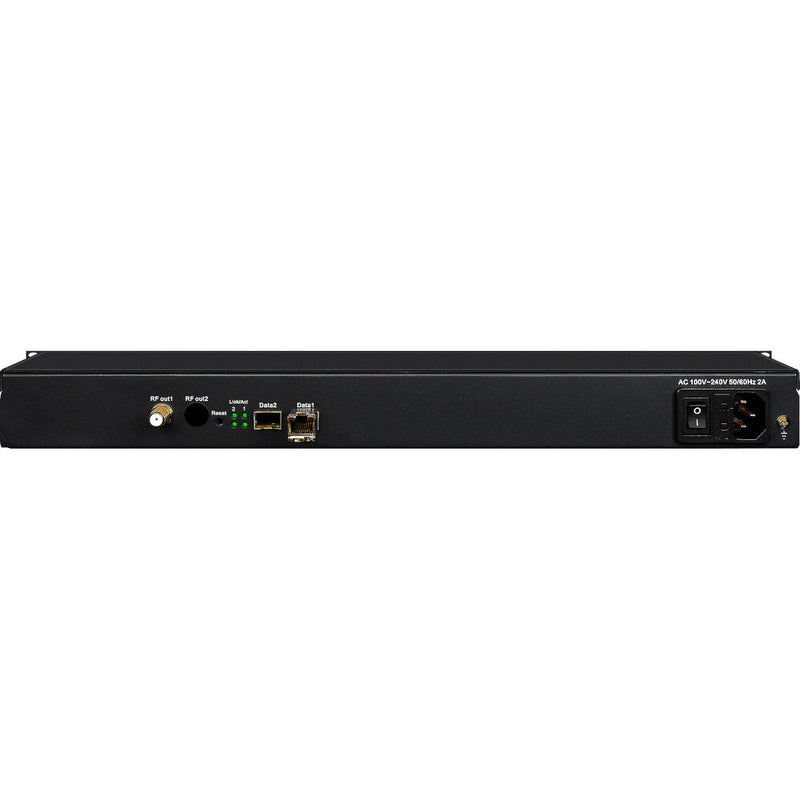

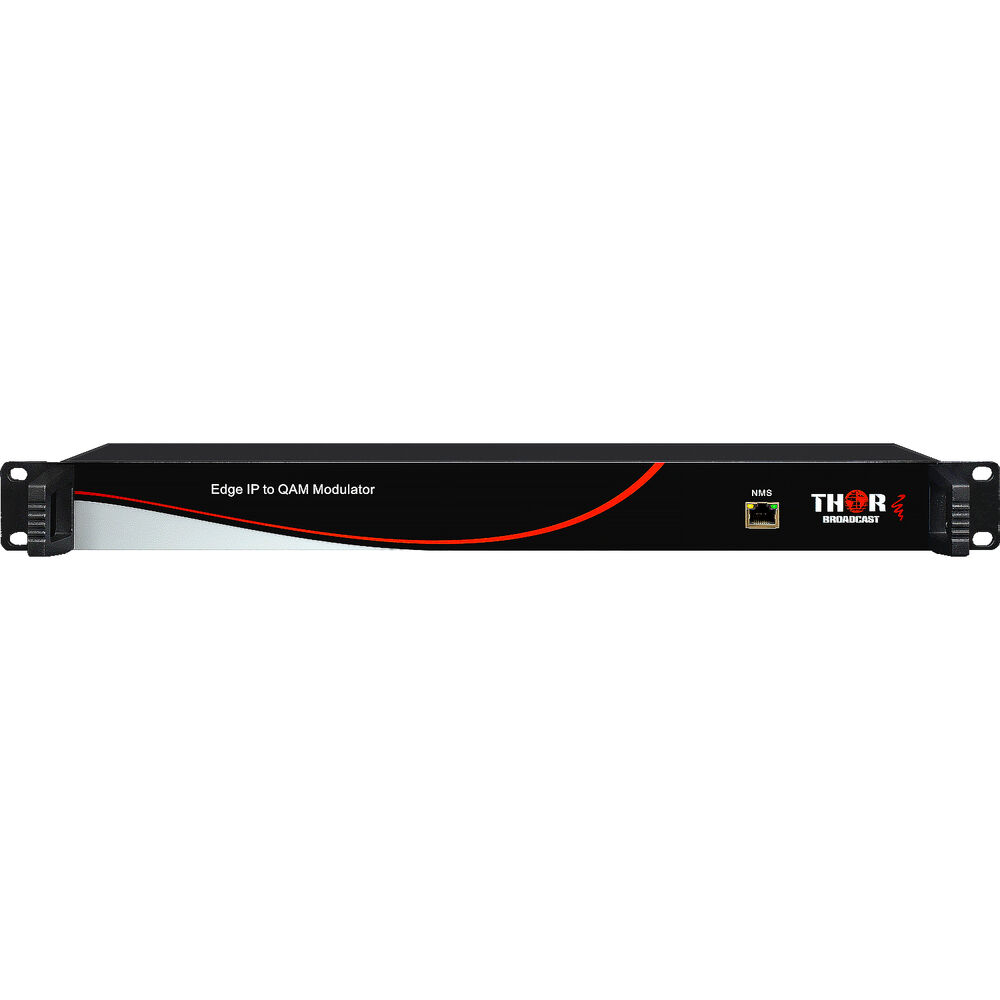

Housed in a 1 RU chassis, it supports two individual Ethernet inputs, each capable of injecting up to 840Mb/s, outputting all programming onto a single RF F-type connector for easy integration into your RF coax infrastructure. This single RU form factor enables you to create your own IP to RF headend within one chassis. All QAM Channels and IP inputs are managed via the NMS RJ45 port on the front of the unit, allowing quick and easy access to your programming through Thor�s user-friendly GUI. The IPTV programming input follows the standard headend format, supporting UDP/RTP unicast/multicast IGMP v2/v3 addresses and port format. This high-density design allows a single chassis to convert an IPTV Ethernet backbone feed into digital cable QAM channels for straightforward distribution.
- Two gigabit Ethernet input interfaces
- 32 clear QAM channel outputs; nonadjacent 50-960 MHz
- Maximum 1024 channels TS over UDP, RTP, and unicast/multicast
- Output of RF on 32 multiplexed, scrambled, or QAM (DVB-C) channels
- Gigabit Ethernet is serviced by SFP interface
- Supports IGMP v2/v3
- Max 840 Mb/s for each GE input
- Supports up to 180 PIDs per channel with PID remapping (manual or auto)
- Web NMS (Network Management Software) for easy online access and management
Items Included
- Thor IP to 32 RF Agile QAM Edge Modulator
- AC Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Thor IPRF-32QAM Specs
| Input |
512 x 2 IP Inputs
2 x 100/1000M Ethernet Ports (SFP) |
| Protocol |
Transport: TS over UDP/RTP Unicast and Multicast, IGMP V2/V3
|
| Transmission |
Max 840 Mb/s for Each Input GE
|
| Channels |
Channel Input: 1024
Output Channel: 32 Max PIDs: 180 per Channel Functions: PID Remapping (Auto/Manual Optional) PCR Accurate Adjusting PSI/SI Table Automatically Generating |
| Functions |
Max Simulscrypt CA: 4
Scramble Standard: ETR289, ETSI 101 197, ETSI 103 197 Connection: Local/Remote Connection Modulation Parameters: QAM Channel: 32 Nonadjacent Carriers Modulation Standard: EN300 429/ITU-T J.83A/B Constellation: 16, 32, 64, 128, 256 QAM FEC: RS (204, 188) |
| Ports |
RF Output:
Interface: 1 x F-Type Output for 16 Carriers, 75-Ohm Impedance RF Range: 50 to 960 MHz, Stepping 1 kHz Output Level: -20 to + 10 dBm, 27 to 57 dbmV, 0.1 dB Stepping MAYOR ? 40 dB ACLR -60 dBc TS Output: 32 IP Output over UDP/RTP/RTSP, Unicast/Multicast 2 x 100/1000M Ethernet Ports System: Network Management Software (NMS) |
| Power Source |
AC Input (Built-In)
|
| AC Input Power |
100 VAC, 50 / 60 Hz
220 VAC, 50 / 60 Hz |
| Power Consumption |
15.4 W
|
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Operating Humidity |
20 to 80%
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
17.3 x 16.5 x 1.8" / 440 x 420 x 44.5 mm
|
| Weight |
10 lb / 4.5 kg
|
