Description
TEKVOX ShareView WPS Overview
Experience the advanced functionality of a 4K multiview switcher with the convenience of a wireless presentation system using ShareView Wireless from TEKVOX. Boasting support for video resolutions up to 4K60 and three levels of wireless network security, the unit facilitates wireless content sharing and provides multiple users to share their screen by connecting via one of the USB-C or HDMI wireless transmitters without the need to download any additional software.
Apple AirPlay and the Android WirelessMedia2 app are fully supported to allow for direct content sharing from tablets and smartphones. The plug-and-play functionality of the ShareView Wireless allows for quick and easy switching between sources, which is complemented by the USB powering simplicity of the wireless transmitters via the integrated ports. When the base unit is connected to a compatible touchscreen, multiple laptops may be controlled, even when employing multiview functionality.
- Supports resolutions up to 4K60
- Display up to four sources at once with powerful and responsive multiview
- Select sources quickly and easily with the push of a button
- HDMI and USB-C connectivity
- No network connection required

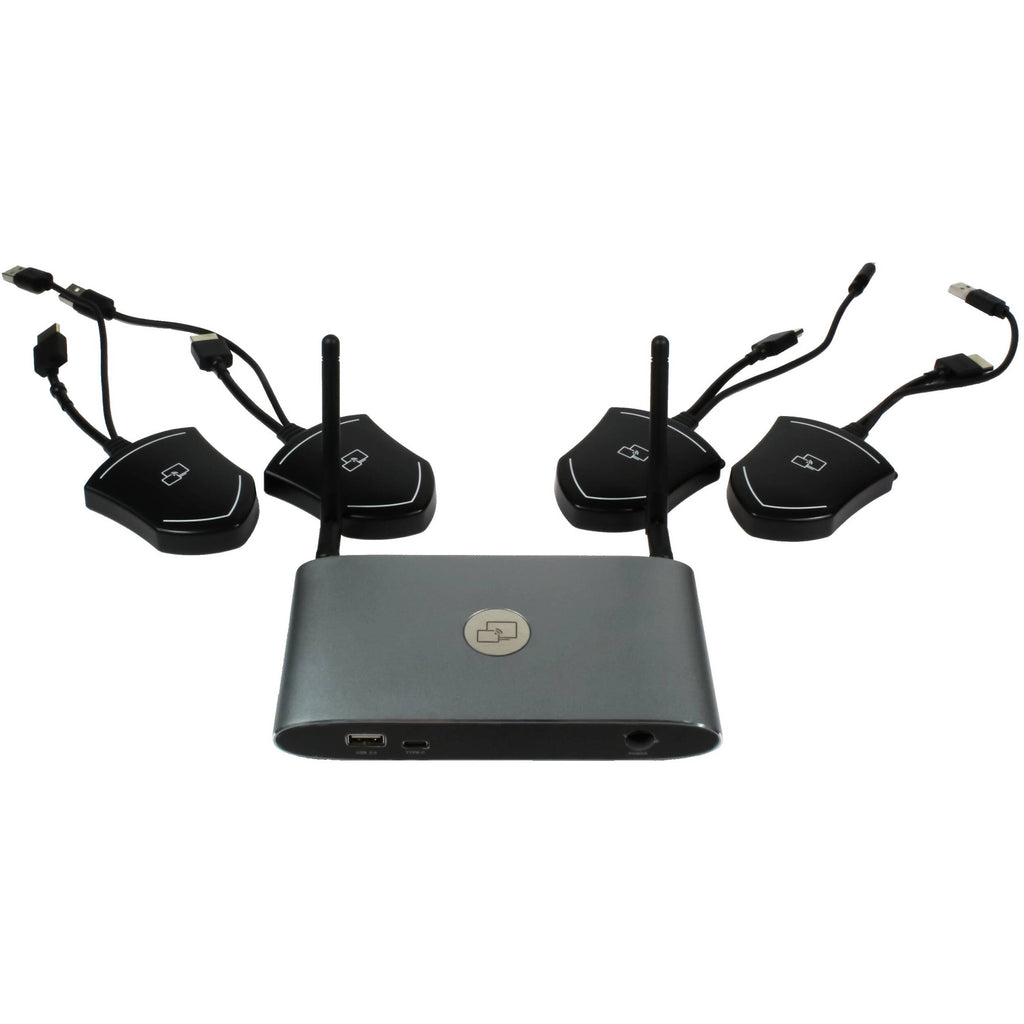

Items Included
- TEKVOX ShareView Wireless Presentation System
- Base Unit
- USB-C Transmitter
- HDMI Transmitter
- 2 x Antenna
- 12 VDC Power Adapter
- Limited Lifetime Warranty
Additional Resources
TEKVOX ShareView WPS Specs
| Resolutions |
4K at 60/30 fps, 1080p at 60 fps
Airplay for iOS Devices: 1080p at 60 fps WirelessMedia2 App: 1080p at 60 fps Show-Me Buttons: 1080p at 60H fps |
| Latency |
20 to 100 ms
|
| Compliance |
HDMI 1.4/2.0
HDCP 1.4/2.2 PoE IEEE802.3af |
| USB I/O |
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input
1 x USB-A 2.0 Female Input 1 x USB-C Female Input |
| Video I/O |
1x HDMI 2.0 Output
|
| Audio I/O |
1x 1/8" / 3.5 mm Line Output
|
| Other I/O |
1 x RJ45 LAN
1 x RJ45 LAN/PoE 1 x 3-Pin Block (RS-232) 2 x Antenna Port |
| Wireless |
Wi-Fi
*Built-In |
| Mobile App Compatible |
Yes: Android & iOS
App Name: AirPlay, WirelessMedia 2 Functionality: Remote Control, Setup, View Live Feed |
| Frequency |
2.4 Ghz, 5 GHz
|
| Data Rate |
Wireless: Up to 1200 Mb/s
|
| Wireless |
Transmission Protocol: Wi-Fi IEEE 802.11 a/g/n/ac
|
| Power Source |
AC Adapter with Power Brick (Included), PoE (Built-In)
|
| AC Input Power |
120 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC
|
| Power Consumption |
10 W
|
| Certifications |
CE, FCC
|
| Operating Conditions |
-4 to 140°F / -20 to 60°C at 20 to 90% Humidity
|
| Dimensions |
6.5 x 4.9 x 1" / 165 x 125 x 24.5 mm
|
| Weight |
7.1 oz / 200 g
|
| Package Weight |
3.85 lb
|
| Box Dimensions (LxWxH) |
11 x 8.4 x 6.6"
|
