Description

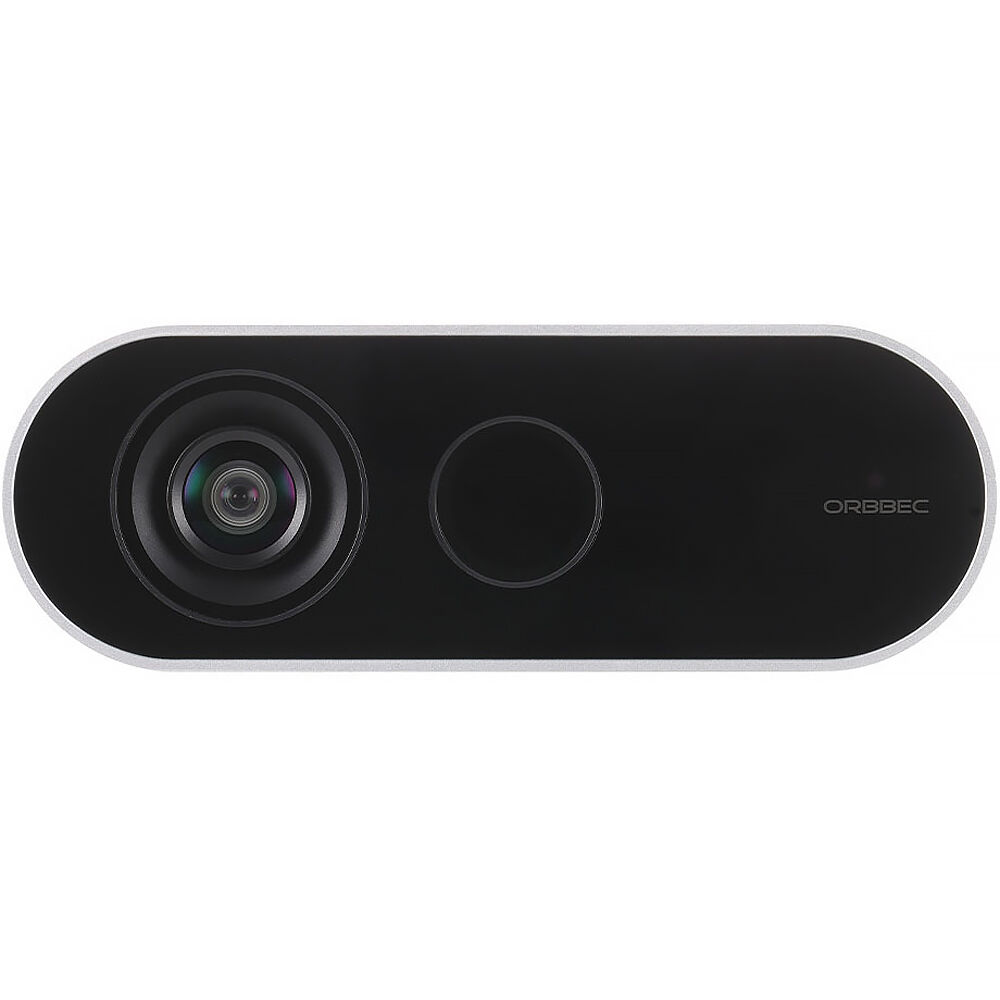

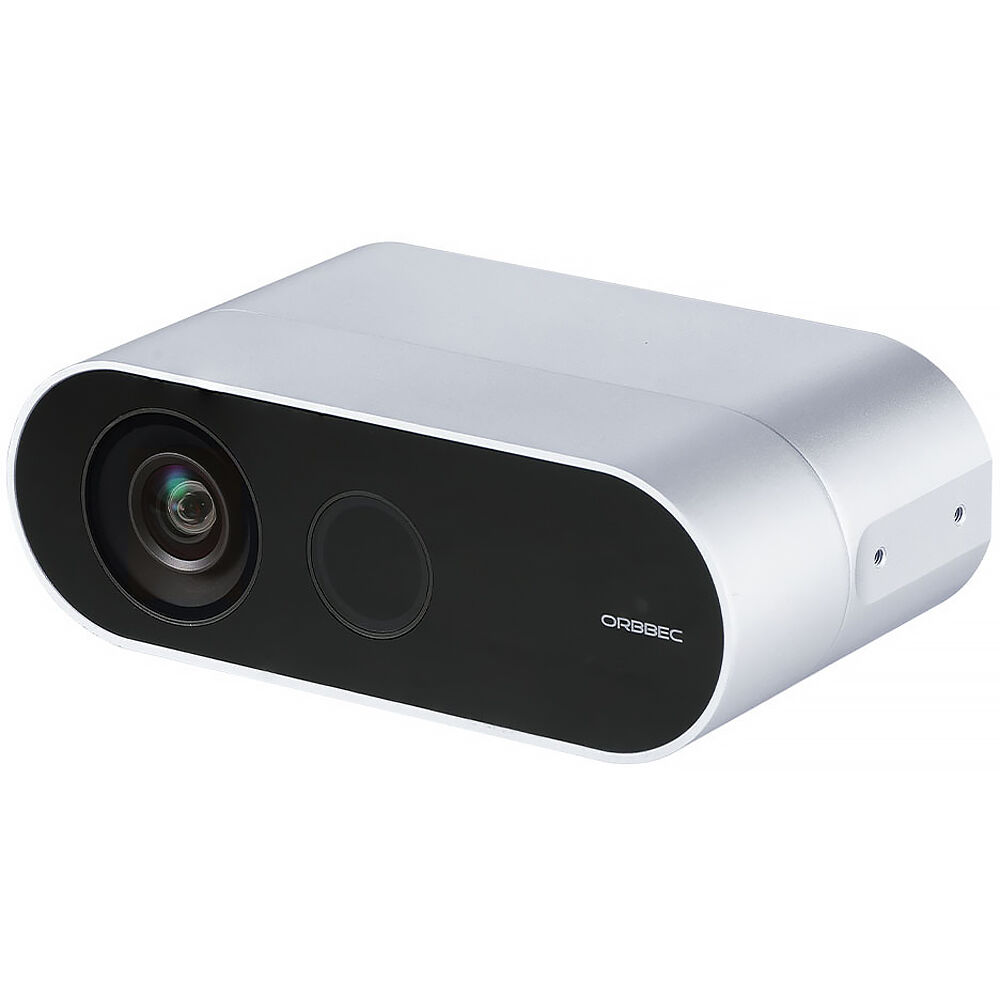

Orbbec Femto Bolt Overview
Designed for AI developers using 3D vision applications, the Femto Bolt Depth Camera from Orbbec is a high-performance device with multi-mode depth and RGB cameras that deliver resolutions up to 3840 x 2160 at 5, 15, 25, and 30 fps. Its 1MP sensor delivers a 120° FOV, while HDR functionality helps preserve details. This camera uses Microsoft's ToF technology and has operating modes and performance that are similar to the Microsoft Azure Kinect and Orbbec Femto Mega. Also featured are rolling and global shutters, wavelength sensitivity up to 850nm, and a USB-C 3.2 Gen 1 interface that delivers power and data. The camera may also be powered using an included AC adapter.
Features
- Depth camera with 1MP ToF sensor and 120° FOV
- 4K RGB with HDR
- IMU: 6DoF
- Data interface: USB-C 3.2 Gen 1
- Power: USB-C/DC, 4.35W average
- Trigger/Sync Control
- SDK: Windows or Linux
Performance and Programmability
- High resolution and high accuracy across a wide range of operation
- Wide Field of View covers a large area
- HDR (High Dynamic Range) function for RGB preserves details
- Easy camera setup with a rich set of APIs for various applications
Ease of Use for AI Developers and Commercial Applications
- Depth and RGB cameras and IMU in a single device
- Combined data and power with USB-C 3.2 Gen 1 connection
- High-precision synchronization trigger control
UPC: 850063467063
Items Included
- Orbbec Femto Bolt Depth Camera
- USB-C to USB-C Power/Data Cable
- AC to DC Power Supply/Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
Orbbec Femto Bolt Specs
General
| Wavelength |
850 nm
|
| Processing |
Host
|
| Shutter Type |
|
| IMU |
|
| Mirror Mode |
Supported, Non-Mirror by Default
|
| Operating Modes |
|
| RGB |
|
| Supported Functions |
D2C, Multi-Camera Sync
|
| NFOV Binned |
|
| NFOV Unbinned |
|
| WFOV Binned |
|
| WFOV Unbinned |
|

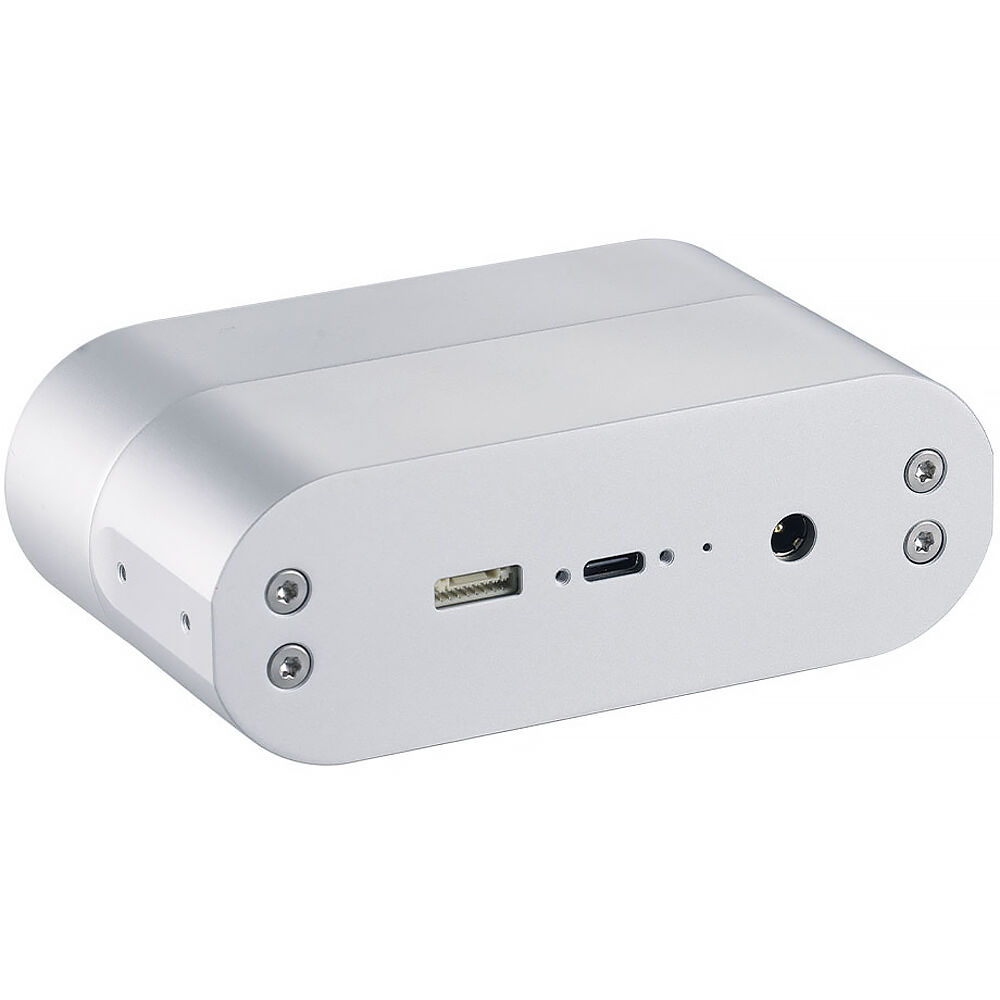

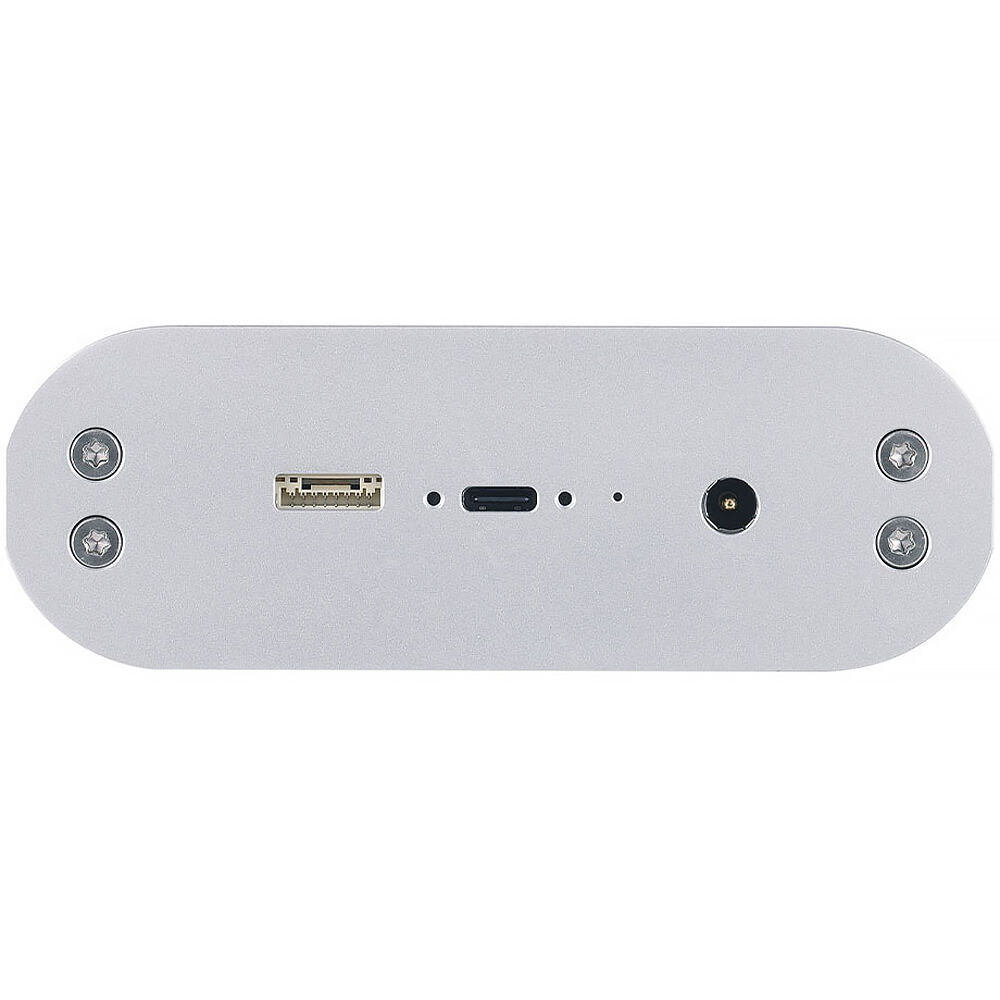

Inputs/Outputs
| USB I/O |
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Integrated Male Input/Output
|
| Trigger Sync |
8-Pin Connector for Multi-Device Sync
|
Wireless
| Mobile App Compatible |
No
|
Power
| Power Source |
AC Adapter with Power Brick, USB
|
| Power Consumption |
4.35 W (Typical)
|
| Power |
DC/USB-C
|
| Power Input |
12 VDC/2 A
5 V/3 A USB-C |
Physical
| Mounting |
Bottom: 1x 1/4"-20
Side: 4x M2.5 |
| Color |
Black / White
|
| Certifications |
CE, FCC, REACH, RoHS, WEEE
|
| Dimensions |
4.5 x 2.6 x 1.6" / 115 x 65 x 40 mm
|
| Weight |
11.8 oz / 335 g
|
Packaging Info
| Package Weight |
1.565 lb
|
| Box Dimensions (LxWxH) |
9.5 x 6.5 x 3.1"
|
