Description
OCTAMAS gear 91004404 Overview

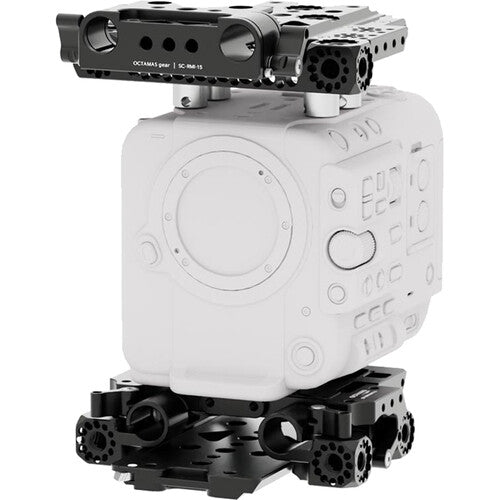

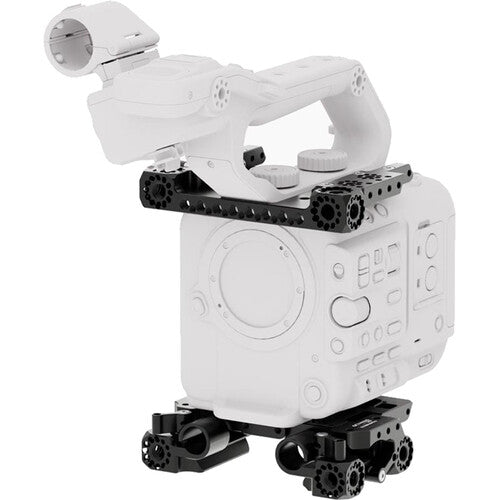

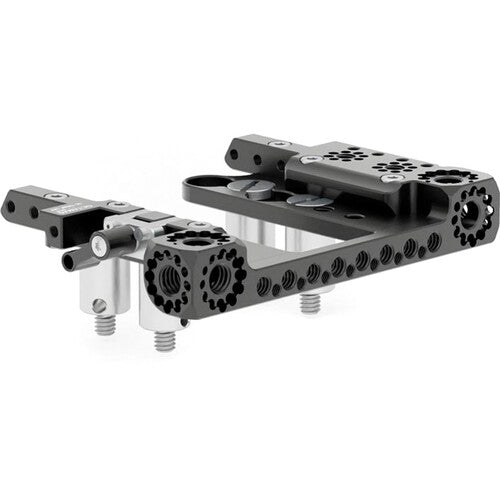

Add numerous accessories to the top of your Sony FX6 camera rig with this SC Top Interface Plate from OCTAMAS gear. Part of the OCTAMAS gear SWISS Cage system, the aluminum plate mounts onto the top of the camera, and it provides multiple 3/8"-16 ARRI-style anti-twist mounts, as well as 1/4"-20 and M4 accessory threads. It is compatible with separately available ARRI-standard dovetail plates. Also included are four riser threads that can be used to ensure an optical center with optional 15mm top mounts.
Features
- Low-profile top interface plate for the Sony FX6
- ARRI-standard dovetail plates can easily be adjusted in the fore/aft position, allowing flexible use of top handles and/or accessories
- The plate further offers 3/8"-16 ARRI anti-twist mounting threads with a 30° angle adjustment and several 1/4?-20 and M4 mounting threads

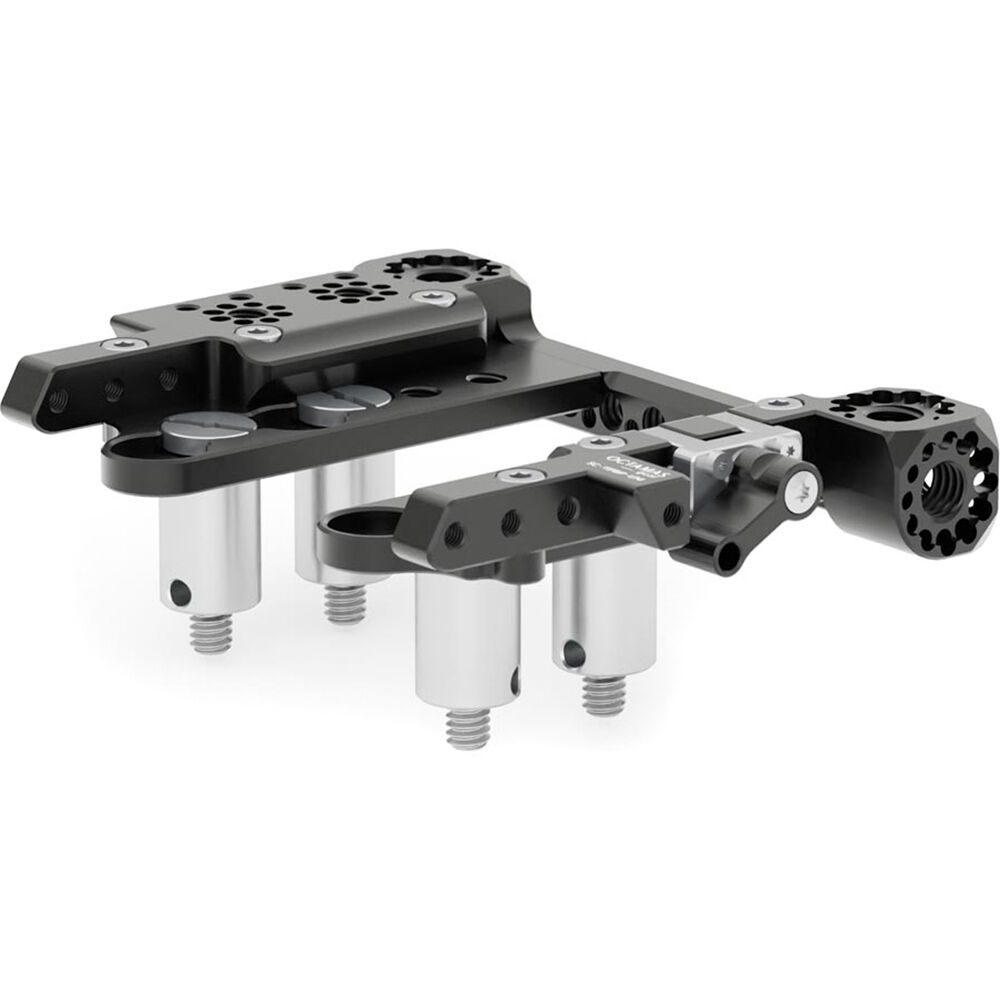

- Four riser studs to achieve true optical center when using top 15mm LWS, 15mm Studio, or 19mm rods
- Without the riser studs, you can build compact rigs
- ARRI standard dovetail mount
Items Included
- OCTAMAS gear SC Top Interface Plate for Sony FX6
- 4 x 1/4"-20 Screw
- Focus Hook
- Thumbscrew
- 4 x Riser Stud
- Allen Wrench
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
OCTAMAS gear 91004404 Specs
General
| Compatibility |
OCTAMAS gear SWISS Cage System
Sony FX6 Camera |
Physical
| Mounting |
Multiple 1/4"-20 Threads
Multiple M4 Threads Multiple 3/8"-16 Anti-Twist Threads 4x Risers 1x ARRI-Standard Dovetail Clamp |
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
5 x 3.7 x 0.8" / 127 x 94 x 20 mm
1.1 x 0.6 x 0.6" / 29 x 15 x 15 mm (Each Riser) |
| Weight |
6.4 oz / 181 g
0.9 oz / 26 g (Each Riser) |
Packaging Info
| Package Weight |
0.665 lb
|
| Box Dimensions (LxWxH) |
9.5 x 6.8 x 3.2"
|
