Description
OCTAMAS gear 16004427 Overview

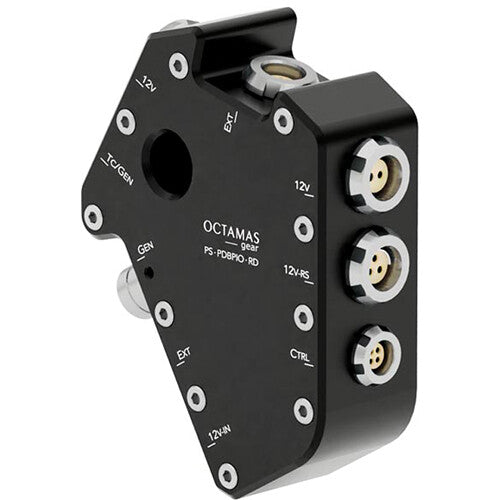

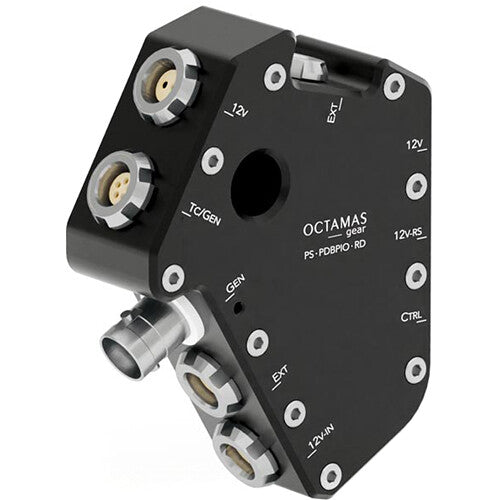

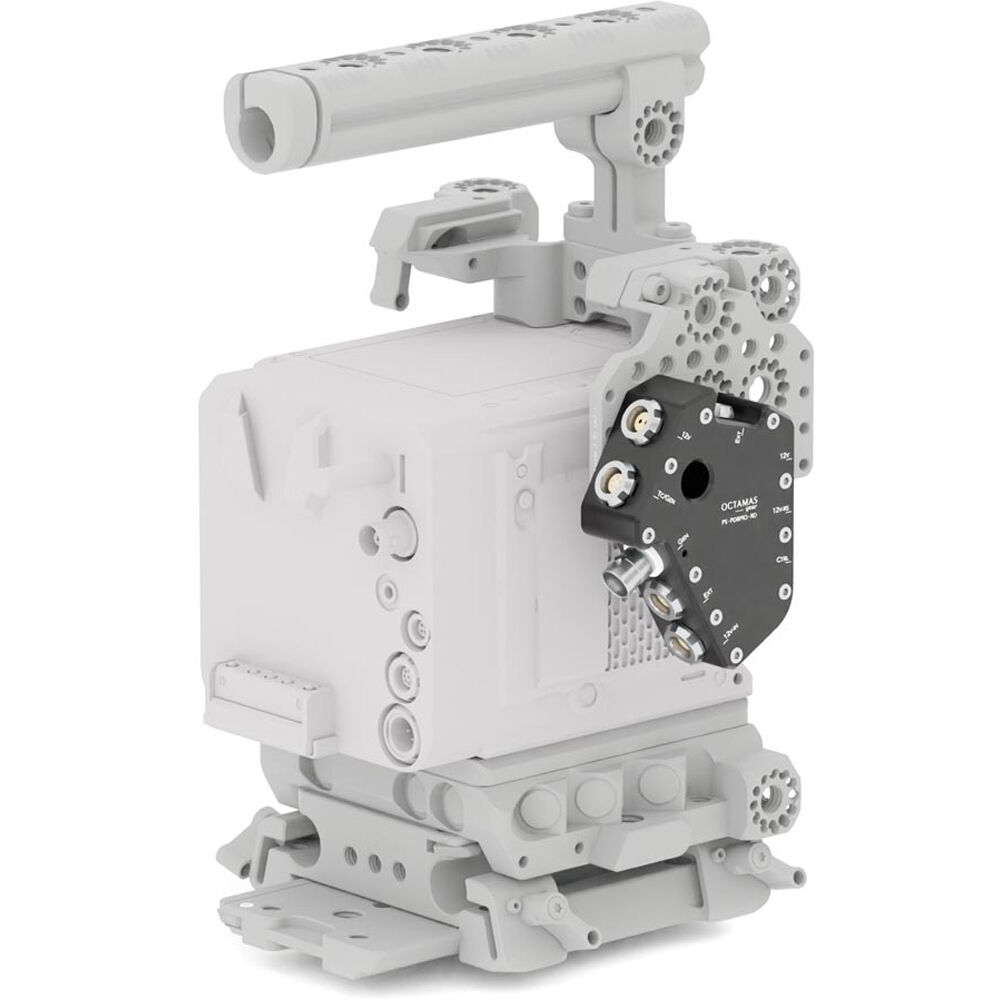

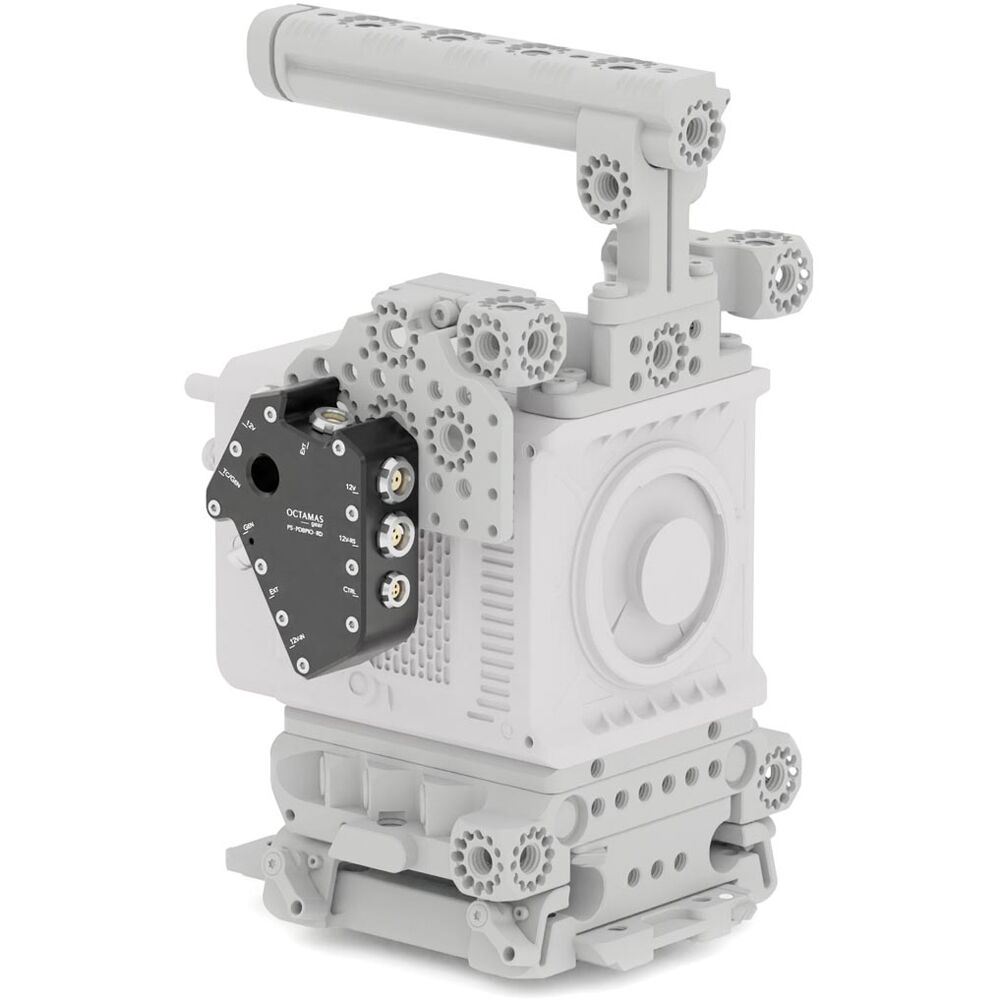

Distribute power to various accessories from your RED DSMC3 camera with the Power Distribution Box Pro I/O from OCTAMAS gear mounts onto the SC 15mm Top Interface Plate for your RED V-RAPTOR, KOMODO, or KOMODO-X DSMC3 camera to provide additional power distribution for accessories in a compact form.

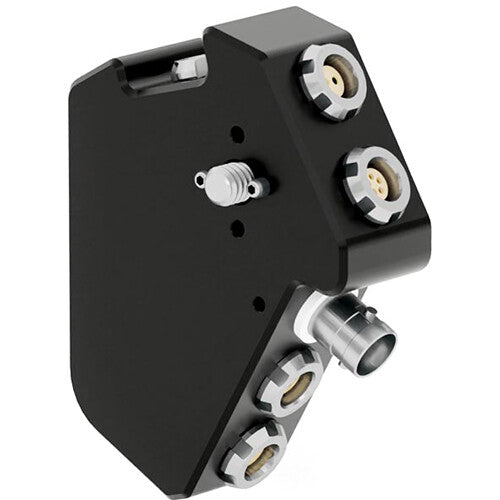

The plate mounts onto the camera using a captive 1/4"-20 or 3/8"-16 screw and connects to the camera via the 9-pin camera EXT output. Its connectors include a 9-pin pass-through for additional breakout devices, one 12V 3-pin Fischer run/stop port, two 2-pin LEMO-type aux/power outputs, one 2-pin aux/power input, a 4-pin CTRL RCP2 port for camera control, a 5-pin SMPTE timecode port, and a BNC genlock port.
Items Included
- OCTAMAS gear Power Distribution Box Pro I/O for Select RED DSMC3 Cameras
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
OCTAMAS gear 16004427 Specs
| Compatibility |
RED V-RAPTOR Camera / KOMODO Camera / KOMODO-X Camera
|
| Connectors |
1 x 9-Pin 0B RED EXT Input
1 x 9-Pin 0B RED EXT pass-through for SmallHD or use of 9-pin breakout devices and triggers 1 x 4-Pin 00B RED CTRL RCP2 Port (SmallHD , c-Motion, ARRI, Others) 2 x 2-Pin 0B AUX/PWR Unregulated Direct Power from DC or Battery 1 x 3-Pin 12 VDC Fischer RS with Trigger Protocol 1 x 5-Pin 0B SMPTE Timecode In/Out and Genlock (Ambient Style) 1 x BNC Genlock 1 x 2-Pin 12 VDC Power Input |
| Wireless |
Yes
|
| Power Source |
Plug-In Power
|
| Mounting |
1x 1/4"-20 Anti-Twist Screw
|
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
3.1 x 2.2 x 0.9" / 78 x 57 x 24 mm
|
| Weight |
4.5 oz / 128 g
|
