| ₹ 106675.0 includes GST and import duties. | |
| B2B customers can avail ₹ 16267.94 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

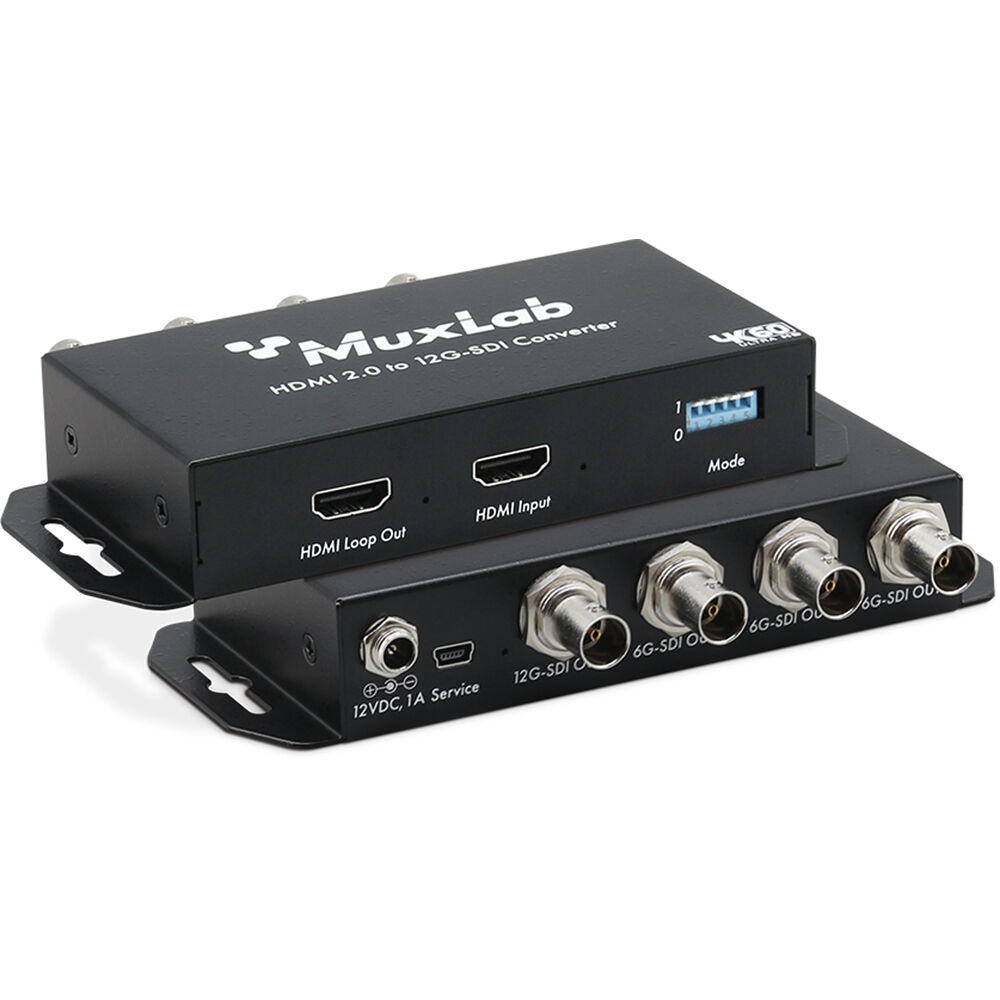

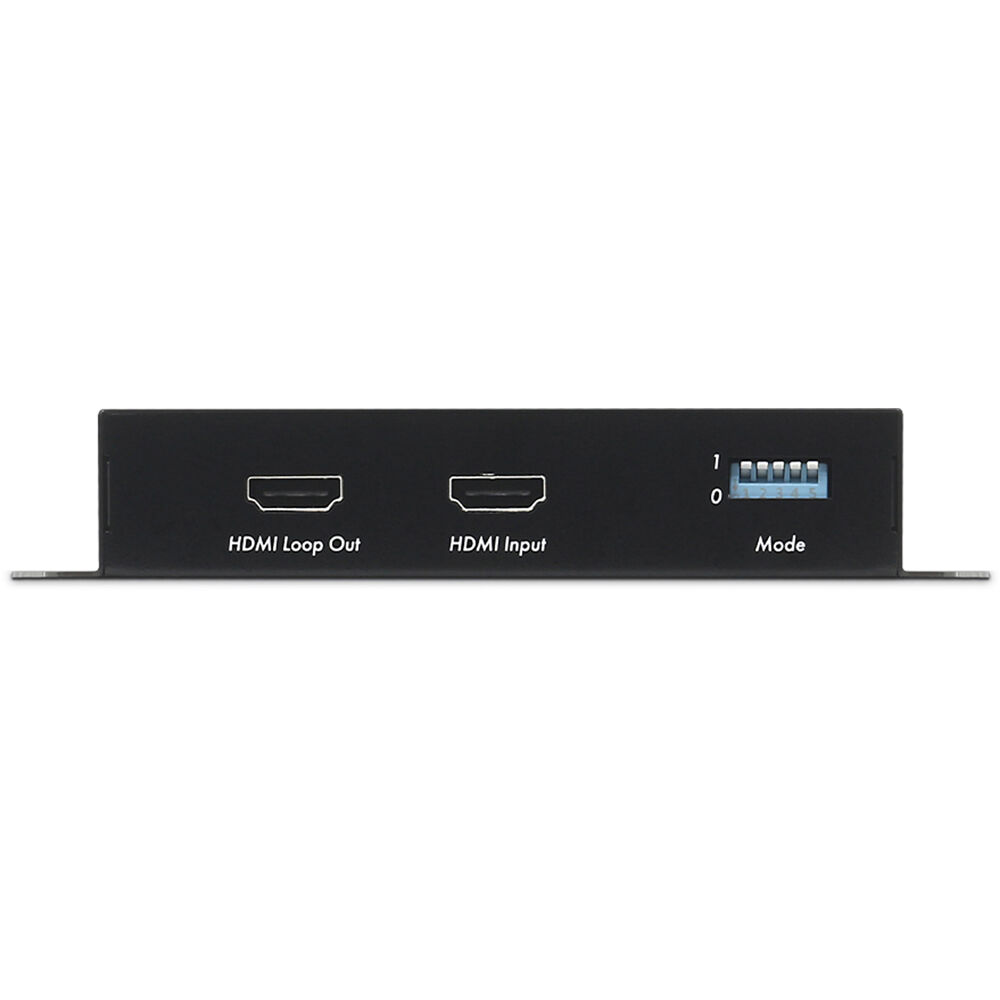

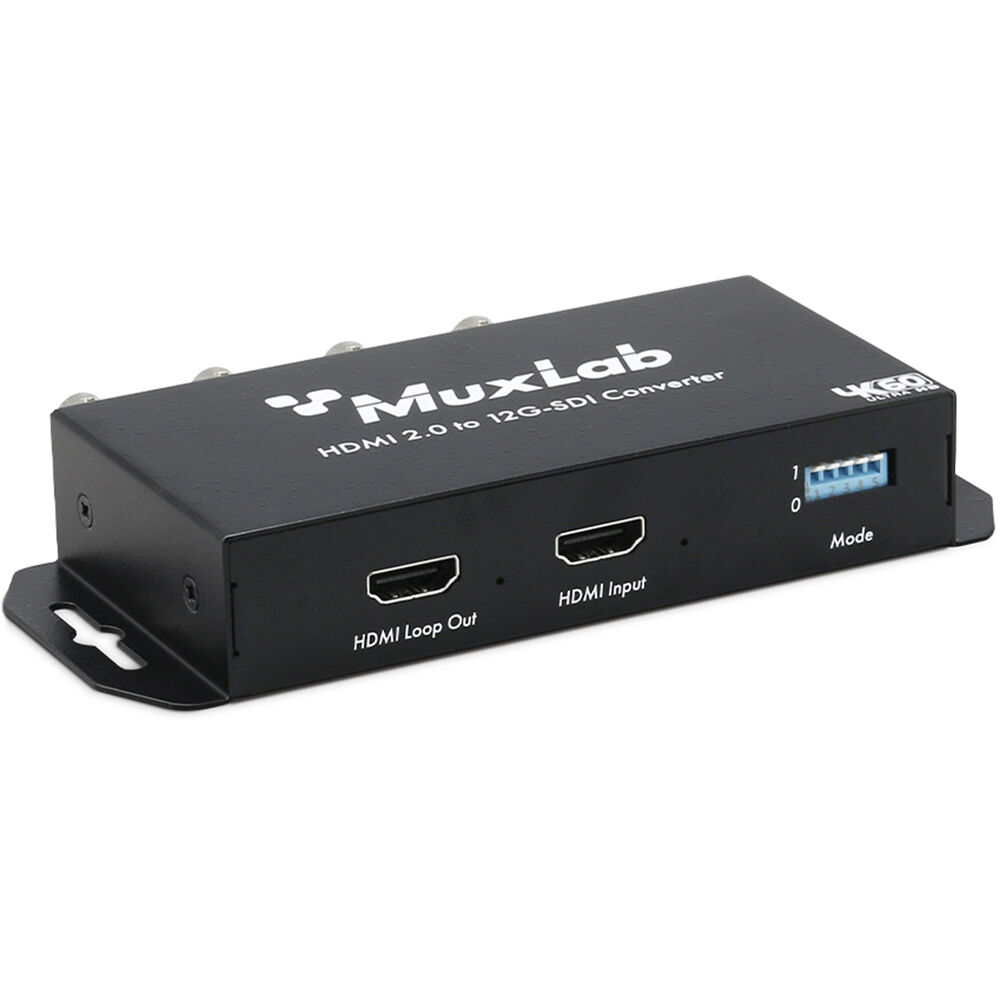

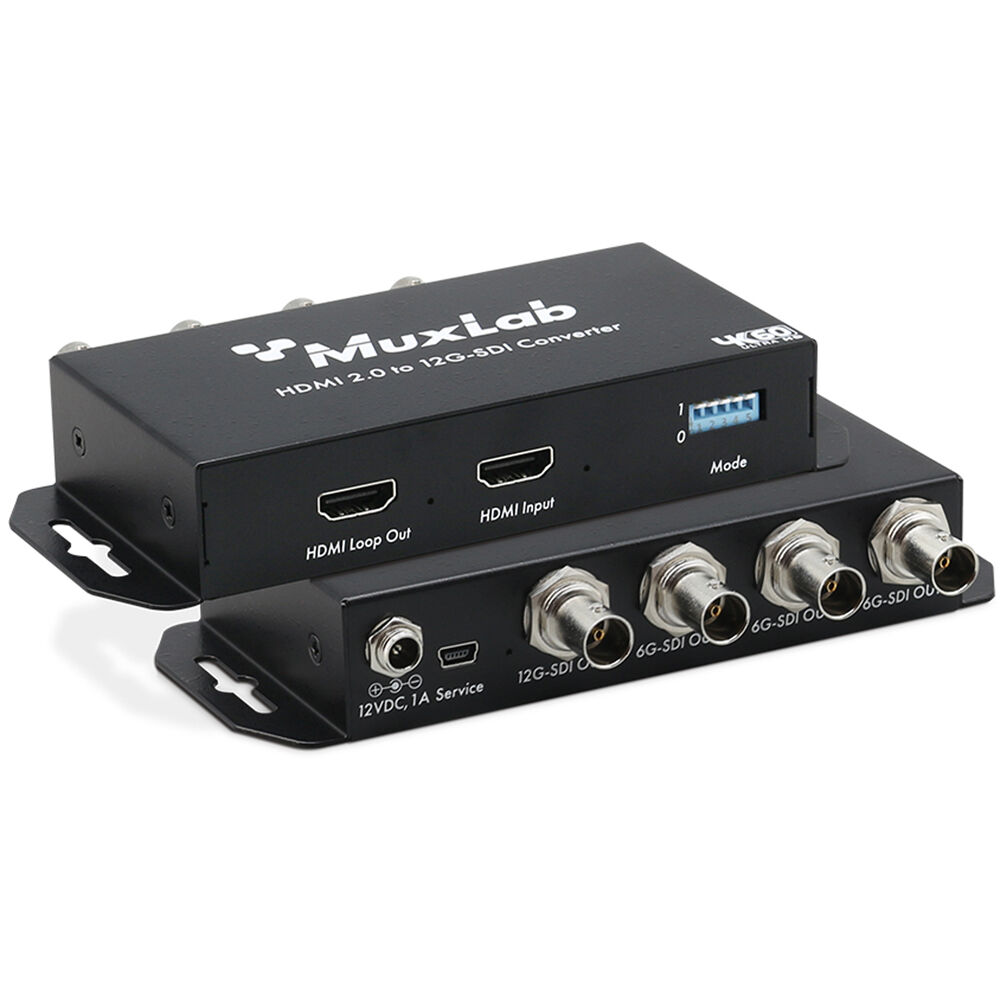

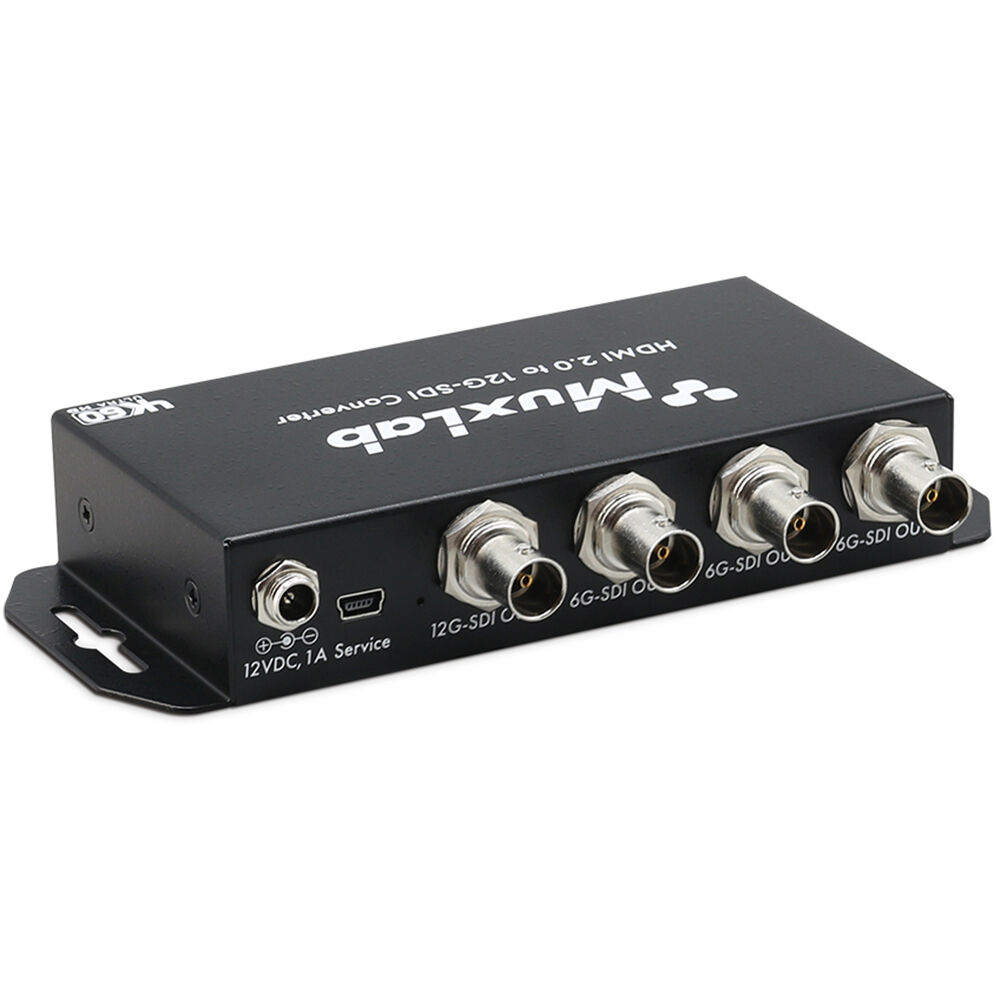

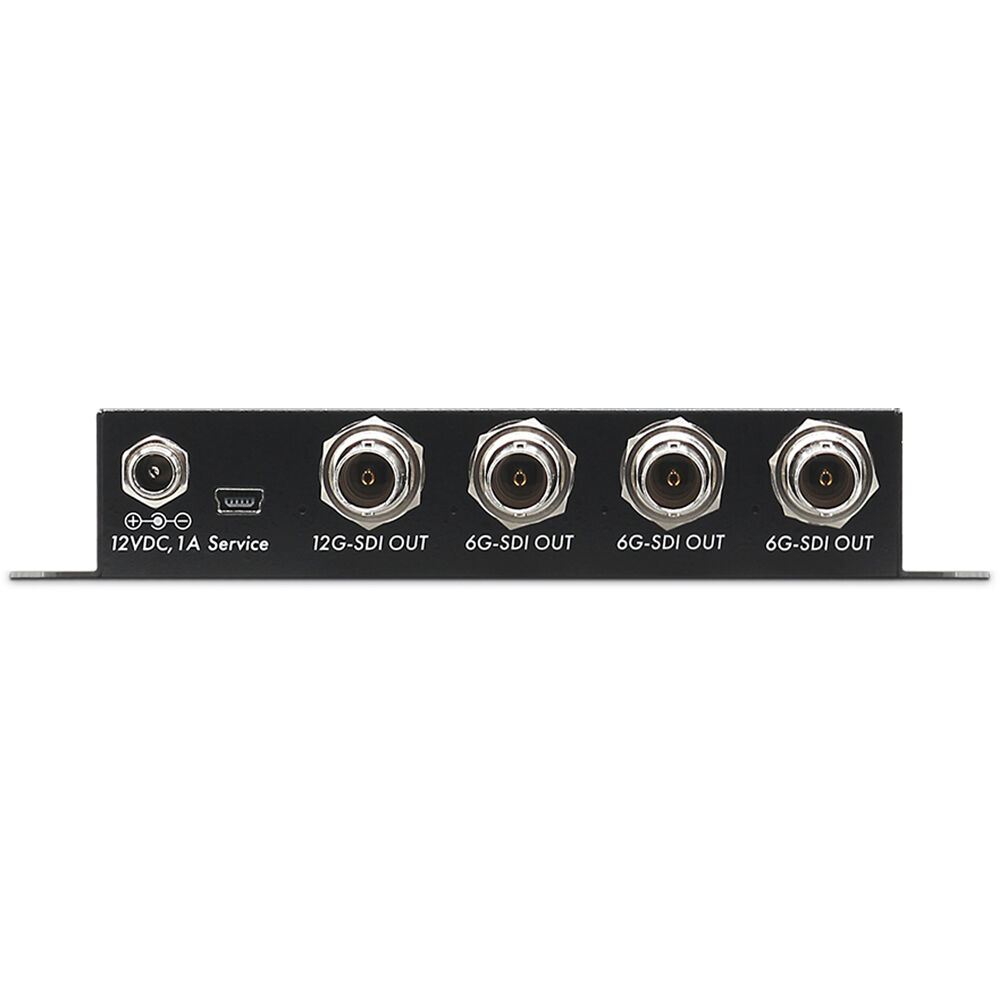

MuxLab HDMI 2.0 to 12G-SDI Converter Overview
Ultracompact and rugged, the HDMI 2.0 to 12G-SDI Converter from Muxlab enables you to link HDMI cameras or computers to SDI displays or components in a variety of environments, such as broadcasting, imaging, and events. This compact converter has one HDMI 2.0 input and four SDI outputs that support individual 3G/HD-SDI signals, three 6G-SDI signals, or one 12G-SDI signal. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to DCI/UHD 4K60.
The mini-USB port enables the converter to easily connect to a computer for firmware updates, configuration, and control via Muxlab SDI Manager software. A 12V power supply is included with the converter.
- Wide support for HDMI 2.0 resolutions up to DCI 4K60
- Local HDMI 2.0 loop out
- Supports SDI single-link, dual-link, and quad-link modes
- Supports quad link 2 Sample Interleave (2SI)
- Multi-standard support (12G-, 6G-, 3G-, HD-, and SD-SDI)
- Auto source format detection
- Supports 8-channel, 24-bit audio formats
- Easy plug-and-play installation
- Configure via USB port and the MuxLab SDI software
- Manager software available for easy control and firmware upgrade
- Rugged design and integrated brackets for easy mounting
- Video production and broadcasting
- Studio-to-studio and postproduction
- Outside broadcasting vehicle
- Mobile video and live events
- HDMI camcorders
- Medical imaging
Items Included
- MuxLab HDMI 2.0 to 12G-SDI Converter
- Universal Power Supply
- International Plug Kit
- USB-A to Mini-USB Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
MuxLab HDMI 2.0 to 12G-SDI Converter Specs
| Video I/O |
Input
1x HDMI 2.0 Female Output 1x HDMI 2.0 Female (Loop Output) 1x BNC (12G-SDI) Female 3x BNC (6G-SDI) |
| Video Resolution |
BNC Input (4:4:4)
4096 x 2160 up to 24/25/30/50/60 fps 3840 x 2160 up to 25/30/50/60 fps 1920 x 1080p up to 24/25/30/50/60 fps 1920 x 1080i up to 50/60 fps 1280 x 720 up to 50/60 fps |
| Audio Format |
Unspecified Digital Signal Input: 48 kHz / 24-Bit
Unspecified Digital Signal Output: 48 kHz / 24-Bit Unspecified Digital Signal Output: 192 kHz / 24-Bit |
| Broadcast System Compatibility |
NTSC, PAL
|
| Wireless |
No
|
| Other I/O |
Input
1x Mini-USB (Firmware) |
| Expansion Slots |
No
|
| Latency |
No
|
| Video Resolution |
BNC Input (4:4:4)
4096 x 2160 up to 24/25/30/50/60 fps 3840 x 2160 up to 25/30/50/60 fps 1920 x 1080p up to 24/25/30/50/60 fps 1920 x 1080i up to 50/60 fps 1280 x 720 up to 50/60 fps |
| Audio Format |
Unspecified Digital Signal Input: 48 kHz / 24-Bit
Unspecified Digital Signal Output: 48 kHz / 24-Bit Unspecified Digital Signal Output: 192 kHz / 24-Bit |
| Embedded Audio |
HDMI/SDI: 8-Channel
|
| HDR Support |
Yes
|
| Broadcast System Compatibility |
NTSC, PAL
|
| Wireless |
No
|
| Power I/O |
1x Barrel (12 VDC ) Input
|
| Operating Conditions |
32 to 72°F / 0 to 40°C up to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity
|
| Dimensions |
6 x 3.2 x 1" / 153 x 80.7 x 26 mm
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 104541.5 |
| 3-5 | ₹ 103474.75 |
| 5-10 | ₹ 101341.25 |
| 10+ | ₹ 99207.75 |
Bulk discount will be automatically applied during checkout based on quantity.
