Description

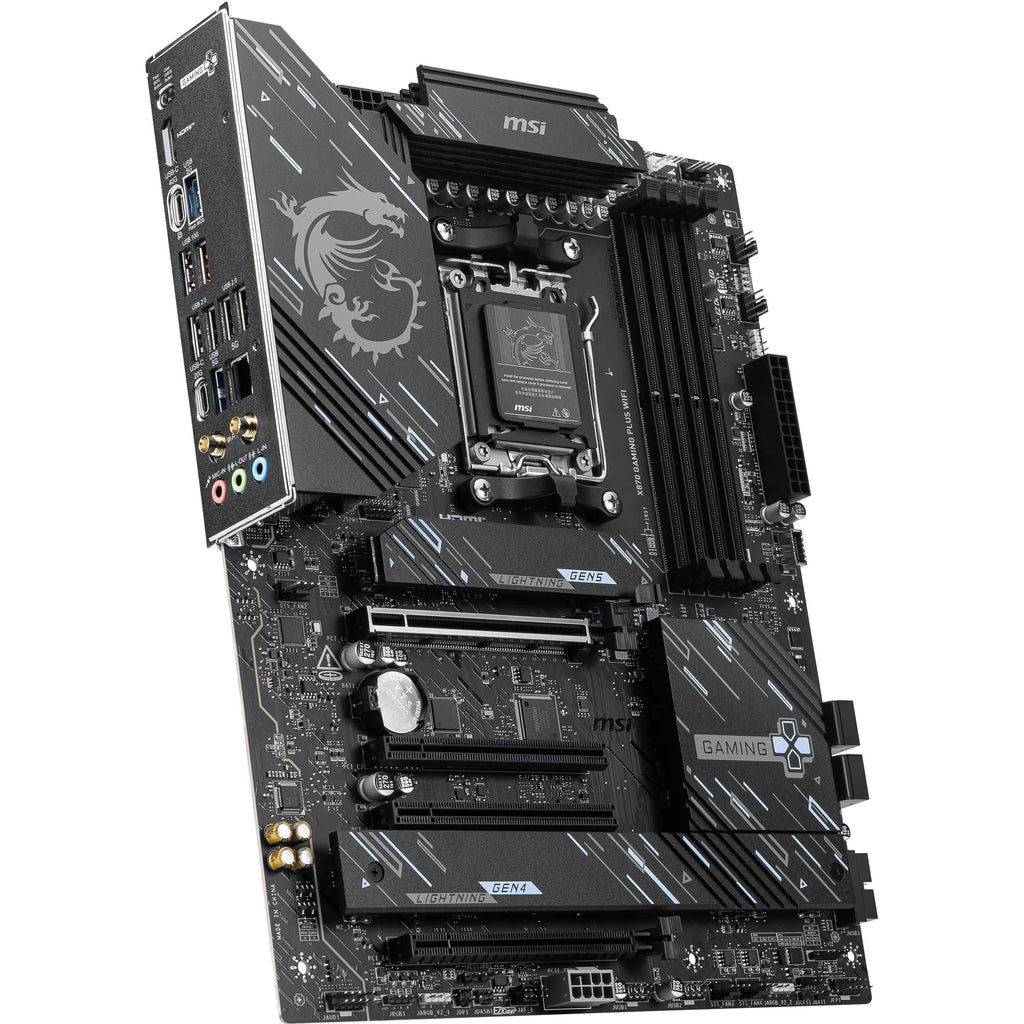

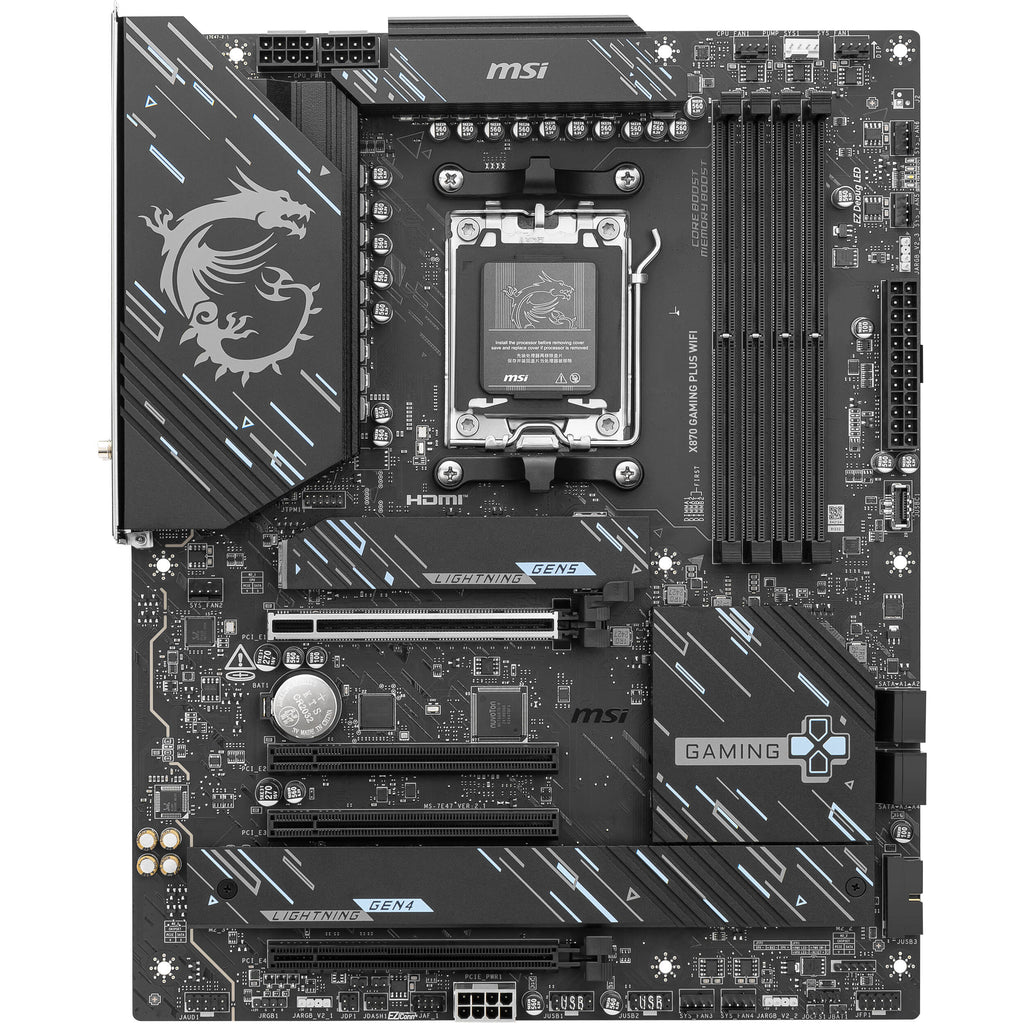

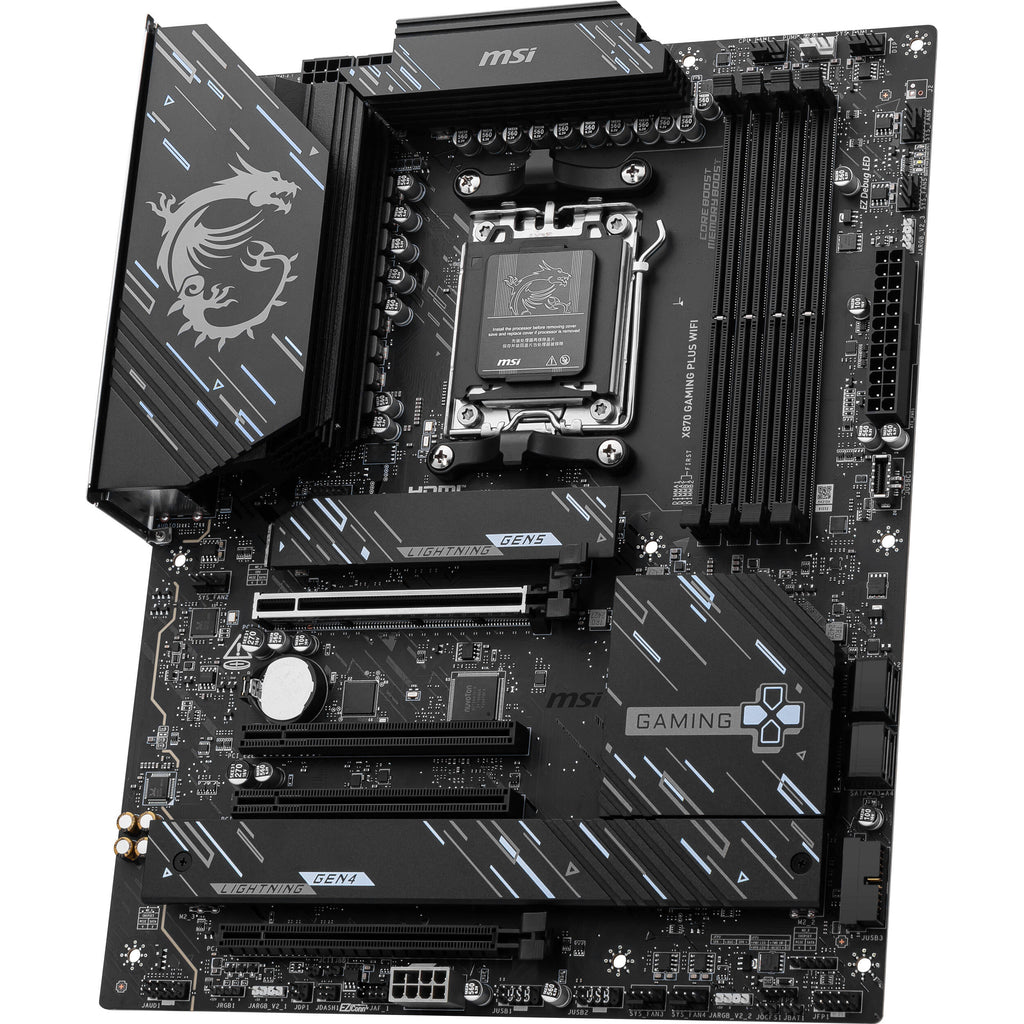

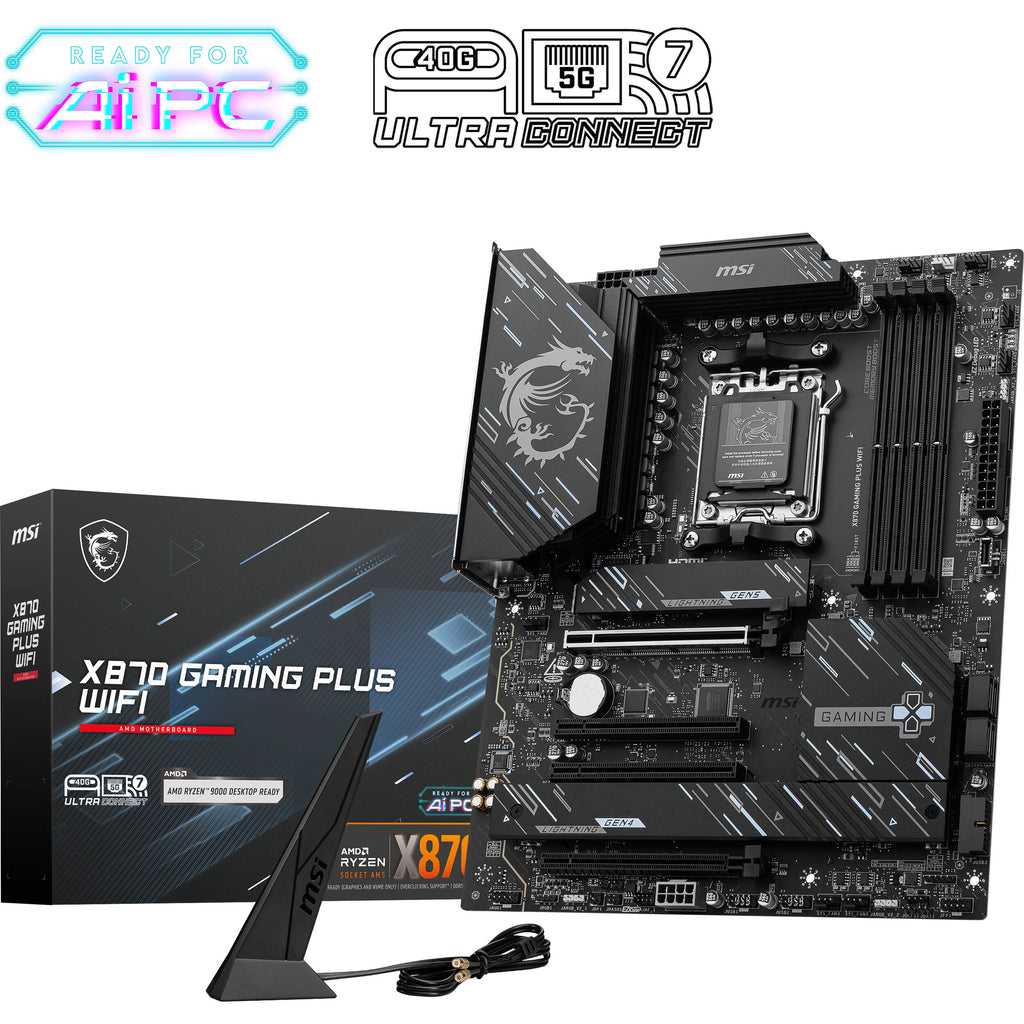

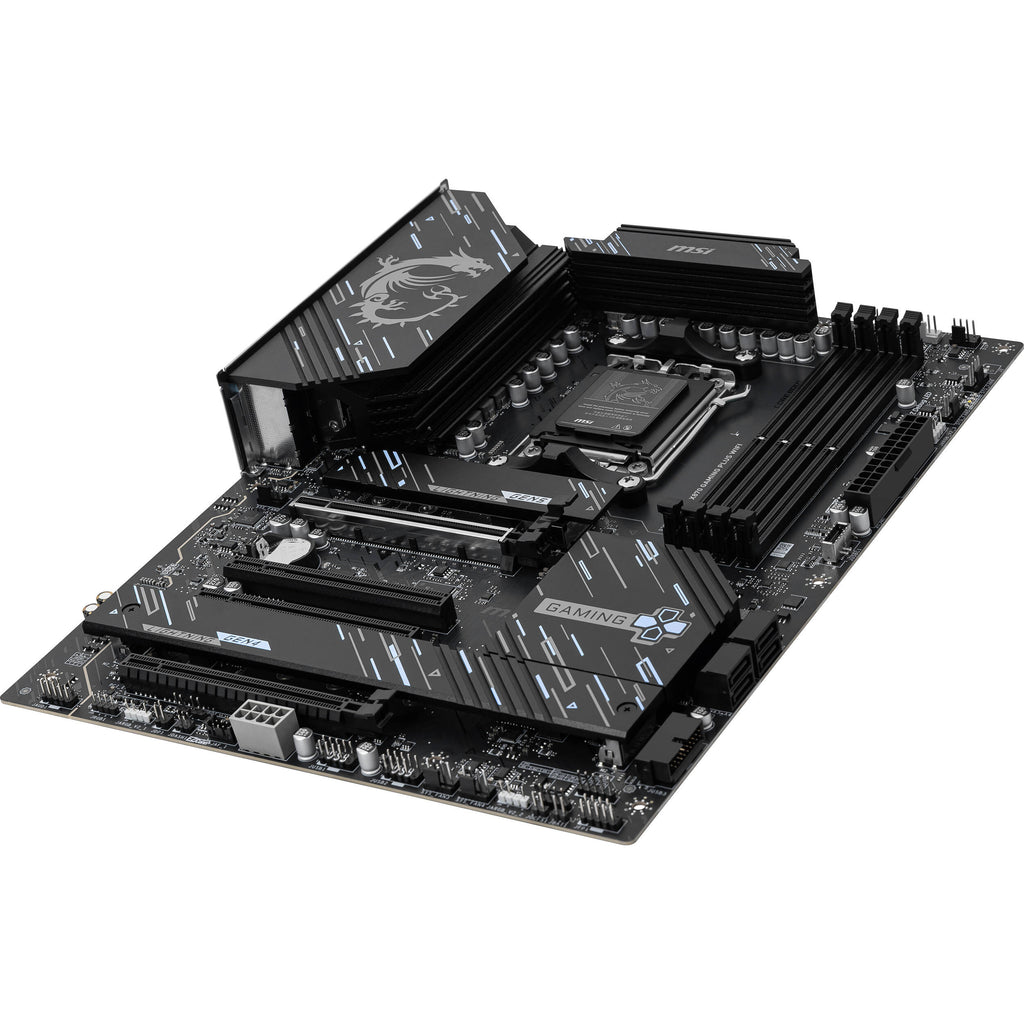

MSI X870 GAMING PLUS WIFI Overview
Lay the foundation of your next gaming rig with the X870 GAMING PLUS WIFI AM5 ATX Motherboard from MSI. Featuring a premium design with support for overclocking, this motherboard delivers a comprehensive and versatile experience for gamers looking to optimize their setup.

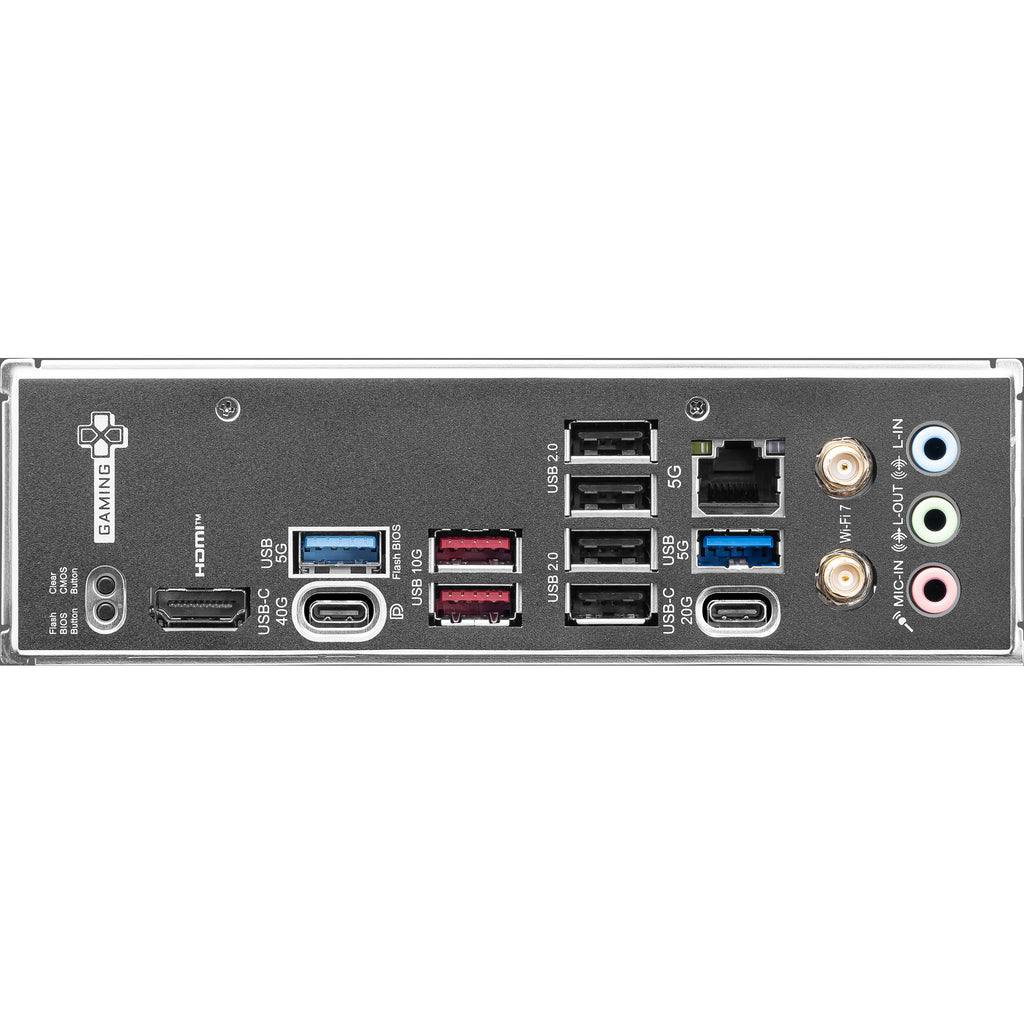

Supporting the AMD AM5 socket and X870 chipset, you can install an AMD Ryzen 7000, 8000, or 9000 series processor and customize the performance to fit your needs. Up to 256GB of dual-channel 8200 MHz DDR5 memory may be installed in overclocked mode across four slots to deliver smooth multitasking. A PCIe 5.0 x16 expansion slot allows you to utilize Nvidia's 50-series graphics cards and still have access to additional PCIe 3.0 and 4.0 slots. In addition to four SATA III drives, you can install lightning-fast SSDs into the M.2 NVMe PCIe 5.0 slot and the two additional M.2 NVMe PCIe 4.0 slots. The rear panel includes extensive connectivity, including one 40 Gb/s USB-C port, one 20 Gb/s USB-C port, two 10 Gb/s USB-A 3.2 Gen 2 ports, two 5 Gb/s 3.2 Gen 1 USB-A ports, as well as four USB 2.0 connectors. Integrated Wi-Fi 7 (802.11b) support and a 5G Ethernet port let you connect to compatible high-speed networks. Windows 11 64-bit is required to take advantage of all the motherboard's features.
Front-panel headers support one 10 Gb/s USB-C port alongside four USB-A 2.0 ports and two 5 Gb/s USB-A ports.

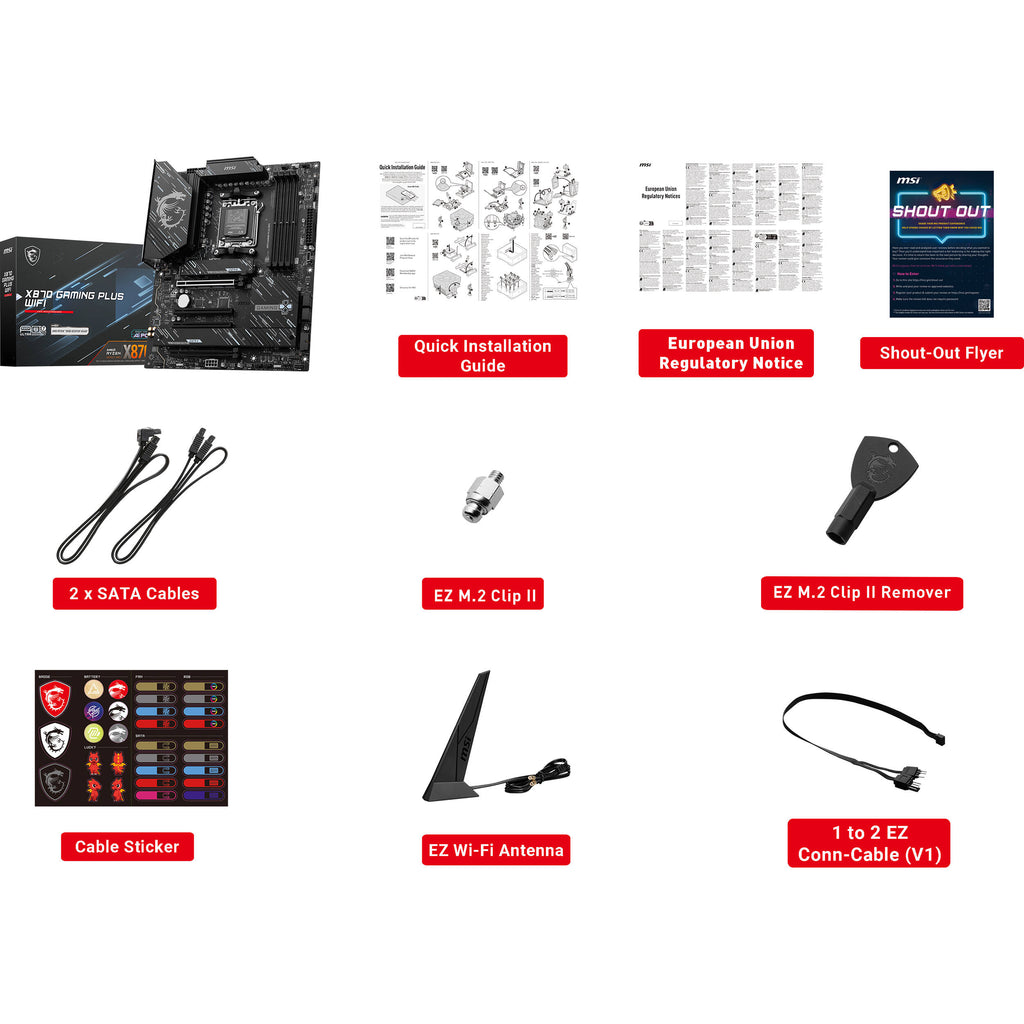

Items Included
- MSI X870 GAMING PLUS WIFI AM5 ATX Motherboard
- 2 x SATA Cable
- EZ M.2 Clip II
- M.2 Clip II Remover
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (V1)
- Cable Sticker Set
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
MSI X870 GAMING PLUS WIFI Specs
| Chipset |
AMD X870
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 8200 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2) |
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 2x PCIe 3.0 x16 (x1 mode) |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Form Factor |
ATX
|
| Chipset |
AMD X870
|
| CPU Socket |
AM5
|
| USB |
1x USB-C (USB4)
1x USB-C (USB 3.2 Gen 2x2) 2x USB-A (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0) |
| Thunderbolt |
No
|
| Display |
1x HDMI
|
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
1x Realtek 8126VB 5GbE
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback, Clear CMOS
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 8200 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4)
1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2) |
| RAID Support |
RAID 0, 1 (M.2)
|
| Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode) 2x PCIe 3.0 x16 (x1 mode) |
| USB |
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) |
| Air Cooling |
1x 4-Pin CPU
6x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
3x 8-Pin ATX |
| Security |
Chassis Intrusion, TPM Module
|
| LED Header |
8x RGB
|
| Diagnostics |
Clear CMOS
|
| ROM |
256 Mb
|
| Front Panel I/O |
AAFP
|
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
| Bluetooth |
5.4
|
| OS Compatibility |
Windows
|
| Form Factor |
ATX
|
| Dimensions |
9.6 x 12" / 243.8 x 304.8 mm
|
| Package Weight |
4.27 lb
|
| Box Dimensions (LxWxH) |
13.5 x 10.6 x 2.8"
|
