Description

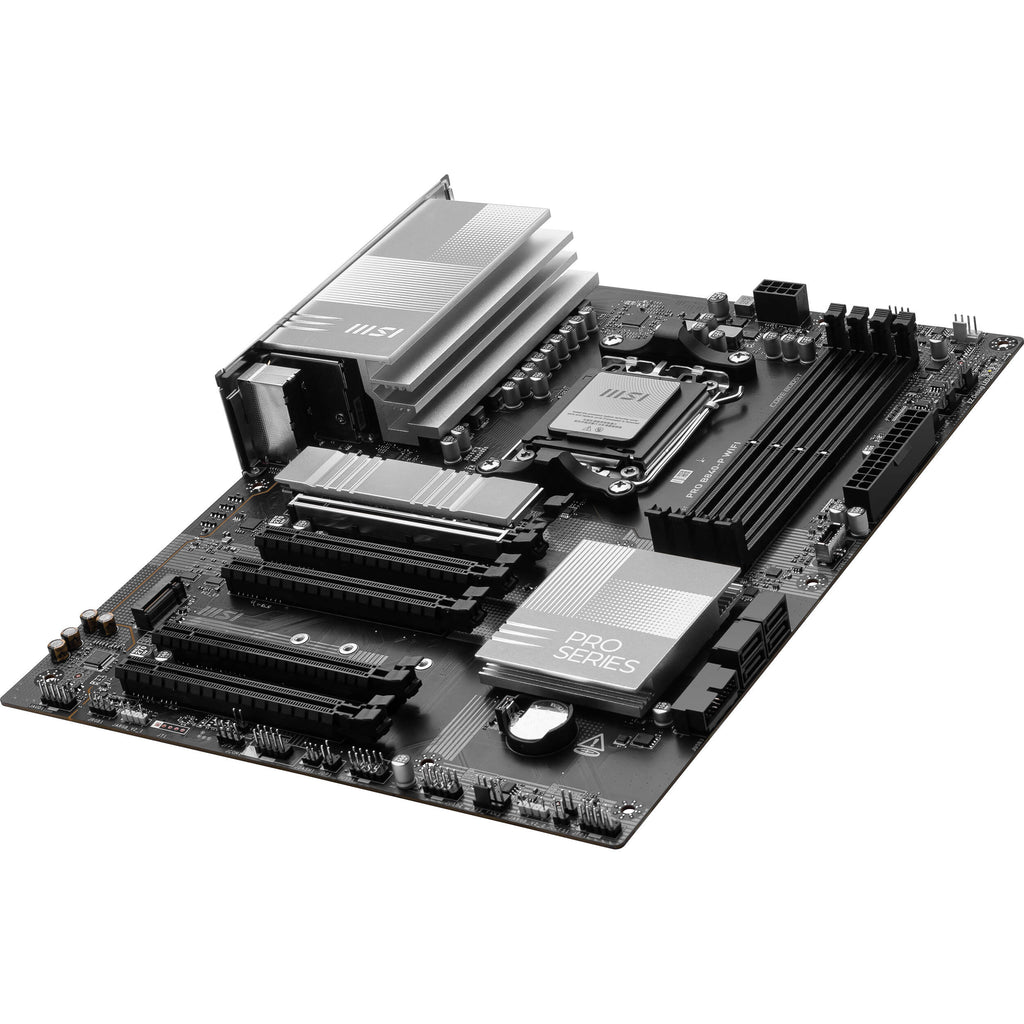

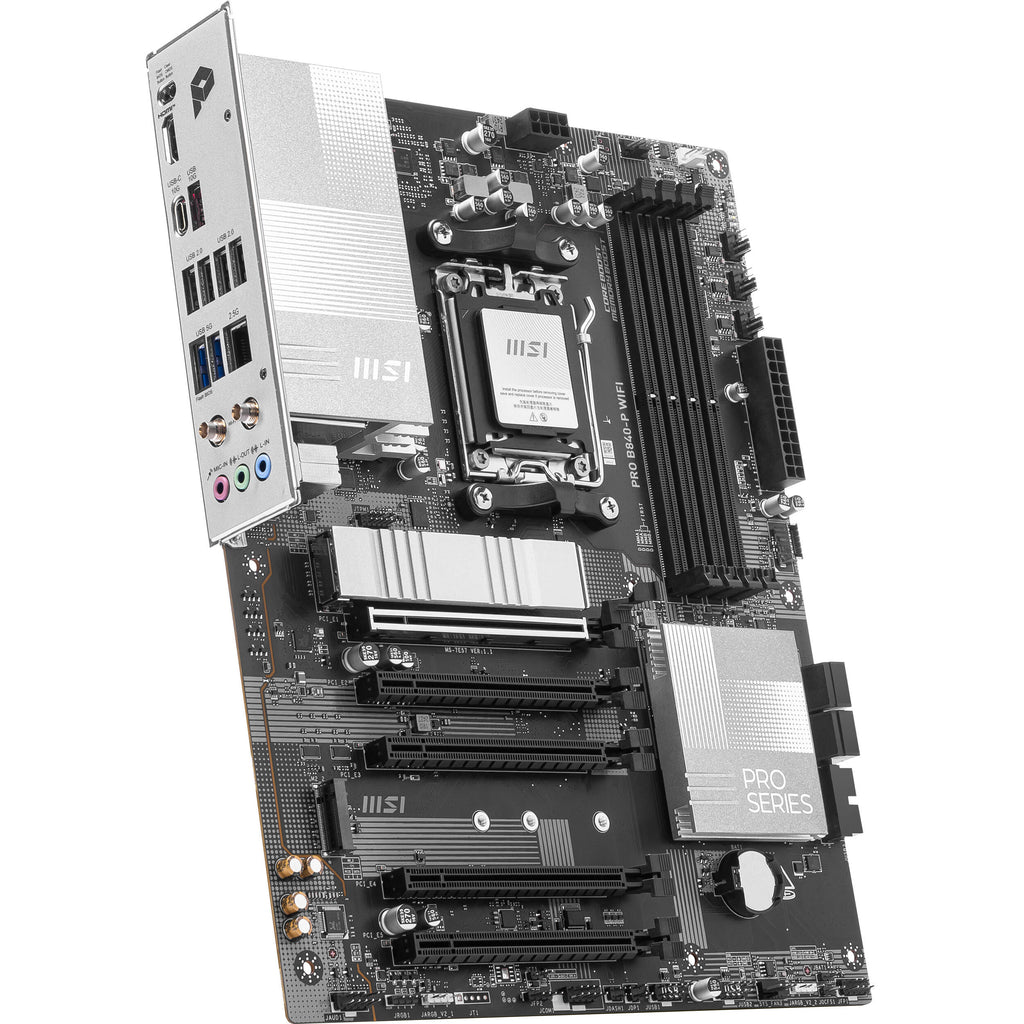

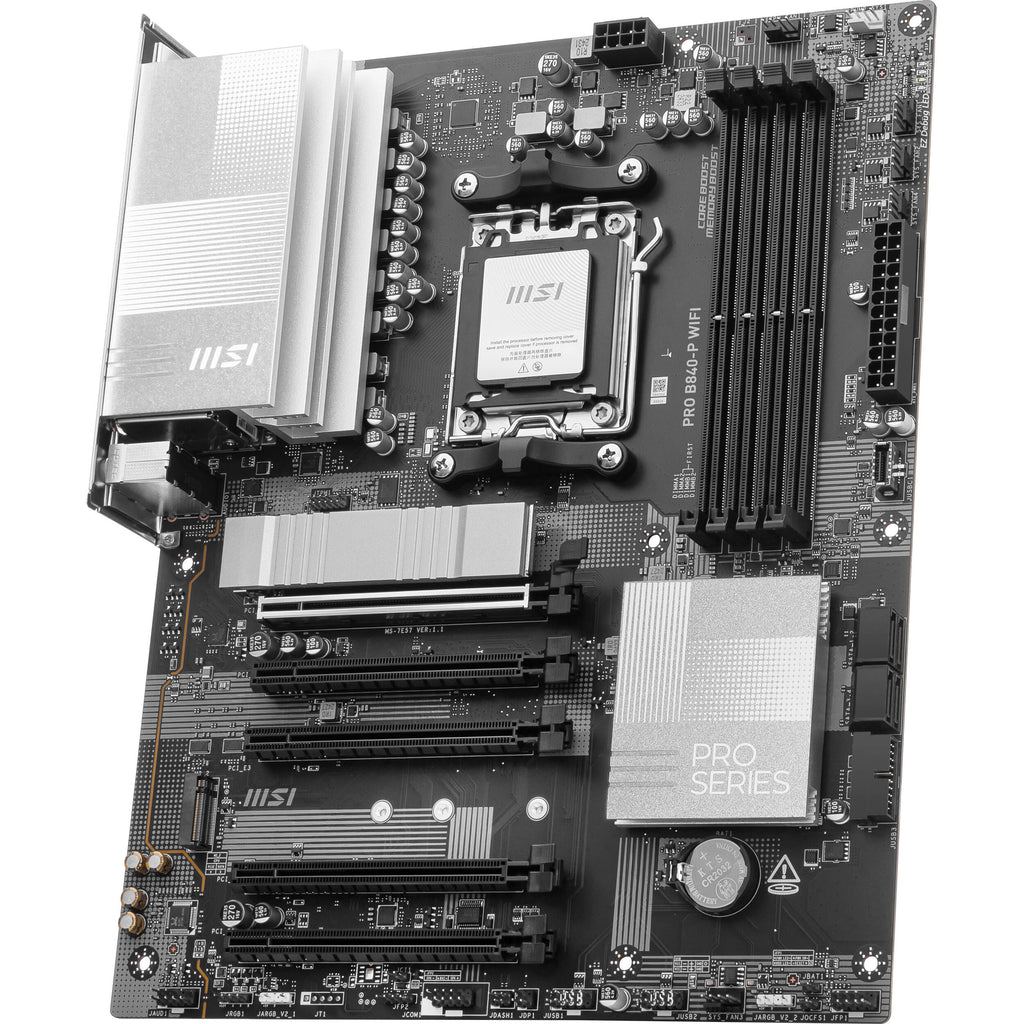

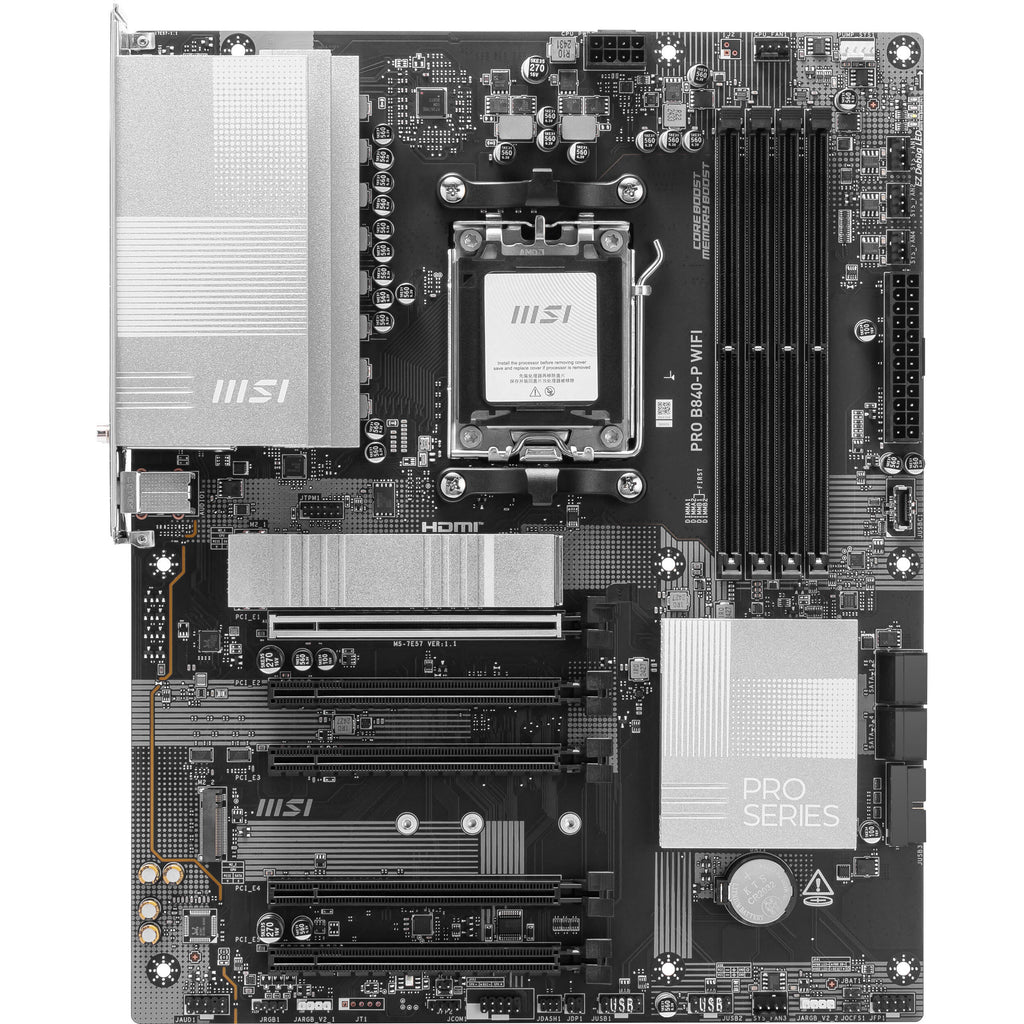

MSI PRO B840-P WIFI Overview
Enhance your professional workstation or gaming rig with the PRO B840-P WIFI AM5 ATX Motherboard from MSI. Featuring a simple design with support for overclocking, this motherboard delivers the necessary essentials for gamers looking to optimize their setup.

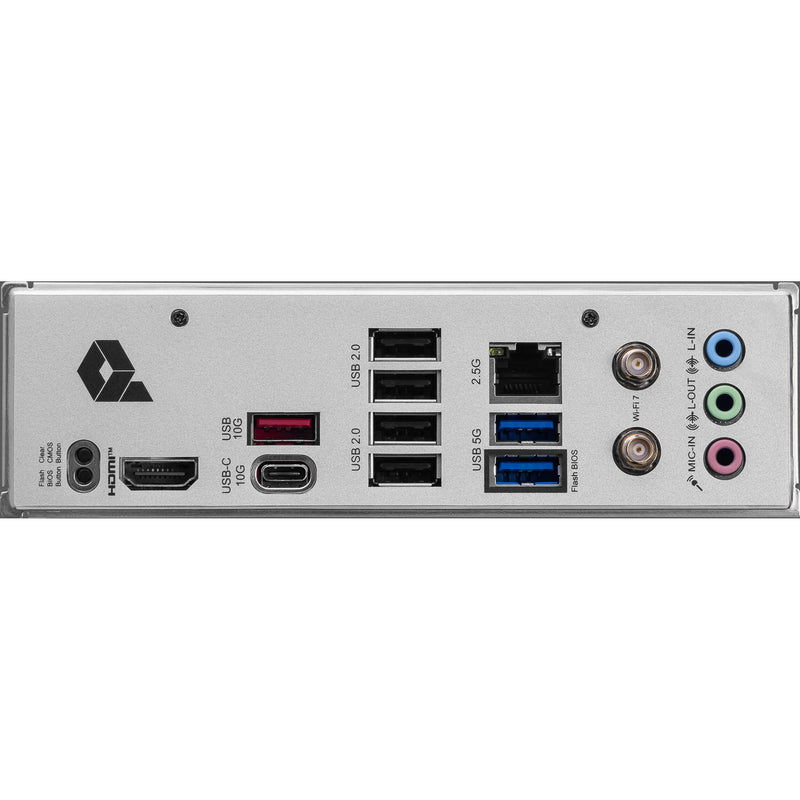

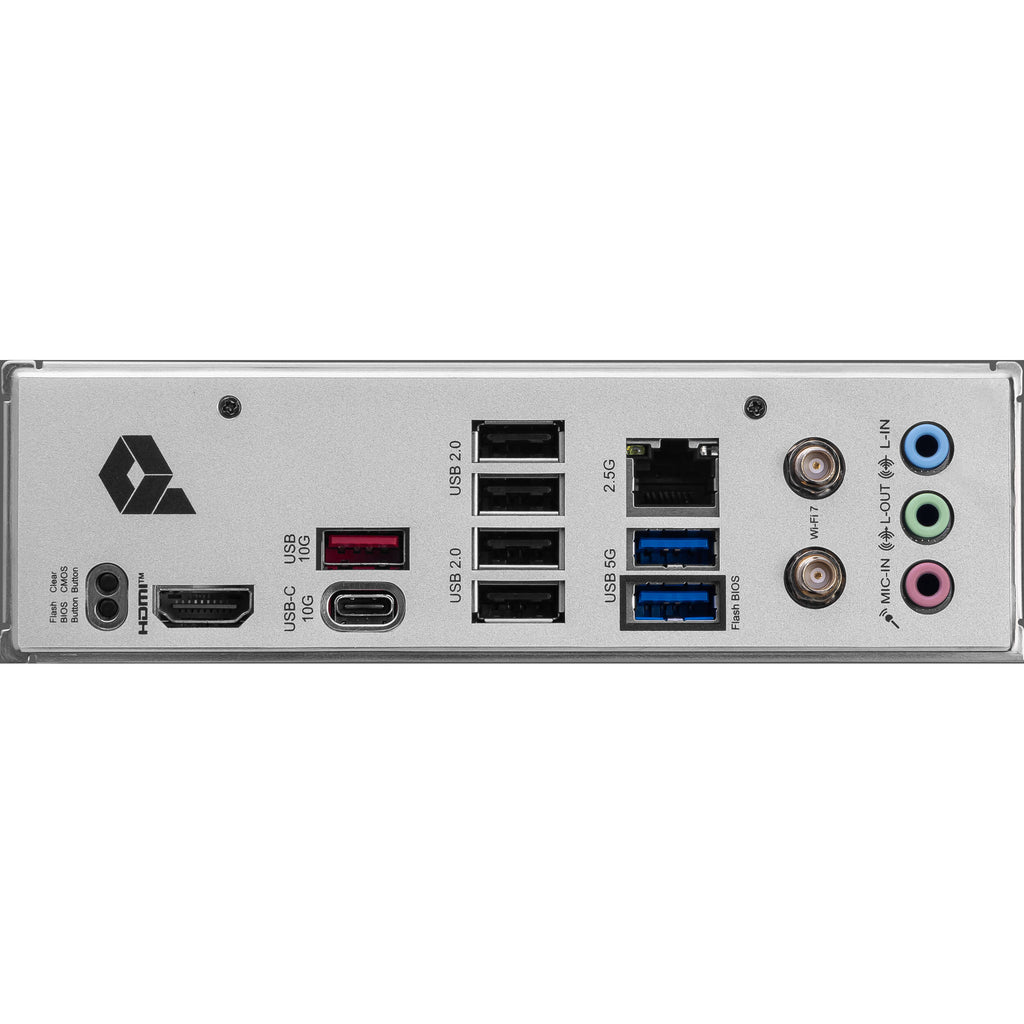

Supporting the AMD AM5 socket and B840 chipset, you can install an AMD Ryzen 7000, 8000, or 9000 series processor and customize the performance to fit your needs. Up to 256GB of dual-channel 8000 MHz DDR5 memory may be installed in overclocked mode across four slots to deliver smooth multitasking.A PCIe 4.0 x16 expansion slot allows you to install powerful graphics cards and still have access to additional PCIe 3.0 x1 and x4 card slots. In addition to four SATA III drives, you can install lightning-fast SSDs into the two M.2 NVMe PCIe 4.0 slots. The rear panel includes extensive connectivity, including one 10 Gb/s USB-C and one 10 Gb/s USB-A 3.2 Gen 2 port, two 5 Gb/s USB-A ports as well as four USB 2.0 connectors. Integrated Wi-Fi 7 (802.11b) support and a 2.5G Ethernet port let you connect to compatible high-speed networks. Windows 11 64-bit is required to take advantage of all the motherboard's features.
Front-panel headers support one 5 Gb/s USB-C port alongside four USB-A 2.0 ports and two 5 Gb/s USB-A ports.

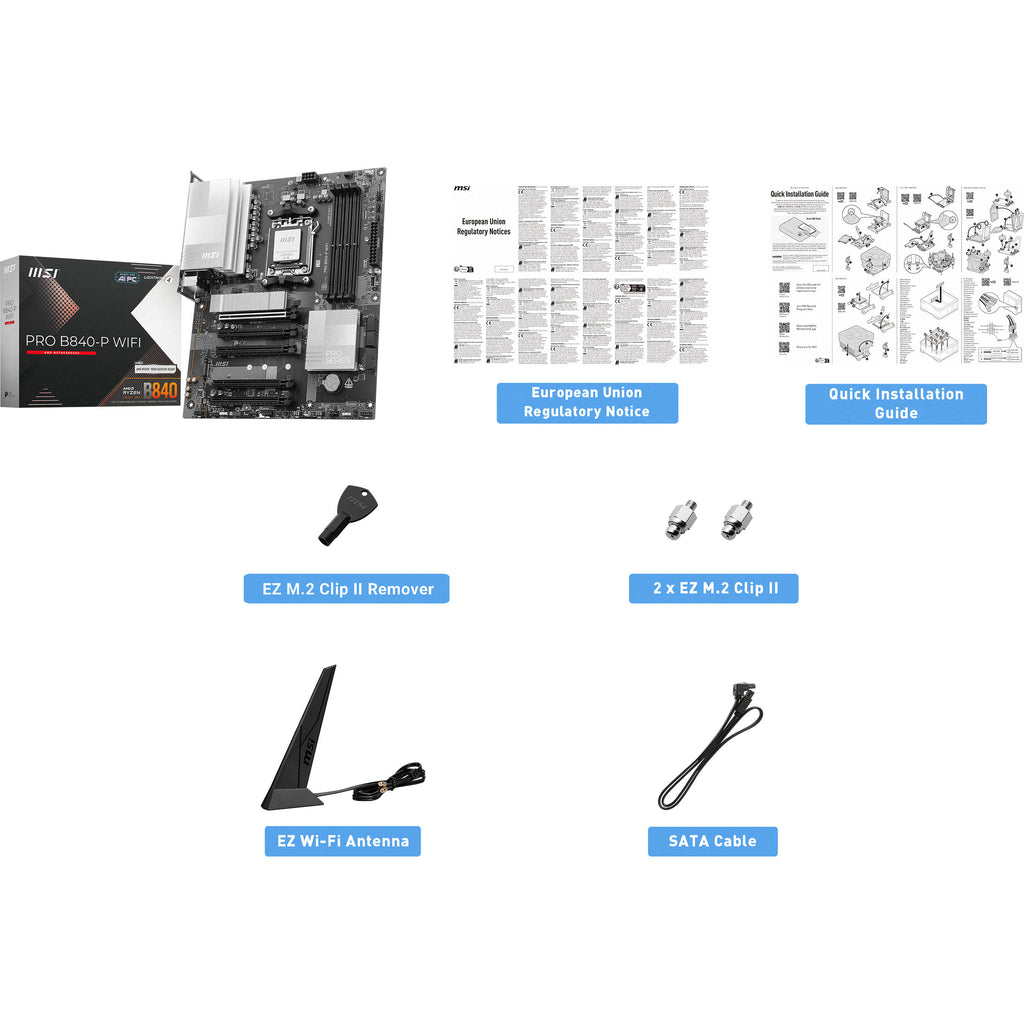

Items Included
- MSI PRO B840-P WIFI AM5 ATX Motherboard
- 2 x EZ M.2 Clip II
- EZ M.2 Clip II Remover
- EZ Wi-Fi Antenna
- SATA Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
MSI PRO B840-P WIFI Specs
| Chipset |
AMD B840
|
| CPU Socket |
AM5
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 MT/s
|
| Storage Slots |
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4, PCIe 3.0 x2) |
| Expansion Slots |
1x PCIe 4.0 x16
1x PCIe 3.0 x4 3x PCIe 3.0 x1 |
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
|
| Form Factor |
ATX
|
| Chipset |
AMD B840
|
| CPU Socket |
AM5
|
| USB |
1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Thunderbolt |
No
|
| Display |
1x HDMI
|
| Audio |
3x 1/8" / 3.5 mm
|
| Ethernet / Controller |
No
|
| Wi-Fi Antenna |
2x Connector
|
| Buttons |
BIOS Flashback, Clear CMOS
|
| Memory Slots |
4x 288-Pin
|
| Memory Support |
DDR5 MT/s
|
| Maximum Capacity |
256 GB
|
| Channel Architecture |
Dual Channel
|
| ECC Support |
Non-ECC Unbuffered
|
| SATA |
4x SATA III
|
| Storage Slots |
1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4, PCIe 3.0 x2) |
| RAID Support |
RAID 0, 1, 10 (SATA)
|
| Expansion Slots |
1x PCIe 4.0 x16
1x PCIe 3.0 x4 3x PCIe 3.0 x1 |
| USB |
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU
4x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump
|
| Power Connectors |
1x 24-Pin Mainboard
1x 8-Pin ATX |
| Security |
Chassis Intrusion
|
| LED Header |
7x RGB
|
| ROM |
256 Mb
|
| Front Panel I/O |
AAFP
|
| Audio Codec |
Realtek ALC897 (7.1-Channel)
|
| DAC |
No
|
| Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz)
|
| Bluetooth |
5.4
|
| OS Compatibility |
Windows
|
| Form Factor |
ATX
|
| Dimensions |
9.6 x 12" / 243.8 x 304.8 mm
|
| Package Weight |
3.49 lb
|
| Box Dimensions (LxWxH) |
13.8 x 11.8 x 2.9"
|
