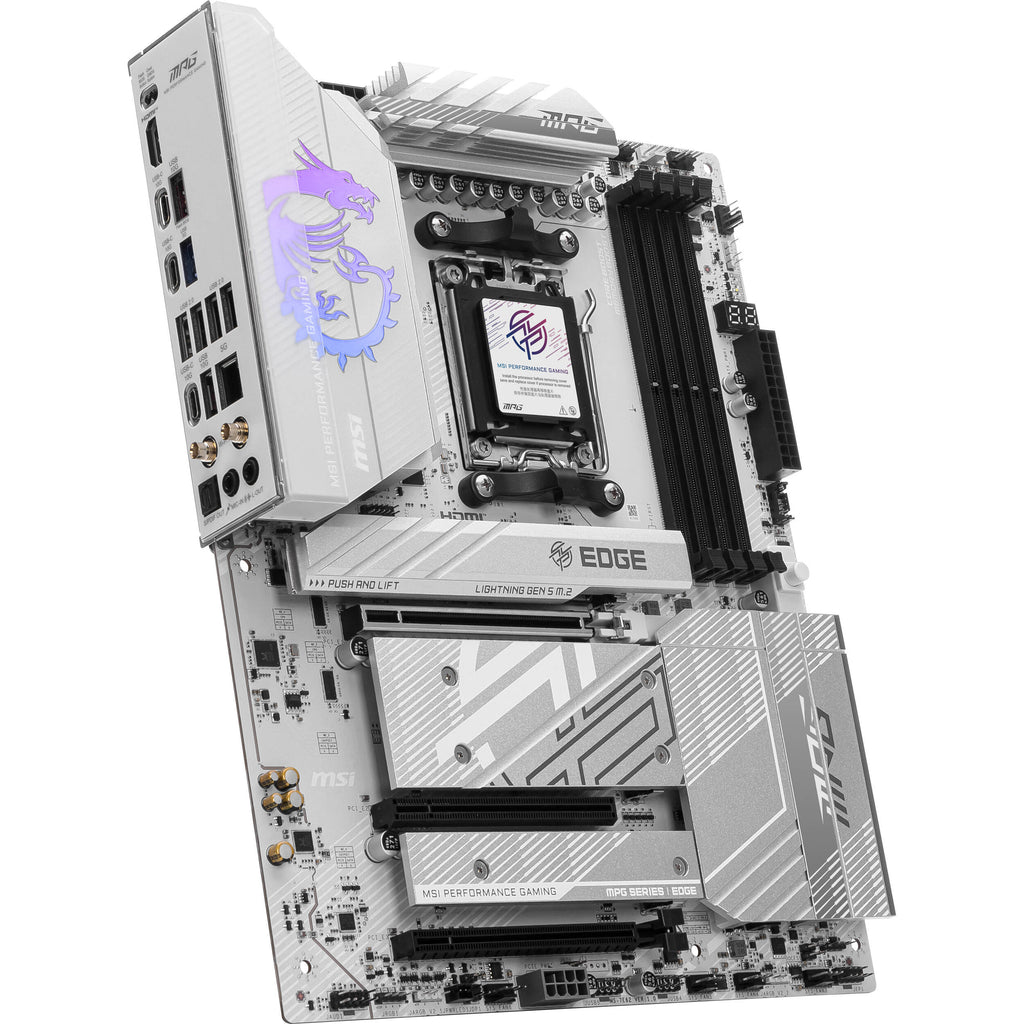

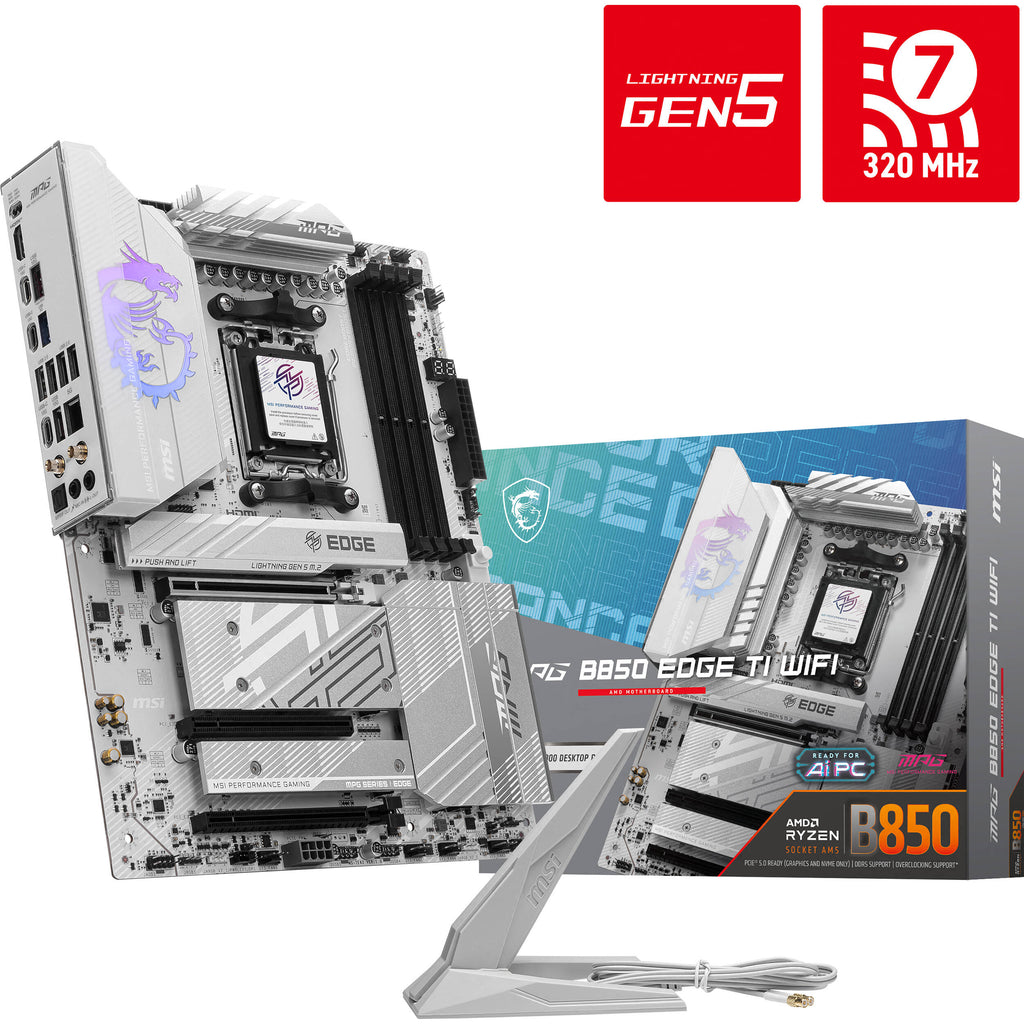

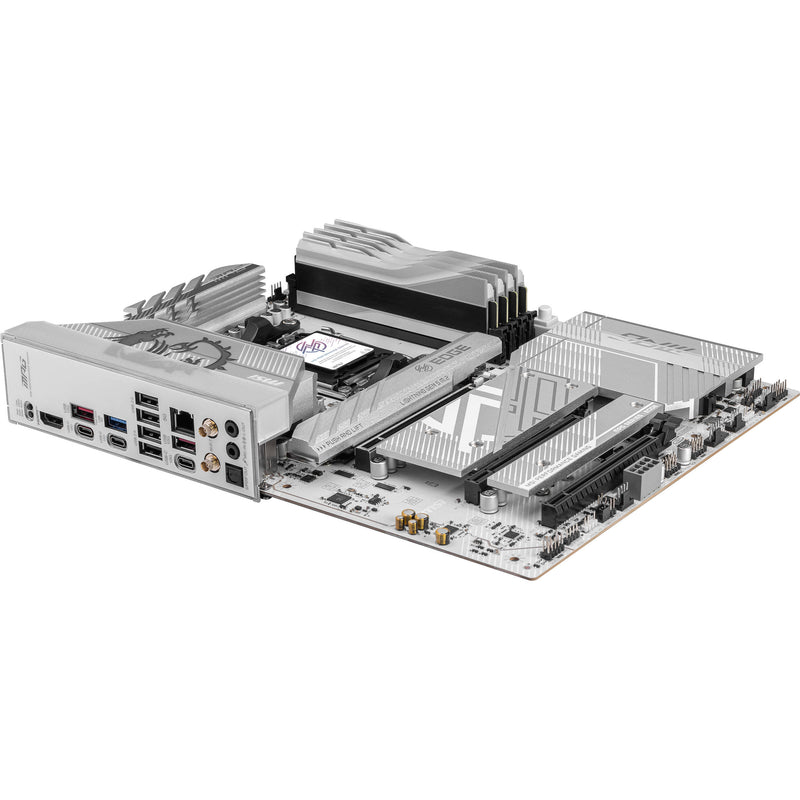

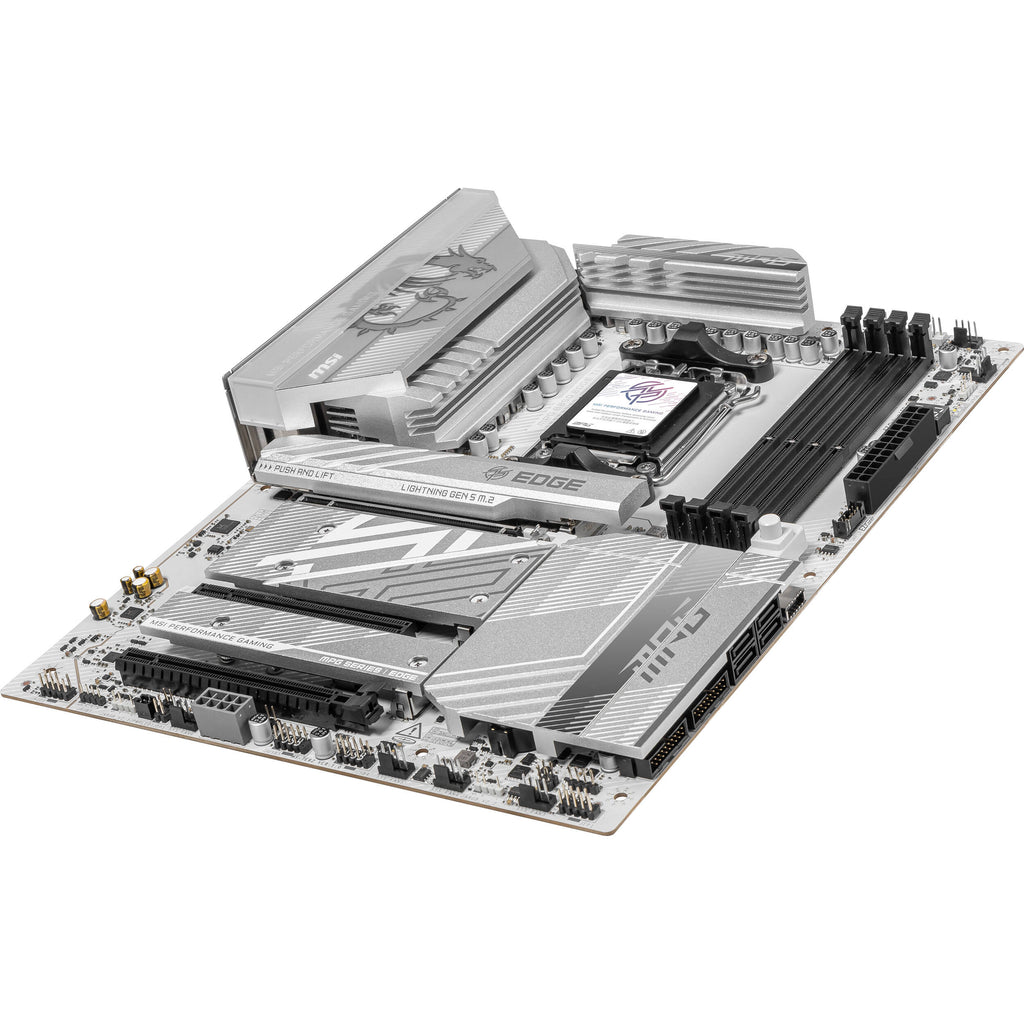

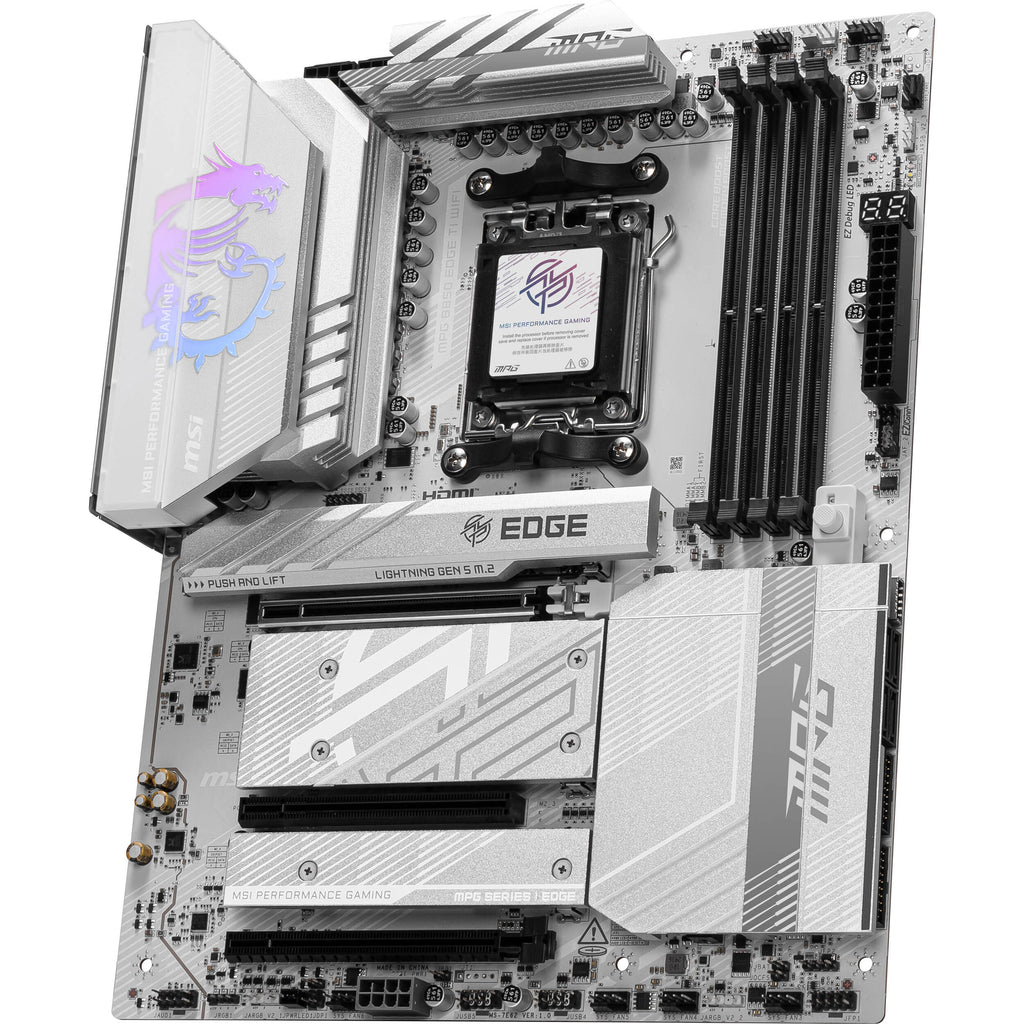

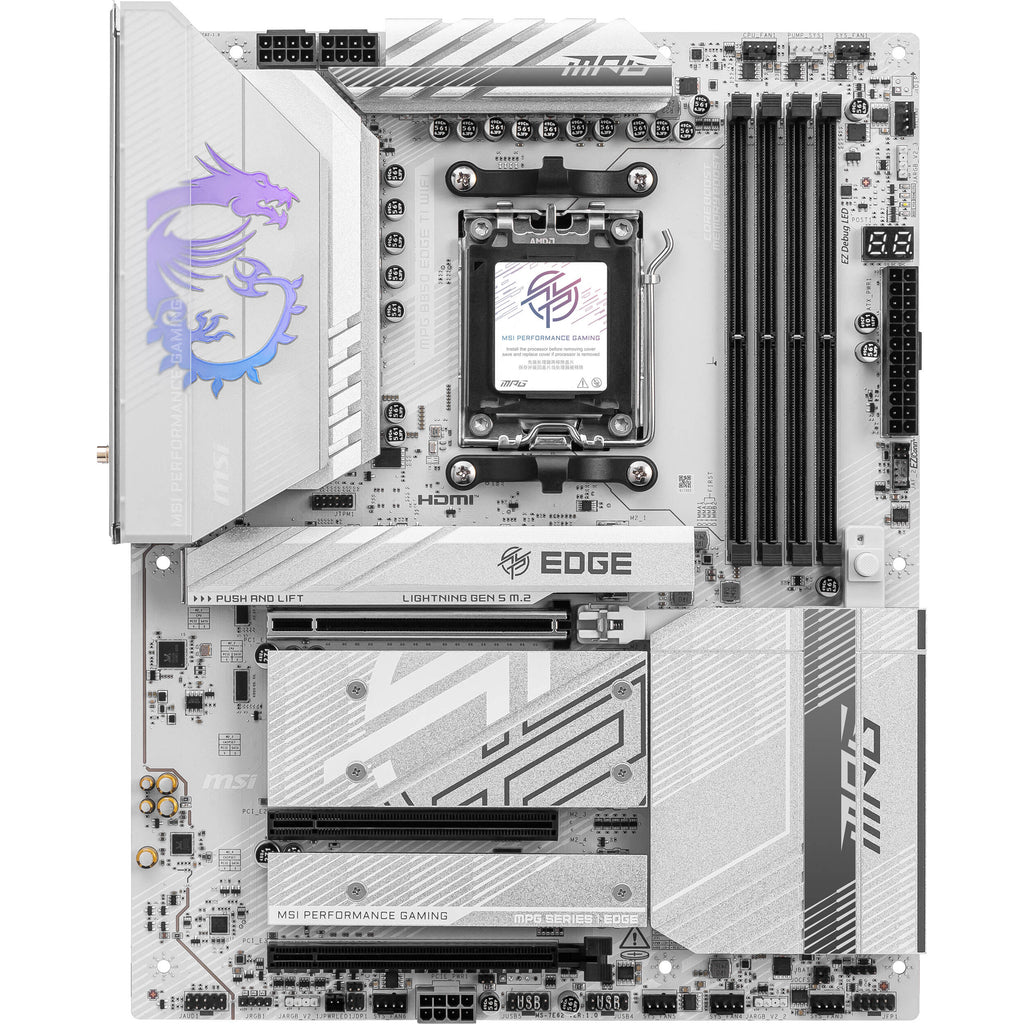

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard

Roll over image to zoom in

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard


	₹ 44470.0 includes GST and import duties.
	B2B customers can avail ₹ 6781.68 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	7132786688085
MPN:	MPG B850 EDGE TI WIFI
UPC/HSN:	824142395349

Share this product

MSI MPG B850 EDGE TI WIFI Overview

Lay the foundation of your next gaming rig with the MPG B850 EDGE TI WIFI AM5 ATX Motherboard from MSI. Featuring a premium all-white design with support for overclocking, this motherboard delivers a comprehensive and versatile experience for gamers looking to optimize their setup.

Supporting the AMD AM5 socket and B850 chipset, you can install an AMD Ryzen 7000, 8000, or 9000 series processor and customize the performance to fit your needs. Up to 256GB of dual-channel 8400 MHz DDR5 memory may be installed in overclocked mode across four slots to deliver smooth multitasking. A PCIe 5.0 x16 expansion slot allows you to utilize Nvidia's 50-series graphics cards and still have access to additional PCIe 3.0 and 4.0 slots. In addition to four SATA III drives, you can install lightning-fast SSDs into the two M.2 NVMe PCIe 5.0 slots and the two additional M.2 NVMe PCIe 4.0 slots. The rear panel includes all the essential connectivity ports, including three 10 Gb/s USB-C and two USB-A 3.2 Gen 2 ports, one 5 Gb/s USB-A port, as well as four USB 2.0 connectors. Integrated Wi-Fi 7 (802.11b) support and a 5G Ethernet port let you connect to compatible high-speed networks. Windows 11 64-bit is required to take advantage of all the motherboard's features.

Performance

AI Ready

Designed for the future of AI computing, this motherboard is equipped with the power and connectivity needed for demanding AI applications.

Fast Storage

Kick load times to the curb. In addition to supporting four 6 Gb/s SATA III drives, the M.2 PCIe 5.0 slot can deliver up to 128 GB/s transfer speeds with compatible NVMe SSDs. Installed SATA and M.2 drives may be put in RAID 0, 1, or 10 modes.

Extensive Connectivity

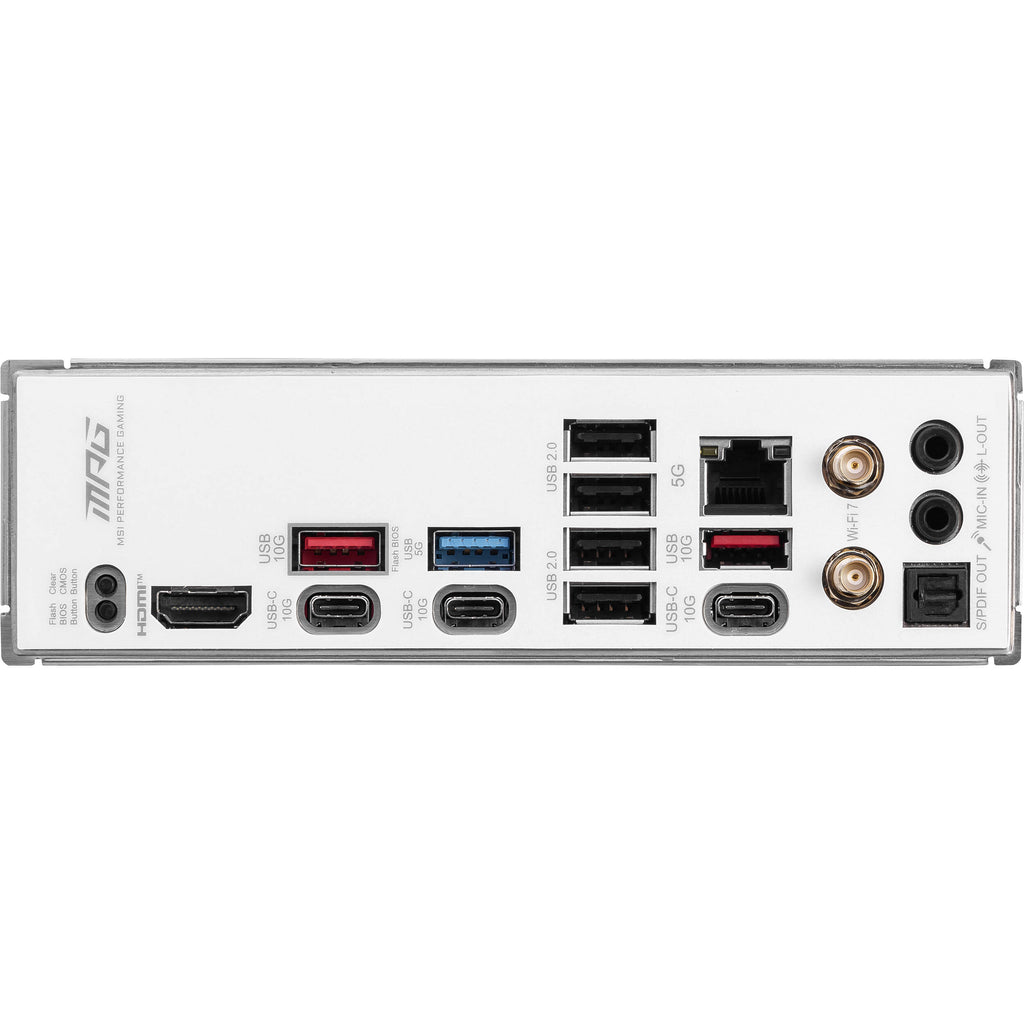

The rear panel includes three 10 Gb/s USB-C 3.2 Gen 2 ports, two 10 Gb/s USB-A 3.2 Gen 2 ports, four USB 2.0 ports, and one 5 Gb/s USB-A 3.2 Gen 1 port. An HDMI 2.1 port allows you to take advantage of processors with integrated graphics.

Front-panel headers support one 20 Gb/s USB-C 3.2 Gen 2x2 port alongside four USB-A 2.0 ports and four 5 Gb/s USB-A ports.

Power System

The 14+2+1 phase power system features an aggressive VRM design with a digital CPU power system and Core Boost technology to help sustain heavy gaming loads.

Easy Overclocking

Easily boost your CPU performance with the press of a single button for instant overclocking through Game Boost. Support for XMP and AMD Expo technology simplifies memory overclocking.

Advanced Cooling

Extended Heat Sink

The surface enhances heat dissipation to help ensure that systems continually operate at high speeds.

Heavy Plated VRM Heat Sink

The VRM heat sink covers the upper MOS and helps dissipate the heat.

M.2 Shield Frozr

Specially designed M.2 SSD heat sinks help to prevent speed throttling with intensive workloads.

Thermal Pad & Additional Choke Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores run at high performance.

System Cooling

Install up to six system fans and a water pump solution to optimize performance. Frozr AI automatically detects the CPU and GPU temperatures, adjusting the fan speeds accordingly.

Additional Features

Studio-Grade Audio

The 7.1 audio system provides clear surround sound with minimal distortion.

Mystic Light

Enhance your system with RGB lighting strips and other devices, which can be synced with Mystic Light�compatible peripherals such as keyboards and mice.

Durable Design

The 8-layer server-grade PCB includes 2 oz of copper to ensure stable performance.

UPC: 824142395349

Items Included

MSI MPG B850 EDGE TI WIFI AM5 ATX Motherboard
EZ Wi-Fi Antenna
3 x EZ M.2 Clip II
EZ M.2 Clip II Remover
SATA Cable
ARGB Extension Cable
1 to 3 EZ Conn-Cable (V2)
EZ Front Panel Cable
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

MSI MPG B850 EDGE TI WIFI Specs

Key Specs

Chipset	AMD B850
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 8400 MT/s
Storage Slots	1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x1 mode)
Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Form Factor	ATX

CPU

Chipset	AMD B850
CPU Socket	AM5

Back Panel I/O

USB	3x USB-C (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI
Audio	2x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x 5GbE
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback, Clear CMOS

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 8400 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4, PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x2)
RAID Support	RAID 0, 1, 10 (M.2)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x1 mode)
USB	2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) 1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port)
Air Cooling	1x 4-Pin CPU 6x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 3x 8-Pin ATX
Security	Chassis Intrusion, TPM Module
LED Header	10x RGB

BIOS

ROM

256 Mb

Front Panel I/O

AAFP

Audio

Audio Codec	Realtek ALC4080 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
Bluetooth	5.4

Software

OS Compatibility

Windows

Physical

Form Factor	ATX
Dimensions	9.6 x 12" / 24.4 x 30.5 cm

Packaging Info

Package Weight	4.97 lb
Box Dimensions (LxWxH)	13.5 x 10.7 x 2.9"
