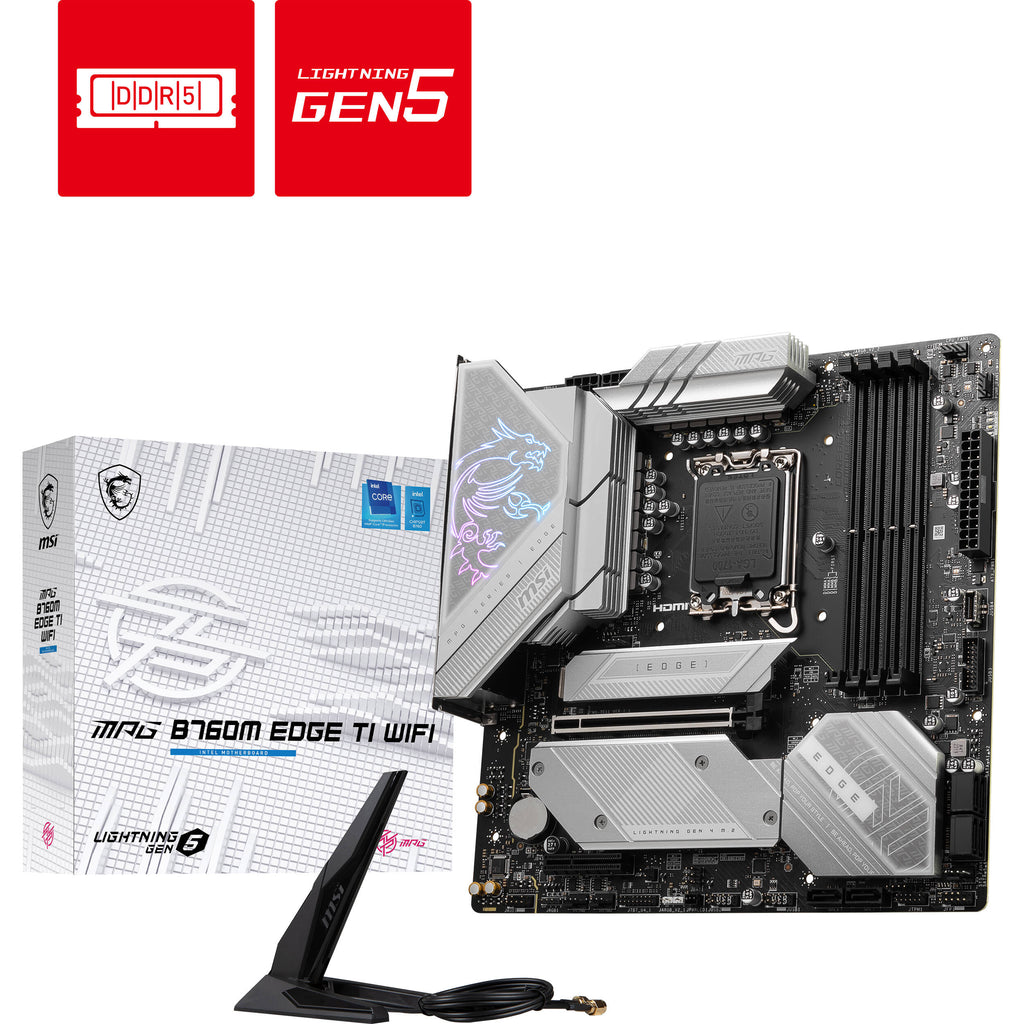

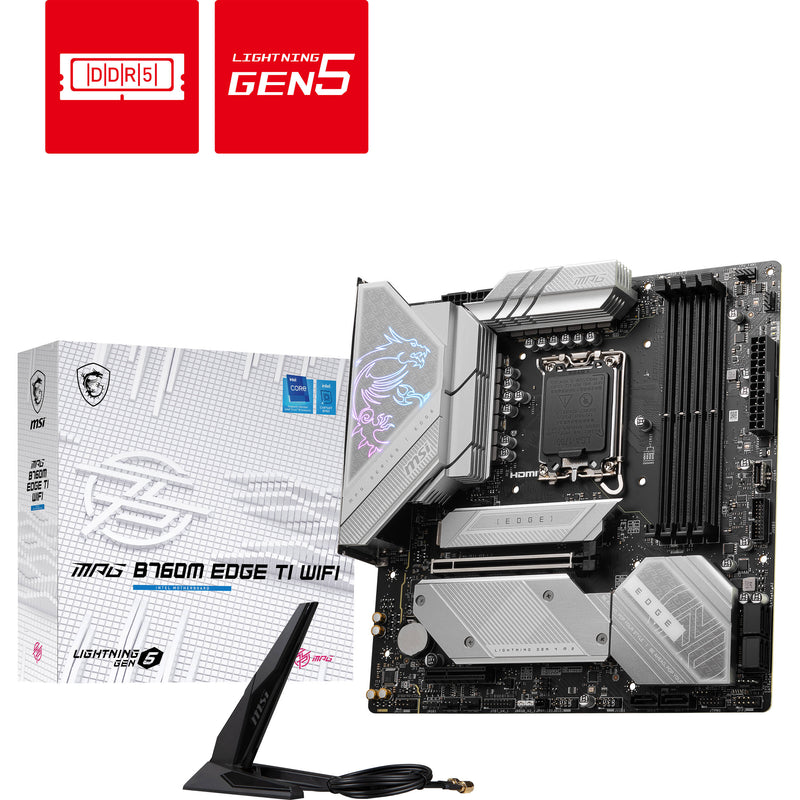

MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard

Roll over image to zoom in

MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard


	₹ 35525.0 includes GST and import duties.
	B2B customers can avail ₹ 5417.56 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	MSI
SKU:	7132786425941
MPN:	MPG B760M EDGE TI WIFI
UPC/HSN:	824142337813

Share this product

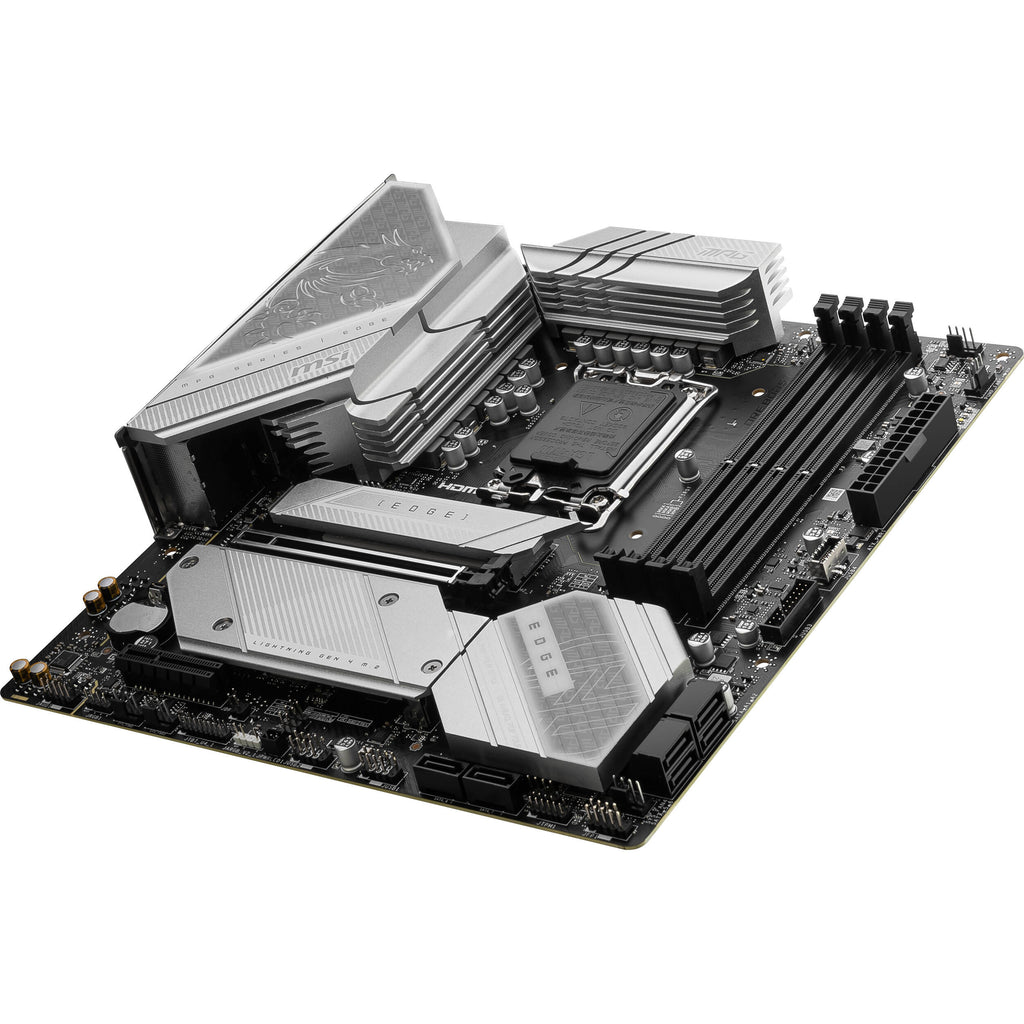

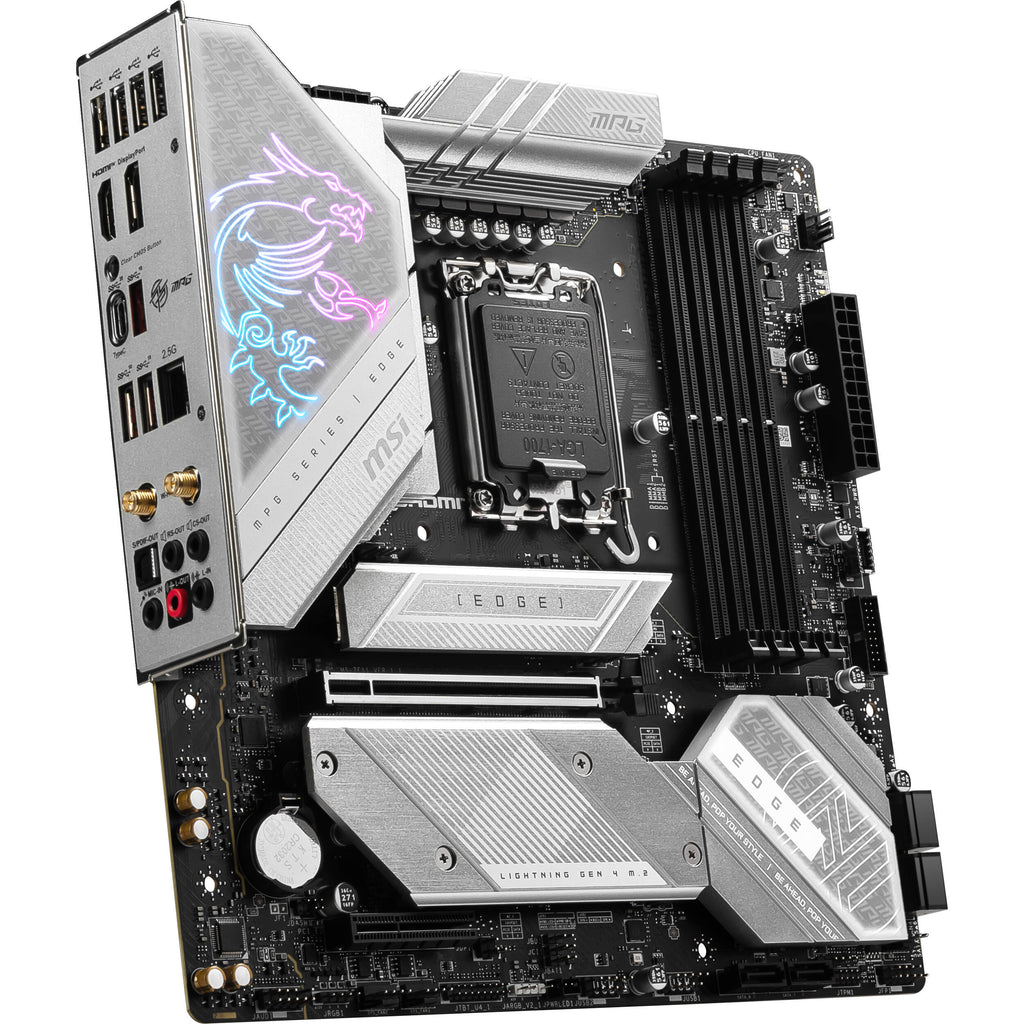

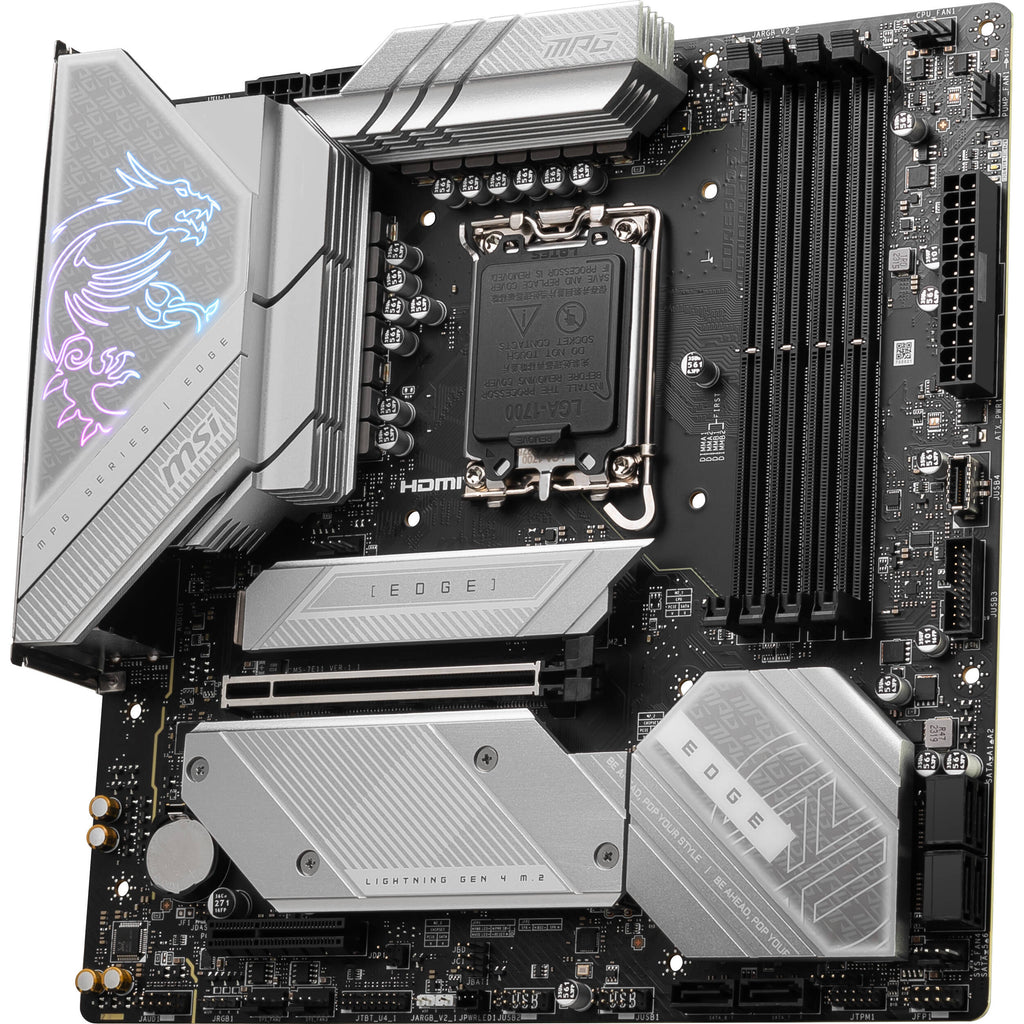

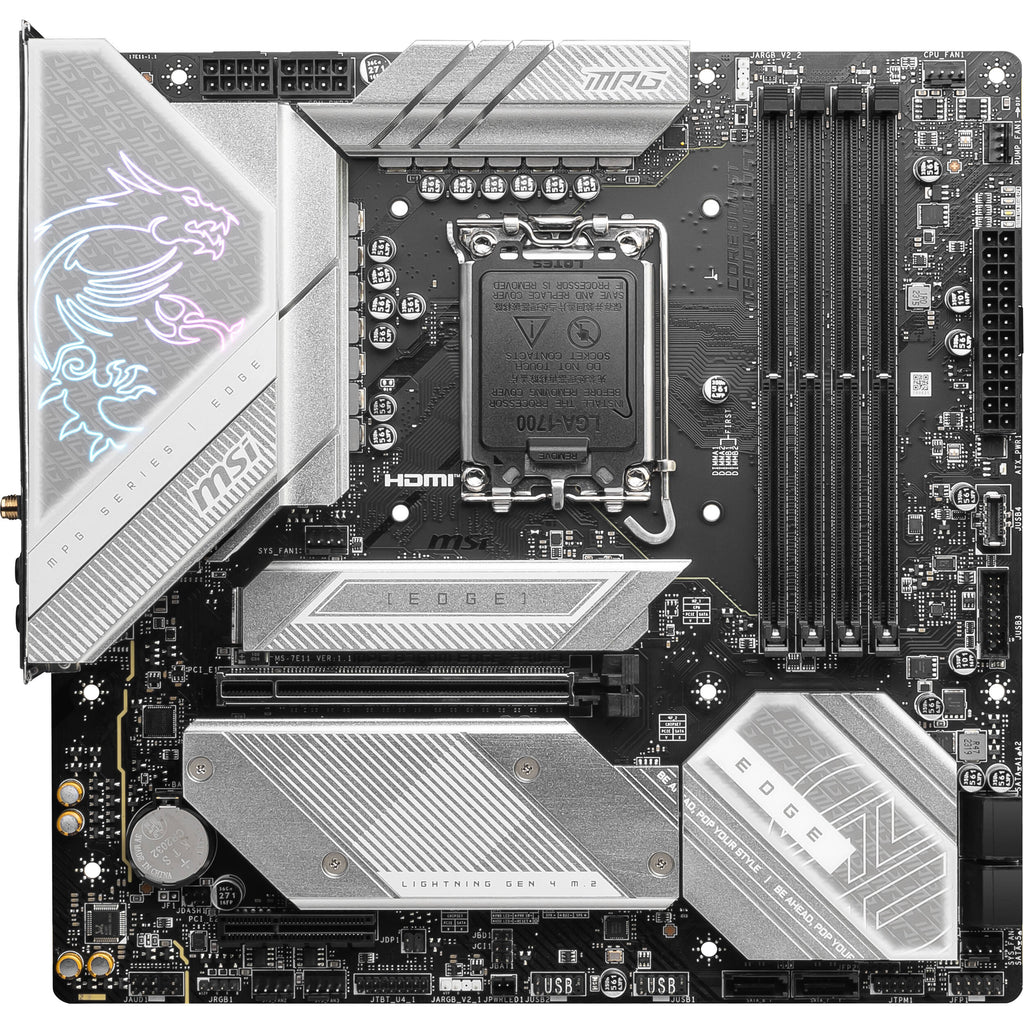

MSI B760M EDGE TI WIFI Overview

Set the foundation of your next miniature PC build with the robust MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard. Designed to leverage the power of 12th, 13th, and 14th Gen Intel CPUs, the MPG offers a solid foundation designed for gaming enthusiasts looking for enhanced connectivity in a smaller footprint.

Intel's LGA 1700 socket rests at the heart of the MPG, allowing you to install a variety of Intel Core processors to match your needs. Four DDR5 RAM slots allow you to install up to 256GB of memory to enhance multitasking and render speeds. Six SATA III and three M.2 PCIe SSD interfaces can support a wide range of storage drives that allow fast data transfer speeds. Install the graphics card of your choice in the PCIe 5.0 x16 expansion slot. Between back-panel connections and internal headers, you get several USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 ports designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. You also get Bluetooth 5.3 connectivity for wireless peripheral support, giving you a true cable-free experience. Connect to your network with a wired or wireless connection with a built-in 2.5 Gigabit Ethernet LAN port and Wi-Fi 6E (802.11ax) options, respectively.

Enhanced Design

Providing you with enhanced performance, the MPG utilizes several features and electrical designs to optimize your gaming experience. 12+1+1 VRM Power System enhances power throughput and manages electrical balance throughout the 6-layer PCB. Extended heat sink, pump fan support, M.2 Shield Frozr, and chipset heat sink with 7W/mK thermal pad all work together to ensure your system remains cool under heavy loads.

DIY Friendly

Whether you are a seasoned or a brand new builder, the MPG offers several enhancements that are useful to everyone. You have several other conveniences such as the pre-installed I/O shield, XL PCIe clip, EZ debug LEDs, and Windows 11 certification, giving you all you need to ensure proper operation.

Built for Performance

The MPG's PCIe 5.0 x16 slot is backed by proprietary Lightning Gen 5 technology, giving you up to 128 GB/s bandwidth, driving up graphical performance. Integrated Xtreme Memory Profile (XMP) overclocks your memory and ensures proper electrical throughput for greater RAM speeds.

Software Enhancements

Various ingrained systems allow you to fully optimize your gaming experience. MSI Center is a one-stop-shop platform for most of your needs. You can customize your settings with Profile Setting, Fan Center, System Diagnosis, Hardware Monitoring, User Scenario, and True Color settings. You also have various BIOS settings that can be adjusted with EZ-Mode or Advanced Mode along with Resizable Bar, adding even more optimization options for your system.

Reliable Design

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

Enhanced Audio

Ensure your audio is top-notch with an array of high-definition processors, audio capacitors, and jacks designed to deliver immersive audio suitable for your games and media. Isolated audio signal splits channels to prevent crosstalk for an even clearer sound. Protect your ears as you plug and unplug your headset with De-Pop Protection.

Mystic Light

Mystic Light allows you to customize your lighting colors and effects to add personality to your system.

UPC: 824142337813

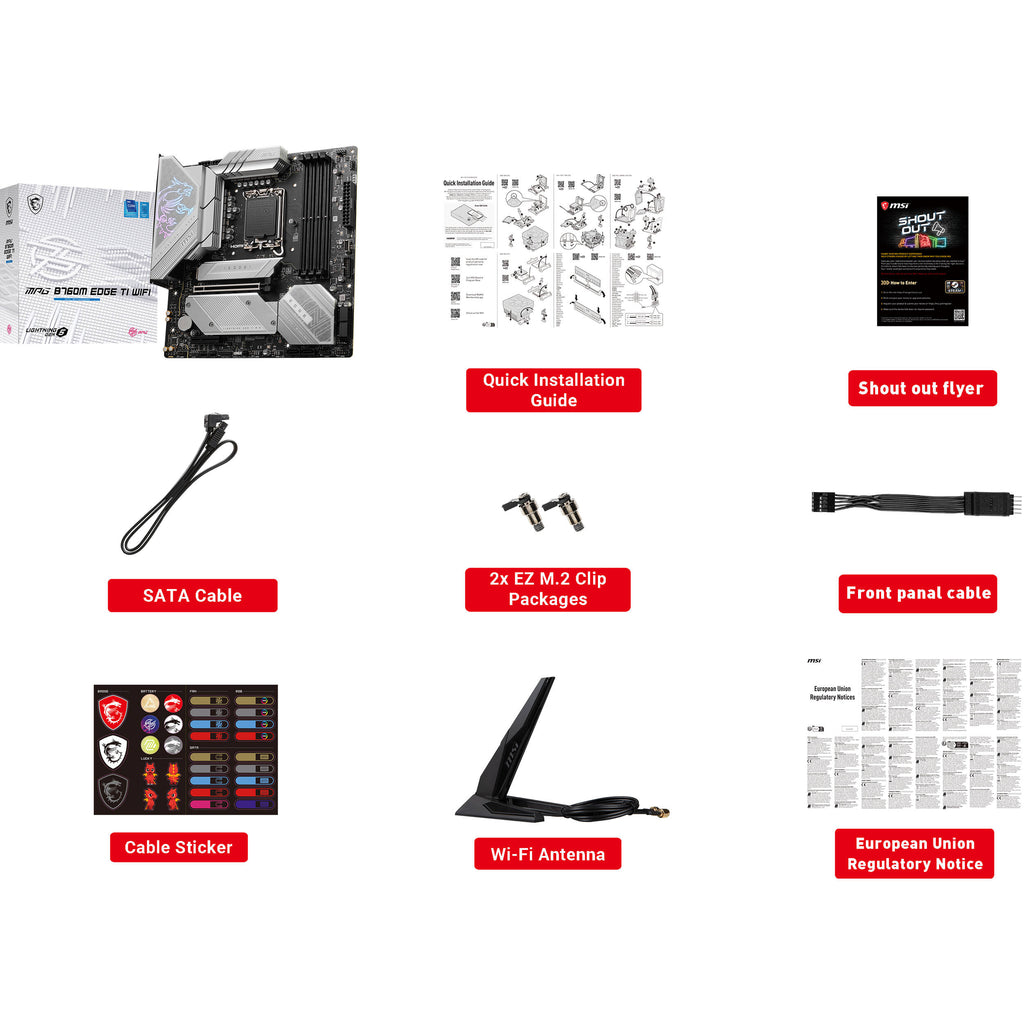

Items Included

MSI MPG B760M EDGE TI WIFI LGA 1700 M-ATX Motherboard
SATA Cable
2 x EZ M.2 Clip Packages
Wi-Fi Antenna
Front Panel Cable
Cable Sticker Sheet
Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

MSI B760M EDGE TI WIFI Specs

Key Specs

Chipset	Intel B760
CPU Socket	LGA 1700
Memory Slots	4x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
Expansion Slots	1x PCIe 5.0 x16 1x PCIe 3.0 x4
Wi-Fi	Wi-Fi 6E (802.11ax) with MU-MIMO Support
Form Factor	Micro-ATX

CPU

Chipset	Intel B760
CPU Socket	LGA 1700

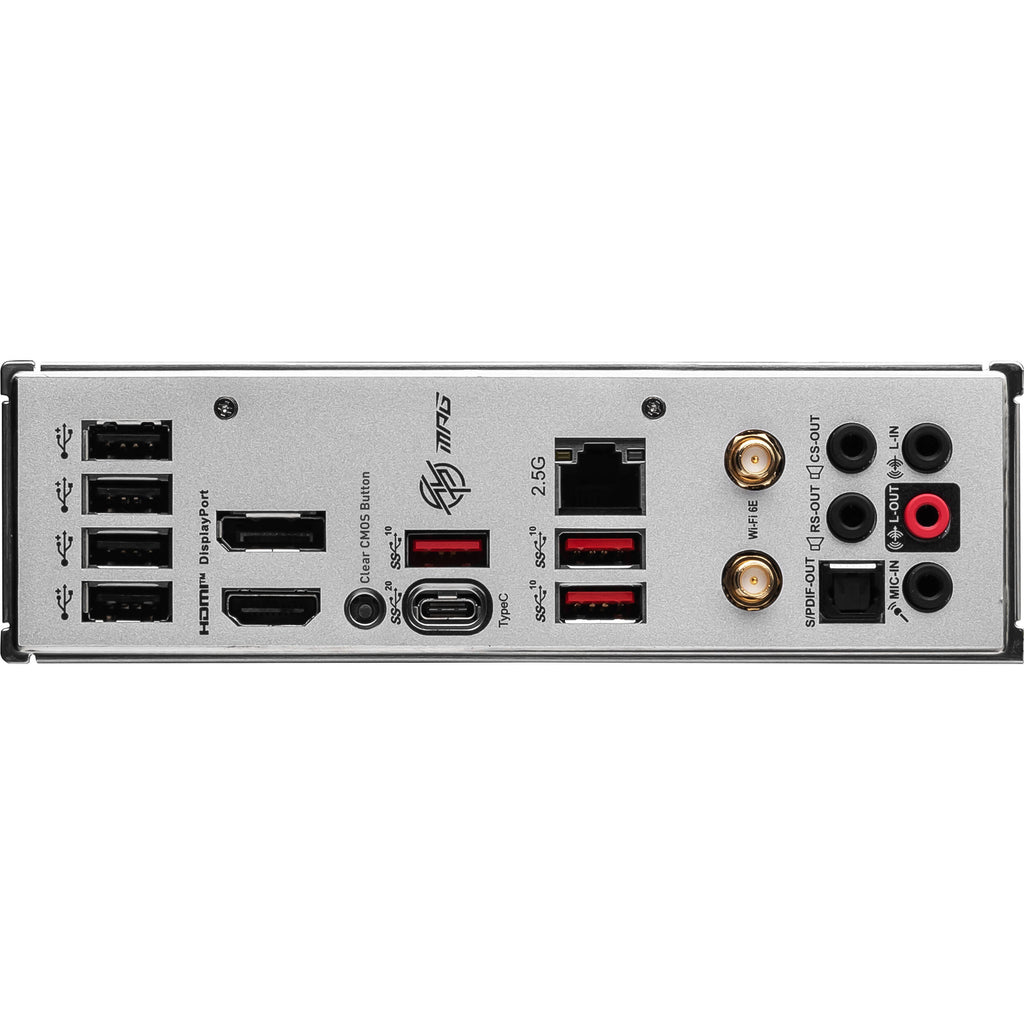

Back Panel I/O

USB	1x USB-C (USB 3.2 Gen 2x2) 3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 2.1 1x DisplayPort 1.4
Audio	5x 1/8" / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	Clear CMOS

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	6x SATA III
Storage Slots	1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2260, 2280 (PCIe 4.0 x4) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, SATA III)
RAID Support	RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots	1x PCIe 5.0 x16 1x PCIe 3.0 x4
USB	2x USB 2.0 Header (Supports 4 USB-A Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
Air Cooling	1x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin CPU
Security	Chassis Intrusion, TPM Header
LED Header	3x RGB
Add-On	1x Thunderbolt Header 1x Tuning Controller 1x USB4 Expansion Card Header

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec	Realtek ALC897 (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6E (802.11ax) with MU-MIMO Support
Bluetooth	5.3

Software

OS Compatibility

Windows 10 to 11 (64-Bit Only)

Physical

Form Factor	Micro-ATX
Dimensions	9.60 x 9.60" / 243.84 x 243.84 mm

Packaging Info

Package Weight	3.74 lb
Box Dimensions (LxWxH)	11.3 x 11.2 x 3.2"
