Description
KanexPro MMX-4X4CAT Overview
The 4x4 4K HDMI 2.0 Matrix over Cat 6 Kit from KanexPro includes a professional four-input, four-output HDMI matrix with four receiver units, which is suitable for digital signage, education, broadcast, home theater, and conference room audio-visual environments.
The 4x4 matrix features a 1 RU rackmount chassis that can transmit both power via PoC and video over Cat 6 to the eight included receiver units. The receivers can be set up to 230' away. Other features include HDMI 2.0 standards, HDCP 2.2/1.x, EDID management, HDR/Dolby Vision/HLG support, and 18 Gb/s uncompressed, lossless transmission bandwidth.
The matrix can be fully controlled via RS-232, one-way IR, and a Web-based GUI, using Ethernet, where end-users can switch, control, and manage the matrix using graphical and visual indicators right from a computer or touch panel.
- HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant
- Video resolution up to DCI/UHD 4K60 (YUV 4:4:4) on all HDMI and HDBaseT ports
- Four HDMI inputs and four HDMI / HDBaseT mirrored outputs
- HDMI ports transmit 18 Gb/s lossless uncompressed video bandwidth
- Support 18 Gb/s lossless compressed HDBaseT signal transmission
- Support for 4K to 1080p downscaling for each output port
- HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
- HDBaseT output can extend 1080p video transmission distance up to 230' via a single Cat 6 cable
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
- Supports one-way IR
- Advanced EDID management and CEC control are supported
- 24V PoC (Power-over-Cable) on all Cat 6 ports
- 1 RU rackmount design with front-panel OLED display
- Control via front-panel buttons, IR remote, RS-232, LAN, and Web GUI
Items Included
- KanexPro 4x4 4K HDMI 2.0 Matrix over Cat 6 Kit (230')

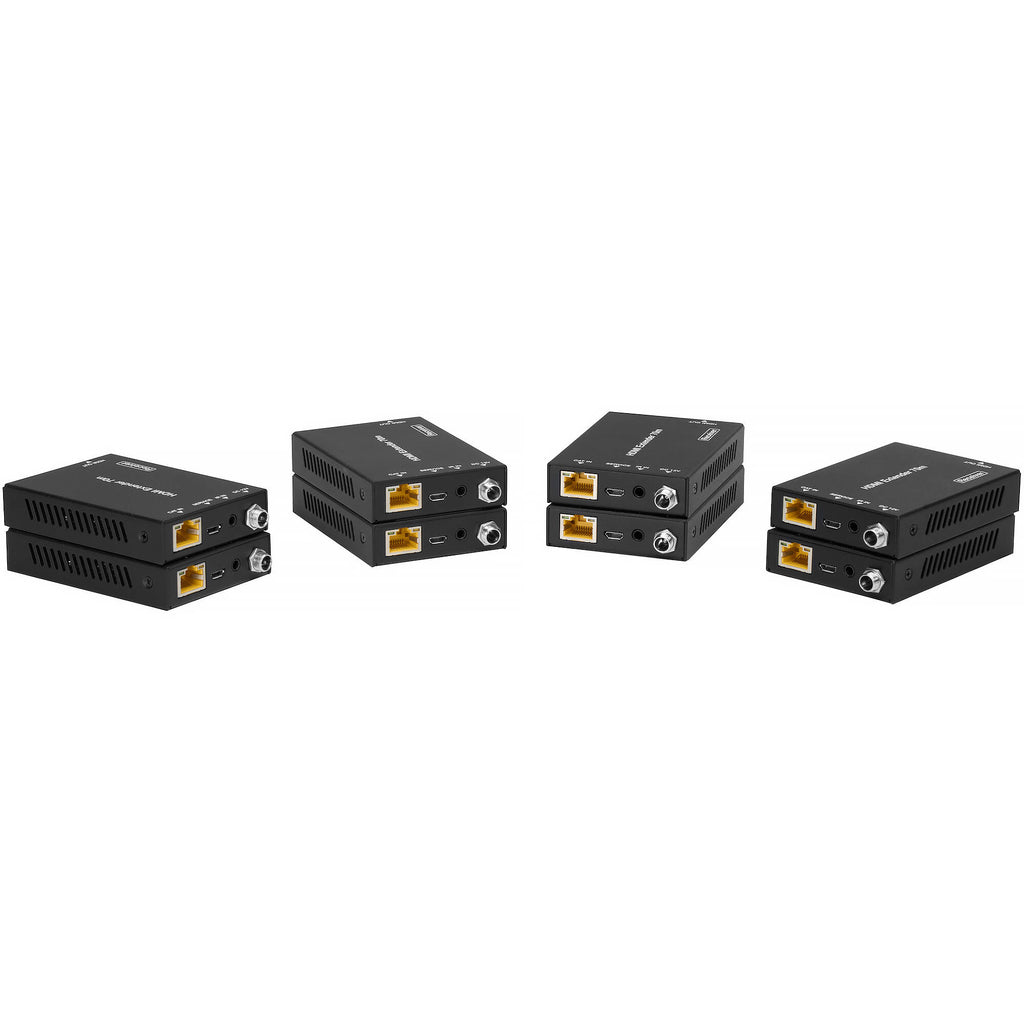

- 4 x Cat Receiver
- Matrix IR Remote
- Power Supply
- RS-232 Male-to-Female Serial Cable (4.9')
- 3-Pin Terminal Connector
- 4 x IR Blaster Cable (4.9')
- 4 x IR Receiver Cable (4.9')
- 10 x Mounting Ear
- Limited 3-Year Manufacturer Warranty
Additional Resources
KanexPro MMX-4X4CAT Specs
| Switching Type |
IR Remote, Software
|
| Video Inputs |
4x HDMI (2.0) Female
|
| Input Video Format |
HDMI
DCI 4K at 60 fps |
| Embedded Audio Input |
HDMI
|
| Video Outputs |
4x HDMI (2.0) Female
|
| Output Video Format |
HDMI (8/10/12-Bit 4:4:4 YUV, YCC)
DCI 4K at 60 fps |
| Embedded Audio Output |
HDMI
|
| Other I/O |
4x 1/8" / 3.5 mm Control, IR Output
1x Block 3-Pin Control, RS-232 Input 1x RJ45 Control, LAN Input/Output |
| HDCP Support |
Yes, Version 2.2
|
| HDR Support |
Yes, HDR10/Dolby Vision
|
| DTS Compatibility |
DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1x Barrel (100 to 240 VAC ) Input
|
| Power Consumption |
Device: 125 W
|
| Operating Conditions |
32 to 72°F / 0 to 40°C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Certifications |
CE, FCC, UL
|
| Rack Form Factor |
1 RU
|
| Dimensions |
12.6 x 3.9 x 1.4" / 320 x 100 x 36 mm
|
| Weight |
2 lb / 915 g
|
