Description

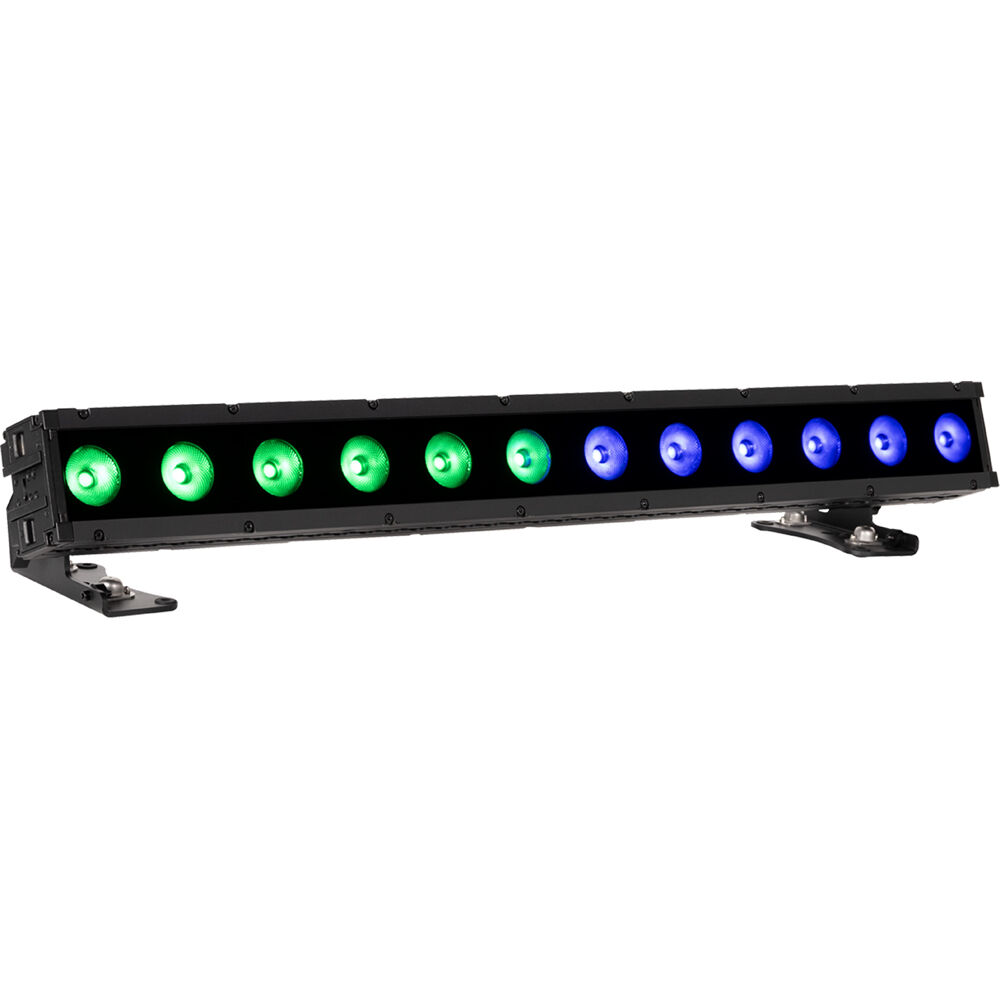

Elation Professional Six+ bar L Overview
Designed with a broader color spectrum and a rain and dust-resistant IP-65-rated housing, the 39.4 x 6.9" SIX+ BAR RGBLA+UV LED Linear Fixture from Elation Professional creates striking strobe effects with full pixel control for uplighting and wall washing. This fixture, constructed with 12 20W RGBLA+UV LEDs and a native 20° beam angle, produces a 9325-lumen output for illuminating indoor and outdoor productions. A versatile fixture, users can adjust the light's 16-bit electronic dimming and strobe effects and dynamic color effects with its simple control options, including Art-Net, sACN, RDM, and DMX. Powered with an IP65-rated locking power cable, the fixture has a 210W max power consumption and operates at a temperature range of 5 to 113° F. With its integrated L track on three sides for flexible mounting and the included fixture interconnect splice, the fixture is simple to mount and position. Use the included frost filter and glare shield for more refined lighting output and secure the fixture in place with its included safety cable.
Dynamic Color Options
Delivering powerful and diverse strobe effects, the SIX+ BAR L features a fully variable 2400-8500K color temperature range, CMY emulation, and a virtual gel library for lighting designers to create bright and colorful outputs. Program the fixture with its time-efficient SixBar emulation mode to ensure precise color matching. For wall washing options, the fixture includes an included glare shield as well as a frosted filter for diffused light. Constructed with an RGBLA+UV engine, the lights produce high-fidelity whites and primaries without color fringing. With a dim-to-fade option, lighting designers can use the SIX+ BAR L to create refined lighting options for live productions.
DMX Control Modes
The SIX+ BAR L features IP65-rated 5-pin XLR DMX inputs and outputs for simple control options. Designed with RDM (remote device management) and Aria x2 wireless device management, this light fixture fits seamlessly into tight spaces without clutter and integrates into already existing workflows. With 15 DMX channel modes and five, six bar 1000 emulation DMX channel modes, the light offers designers a simplified system set up and maintenance.
Suitable for Indoor and Outdoor Use
IP65-rated for indoor and outdoor use, the fixture features a fanless convection cooling system that silently operates for uninterrupted filming or performances. The C4-M marine-grade coating ensures protection against harsh environments for outdoor productions and installations. The fixture's unique end-to-end interconnection system and integrated L track on three sides offer flexible mounting and positioning options. Trunnions can be fixed at multiple points on the L track for optimal positioning around objects in tough-to-reach places.
UPC: 810008264492
Items Included
- Elation Professional SIX+ BAR L RGBLA+UV LED Linear Fixture
- Safety Cable
- IP65 Locking Power Cable
- Frost Filter
- Glare Shield
- Fixture Interconnect Splice
- Limited 2-Year Manufacturer Warranty
Additional Resources
Elation Professional Six+ bar L Specs
Key Specs
| Fixture Type |
Linear/Bar Light
|
| Light Source |
12x Color/UV LED - 20 W
|
| Colors |
Amber, Blue, Green, Lime, Red, Ultraviolet
|
| Pixel Configuration |
12x Zone
|
| Beam Angle |
20° (without Filter)
32° (with Filter) |
| Control Protocols |
DMX512, RDM, Aria X2, Art-Net, Kling-Net, sACN
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
210 W
|
| Mounting |
Floor Base, Mounting Bracket
|
Light
| Fixture Type |
Linear/Bar Light
|
| Light Source |
12x Color/UV LED - 20 W
|
| Expected Lamp Life |
30,000 Hours
|
| Colors |
Amber, Blue, Green, Lime, Red, Ultraviolet
|
| Pixel Configuration |
12x Zone
|
| Photometrics |
20°:
554 fc / 5968 Lux at 9.8' / 3 m 168 fc / 1815 Lux at 16.4' / 5 m 42 fc / 454 Lux at 32.8' / 10 m |
| Color Temperature |
2400 to 8500K
|
| Lumen Output |
9325 Lumens
|
| Beam Angle |
20° (without Filter)
32° (with Filter) |
| Field Angle |
36° (without Filter)
60° (with Filter) |
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
16-Bit Electronic, 0 to 100%
|
Performance
| Operating Modes |
DMX, Primary/Secondary, Standalone
|
| Gobos |
No
|
| Color Accuracy Index |
CRI: 92
TLCI: 83 |
| Refresh Rate |
900 Hz to 25 kHz
|
Control
| Control Protocols |
DMX512, RDM, Aria X2, Art-Net, Kling-Net, sACN
|
| DMX Channel Modes |
15 Mode(s):
1 / 3 / 6 / 9 / 13 / 16 / 22 / 34 / 58 / 72 / 82 / 154-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 2 x RJ45 Network Input/Output |
| Wireless |
Proprietary Wireless
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON TRUE1
Output: 1x powerCON TRUE1 |
| Power / Current Consumption |
210 W
|
| Power Linking |
7 Units at 110 VAC
16 Units at 240 VAC |
Physical
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Operating Conditions |
5 to 113°F / -15 to 45°C
|
| Mounting |
Floor Base, Mounting Bracket
|
| Included Accessories |
1x Filter
1x Power Cable 1x Safety Cable |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, FCC, UKCA, cETLus
|
| Dimensions |
39.4 x 8.1 x 6.9" / 1000 x 206.4 x 175.5 mm
|
| Weight |
24 lb / 10.9 kg
|
Packaging Info
| Package Weight |
36 lb
|
| Box Dimensions (LxWxH) |
46.5 x 12 x 10.75"
|
