Description
Elation Professional NS8 Overview

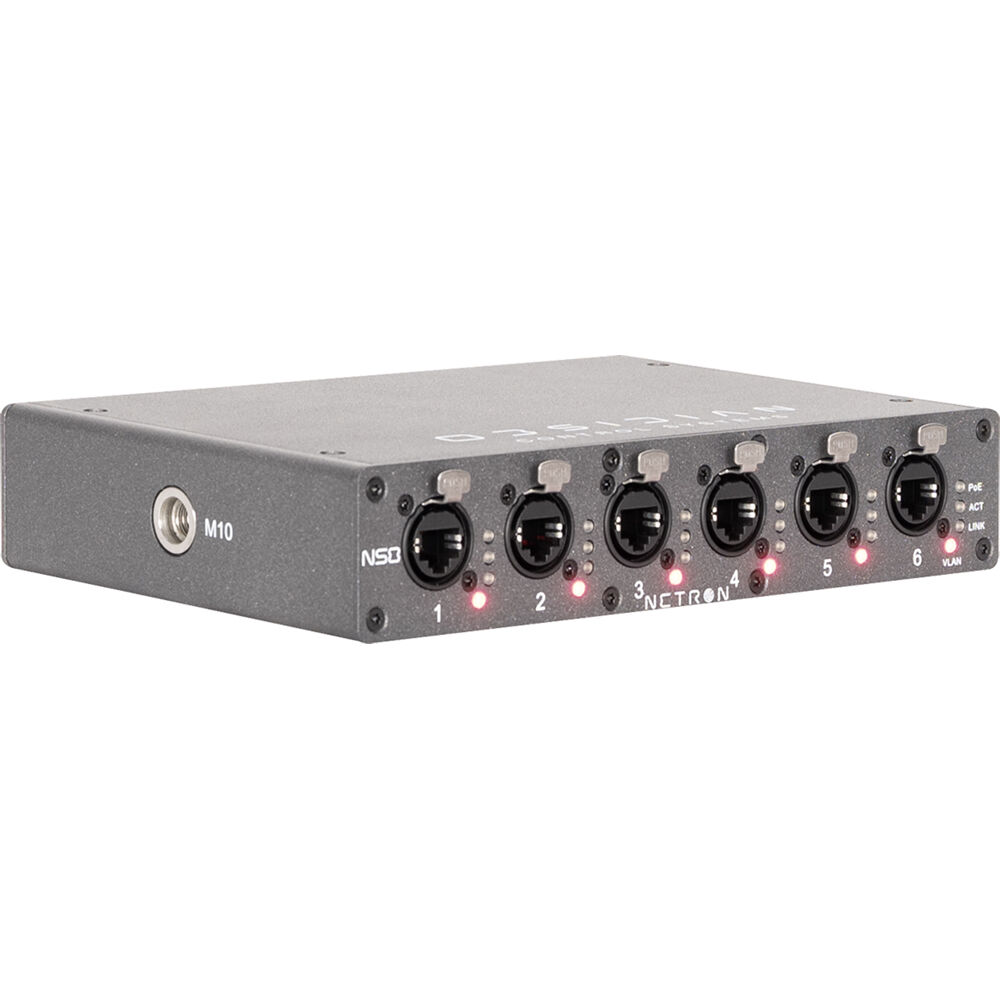

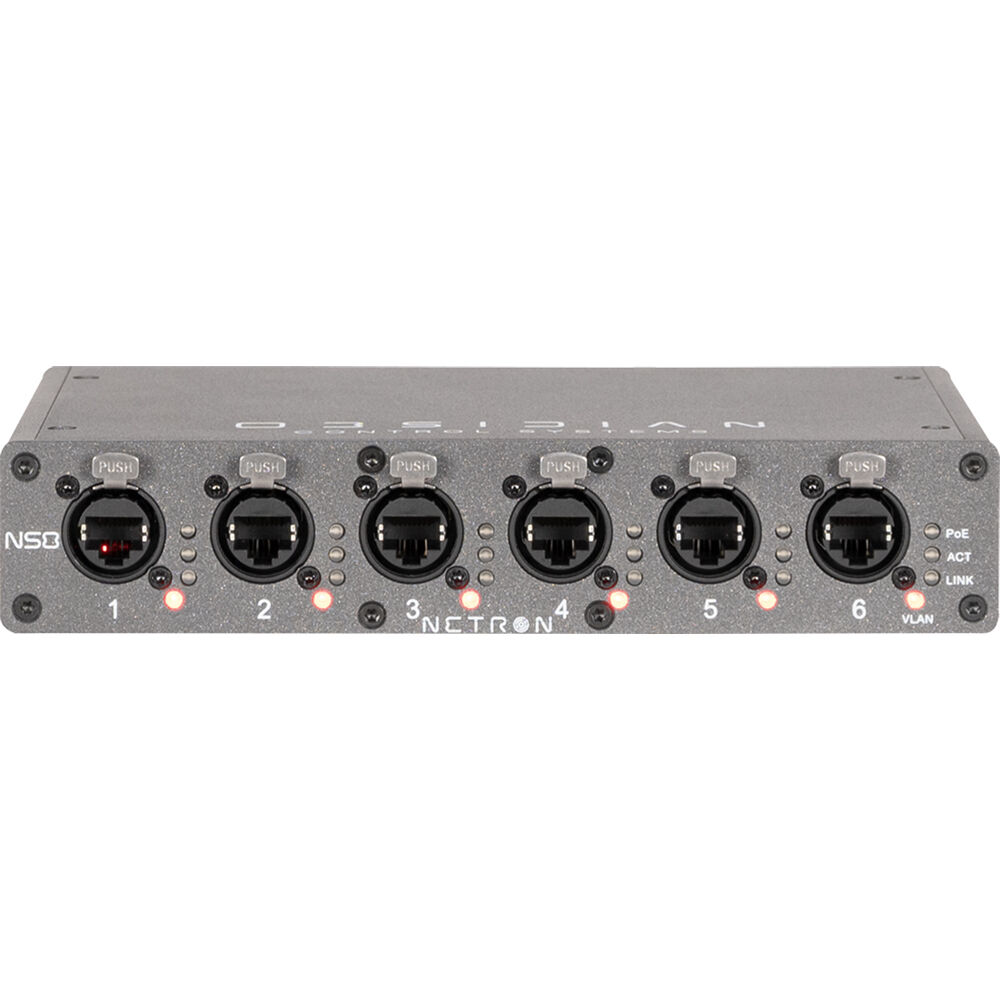

Build up your lighting system network with the 8-port NS8 PoE Gigabit Network Switch from Elation Professional. The device features eight RJ45 Gigabit Ethernet ports that provide wired connection to handle intensive data in entertainment applications. Distribute data and power to optional NETRON nodes and other PoE-compatible network devices. The NS8 has a 10 Gbps switching capacity with 15W PoE and 30W PoE+ maximum power per port. A 5' long locking IP65 power cable is also included for 100 to 240 VAC.
Highly Optimized
Compatible with advanced Ethernet protocols, such as Art-Net and sACN, the NS8 can be used to create networks by processing high data volume with no delays. It also supports X-Net, HogNet, MA-Net, ETC Net3, and various other protocols. The device suits live production and other types of installations in need of a fast, reliable network switch.
Flexible Mounting
The NS8's rugged powder-coated aluminum housing offers flexible mounting options for any situation. This includes rack, truss, din rail, and wall mounting. Elation Professional includes two wall mount plates, as well as two din rail clamps.
- Standalone mounting

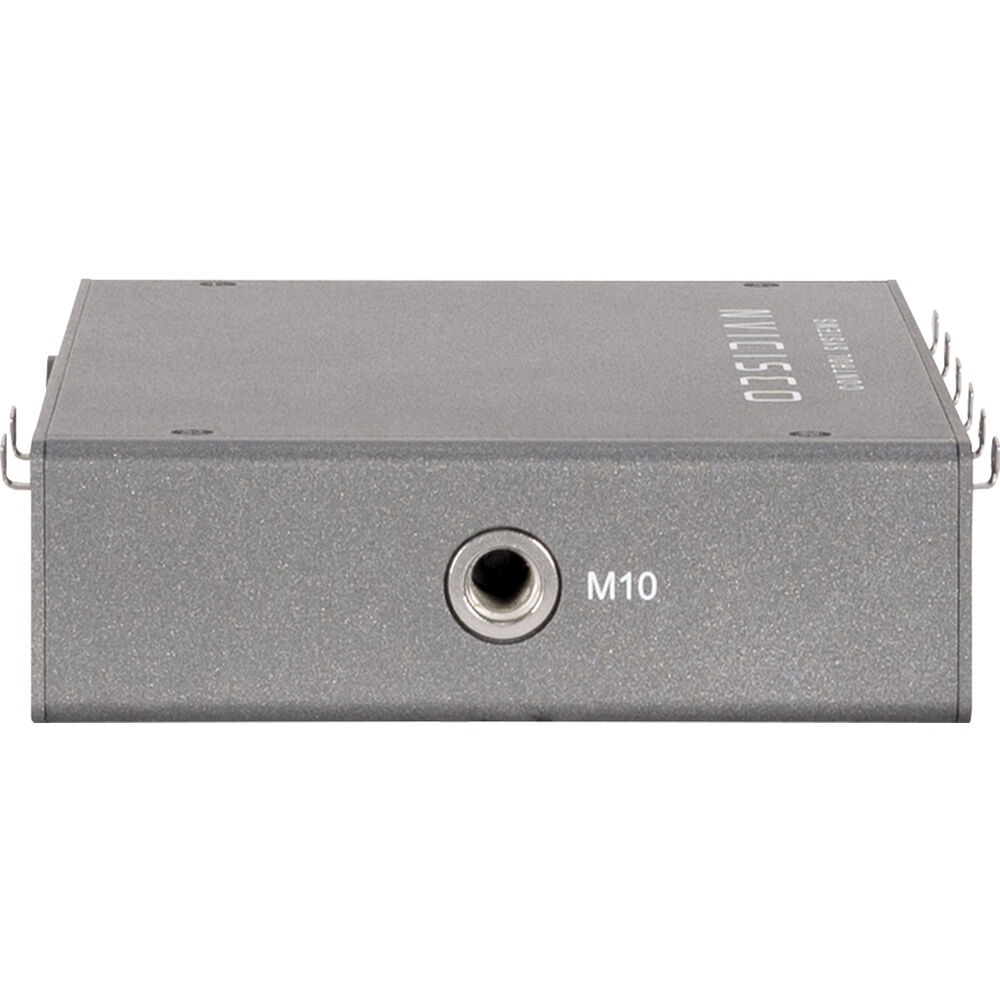

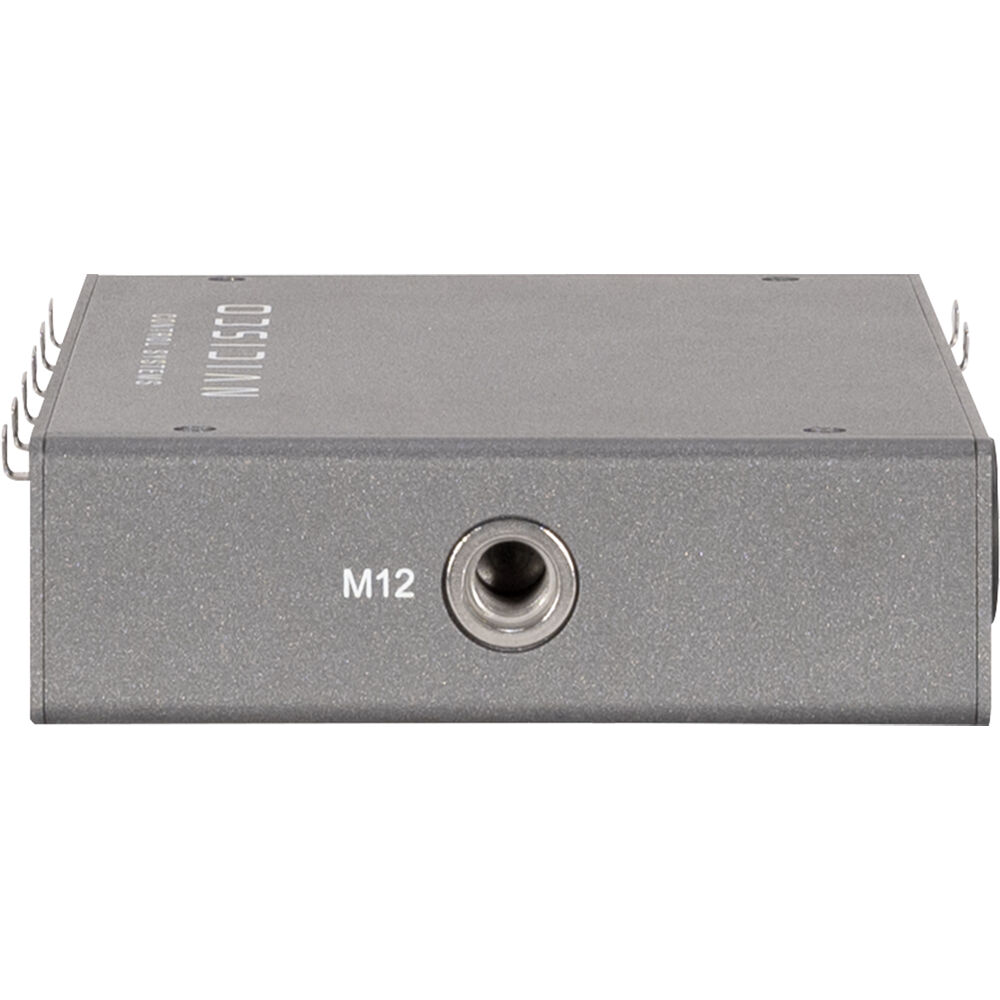

- Truss mounting via M10 or M12 mounting hole

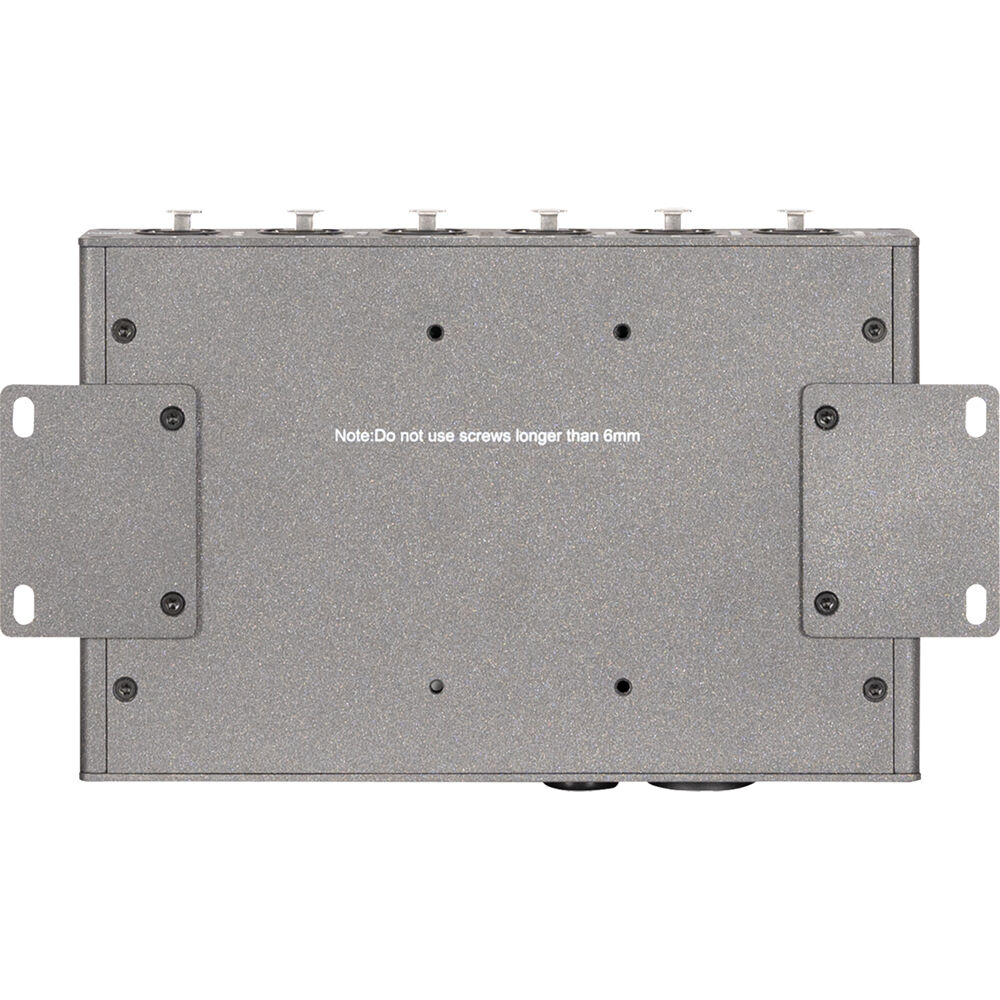

- Horizontal or vertical wall mounting

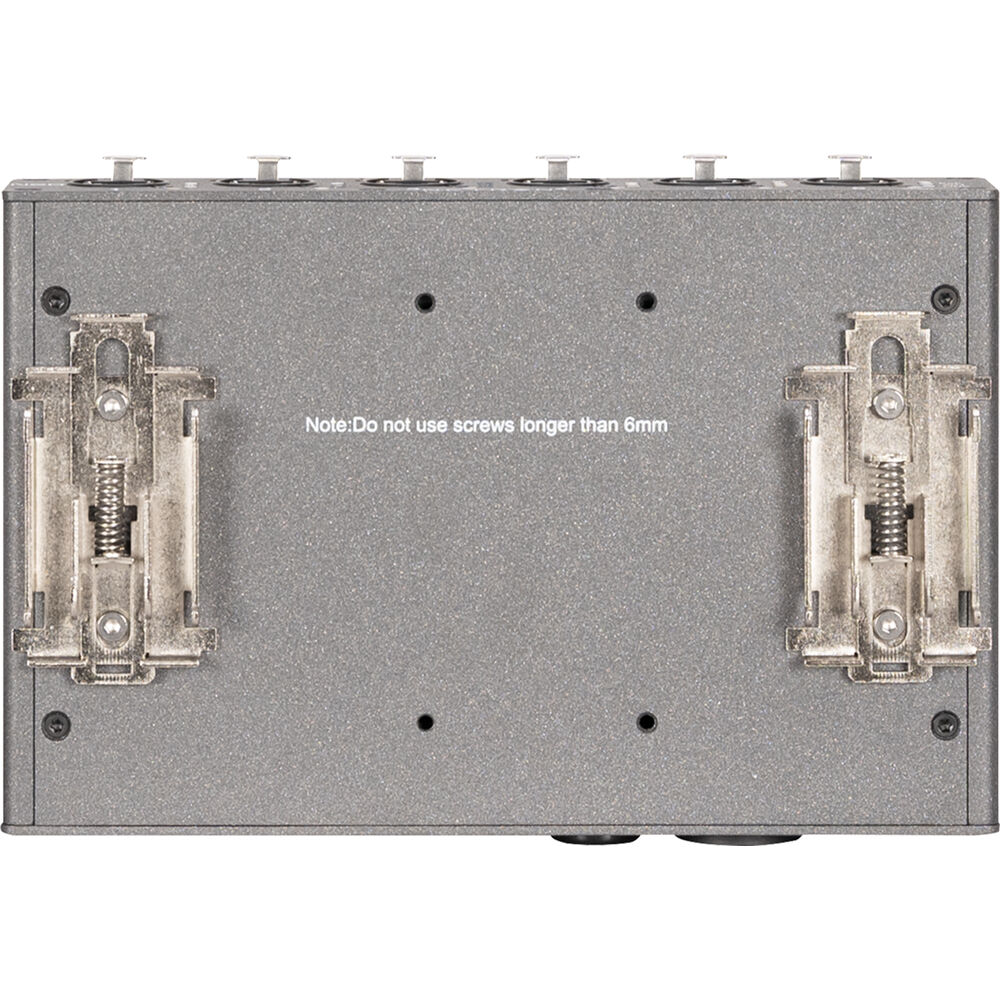

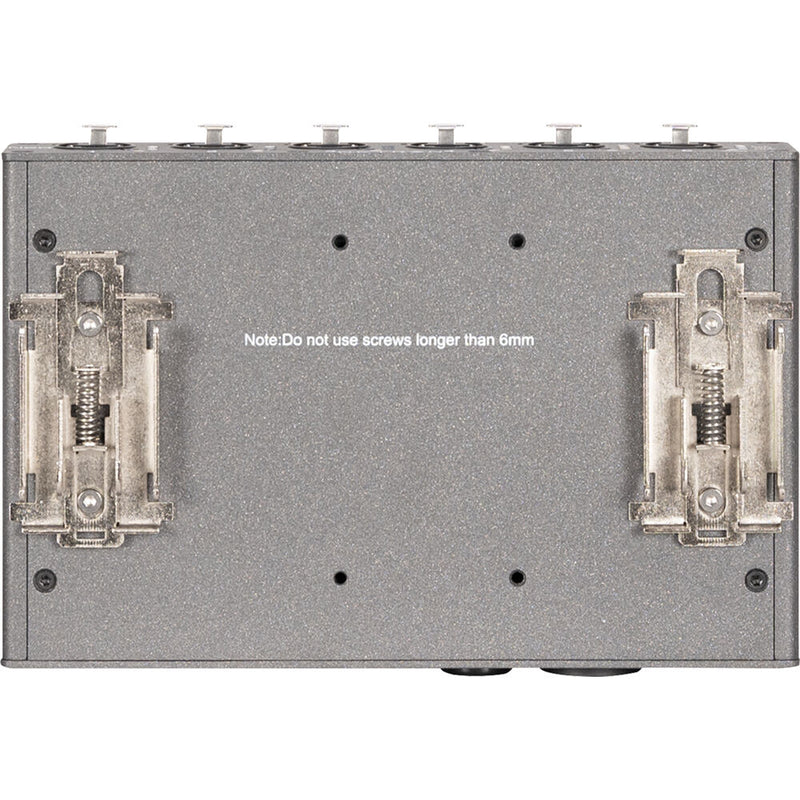

- Horizontal or vertical din rail mounting
- 1/2 rack housing
Additional Details
- Plug-and-play setup with factory and user presets
- Internal webpage for remote configuration
- Dante support
- Broadcast, Unicast, and Multicast support
- Convection cooled design

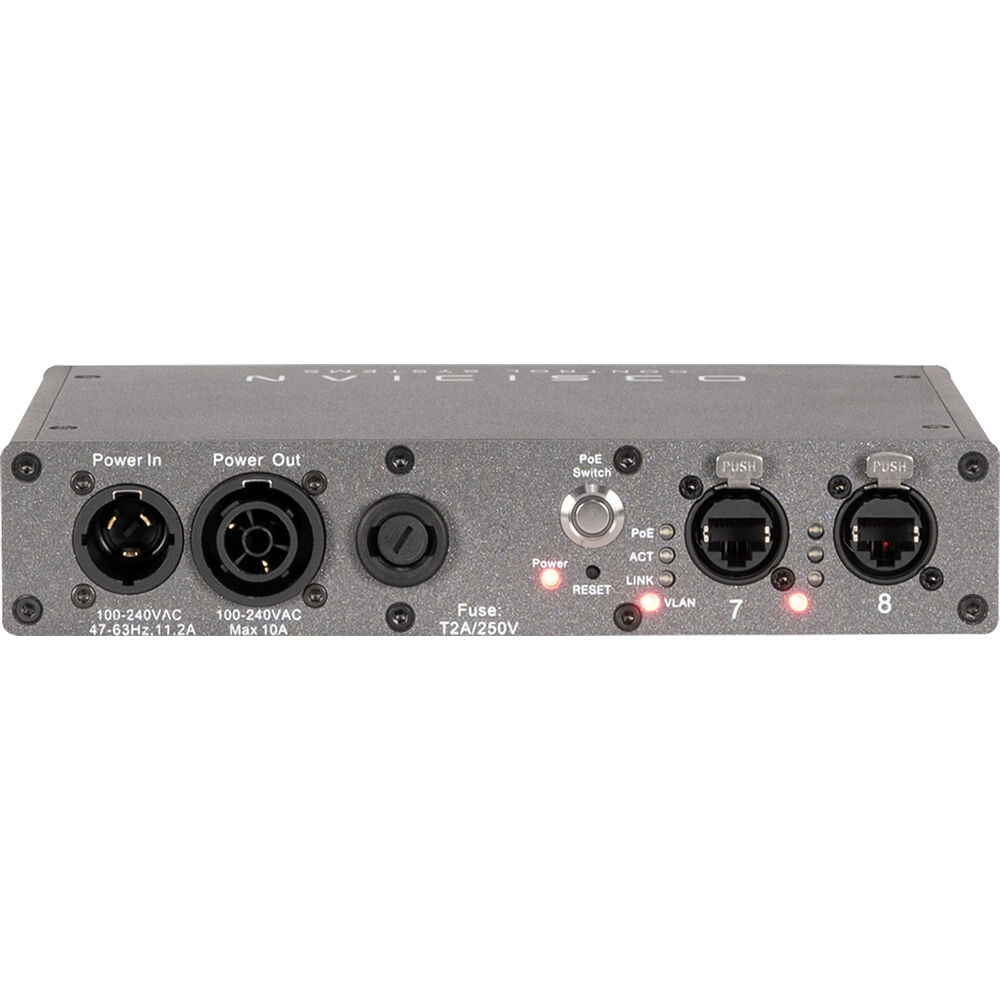

- PoE power switch
- LED feedback for activity, link, PoE, and VLAN settings
- IP20 rating and cETLus, CE, and FCC approvals
UPC: 810008264133
Items Included
- Elation Professional NS8 PoE Gigabit Network Switch (8-Port )
- Locking IP65 Power Cable (5')
- 2 x Wall Mount Plate
- 2 x Din Rail Clamp
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Elation Professional NS8 Specs
Key Specs
| Inputs/Outputs |
8x RJ45 (10/100 Ethernet)
1x (Power) Input 1x (Power) Output |
| Power Source |
AC Power
|
| Protocol |
ArtNet, sACN
|
General
| Inputs/Outputs |
8x RJ45 (10/100 Ethernet)
1x (Power) Input 1x (Power) Output |
| Dimming |
Optional
|
Power
| Power Source |
AC Power
|
| Power Consumption |
109 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Fuse |
2 A 250 V
|
| PoE Port Power |
30 W
|
Compatibility
| Protocol |
ArtNet, sACN
|
Physical
| Certifications |
CE, FCC, cETLus
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Dimensions |
8.5 x 5.5 x 1.6" / 21.6 x 14.0 x 4.1 cm
|
| Weight |
2.2 lb / 1 kg
|
Packaging Info
| Package Weight |
4.215 lb
|
| Box Dimensions (LxWxH) |
13.4 x 10.2 x 3.55"
|
