Description

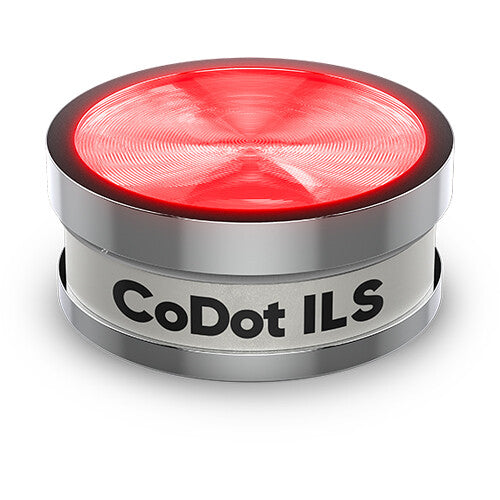

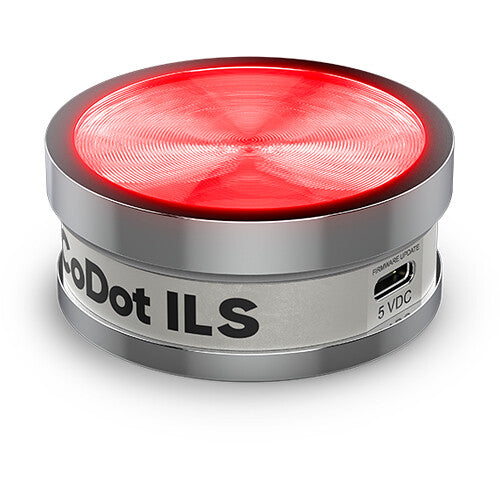

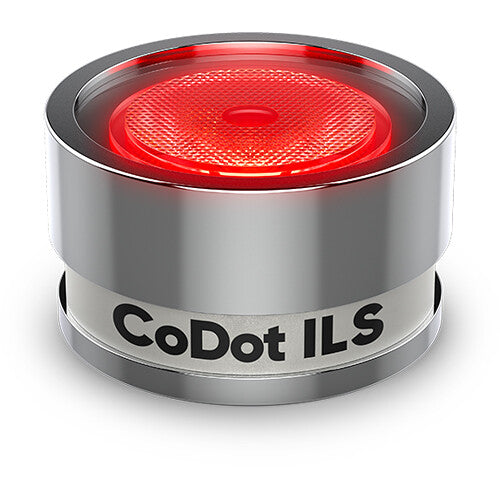

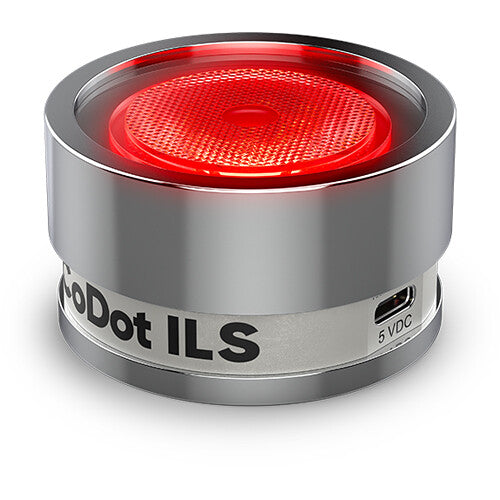

CHAUVET DJ CoDot ILS Overview

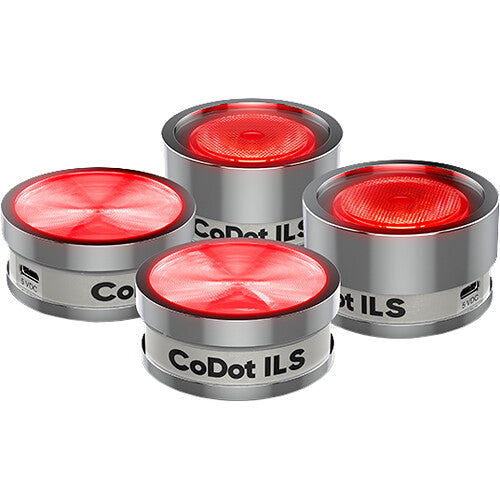

Add lights to compact areas with the CHAUVET DJ CoDot ILS, a 4-pack of coin-sized LED illuminators designed for small applications. Each CoDot ILS has a single quad-color (RGBW) LED to suit a range of applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs.
Key Features
- Coin-sized LED illuminator designed for small applications where conventional fixtures won�t fit
- Includes two lens options to meet different application criteria
- Magnetic base to easily mount on metal surfaces
- Threaded insert for camera tripod and accessory compatibility
- ILS compatibility for use in the ILS ecosystem
- Built-in DFI transceiver for communicating to DMX or ILS signals wirelessly
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

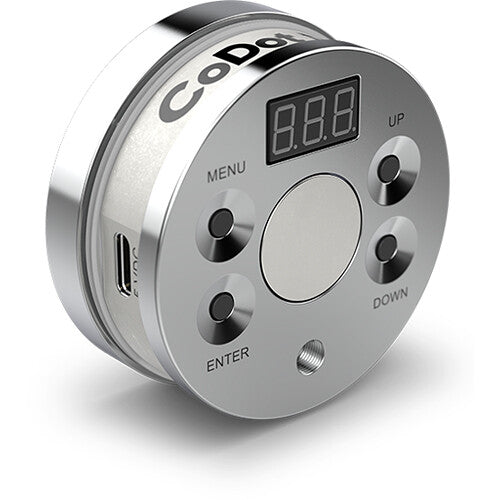

- Easy navigation and all-function access directly from the LED display
- Power-linking multiple units from the USB-C in and out
UPC: 781462227067
Items Included
- CHAUVET DJ CoDot ILS Coin-Sized LED Illuminator with Wireless Control (4-Pack)
- 4 x Clear Lens
- 3 x USB-C to USB-C Cable (1.6')
- 3 x USB-C to USB-C Cable (6.5')
- Power Supply

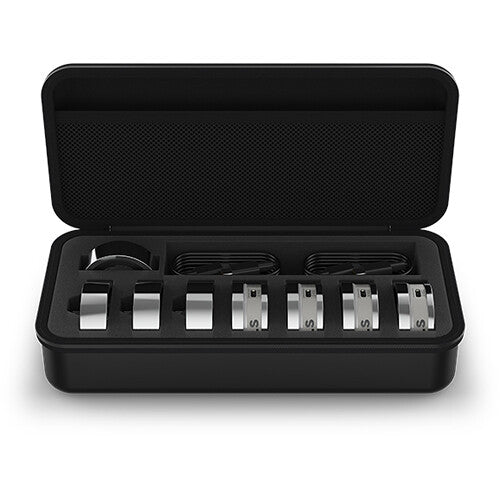

- Carry Case
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET DJ CoDot ILS Specs
Key Specs
| Fixture Type |
Special Design
|
| Light Source |
1x Color LED - 3 W / 0.8
|
| Colors |
Blue, Green, Red, White
|
| Beam Angle |
19° (with Installed Lens)
|
| Control Protocols |
DMX512, ILS
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
50 / 60 Hz: 7 W / 0.1 A
|
| Mounting |
Magnetic Bracket, Tripod Stand & Top Bar
|
Light
| Fixture Type |
Special Design
|
| Light Source |
1x Color LED - 3 W / 0.8
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, White
|
| Photometrics |
19°:
23 fc / 256 Lux at 6.6' / 2 m 14°: 41 fc / 442 Lux at 6.6' / 2 m |
| Beam Angle |
19° (with Installed Lens)
|
| Field Angle |
14° (with Included Lens)
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100%
|
Performance
| Operating Modes |
DMX, Primary/Secondary, Sound-Active, Standalone
|
| Macros / Programs |
12x Auto-Program
|
| Effects |
Strobe
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
Control
| Control Protocols |
DMX512, ILS
|
| DMX Channel Modes |
2 Mode(s):
4 / 6-Channel |
| Remote Control |
D-Fi, RF Remote
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
No
|
| Wireless |
Proprietary Wireless
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
No
|
| Fuse |
No
|
| Power / Current Consumption |
50 / 60 Hz: 7 W / 0.1 A
|
| Power Linking |
4 Units
|
Physical
| Environmental Resistance |
No
|
| Operating Conditions |
Up to 104°F / 40°C
|
| Mounting |
Magnetic Bracket, Tripod Stand & Top Bar
|
| Included Accessories |
8x Lens
|
| Duty Cycle |
No
|
| Exterior Color |
Silver
|
| Cooling |
Convection
|
| Certifications |
CE, FCC, RoHS, UKCA
|
| Dimensions |
2.2 x 2.2 x 0.9" / 5.6 x 5.6 x 2.3 cm
|
| Weight |
0.2 lb / 0.1 kg
|
Packaging Info
| Package Weight |
2.315 lb
|
| Box Dimensions (LxWxH) |
12.1 x 6.3 x 3.4"
|
