Description

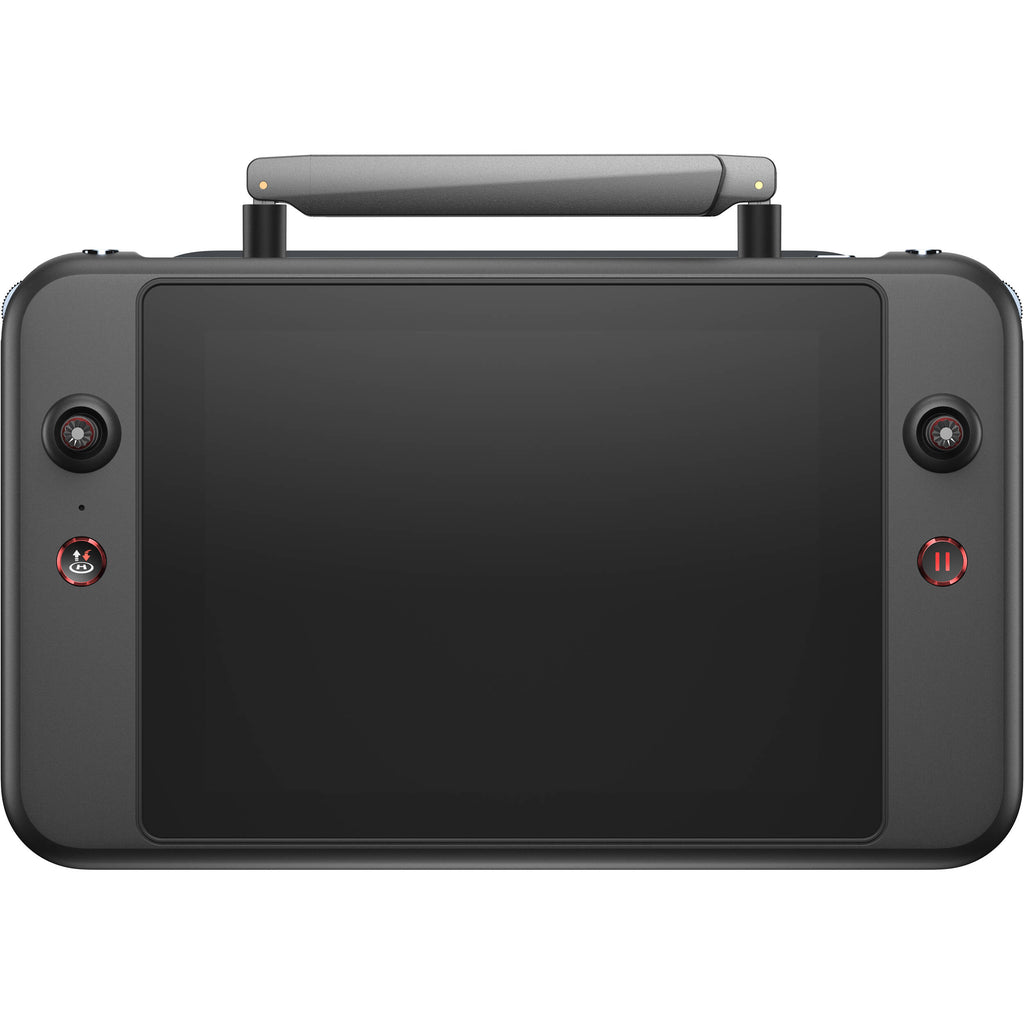

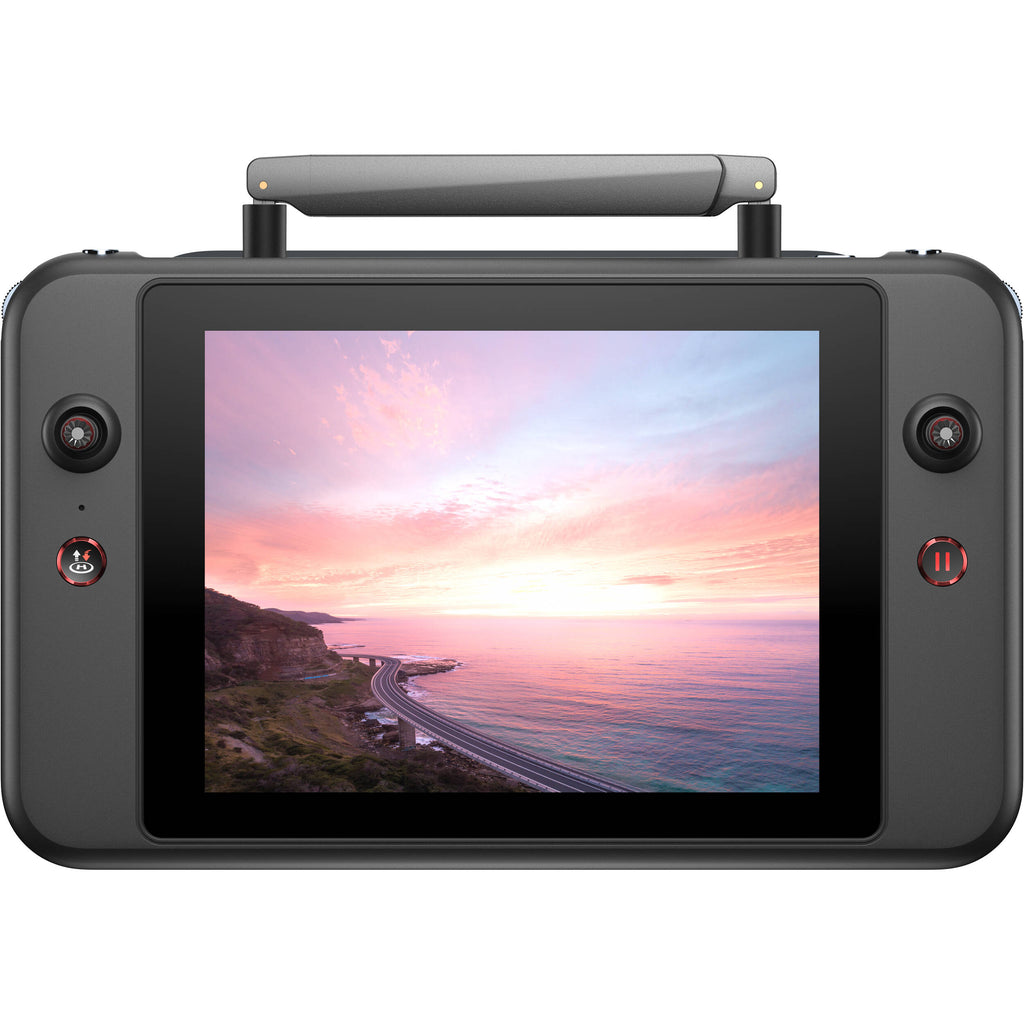

Autel Robotics 102003574 Overview
Control your drone from long distances with a clear image, even in direct sunlight, when using the Smart Controller V3 for Evo Lite from Autel Robotics. The huge 7.9" display features a QHD resolution screen offering up to 2000 nits of brightness and an anti-glare screen. This combination makes it possible to see footage clearly, and the addition of true tone technology dynamically adjusts the white balance for a more realistic image. Footage can be played back from the built-in 128GB of internal memory or live via a direct feed from the drone. SkyLink 2.0 can receive video and data from over nine miles away and uses a multi-band frequency-hopping feature to ensure solid, interference-free streams. All this is packed within a rugged, ergonomic, and travel-friendly frame.
SkyLink 2.0
Long-range piloting and reception of live footage and telemetry is possible at a range of over nine miles, thanks to SkyLink 2.0 technology. Resolution of live footage maintains a 2.7K quality at up to 0.6 miles and Full HD 1080p quality at up to 6.2 miles. To ensure a steady signal, the dual antennas can access 900 MHz and 2.4/5.1/5.7/5.8 GHz frequencies. Frequency hopping technology assists this by actively hopping frequencies to the strongest signal.
Rugged Construction
You can feel comfortable using the Smart Controller V3 in nearly any climate with its -4 to 104°F working temperature range. It can also handle the elements with IP43-rated water and dust resistance, plus a frame made from durable reinforced composite material.
Sleek and Portable
Packing and traveling with the Smart Controller V3 is made to be an easy and straightforward experience. The slim remote weighs only 2.63 lb and features both dual folding antennas and removable command sticks.
Additional Details
- 10-point multi-touch
- 5800mAh battery with up to four hours of battery life
- 2-hour fast charging
- Qualcomm octa-core processor can run H.264/H.265 video at 4K60
- Customized Android OS
- Download third-party apps to enhance piloting
- USB and HDMI outputs
- 3D laser-engraved back for a better grip
UPC: 889520221580
Items Included
- Autel Robotics Smart Controller V3 for Evo Lite
- Protective Cover
- 2 x Antenna
- 2 x Control Stick
Additional Resources
No additional resources available
Autel Robotics 102003574 Specs
General
| Compatibility |
Autel Robotics Evo Lite Enterprise
|
Display
| Panel Type |
LCD
|
| Display Size |
7.9"
|
| Native Resolution |
2048 x 1536
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2
|
Inputs/Outputs
| USB I/O |
1 x USB-A 2.0 Female Input/Output
1 x USB-C Female Input/Output |
| Video I/O |
1x HDMI Output
|
| Internal Storage |
128 GB
|
Wireless
| Wireless |
900 MHz Radio/RF / 2.4 GHz Radio/RF / 5.1 GHz Radio/RF / 5.8 GHz Radio/RF / Wi-Fi 5 (802.11ac) / Bluetooth 5.0
|
| Mobile App Compatible |
No
|
| Global Positioning (GPS, GLONASS, etc.) |
BeiDou, Galileo, GLONASS, GPS
|
| Bluetooth |
Operating Frequency: 2.400 to 2.4835 GHz
EIRP: |
| Wi-Fi |
MIMO: 2x2
Operating Frequency (2.4 GHz): 2.400 to 2.476 GHz (SRRC) and 2.400-2.4835 GHz Operating Frequency (5.8 GHz): 5.725 to 5.829 GHz (SRRC) and 5.725 to 5.850 GHz EIRP (2.4 GHz): EIRP (5.8 GHz): |
| Transmission |
Antennas: Dual 1T2R Detachable
900 MHz: 902 to 928 MHz (FCC/ISED) 2.4 GHz: 2.400 to 2.476 GHz (SRRC) and 2.400 to 2.4835 GHz 5.8 GHz: 5.725 to 5.829 GHz (SRRC) and 5.725 to 5.850 GHz Maximum Distance Without Interference and Blocking (FCC): 9.3 Miles / 15 km Maximum Distance Without Interference and Blocking (CE/SRRC): 5 Miles / 8 km |
Battery
| Battery Chemistry |
Lithium-Ion Polymer (LiPo)
|
| Battery Capacity |
5800 mAh / 67 Wh
|
| Recharge Time |
2 Hours
|
| Maximum Battery Life |
4 Hours
|
Power
| DC Input Power |
5 VDC at 2 A
|
Physical
| Color |
Black
|
| Environmental Resistance |
Dust/Water-Resistant (IP43)
|
| Operating Conditions |
-4 to 104°F / -20 to 40°C
|
| Storage Conditions |
-4 to 113°F / -20 to 45°C
|
| Dimensions |
10.6 x 7.4 x 2.6" / 269 x 189 x 66 mm (Antennas Folded)
11.9 x 10.6 x 3.4" / 302 x 269 x 87 mm (Antennas Unfolded) |
| Weight |
2.6 lb / 1194 g (Without Protective Cover)
3 lb / 1365 g (With Protective Cover) |
Packaging Info
| Package Weight |
5.12 lb
|
| Box Dimensions (LxWxH) |
12.4 x 9.5 x 3.6"
|
