Description

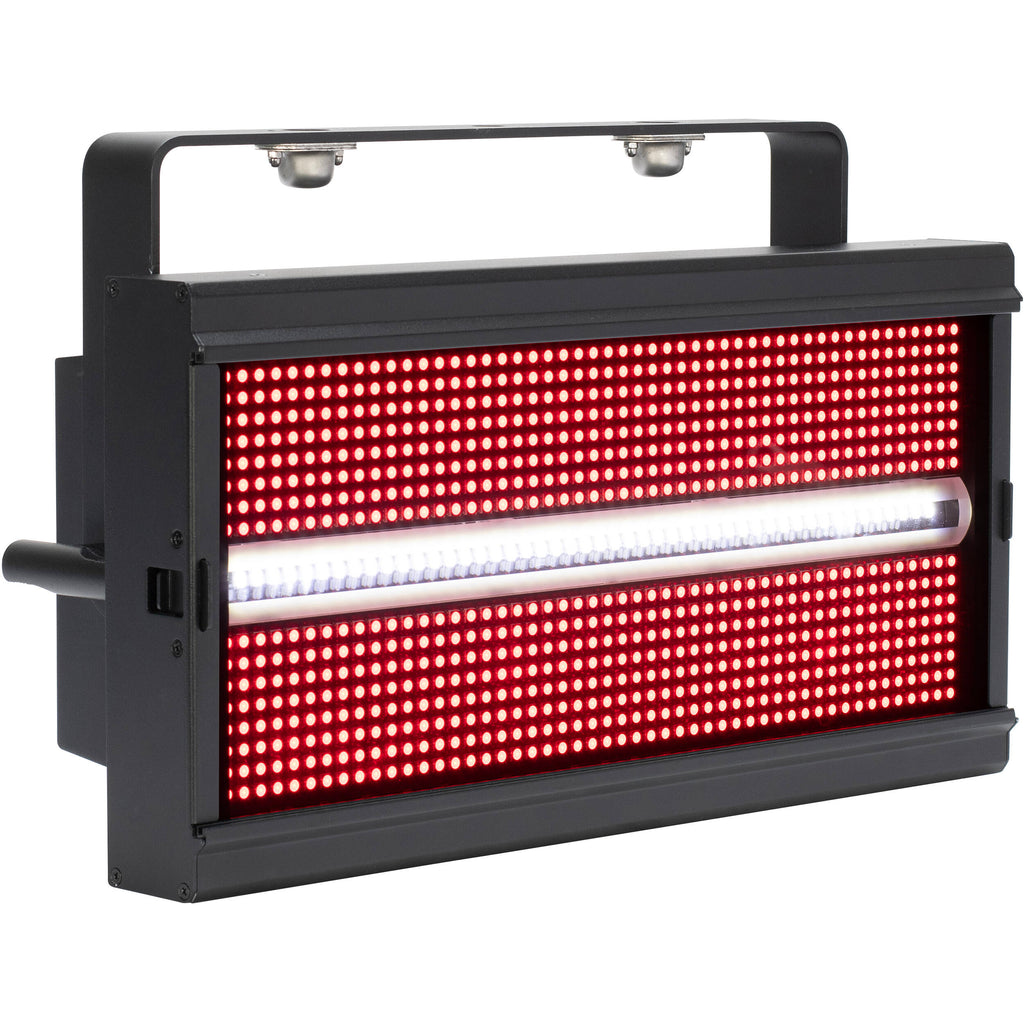

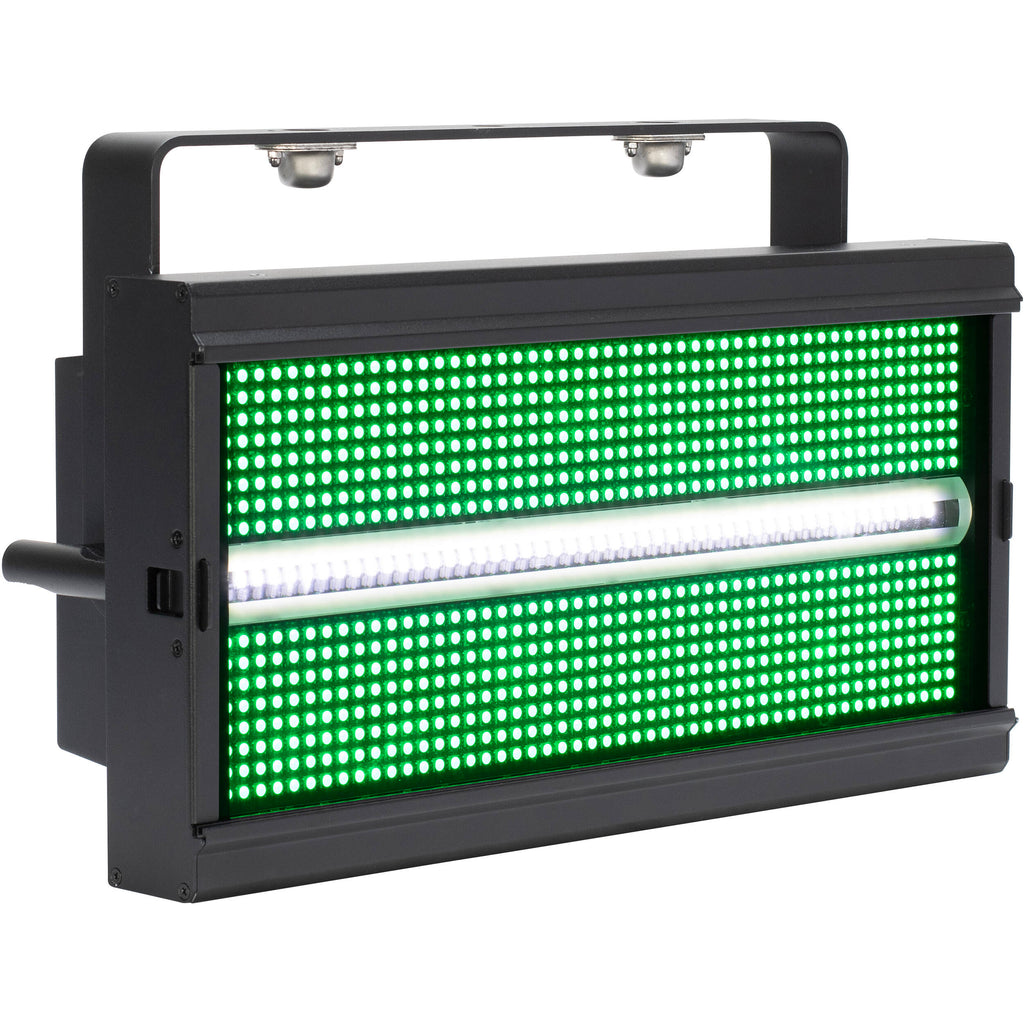

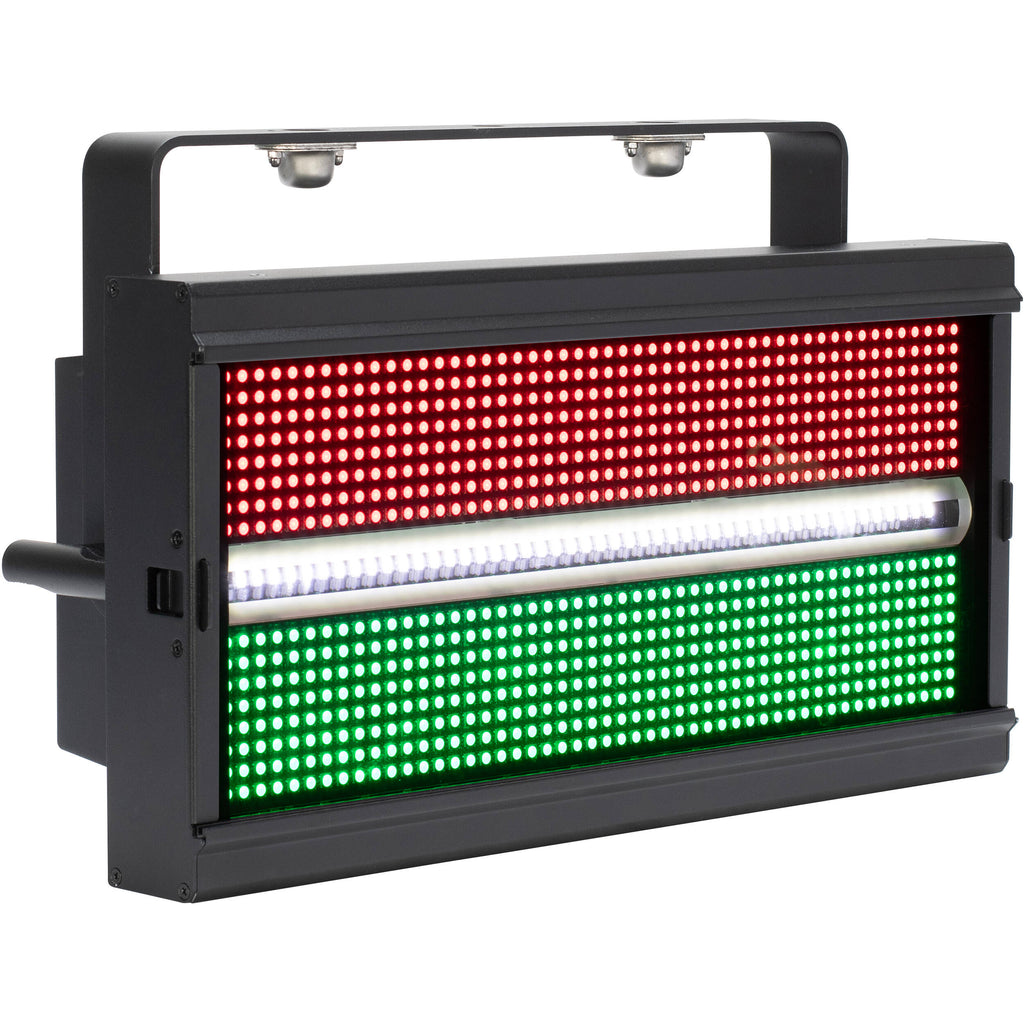

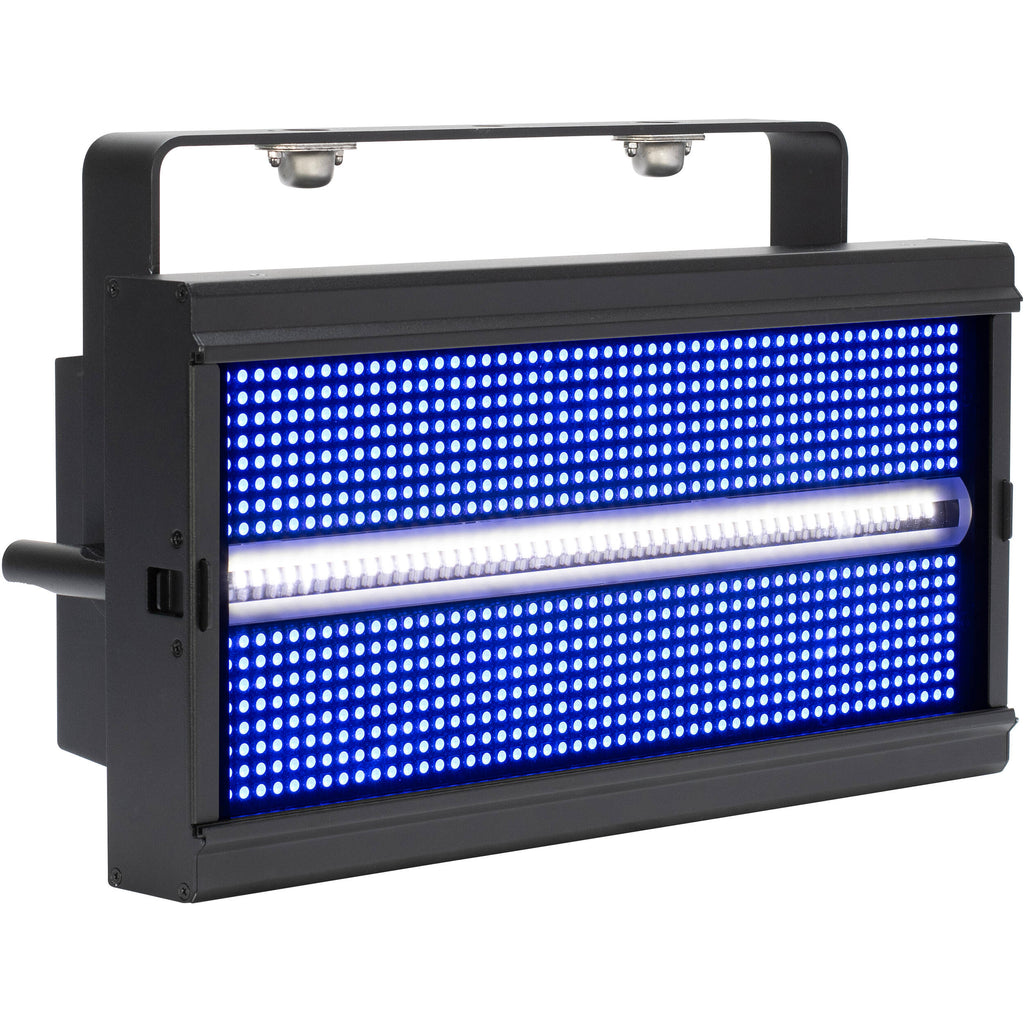

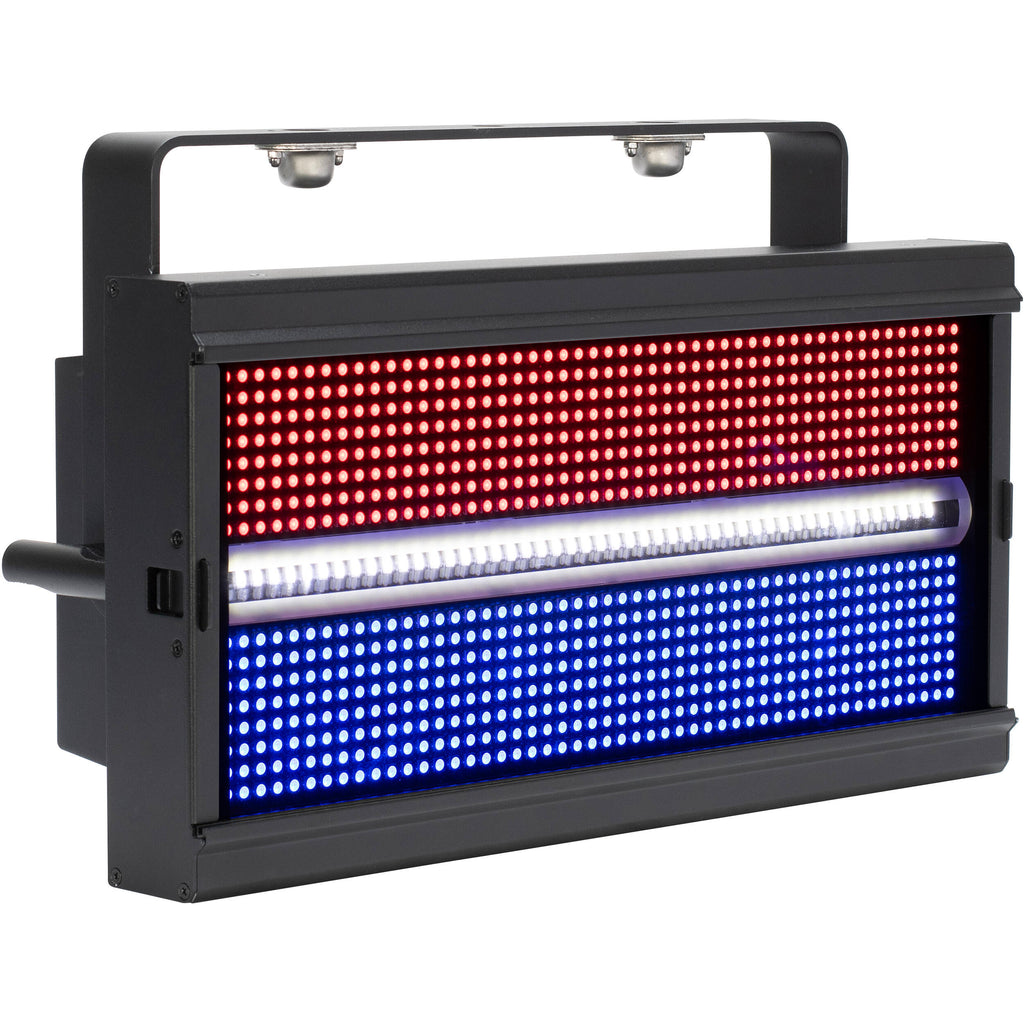

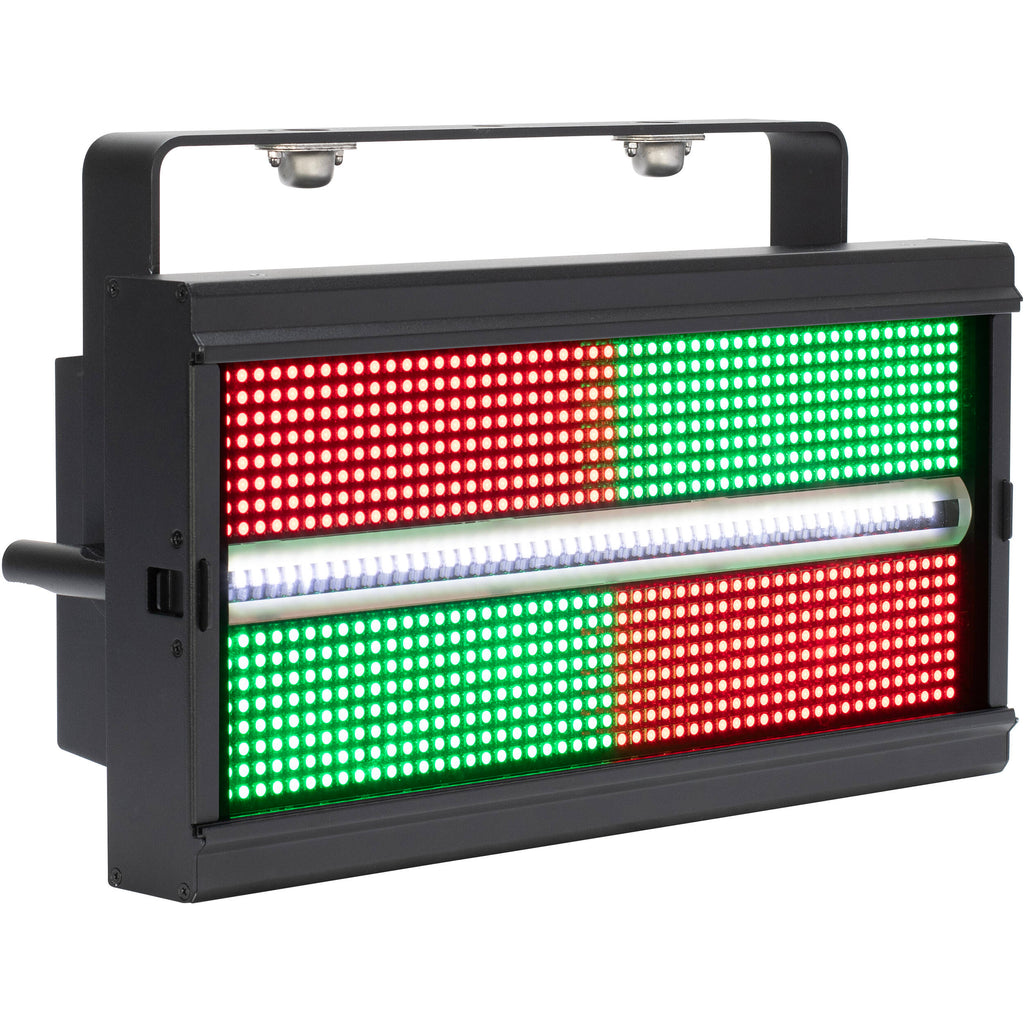

American DJ Jolt Panel FX2 Overview
Create strikingly bright white strobe flashes, vibrant color washes, and animated eye-candy chase effects with the American DJ Jolt Panel FX2, an RGB and cool white LED blinder, wash, and strobe fixture well suited for large stages, nightclubs, live events, and touring.
The fixture is equipped with 800 x 0.5W RGB SMD LEDs for color strobe, wash and eye candy effects as well as 48 x 5W white SMD LEDs located in the center of the fixture to create the traditional look of a strobe. Both types of LED are grouped into independent controllable zones (6 white and 40 color), allowing for the creation of eye-catching animated chase patterns. The rear panel offers 5-pin DMX I/O with locking power input and output for daisy-chaining data and power to several fixtures. The American DJ Jolt Panel FX2 includes a locking power cord and a frost filter.
Note: An Omega bracket is available separately.
- 800 x 0.5W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
- Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6900-7400K
- CRI: 69.4
- 50,000 hour average LED life
- 40 x RGB LED zones
- 6 x cool white LED zones
- 25 built-in RGB LED program macros
- 9 built-in cool white LED program macros
- Control Protocol: DMX, Aria X2, and RDM
- 10 DMX Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126, and 141 channel modes
- Dim Modes: 6 presets (Standard, Stage, TV, Architectural, Theatre, and Stage 2)
- Dim Curves: 4 presets (Linear, Square Law, Inv Square Law, and S Curve)
- 0-100% smooth dimming
- Strobe, shutter, and pulse control
- Strobe Rate: 1 to 20 Hz
- With Wired Digital Communication Network
- Display: OLED display with 4-button touch menu
Items Included
- American DJ Jolt Panel FX2 RGBW Wash / Blinder / Strobe Fixture
- Frost Filter
- Locking Power Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ Jolt Panel FX2 Specs
| Fixture Type |
LED Panel
|
| Light Source |
800x Color LED (SMD) - 0.5 W
48x White LED (SMD) - 5 W |
| Colors |
Blue, Cool White, Green, Red
|
| Pixel Configuration |
46x Zone
|
| Beam Angle |
73°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 214 W (Max)
230 VAC, 50 Hz: 208 W / 1.4 A (Max) |
| Mounting |
Mount Optional
|
| Fixture Type |
LED Panel
|
| Light Source |
800x Color LED (SMD) - 0.5 W
48x White LED (SMD) - 5 W |
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Cool White, Green, Red
|
| Pixel Configuration |
46x Zone
|
| Beam Angle |
73°
|
| Field Angle |
111°
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100% with 6 Dimmer Modes
|
| Operating Modes |
Automatic, DMX, Primary/Secondary, Program
|
| Macros / Programs |
25x Auto-Program
9x Color Macro |
| Effects |
Strobe (Variable Speed)
Pulse |
| Strobe Rate |
1 to 20 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
10 Mode(s):
6 / 9 / 13 / 18 / 36 / 41 / 51 / 81 / 126 / 141-Channel |
| Display / Controls |
OLED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output |
| Wireless |
Wireless DMX
*Built-In |
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x powerCON
Output: 1x powerCON Plug Type: NEMA 5-15 |
| Fuse |
T 5 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 214 W (Max)
230 VAC, 50 Hz: 208 W / 1.4 A (Max) |
| Power Linking |
6 Units at 120 VAC
12 Units at 230 VAC |
| Environmental Resistance |
No
|
| Mounting |
Mount Optional
|
| Included Accessories |
1x Power Cable
1x Filter |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Certifications |
CE, cETLus
|
| Dimensions |
16.42 x 10.26 x 5.28" / 417.07 x 260.6 x 134.11 mm
|
| Weight |
13.7 lb / 6.2 kg
|
| Package Weight |
18.995 lb
|
| Box Dimensions (LxWxH) |
21 x 13.7 x 10.1"
|
