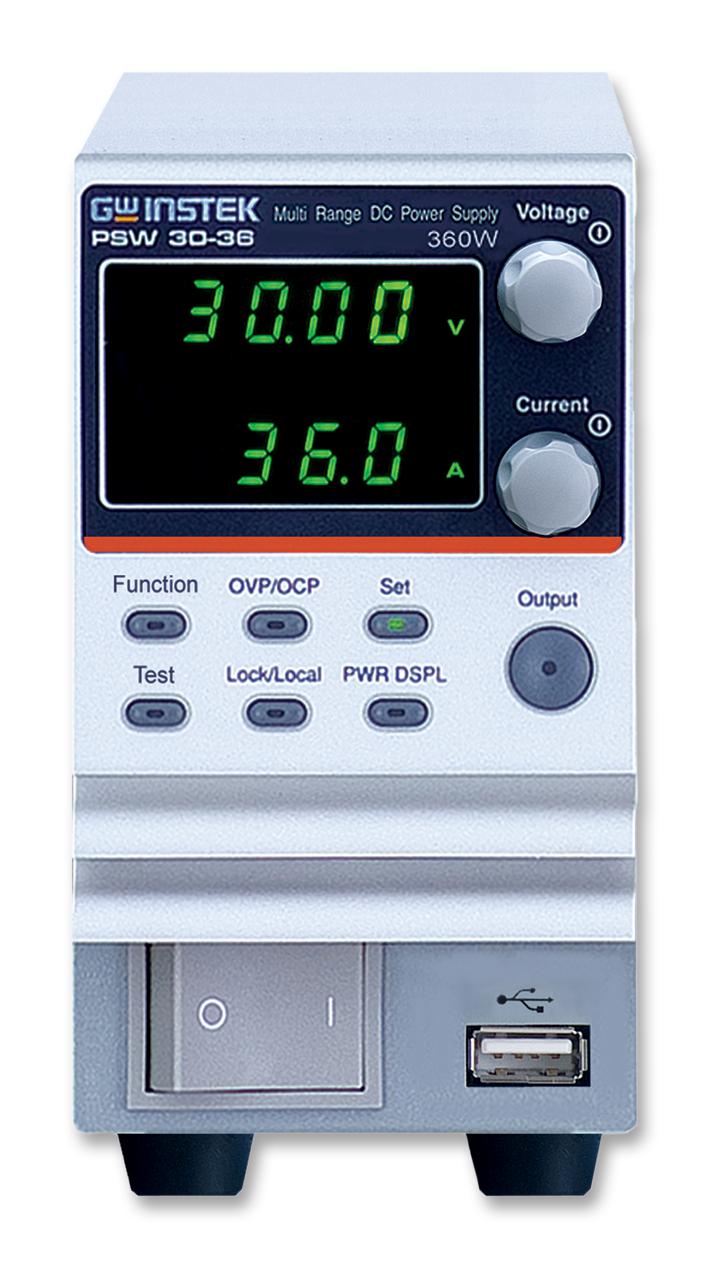

The PSW 30-36 is a 360W single-output multi-range programmable switching DC Power Supply with 4-digit display. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range. As the PSW-series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW series significantly reduces the user's investment for various power supply products to accommodate the projects with different power requirements.
- Constant power output for multiple range (V&I) operation
- CV/CC priority, particularly suitable for the battery and LED industry
- Adjustable slew rate
- High efficiency and high power density
- Standard interface - LAN, USB and analog control interface
- LabVIEW driver
Applications
Test & Measurement, Power Management
Footnotes In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Product details
| Power Supply Output Type |
Programmable |
| No. of Outputs |
1 Output |
| Output Voltage Min |
0V |
| Output Voltage Max |
30V |
| Output Current Min |
0A |
| Output Current Max |
36A |
| Power Rating |
360W |
| Supply Voltage Min |
85VAC |
| Supply Voltage Max |
265VAC |
| Manufacturer Warranty |
- |
| Product Range |
PSW Series |
| Plug Type |
- |
Other details
| Brand |
GW INSTEK |
| Part Number |
PSW 30-36 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
