The TTi PowerFlex design of the CPX series enables higher currents to be generated at lower voltages within an overall power limit envelope. Each output can provide twice as much current as a conventional PSU of the same maximum voltage and power (see the power curve for each model).
- PowerFlex' Max 60V or 20A
- PowerFlex design gives variable voltage & current combinations within a maximum power range
- True Analog controls - for ease of use
- S-Lock function - instantly lock settings
- Variable OVP trip
- Full digital remote control and readback
- RS-232, USB, GPIB and LAN (Ethernet)
- LAN Interface conforms with LXI standard
- Interfaces are opto-isolated from outputs
- IVI Driver supplied
- Front and rear terminals
- Selectable remote sense terminals
- Ultra-compact size of quarter-rack 3U
Product details
| Power Supply Output Type |
Adjustable |
| Warranty |
3 Years |
| Plug Type |
EU, UK |
| Output Voltage Max |
60V |
| Output Voltage Min |
0V |
| Product Range |
CPX Series |
| Output Current Max |
20A |
| Output Current Min |
0A |
| Supply Voltage Min |
110VAC |
| Power Rating |
840W |
| Supply Voltage Max |
240VAC |
| No. of Outputs |
1 Output |
Other details
| Brand |
AIM-TTI INSTRUMENTS |
| Part Number |

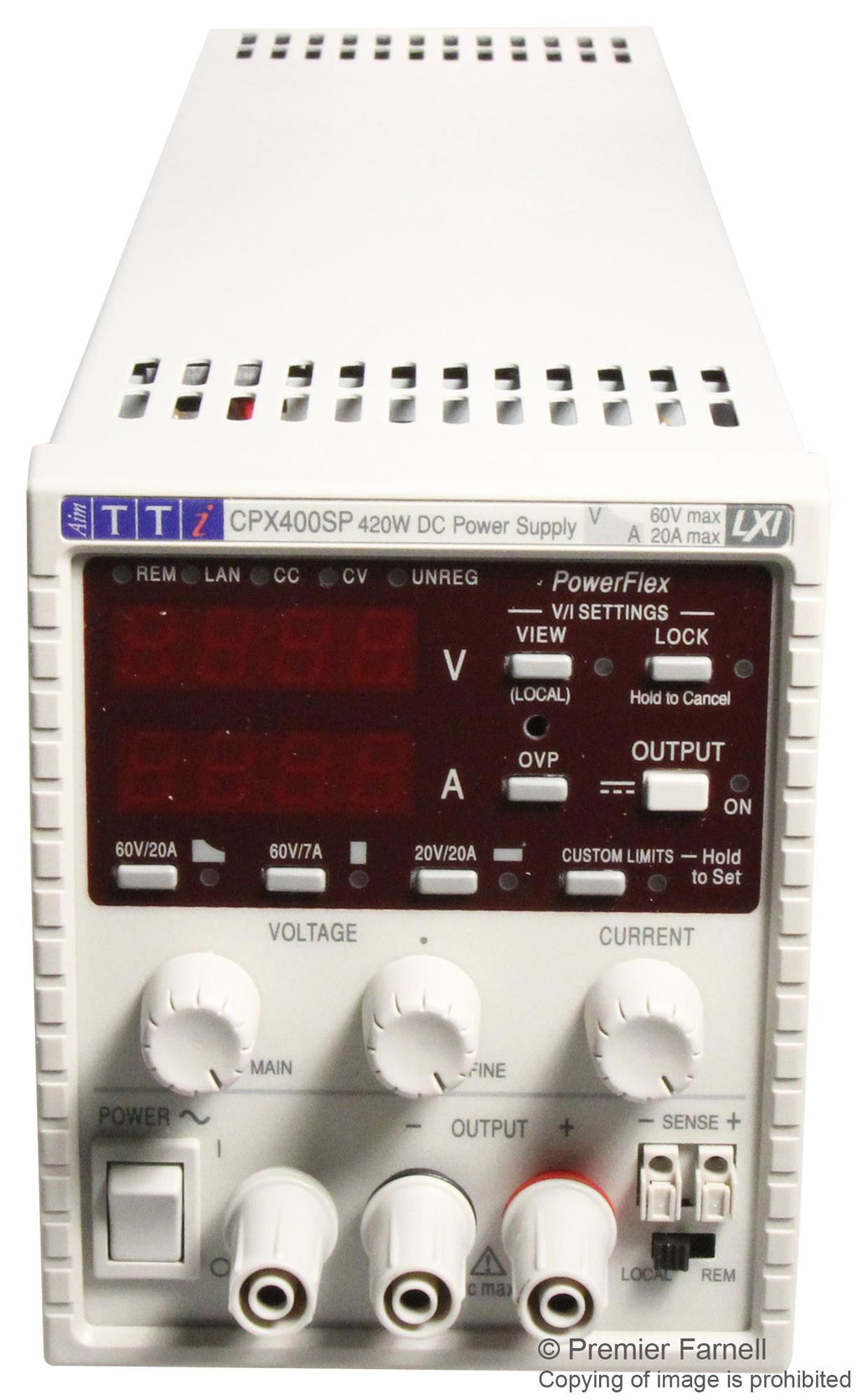

CPX400SP |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
