Description

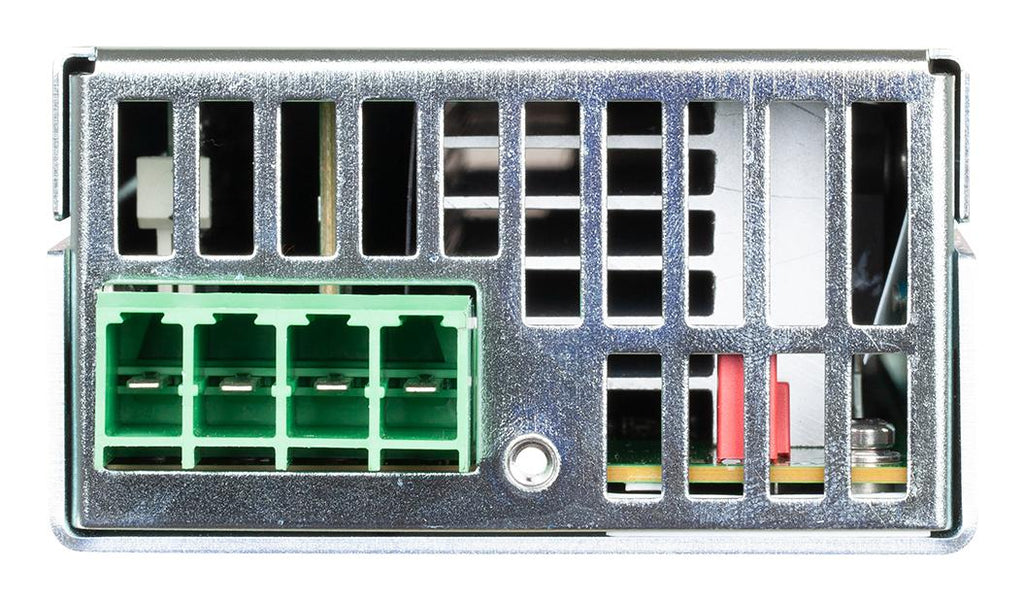

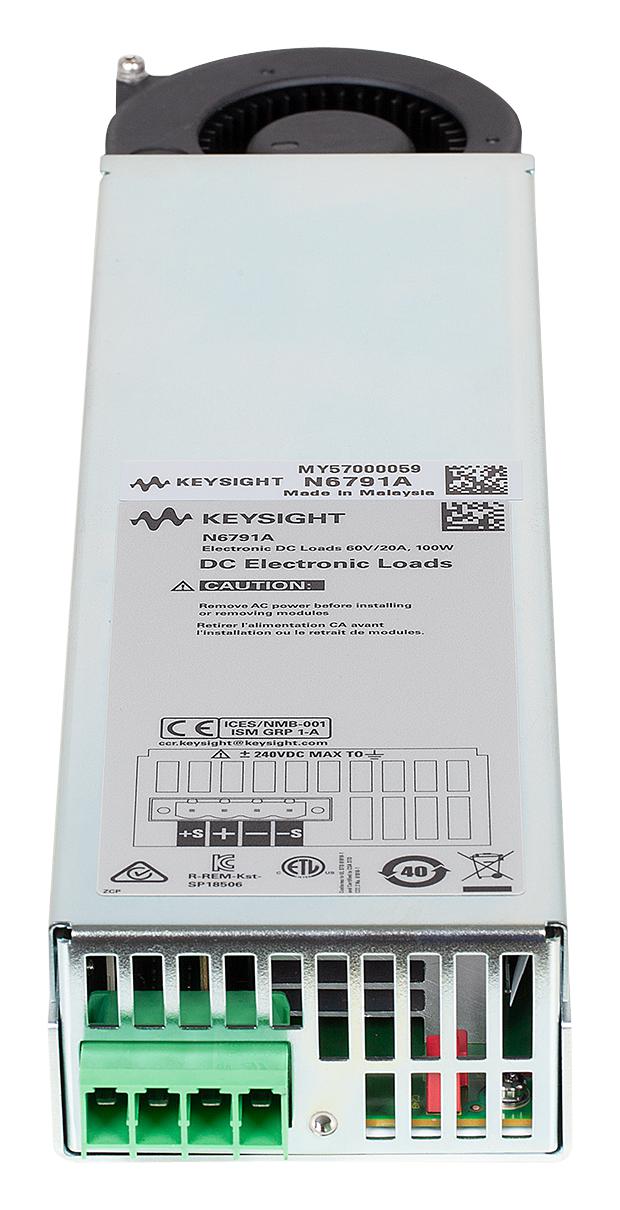

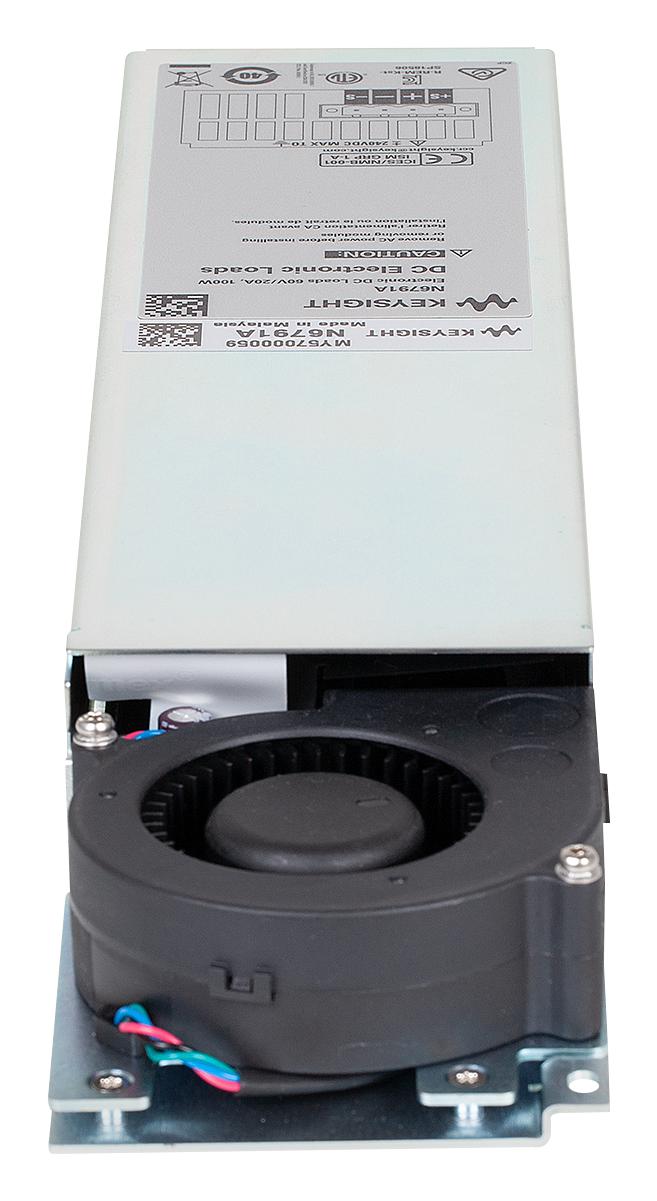

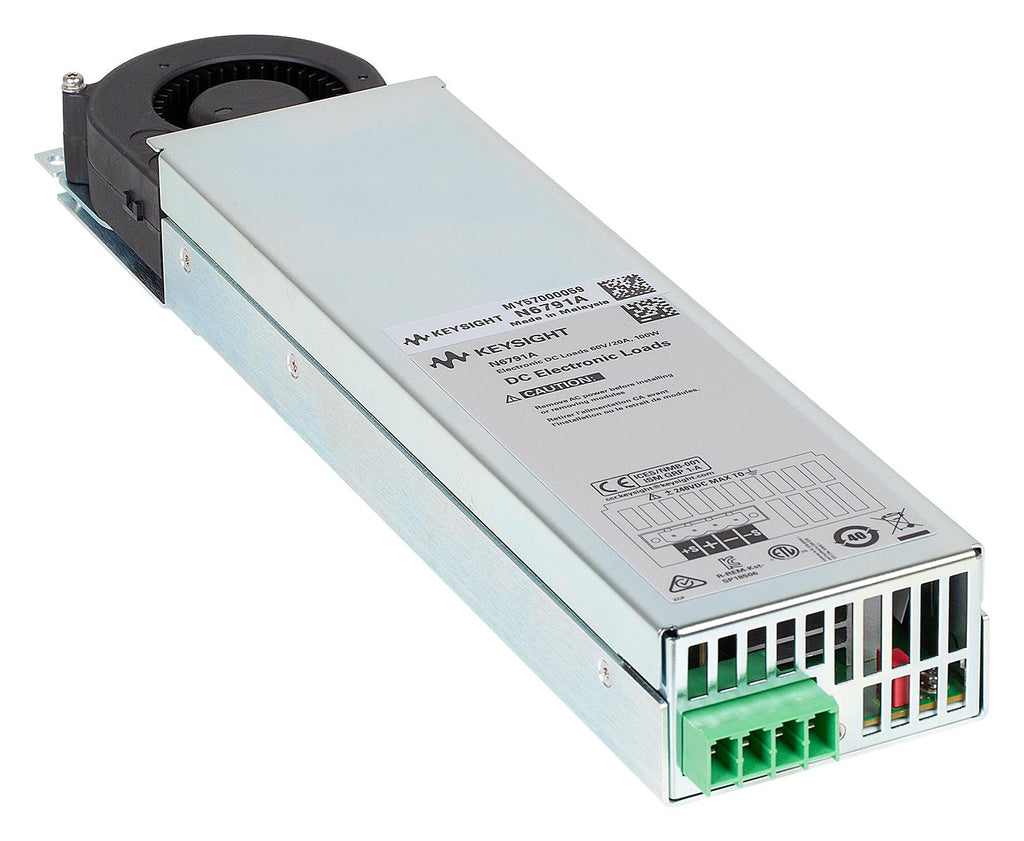

1U height modular electronic DC load module for N6700C mainframes.
- Single-wide module, up to 4 modules in mainframe
- Maximum 100W sinking power per module
- CV, CC, CR, CP advanced operating modes
- Arbitrary waveform generation
- High speed synchronized digitization of voltage and current
- Superior command processing time and current slew rate
- USB, LAN, GPIB interfaces standard
- N6700C style user interface for ease of use and familiarity
Test & Measurement
Product details
| Product Range | N6700 Series |
| Power Rating | 100W |
| DC Load Type | Programmable |
| Operating Voltage Min | 0V |
| Operating Voltage Max | 60V |
| Operating Current Max | 20A |
| Manufacturer Warranty | 3 Years |
Other details
| Brand | KEYSIGHT TECHNOLOGIES |
| Part Number | N6791A |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Application Note EN | |
| One Page Summary EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 325944.01 |
| 3-5 | ₹ 322618.05 |
| 5-10 | ₹ 315966.13 |
| 10+ | ₹ 309314.21 |
Bulk discount will be automatically applied during checkout based on quantity.
