- 1696B series 200W programmable DC power supplies
- Built-in voltage, current and power meter
- List mode (timed programming) program up to 20 steps
- Automatic CV/CC crossover operation
- Overvoltage (OVP), overcurrent (OCP), overtemperature (OTP) and key-lock function
- Control up to 31 power supplies from one PC through RS485
- Store up to 10 voltage and current combinations for quick output
- Lightweight and compact
- Thermostatically-controlled fan with linear-speed control to minimize fan noise

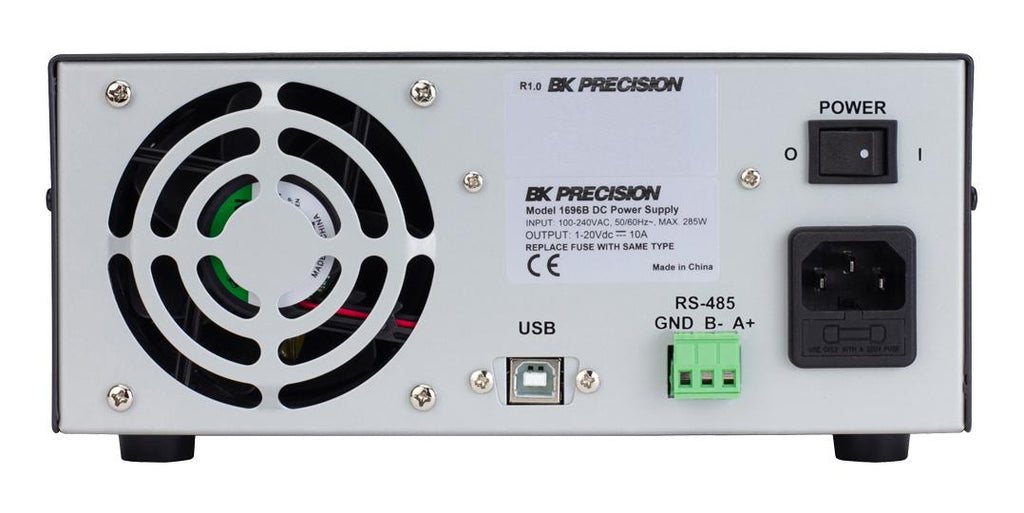

- USB and RS485 interfaces, supports basic SCPI commands
Contents
Programmable DC power supply, PC software, RS485 adapter, USB cable, and test report
Product details
| Power Supply Output Type |
Programmable |
| No. of Outputs |
1 Output |
| Output Voltage Min |
1V |
| Output Voltage Max |
60V |
| Output Current Min |
0A |
| Output Current Max |
3.3A |
| Power Rating |
200W |
| Supply Voltage Min |
100V |
| Supply Voltage Max |
240V |
| Manufacturer Warranty |
2 Years |
| Product Range |
1696B Series |
| Plug Type |
- |
Other details
| Brand |
B&K PRECISION |
| Part Number |
BK1698B |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
