Description

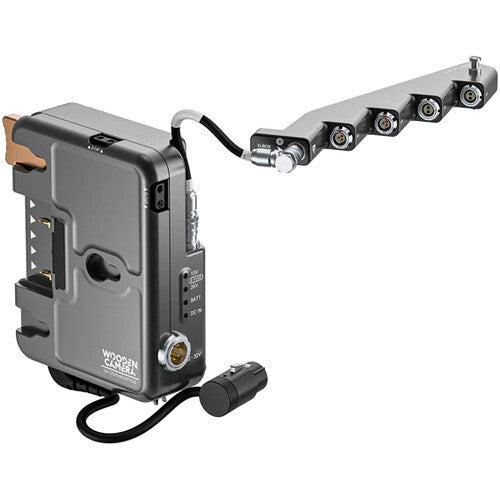

Expand the power and run/stop options of your cinema camera with the Gold Mount Plus D-Box System Sony for VENICE/VENICE 2 from Wooden Camera. This system bundle includes a Gold Mount Plus D-Box power distribution unit, a power output strip, and a cable to link the two.

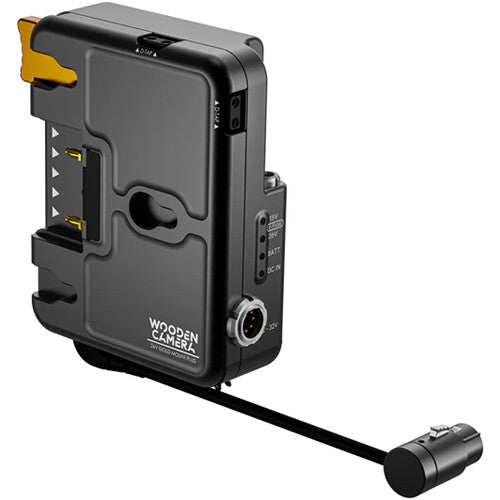

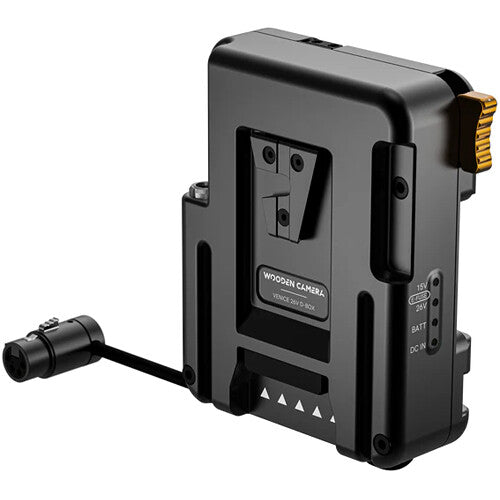

The versatile Gold Mount Plus D-Box for Sony VENICE/VENICE 2 from Wooden Camera provides hot-swap functionality and power distribution for your VENICE camera and select accessories. This box features an 8-pin DC input, a 4-pin XLR output cable, a 5-pin EXT port for an optional expander, and two regulated 15V D-Tap ports.
- Designed to fit between a battery and your camera's battery mount, this D-Box has a male Gold Mount Plus connector on one side, and a female Gold Mount Plus connector on the other, internally passing power to the output connectors and to the camera.
- The D-Box's DC input port enables you to connect a power supply, maintaining power to both the camera and its accessories during a battery swap.

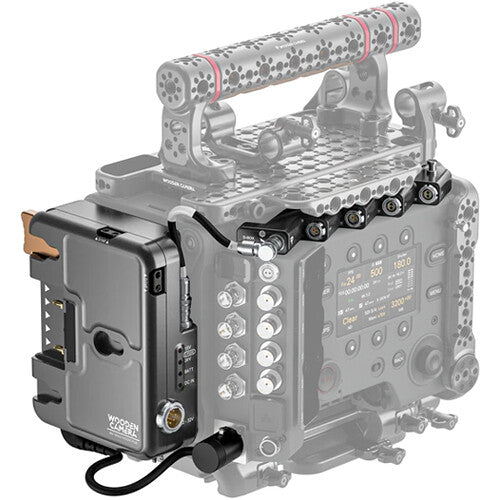

- This Gold Mount Plus box provides power distribution for both your Sony VENICE or VENICE 2 camera and select accessories.
- It has an 8-pin 2b LEMO-type port for inputting DC power and a short 4-pin XLR cable for powering your camera.

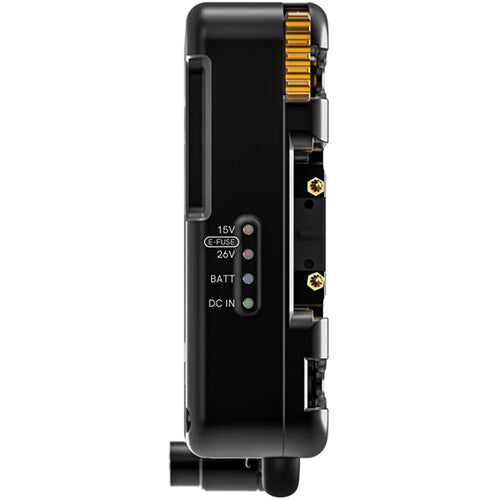

- This plate has LED indicators for its E-fuse and battery and DC power inputs.
- Simultaneously power accessories using the two regulated 15V D-Tap ports with a shared 5.8A current.
- Use the 5-pin EXT port to power the separately available power strip with multiple outputs.
Enable the D-Box capability on your Sony BURANO, VENICE, or VENICE 2 camera with this D-Box Link Cable from Wooden Camera. The 3.5" long cable features 5-pin EXT connectors on each end that plug into the EXT ports on the separately available D-Box and the camera. The cable enables power transfer between the D-Box and the camera.

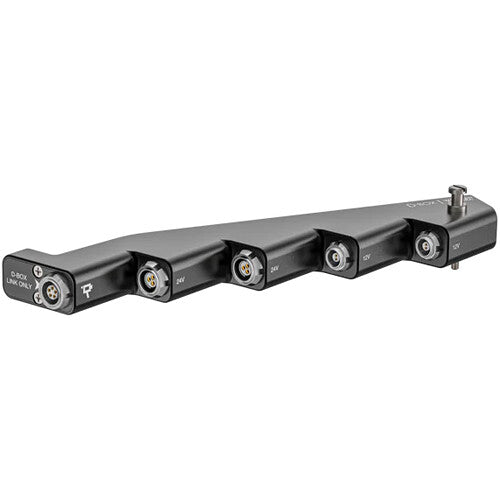

The Power Strip for Sony VENICE D-Box from Wooden Camera works with the separately available Wooden Camera D-Box for the VENICE camera. This power strip provides two regulated 24V 3-pin Fischer connectors with run/stop capability and two unregulated 12V 2-pin LEMO-type connectors.

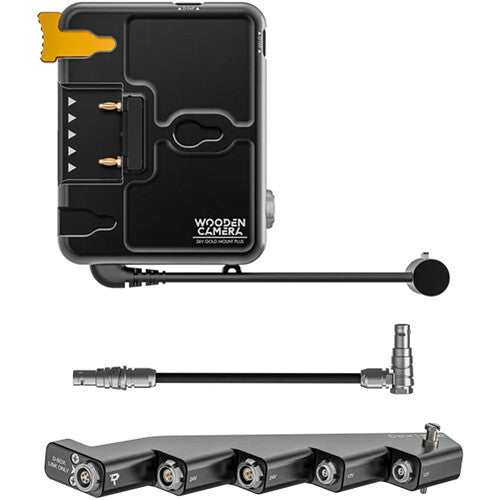

Items Included
- Wooden Camera D-Box for Sony VENICE/VENICE 2 (Gold Mount Plus)
- 10A Replacement Fuses
- Limited 1-Year Manufacturer Warranty
- Wooden Camera D-Box Link Cable 5-Pin Right-Angle Male to 5-Pin Straight Male (3.5")
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Power Strip for Sony VENICE D-Box
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera D-Box for Sony VENICE/VENICE 2 (Gold Mount Plus)
| Compatibility |
Sony VENICE / VENICE 2
|
| Plate Front / Battery Mount |
Gold Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
No
|
| Indicator |
LED
|
| Inputs/Outputs |
1x LEMO 8-Pin (22 to 32 VDC) Output
1x LEMO 5-Pin Output 2x D-Tap/P-Tap Output |
| Adapter / Cable |
Built-In Adapter
? Output: XLR 4-Pin Female ? Cable: Length Unspecified |
| Dimensions |
5.7 x 4.3 x 1.59" / 14.4 x 10.8 x 4.05 cm
|
| Weight |
1.1 oz / 30.6 g
|
| Package Weight |
1.385 lb
|
| Box Dimensions (LxWxH) |
8 x 7.7 x 2.4"
|
