Description

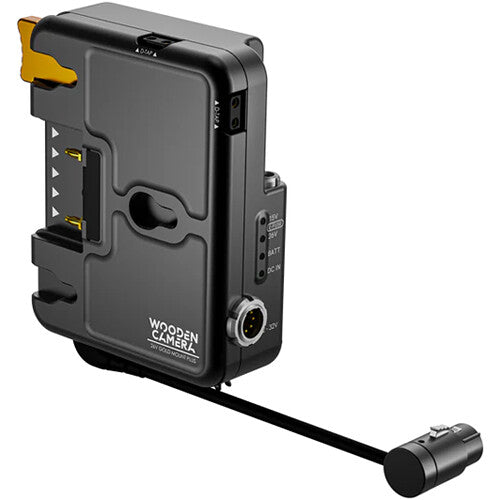

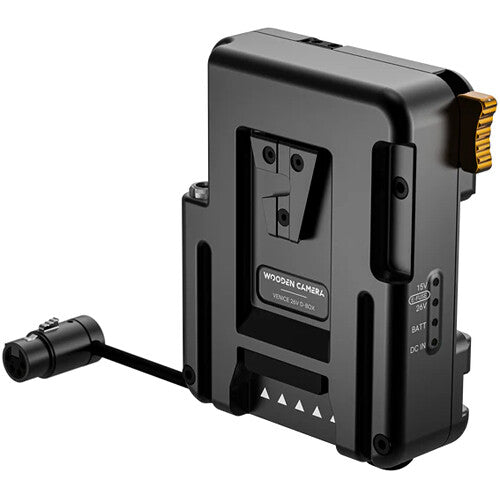

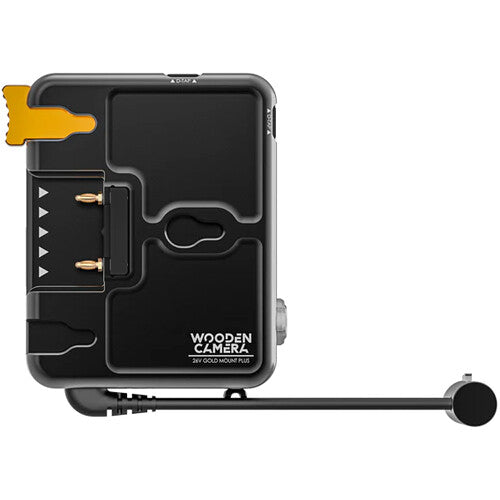

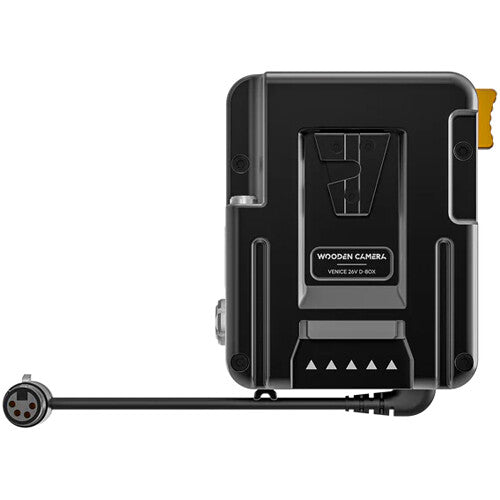

Wooden Camera D-Box for Sony VENICE Overview
The versatile Gold Mount Plus D-Box for Sony VENICE/VENICE 2 from Wooden Camera provides hot-swap functionality and power distribution for your VENICE camera and select accessories. This box features an 8-pin DC input, a 4-pin XLR output cable, a 5-pin EXT port for an optional expander, and two regulated 15V D-Tap ports.
Gold Mount Plus Battery Plate
- Designed to fit between a battery and your camera's battery mount, this D-Box has a male Gold Mount Plus connector on one side, and a female Gold Mount Plus connector on the other, internally passing power to the output connectors and to the camera.
- The D-Box's DC input port enables you to connect a power supply, maintaining power to both the camera and its accessories during a battery swap.
On-Camera Power Distribution

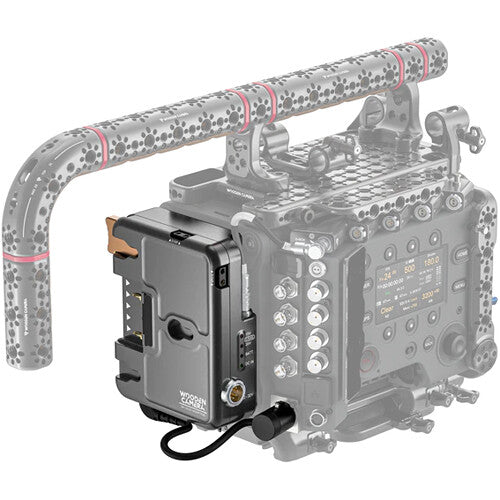

- This Gold Mount Plus box provides power distribution for both your Sony VENICE or VENICE 2 camera and select accessories.
- It has an 8-pin 2b LEMO-type port for inputting DC power and a short 4-pin XLR cable for powering your camera.

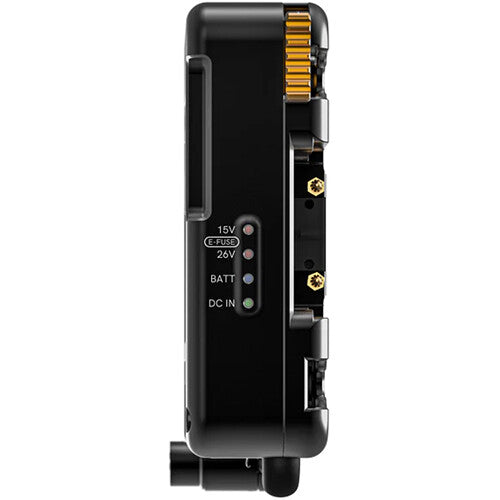

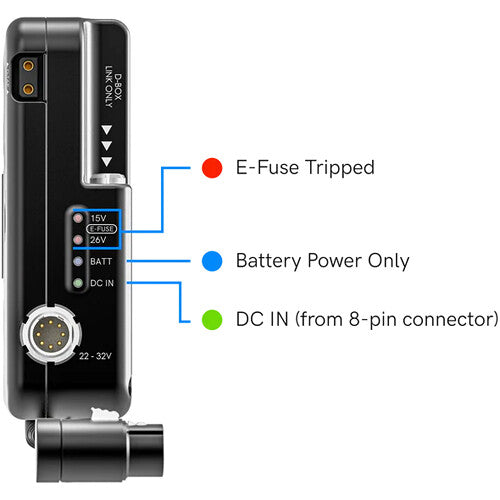

- This plate has LED indicators for its E-fuse and battery and DC power inputs.
Accessory Ports
- Simultaneously power accessories using the two regulated 15V D-Tap ports with a shared 5.8A current.
- Use the 5-pin EXT port to power the separately available power strip with multiple outputs.
UPC: 810112520002
Items Included
- Wooden Camera D-Box for Sony VENICE/VENICE 2 (Gold Mount Plus)
- 10A Replacement Fuses
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera D-Box for Sony VENICE Specs
| Camera Compatibility |
Sony VENICE 1
Sony VENICE 2 |
| Plate Front / Battery Mount |
Gold Mount
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Input / Output |
1 x XLR 4-Pin Output
1 x LEMO 8-Pin Output 1 x LEMO 5-Pin Output 2 x D-Tap Output |
| Adapter / Cable |
1 x XLR 4-Pin (Built-In)
|
| Dimensions |
5.7 x 4.3 x 1.59" / 14.4 x 10.8 x 4.05 cm
|
| Weight |
1.1 oz / 30.6 g
|
Packaging Info
| Package Weight |
1.385 lb
|
| Box Dimensions (LxWxH) |
8 x 7.7 x 2.4"
|
