Description
Wooden Camera D-Box Overview

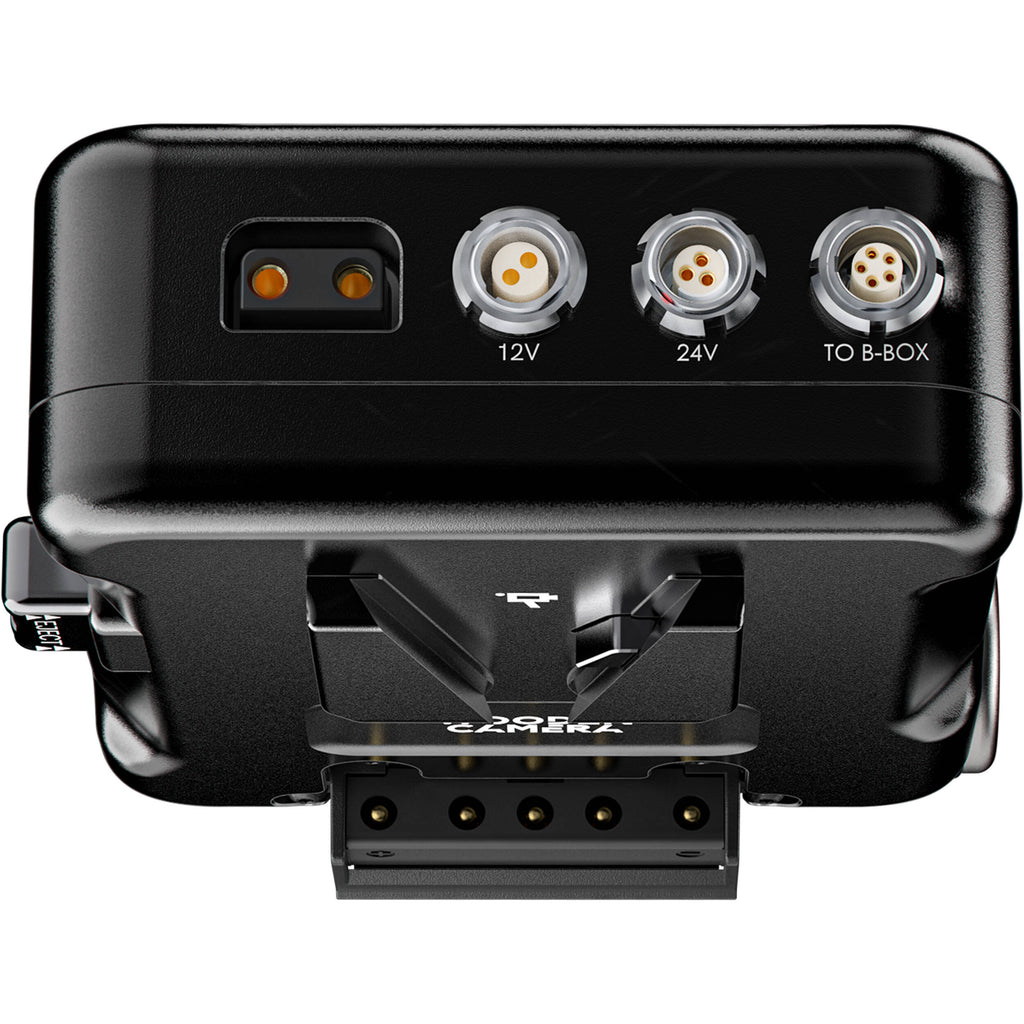

The D-Box from Wooden Camera is an adapter that provides power distribution, remote power on/off, and hot swap battery functions for the Sony Burano cinema camera. Expanding your selection of powered accessory connectors, this box features a D-Tap output, a 2-pin 12V LEMO-type output, a 3-pin 24V output, and one DC input port. All outputs are active simultaneously.

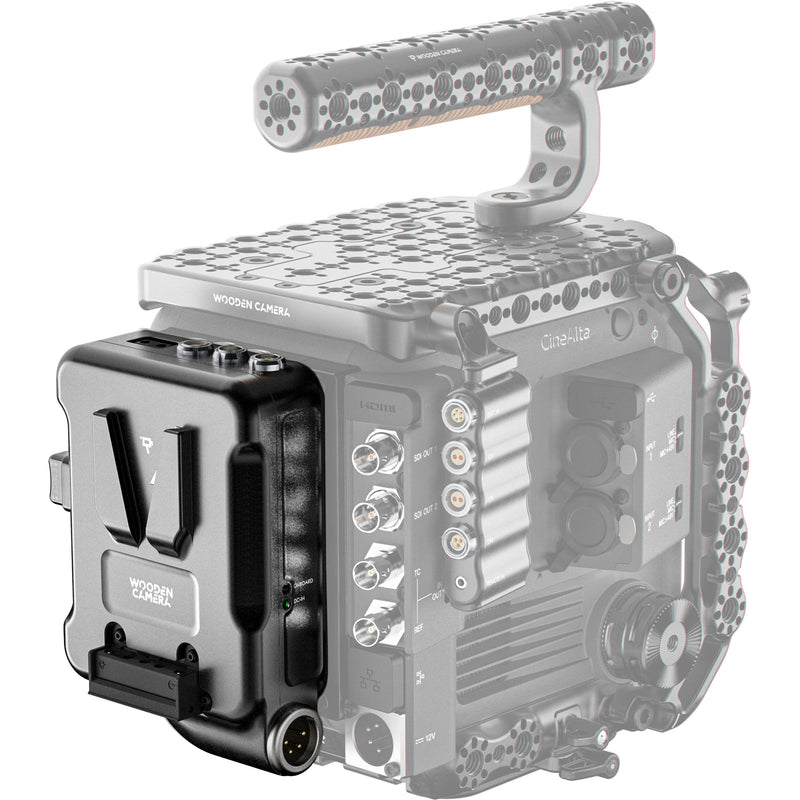

Designed to fit between a battery and the camera's battery mount, the D-Box has a male V-mount on the camera side and a female V-mount on the other, internally passing power to the output connectors and to the camera. The D-Box's DC input port enables you to connect a power supply, thus maintaining power to both the camera and its accessories during a battery swap.
Items Included
- Wooden Camera D-Box for Sony Burano Camera (V-Mount)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Wooden Camera D-Box Specs
| Power Output |
D-Tap: VDC
LEMO 2-Pin: 12 VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
Mini 4-Pin XLR: VDC
|
| Power Output |
D-Tap: VDC
LEMO 2-Pin: 12 VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method |
Battery Plate Mount Type, Connector
|
| Inputs/Outputs |
1x D-Tap
1x LEMO 2-Pin 1x LEMO 3-Pin 1x Mini XLR 4-Pin Male |
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Hot-Swap Support |
Yes
|
| Dimensions |
53.1 x 37.8 x 18.5" / 135 x 96 x 47 cm
|
| Weight |
0.9 lb / 400.5 g
|
| Package Weight |
1.245 lb
|
| Box Dimensions (LxWxH) |
6.9 x 4.45 x 3.3"
|
