Description

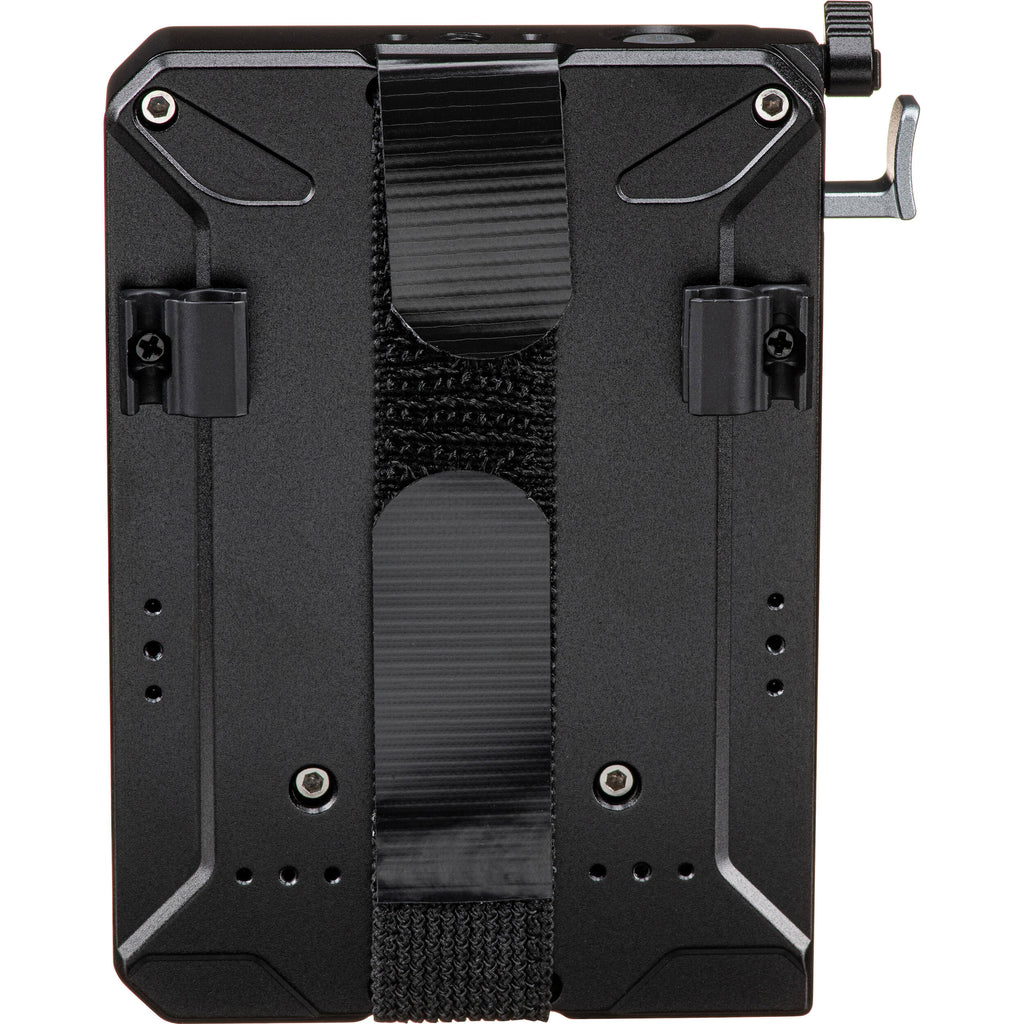

SmallRig V-Mount Battery Mount Plate Overview

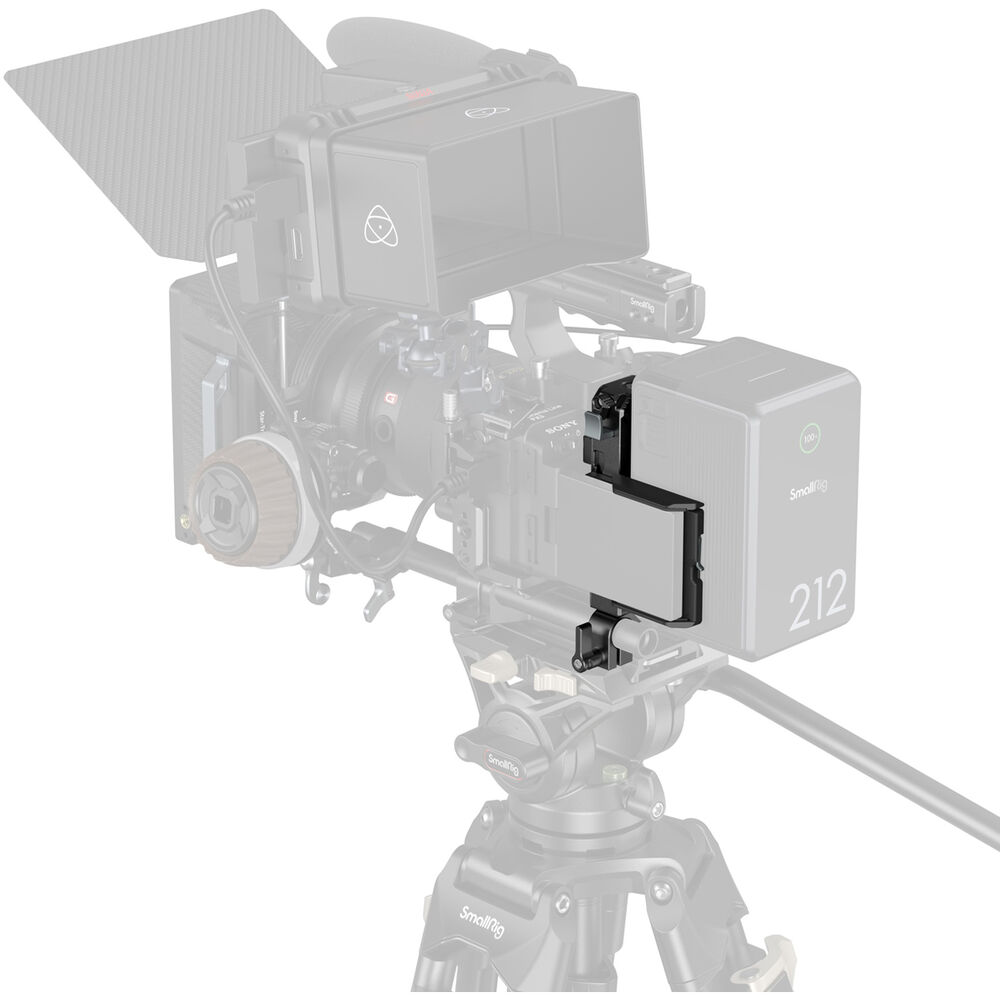

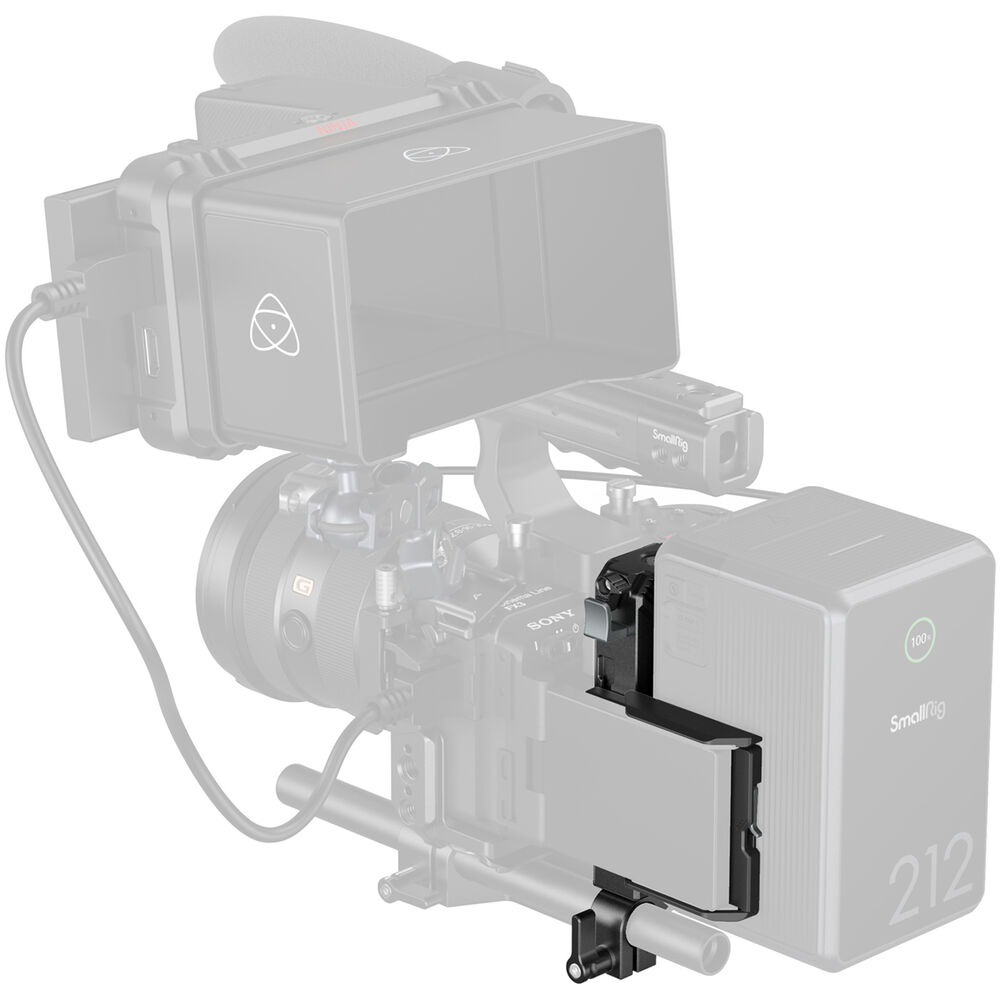

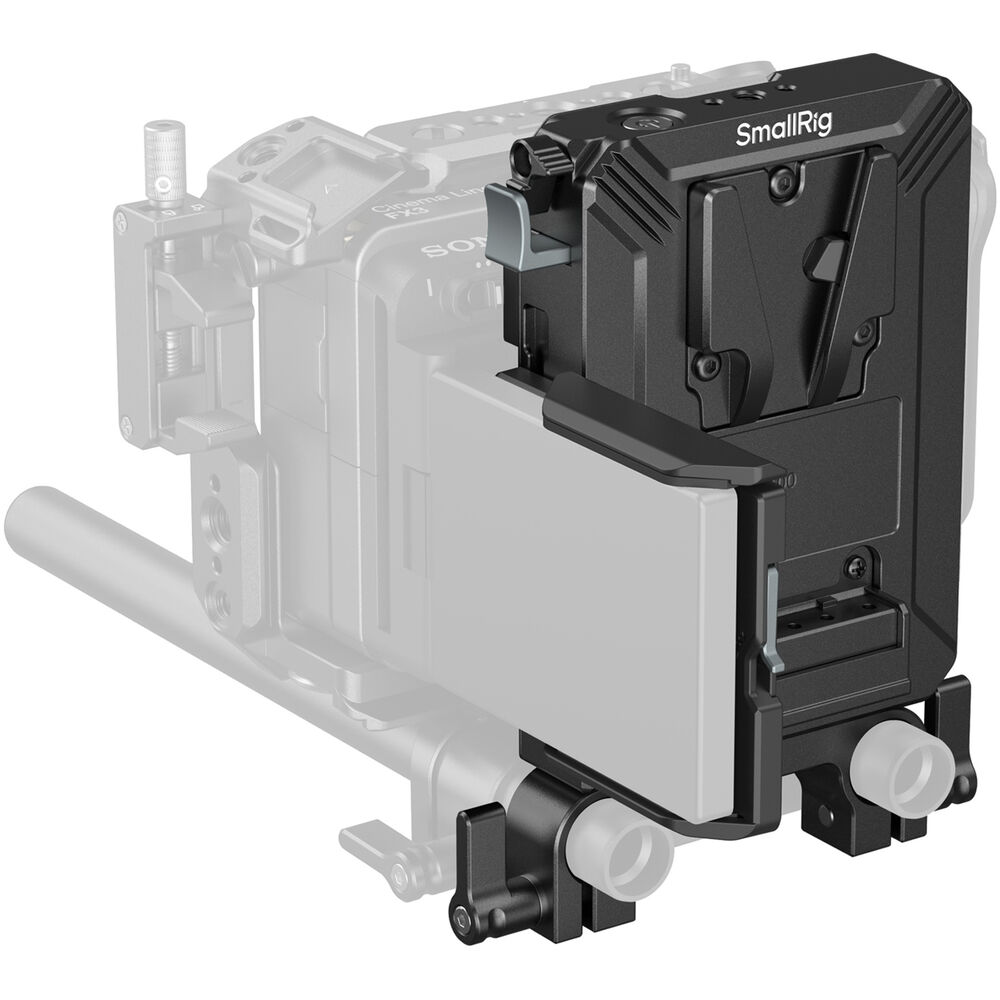

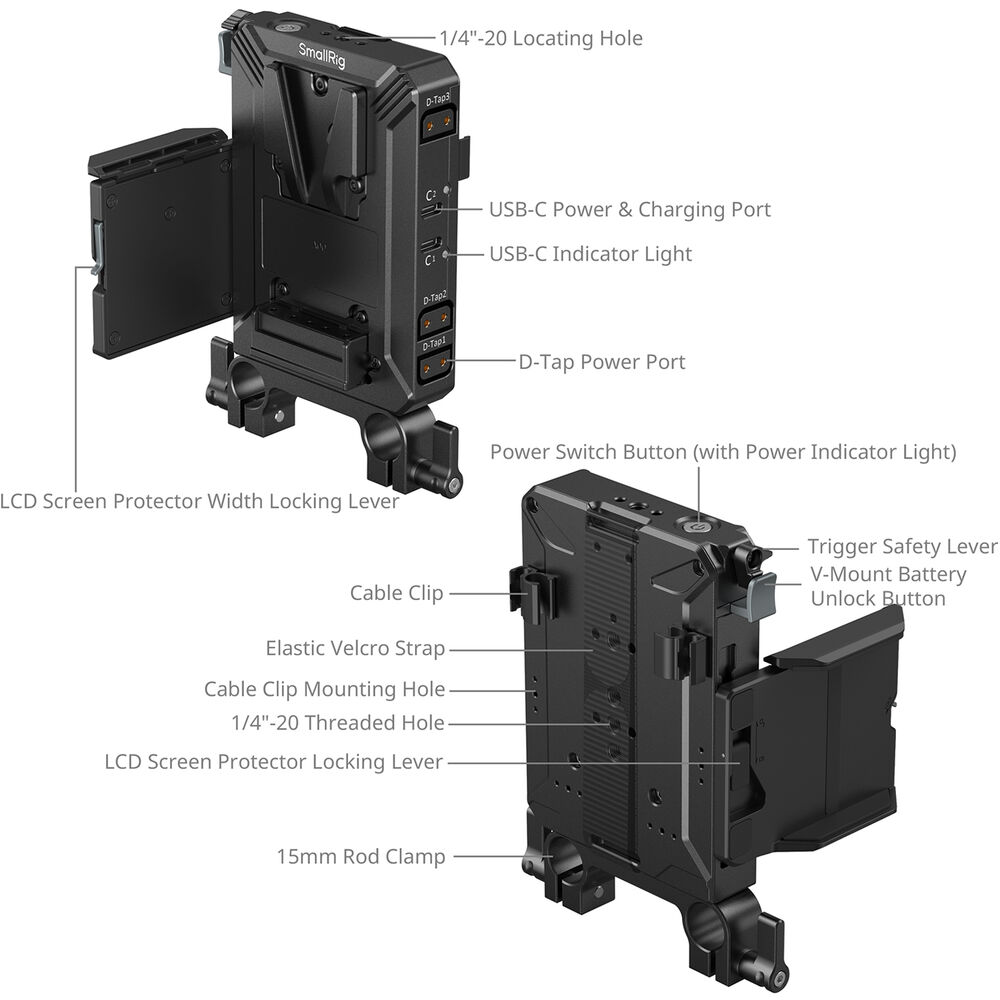

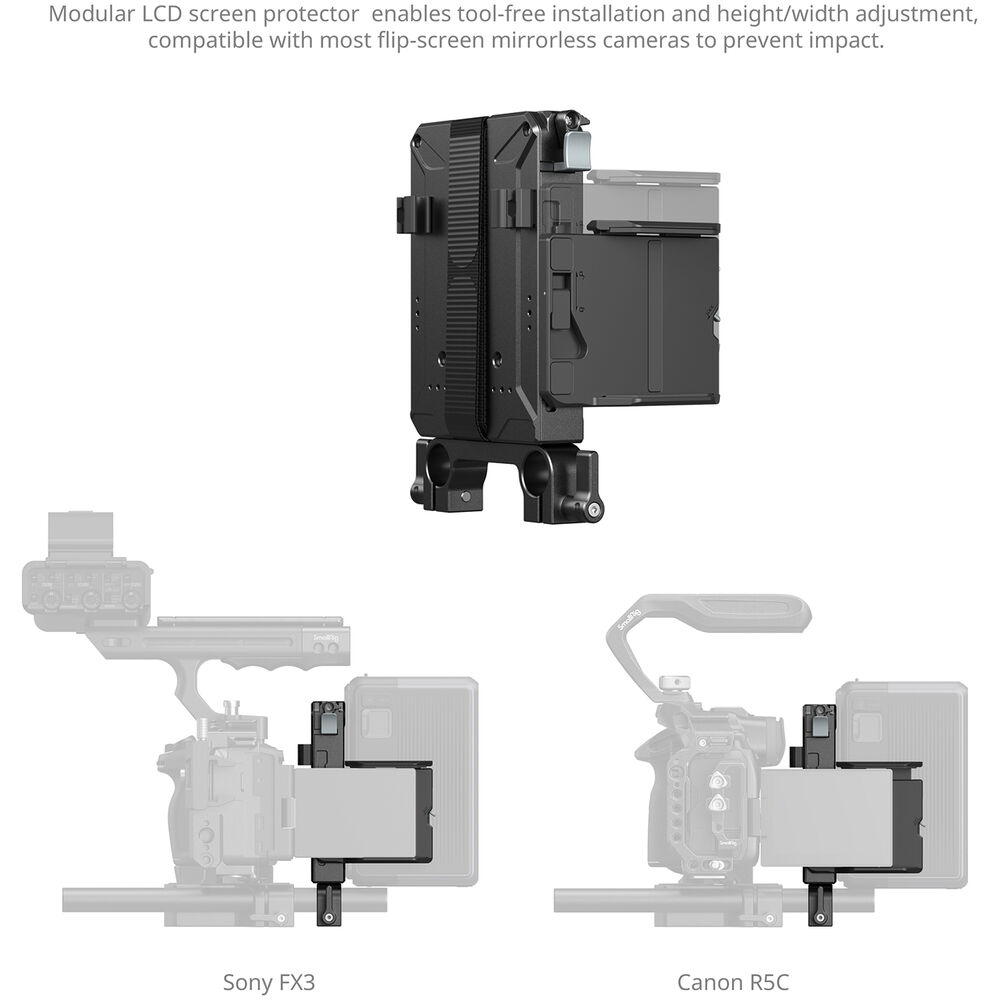

Attach a battery to your video rig's rods with the V-Mount Battery Mount Plate Kit for 15mm LWS Rods by SmallRig. It complies with the 15mm LWS rod standard. Draw power from your mounted battery via a single D-Tap providing 11.2 to 16.8V output. Two USB-C ports reach up to 20V at 3.25A and 65W. The modular LCD screen protector adjusts its position without tools to protect your camera's flip-out screen. Use the included cable clips and hook-and-loop straps to manage your cords and maintain a snagless setup.
Precautions
- When using the LCD screen protector, the battery plate accommodates V-mount batteries up to 3.1" in width. Compatible SmallRig V-mount batteries: 3579B, 4871, 4872, 3580B, 4929, 4930, 4292, 4974, 4608, 4984, 3581B, 4293. In addition, we recommend using it with a compact 15mm LWS baseplate (such as 1798, 1674, 3357, 1775, 4002, etc.).
- If the V-mount battery cannot be properly installed, the trigger safety lever may be engaged. To install the battery properly, first disengage the trigger safety lever.
- After use or when not in use for a long period of time, please remove the V-mount battery or press and hold the power switch button for three seconds to cut off the output function.
Items Included
- SmallRig V-Mount Battery Mount Plate Kit for 15mm LWS Rods
- 15mm Dual-Rod Clamp
- LCD Screen Protector
- Allen Wrench
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
SmallRig V-Mount Battery Mount Plate Specs
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Accessory Mounting |
1/4"-20 Female
|
| Indicator |
No
|
| Inputs/Outputs |
1x D-Tap/P-Tap (11.2 to 16.8 VDC / 18 A) Output
2x USB-C (5 to 20 VDC / 3 to 3.25 A / 65 W) Output |
| Plate Material |
Aluminum, Stainless Steel
|

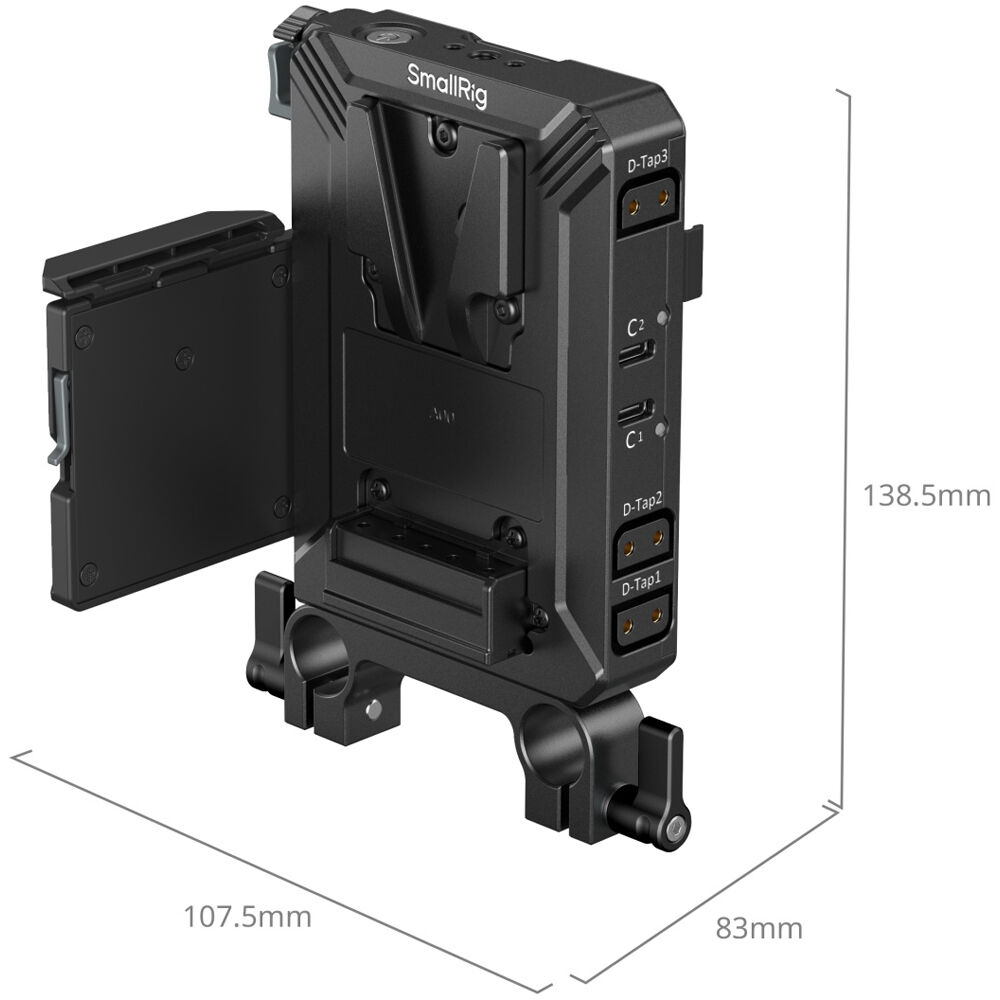

| Dimensions |
5.5 x 4.2 x 3.3" / 14 x 10.7 x 8.4 cm
|
| Weight |
11 oz / 310.8 g
|
Packaging Info
| Package Weight |
0.95 lb
|
| Box Dimensions (LxWxH) |
7.1 x 4.8 x 3.1"
|
