Description
OCTAMAS gear OG-34004225 Overview

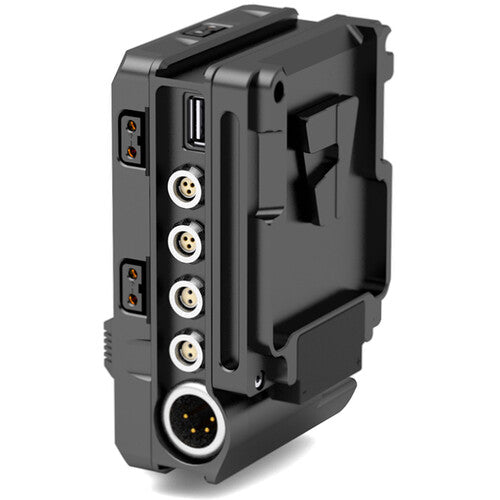

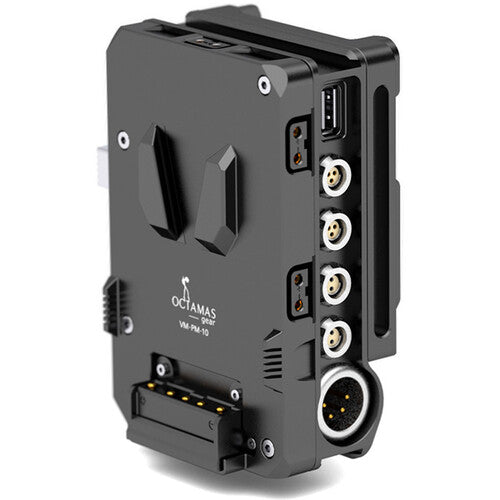

Adapt your cinema camera or light for use with full-sized V-mount batteries using this Power Box V-Mount to V-Mount Adapter from OCTAMAS gear. Constructed from lightweight yet durable aluminum, this versatile power adapter features numerous power options for powering your V-mount camera or production gear using a professional V-mount battery while providing redundant power and accessory power distribution options. It provides mounting options to integrate into the OCTAMAS gear SWISS cage system.
The plate features a 12V 4-pin XLR input to provide redundant power from an external source, and its built-in chip prevents the battery from being discharged when installed. Output options include two 24V 3-pin Fischer run/stop trigger ports, three D-Tap outputs, two 2-pin LEMO-type outputs, and one 3.5V USB-A output for powering accessories.
Items Included
- OCTAMAS gear Power Box V-Mount to V-Mount Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
OCTAMAS gear OG-34004225 Specs
| Power Output |
Fischer 3-Pin: 24 VDC at 3 A
LEMO 2-Pin: VDC D-Tap: VDC USB-A: 3.5 VDC at 2 A V-Mount: VDC |
| Camera Power Method |
Battery Plate Mount Type
|
| Plate Front / Battery Mount |
V-Mount
|
| Power Input |
V-Mount: VDC
XLR 4-Pin: 12 VDC |
| Power Output |
Fischer 3-Pin: 24 VDC at 3 A
LEMO 2-Pin: VDC D-Tap: VDC USB-A: 3.5 VDC at 2 A V-Mount: VDC |
| Camera Power Method |
Battery Plate Mount Type
|
| Inputs/Outputs |
1x XLR 4-Pin Male
2x Fischer 3-Pin 2x LEMO 2-Pin Female 3x D-Tap 1x USB-A |
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.9 x 3.1 x 1.9" / 125 x 80 x 48 mm
|
| Weight |
15.2 oz / 430 g
|
| Package Weight |
1.19 lb
|
| Box Dimensions (LxWxH) |
6.5 x 5.2 x 2.4"
|
