Description
OCTAMAS gear OG-34004434 Overview

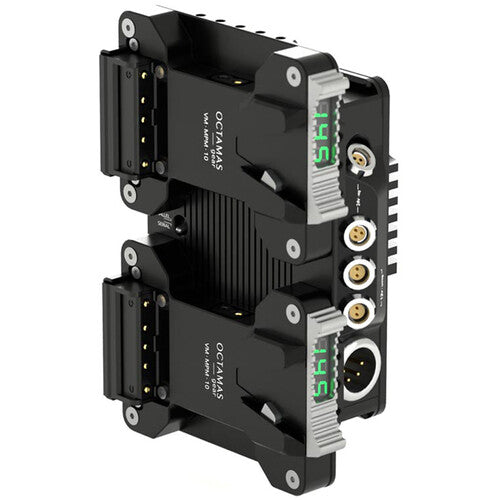

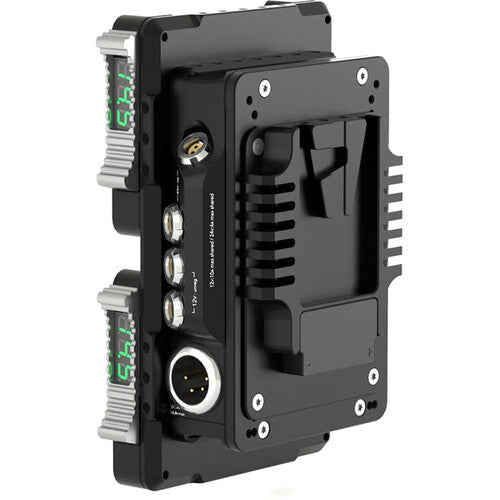

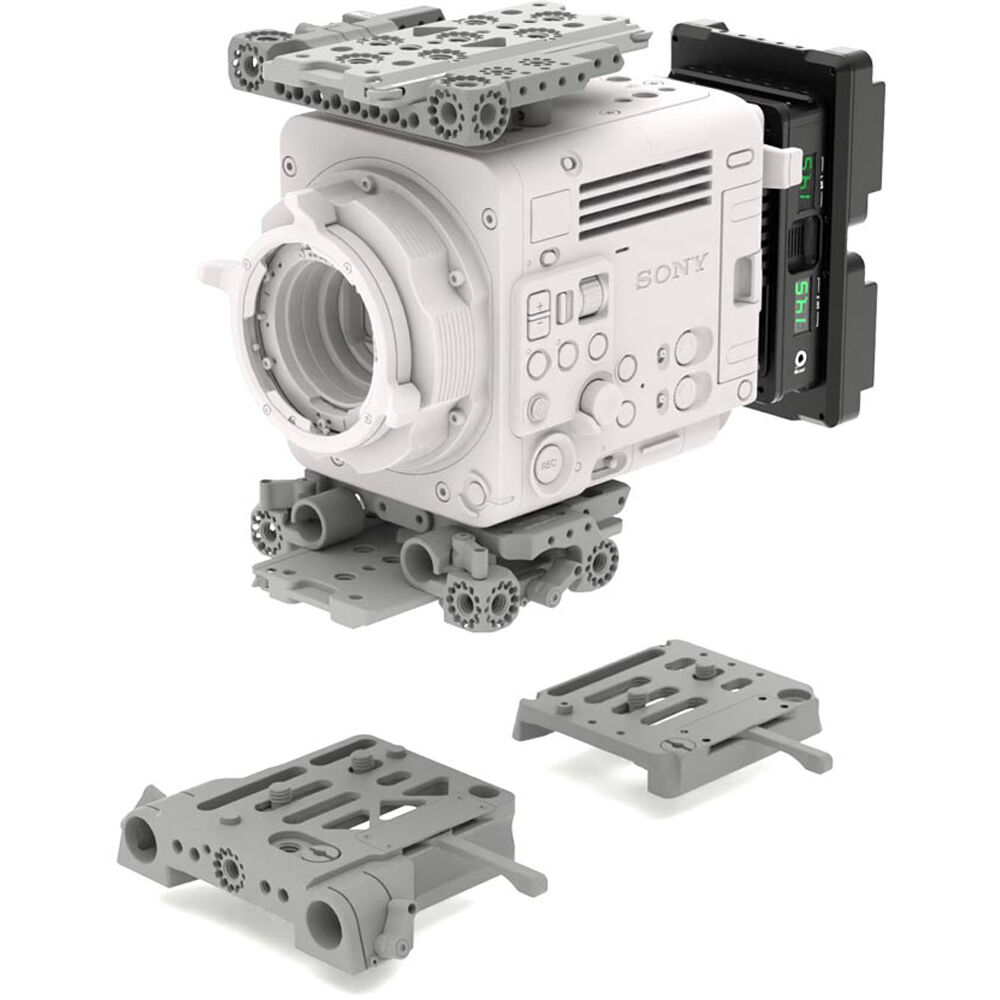

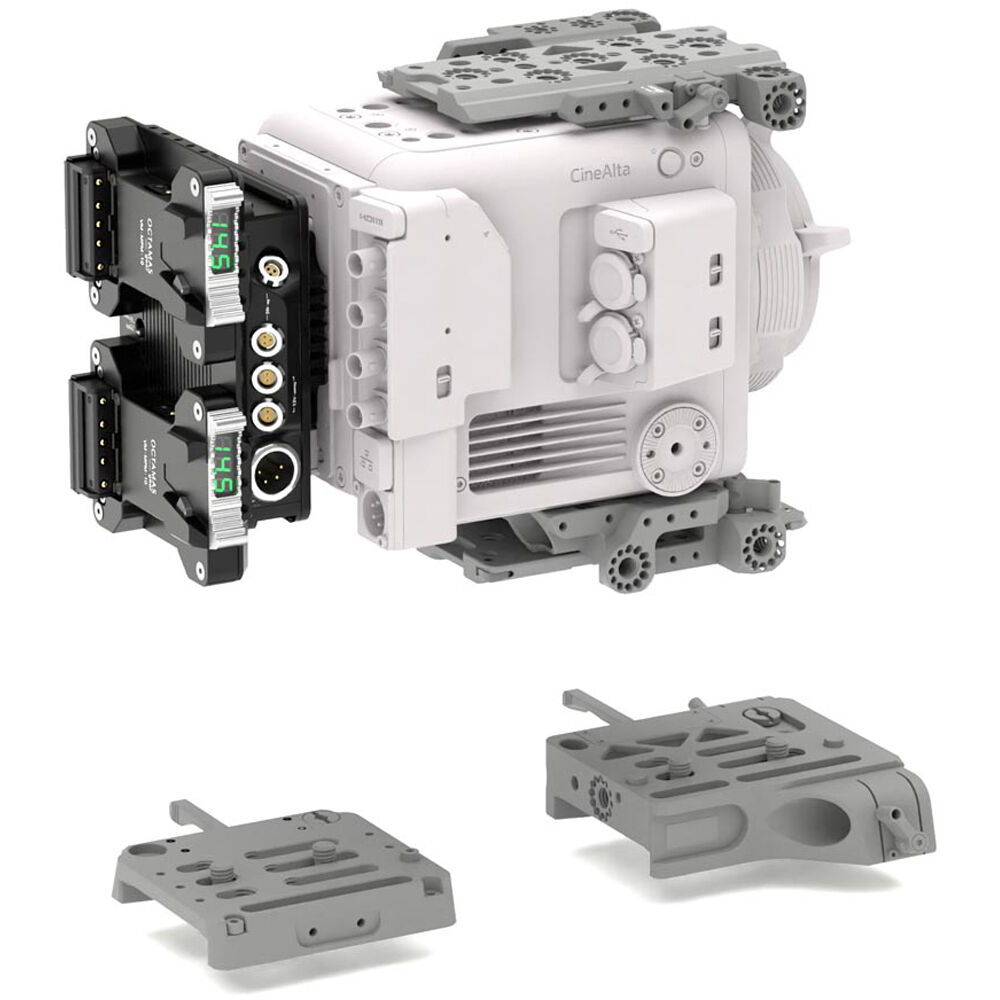

Adapt your cinema camera or light for use with two full-sized V-mount batteries using this Power Box Pro Dual V-Mount to V-Mount Adapter from OCTAMAS gear. Constructed from lightweight yet durable aluminum, this versatile power adapter features numerous power options for powering your V-mount camera or production gear using two professional V-mount batteries while providing redundant, hot-swap power and accessory power distribution options. Multiple threads on the top and bottom of the mount provide mounting options to integrate into the OCTAMAS gear SWISS cage system.
The adapter features hot-swapping between two batteries or between the batteries and an external power source to maintain uninterrupted power, and its built-in chip prevents the batteries from being discharged when installed. The two batteries can be discharged in either parallel mode or one at a time based on which battery has more charge (serial mode). Modes can be changed using a switch. Output options include two 24V 3-pin Fischer run/stop trigger ports, a 3.5mm LANC run/stop trigger port, three D-Tap outputs, and two 2-pin LEMO-type outputs for powering accessories.
Items Included
- OCTAMAS gear Power Box Pro Dual V-Mount to V-Mount Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
OCTAMAS gear OG-34004434 Specs
| Power Output |
Fischer 3-Pin: 24 VDC at 3 A
LEMO 2-Pin: VDC D-Tap: VDC V-Mount: VDC |
| Camera Power Method |
Battery Plate Mount Type
|
| Plate Front / Battery Mount |
V-Mount
|
| Hot-Swap Support |
Yes
|
| Power Input |
V-Mount: VDC
XLR 4-Pin: 12 VDC |
| Power Output |
Fischer 3-Pin: 24 VDC at 3 A
LEMO 2-Pin: VDC D-Tap: VDC V-Mount: VDC |
| Camera Power Method |
Battery Plate Mount Type
|
| Inputs/Outputs |
1x XLR 4-Pin Male
2x Fischer 3-Pin 2x LEMO 2-Pin Female 3x D-Tap 1x 3.5 mm TRS |
| Plate Front / Battery Mount |
V-Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
2
|
| Hot-Swap Support |
Yes
|
| Material of Construction |
Aluminum
|
| Dimensions |
6 x 3.8 x 2.7" / 153 x 97 x 68 mm
|
| Weight |
22.8 oz / 645 g
|
| Package Weight |
1.74 lb
|
| Box Dimensions (LxWxH) |
8.05 x 6.25 x 3.45"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
