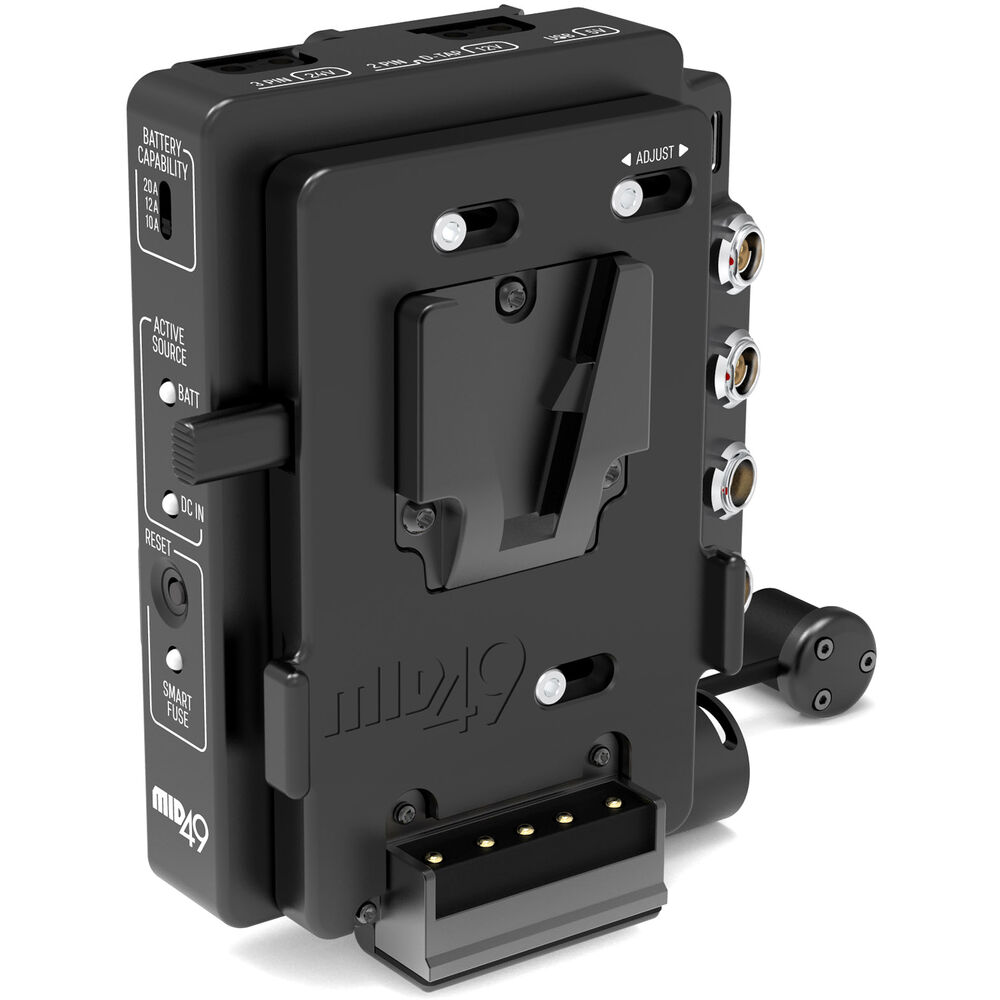

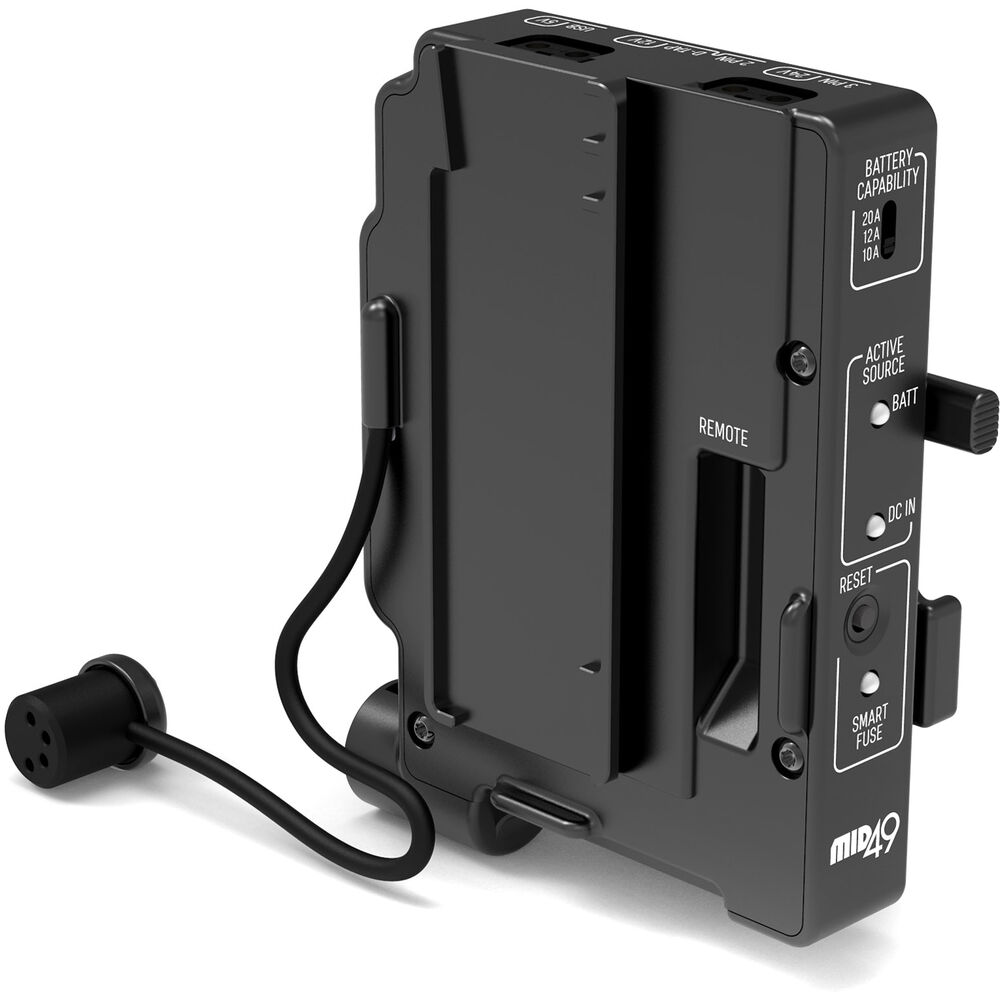

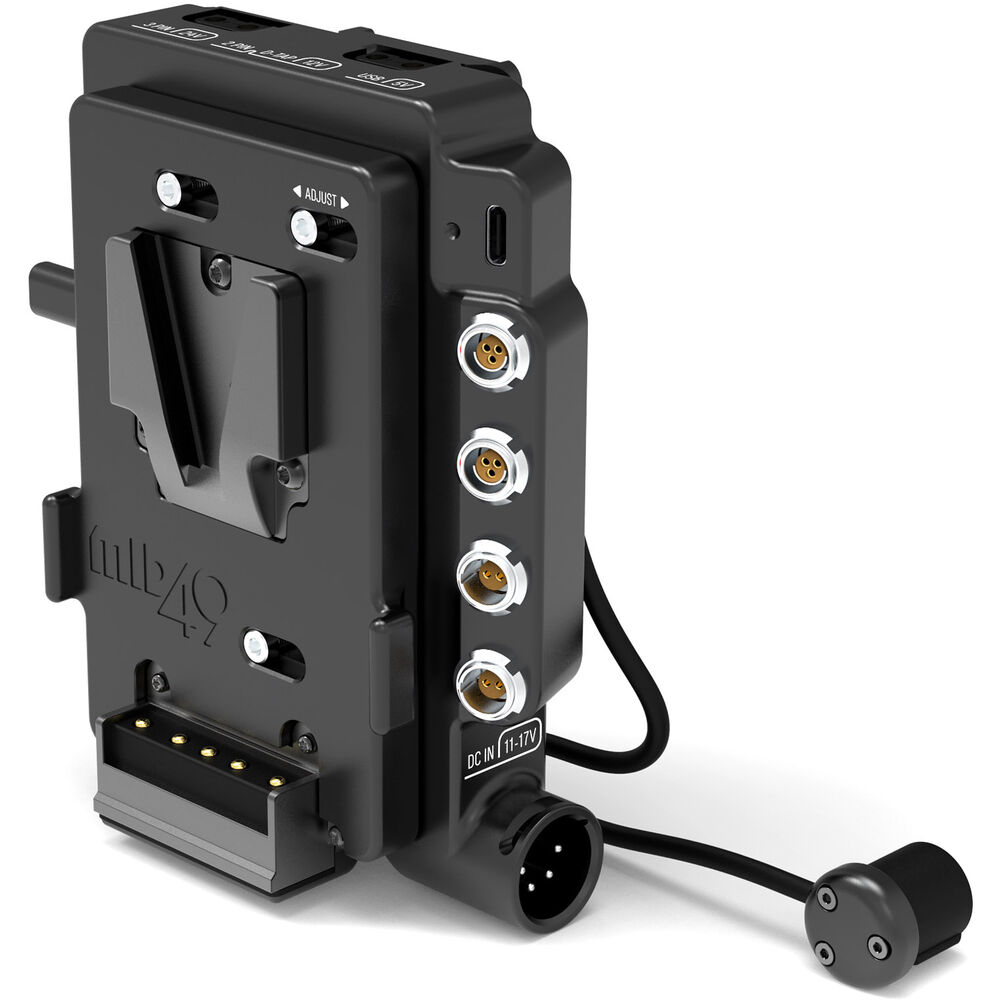

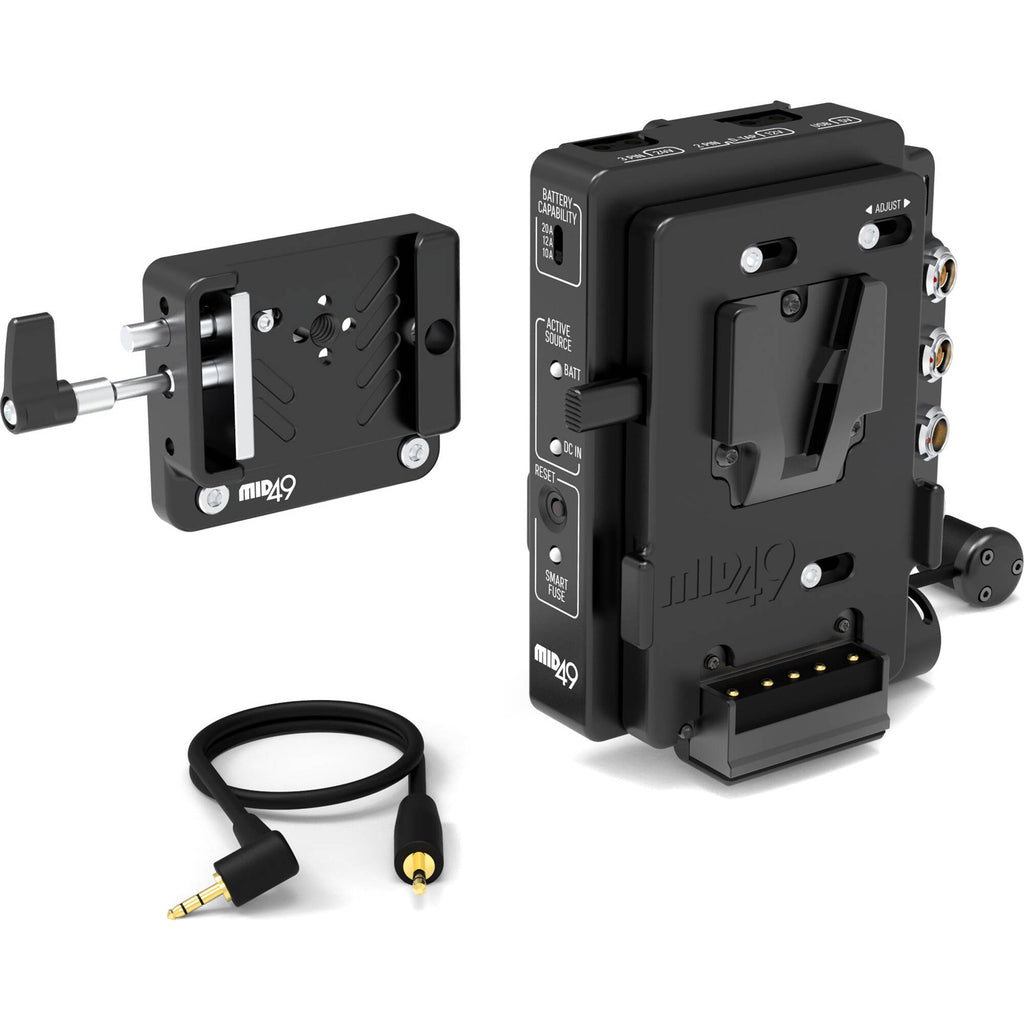

MID49 Power Distribution Box DB-10 for Canon C400 (V-Mount)

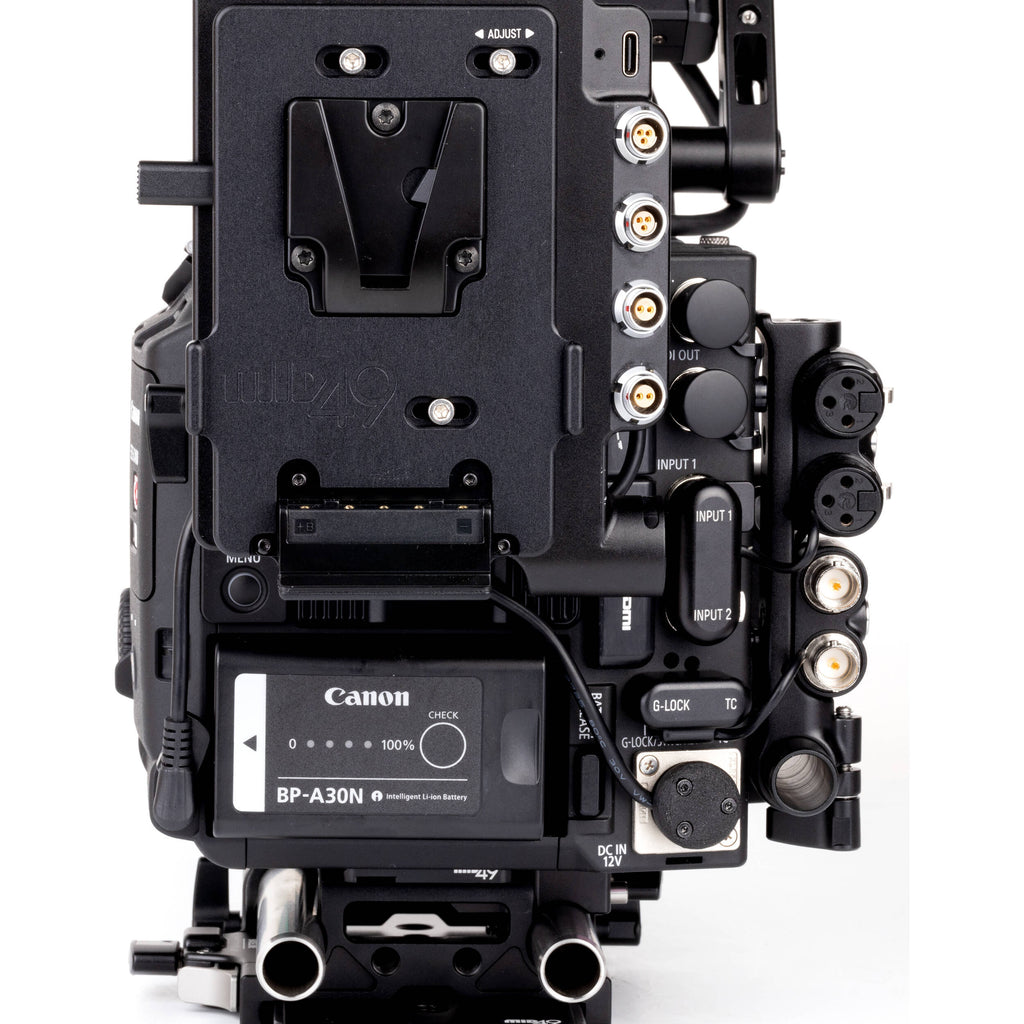

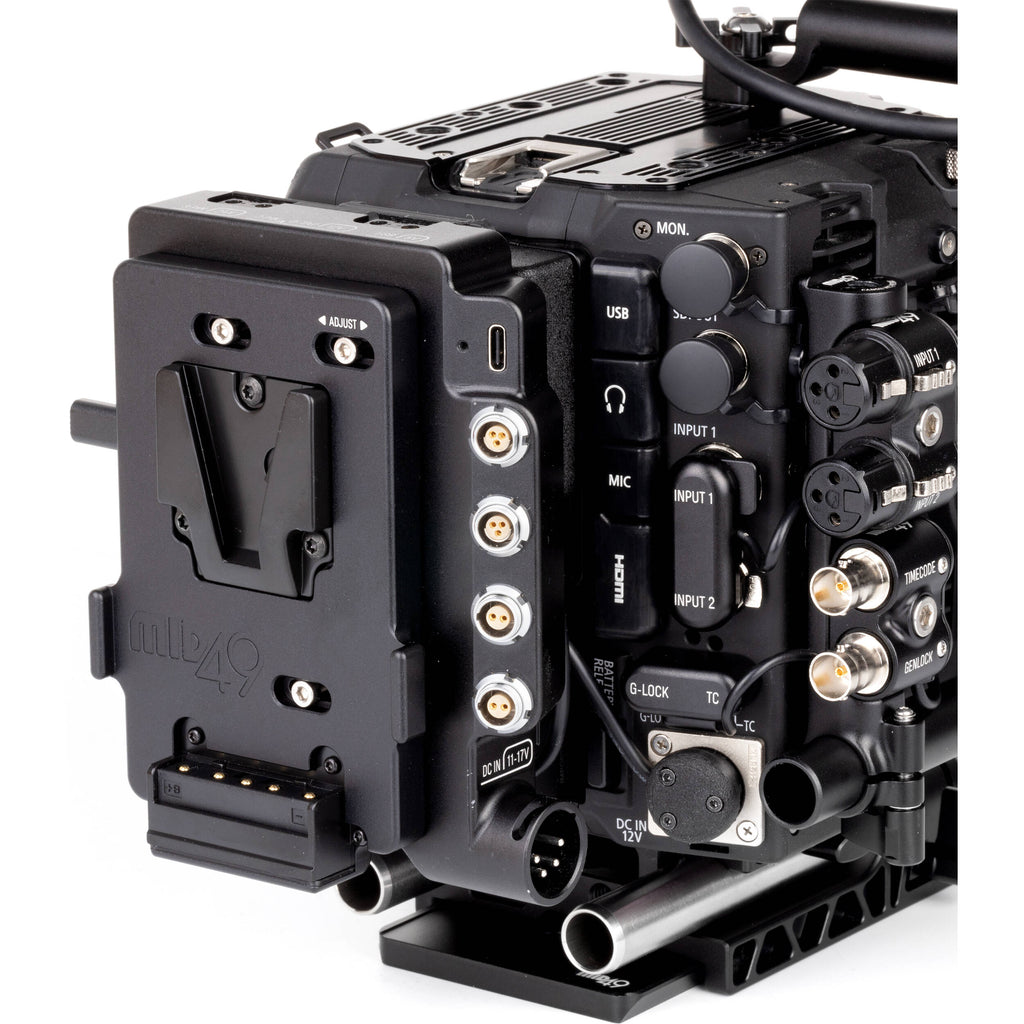

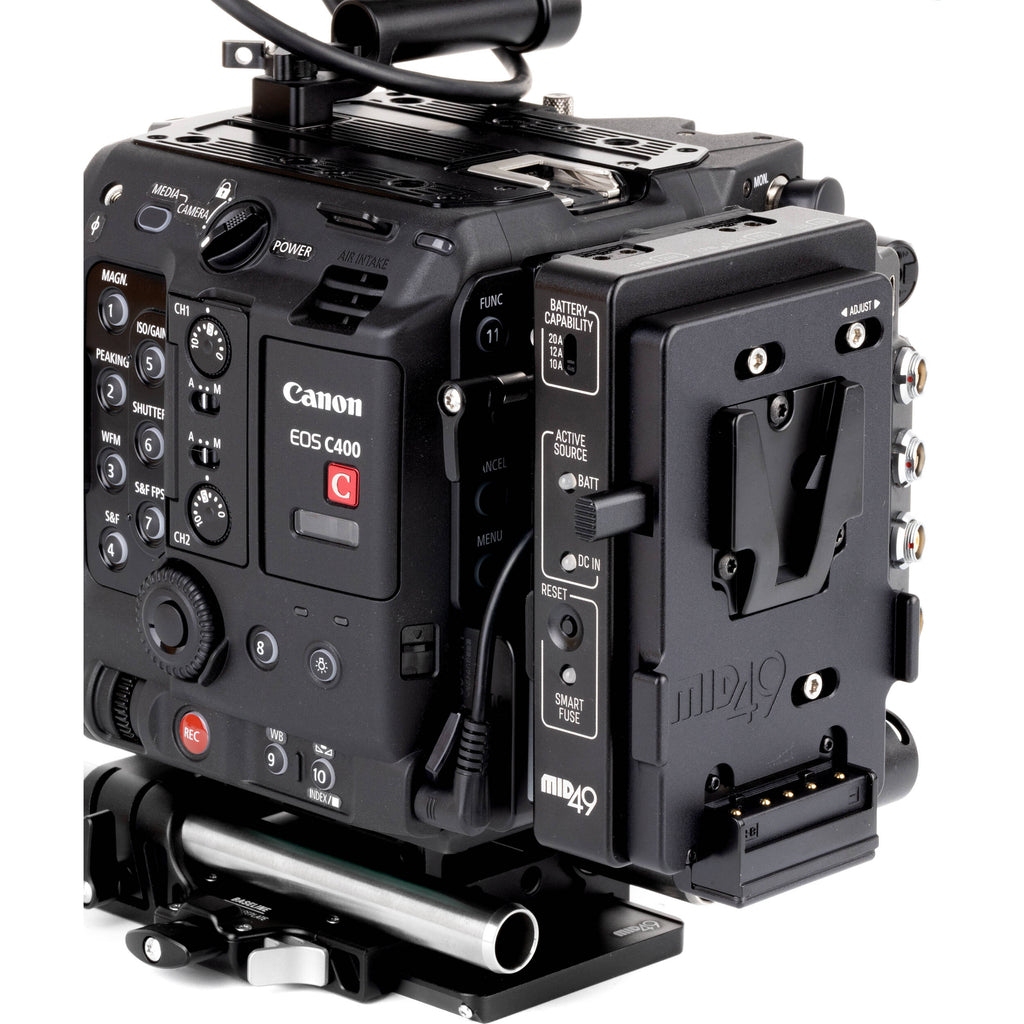

This Power Distribution Box DB-10 for Canon C400 from MID49 is an intelligent power solution for your camera that allows you to power your C400 using standard V-mount batteries. It features a 4-pin XLR for an optional power input, which allows you to hot-swap batteries without turning the camera off. A variety of output ports let you safely power accessories without exceeding the capacity of your battery; additionally, the power distribution box features a Smart Fuse system that will shut down power to the accessories should they exceed your battery's capacity to keep your camera running. The box enables you to use a BP-A30N battery as a backup, and it provides remote start/stop.

• Canon C400 camera
• Canon C300 Mk II and III (please note that they require a longer LANC cable for start/stop capability)

MID49 M49-DB10 Specs

Maximum Load	8.4 A
Power Output	D-Tap: VDC Fischer 3-Pin: 24 VDC at 2.5 A LEMO 2-Pin: VDC USB-C: 5 VDC at 3 A
Camera Power Method	Battery Plate Mount Type, Connector
Plate Front / Battery Mount	V-Mount
Hot-Swap Support	Yes

Input Power	11 to 17 VDC
Power Input	XLR 4-Pin: 11 to 17 VDC
Maximum Load	8.4 A
Power Output	D-Tap: VDC Fischer 3-Pin: 24 VDC at 2.5 A LEMO 2-Pin: VDC USB-C: 5 VDC at 3 A

Camera Power Method	Battery Plate Mount Type, Connector
Plate Front / Battery Mount	V-Mount
Number of Battery Bays	1
Hot-Swap Support	Yes
Indicator	LED
Weight	13.6 oz / 385 g

Package Weight	1.55 lb
Box Dimensions (LxWxH)	7 x 7 x 3.2"
