Description
Kondor Blue KB-C400-VMP Overview

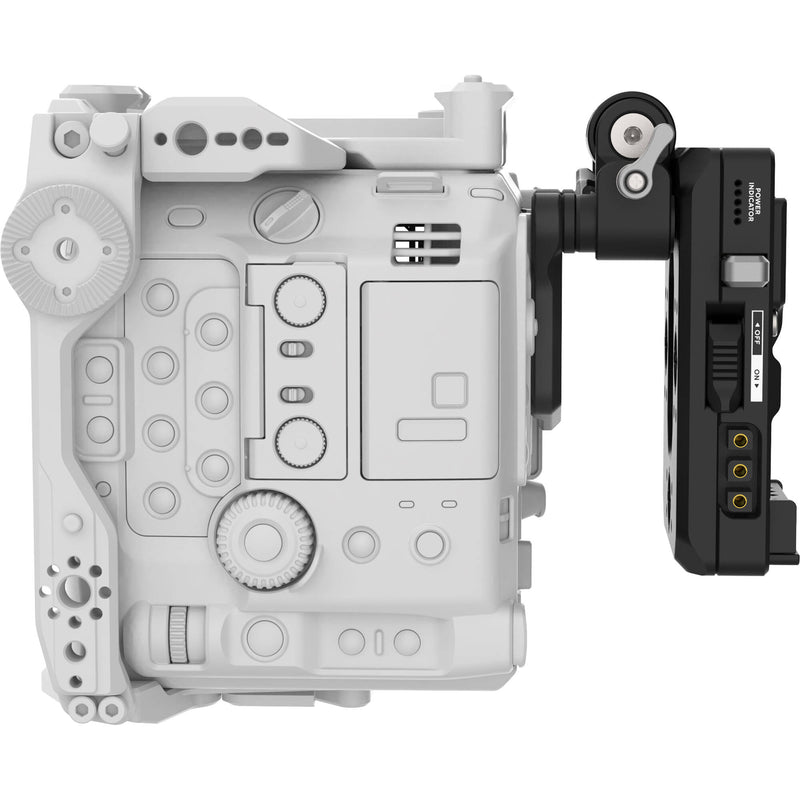

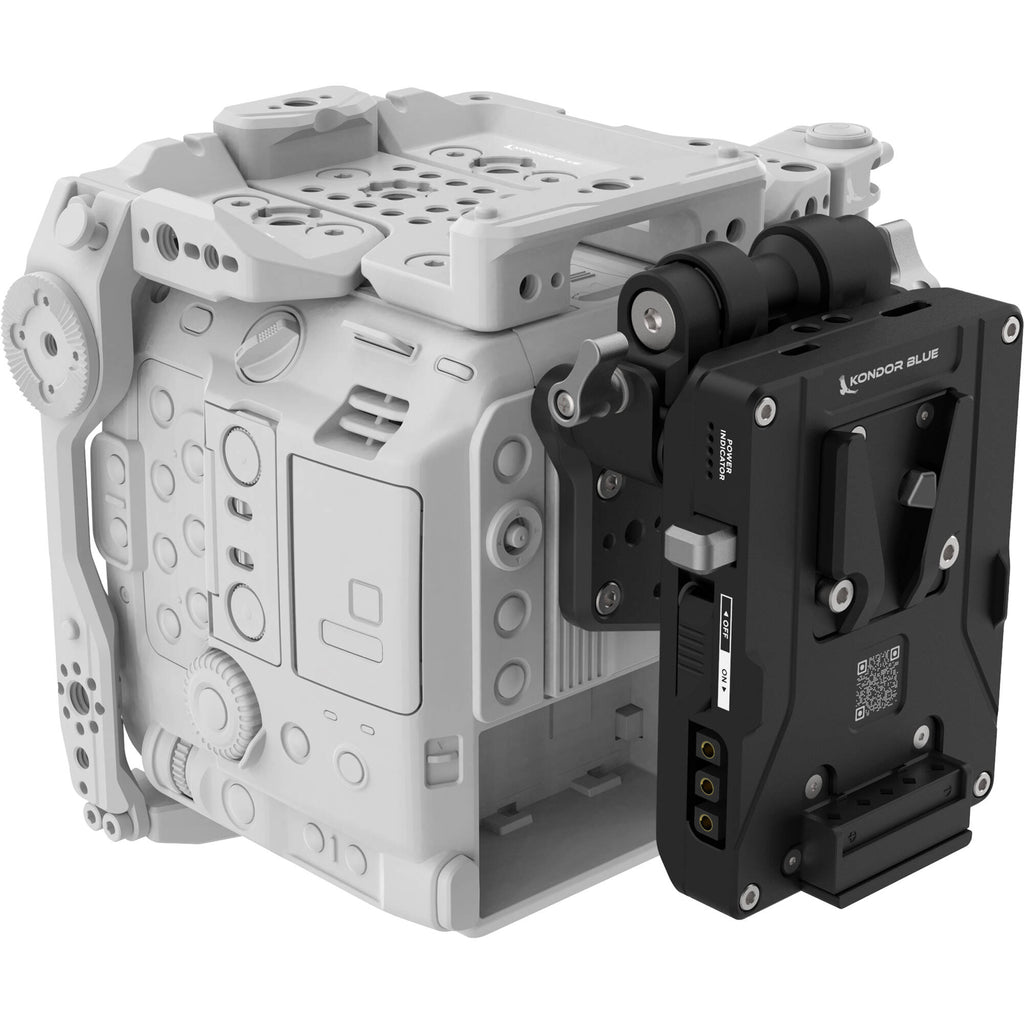

Upgrade the power distribution abilities of a Canon EOS C400 camera rig with this V-mount Kondor Blue Battery Plate Kit. The swiveling battery mounting system provides bidirectional D-Tap ports and USB-C PD, attaching to the C400 via the included back plate. Featuring two 1" 15mm rods and two anti-twist M12 rod mounts, the kit is a stable, adaptable power delivery platform.
The raven black Pro Battery Plate with Swiveling Rod Block from Blue Kondor includes a variety of power output ports, along with two 100W USB-C PD ports for both power output and input. The top of the plate boasts integrated magnetic power contacts for Kondor Blue Expansion Modules.
Constructed entirely from machined aluminum, the plate features four ARRI-style anti-twist mounts and additional M4 mounts and can be positioned in eight different ways to best fit your rigging needs. An on/off switch with a magnetic cover and an LED power indicator are both integrated into the design, and the V-mount plate has been downsized to better match the increasingly popular micro-sized batteries.
The Canon EOS C400 Back Plate from Kondor Blue attaches directly to the back of the C400 via four included 4mm screws, expanding the power and accessory mounting capabilities of the camera without preventing the use of Canon BP-AN batteries.
The back plate sports one 3/8"-16 and six 1/4"-20 anti-twist threads. The top two 1/4-20" holes are 60mm apart, making them compatible with 1" or 1.5" 15mm rods and M12 anti-twist rod mounts to create a mounting platform for Kondor Blue V- or Gold-Mount Pro Battery Plates without the need for base rails.
Kondor Blue offers this 1", raven black 15mm PPSH Rod for adding supports and accessories to your camera rig. Rods from this model line are designed to be extendable to nearly any length using the integrated M12 threads and Kondor Blue's M12 Rod Extension Connectors (available separately).
This black Anti-Twist M12 Mount is designed by Kondor Blue to mount their 15mm rods onto a wide variety of camera cages. Outfitting these camera accessory systems with a proper rod setup enables the easy attachment of lens supports and follow focus devices. The M12 mount threads onto any one of Kondor Blue 15mm rods and will not twist thanks to the ARRI-style locator pin on the other end, which is rigged to camera cages and accessory plates via a 1/4"-20 screw.
Items Included
- Kondor Blue Pro Battery Plate with Swiveling Rod Block (V-Mount, Raven Black)
- Swiveling Rod Block
- Limited Lifetime Warranty
- Kondor Blue Back Plate for Canon EOS C400 (Raven Black)
- 4 x 4mm Screw
- Limited Lifetime Warranty
- 2 x Kondor Blue 15mm PPSH Rod (1", Raven Black)
- Limited Lifetime Warranty
- 2 x Kondor Blue Anti-Twist M12 Mount for 15mm Rods (Raven Black)
- Limited Lifetime Warranty
Additional Resources
No additional resources available
Kondor Blue Pro Battery Plate with Swiveling Rod Block (V-Mount, Raven Black)
| Plate Front / Battery Mount |
V-Mount
|
| Number of Battery Bays |
1
|
| Input / Output |
2 x D-Tap Output
2 x USB-C Output 2 x 2.1 mm Barrel Output |
| Plate Material |
Aluminum
|
| Dimensions |
43.3 x 32.3 x 17.7" / 110 x 82 x 45 cm
|
| Weight |
15 oz / 425 g
|
| Package Weight |
1.65 lb
|
| Box Dimensions (LxWxH) |
6.6 x 5.7 x 3.9"
|
