Description
Core SWX CXV-TS-VRAP Overview
- 1Description
- 2Compatibility
- 3Sharkfin Design
- 4Hot Swappable
- 5Parallel Discharge
- 6D-Tap Outputs
- 7Sliding Design

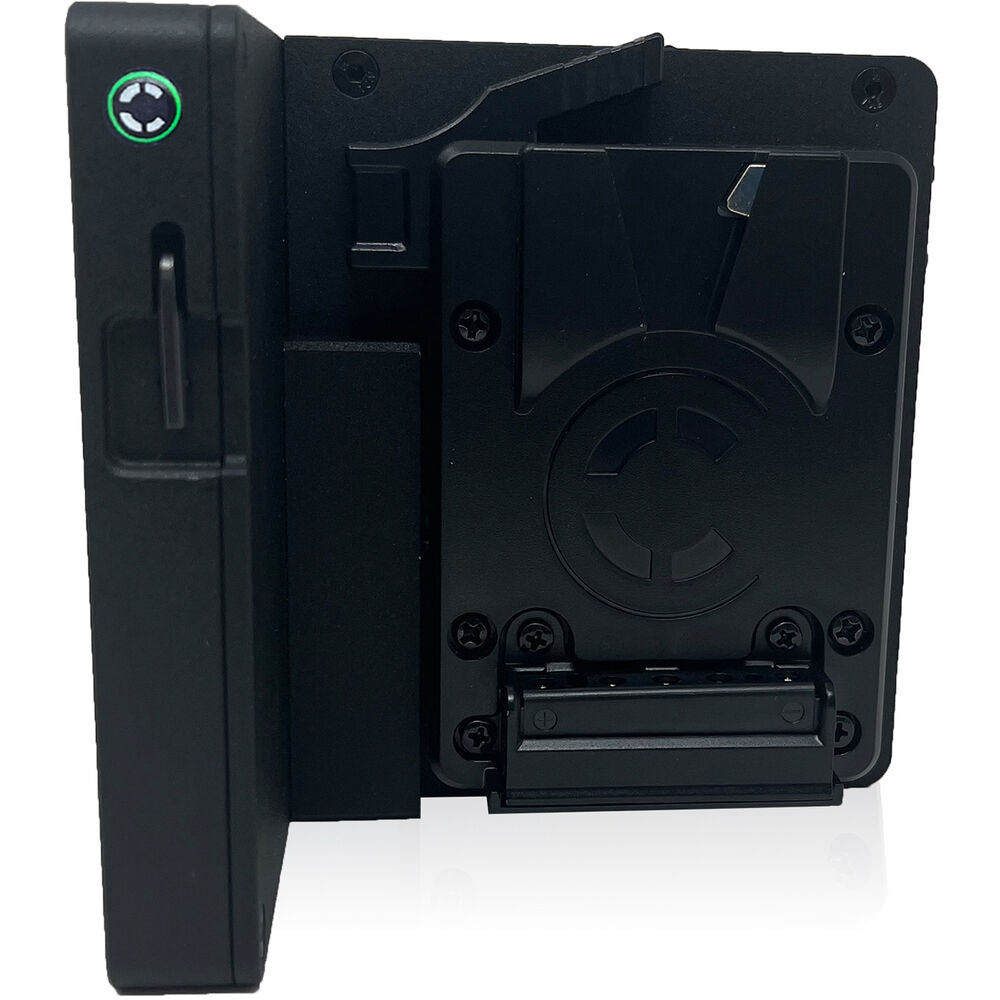

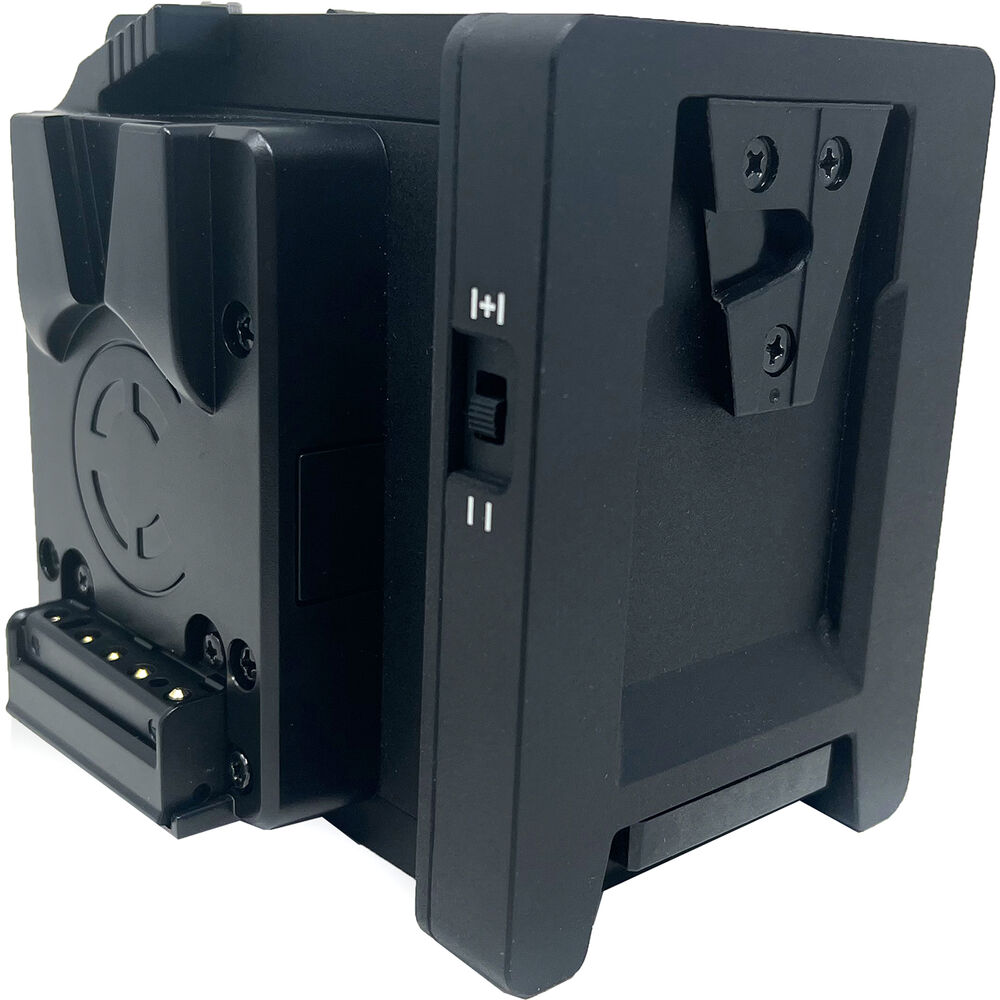

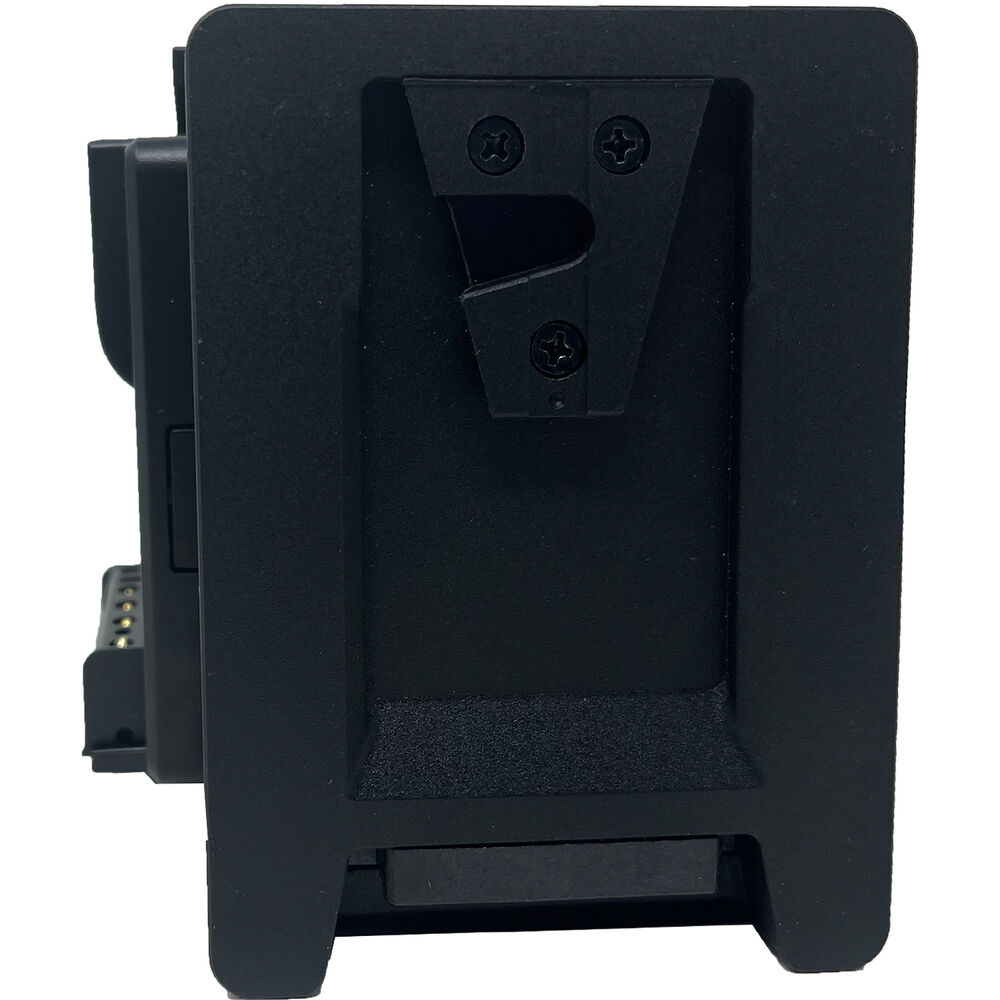

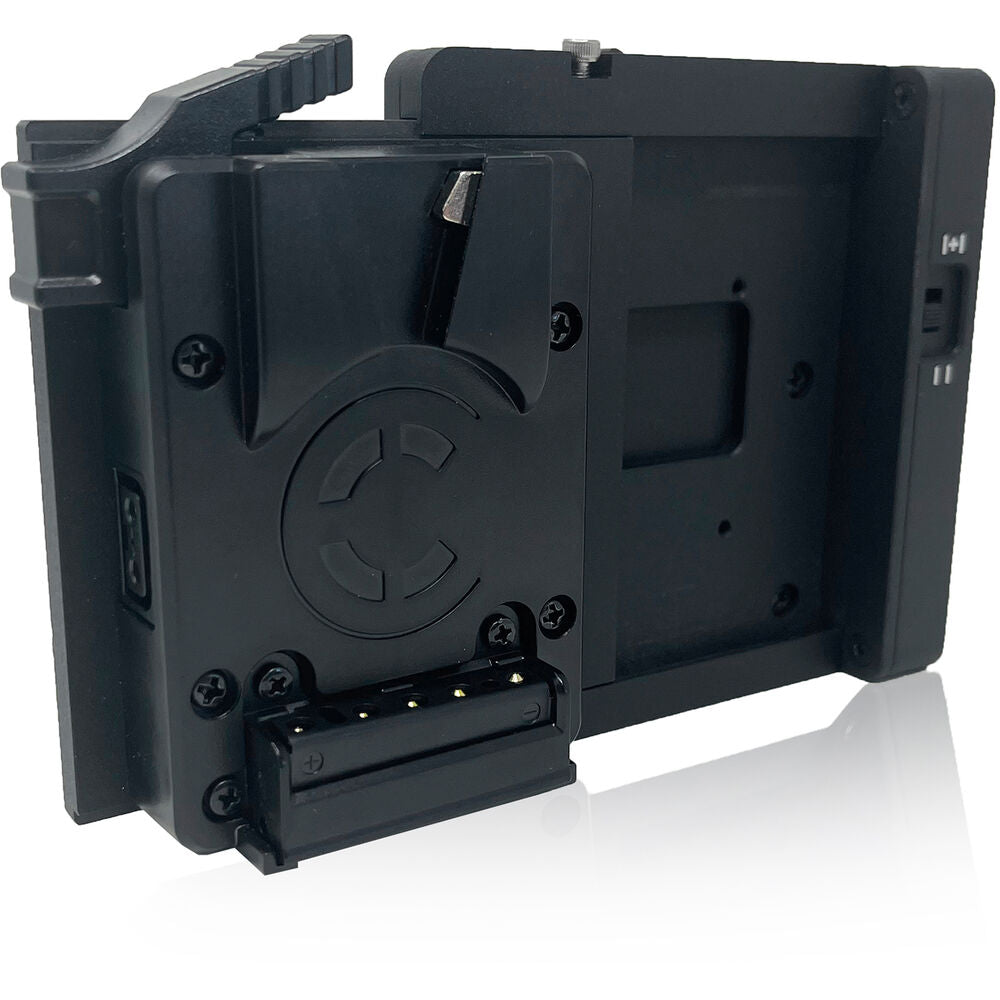

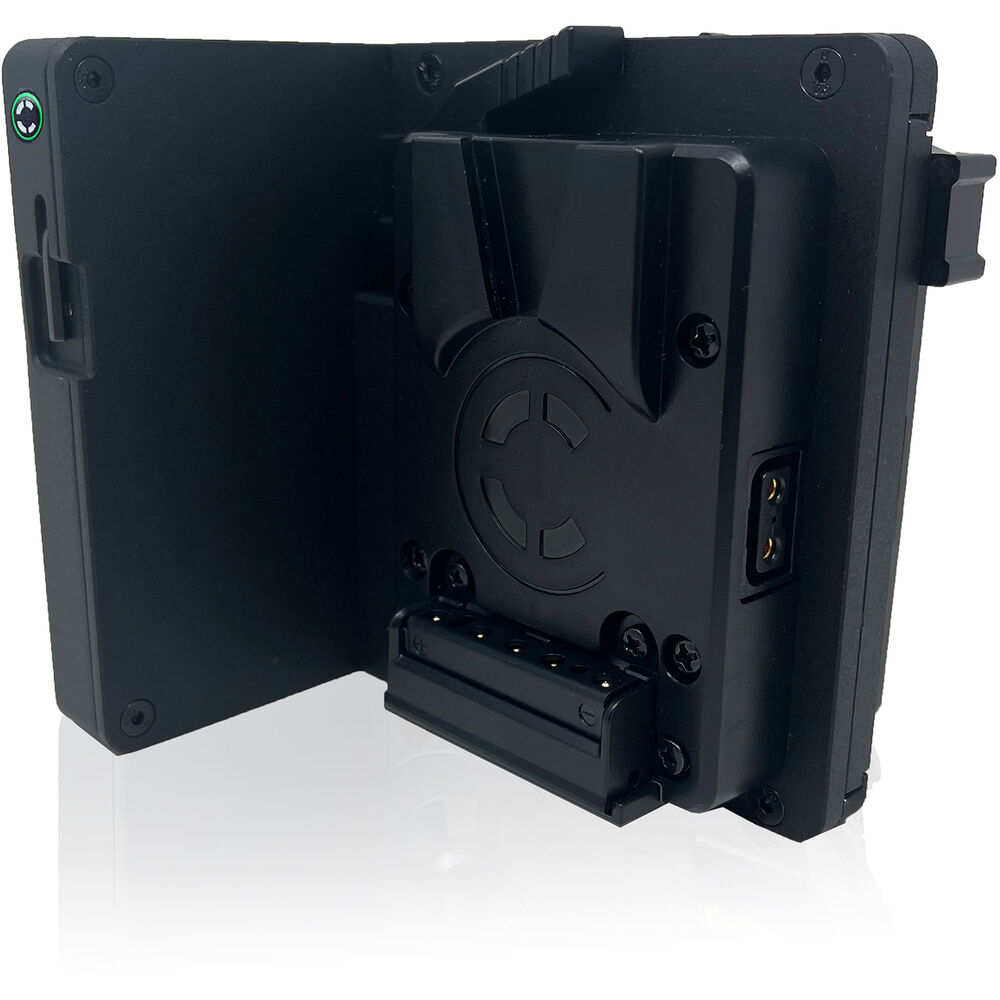

The V-mount Sharkfin Battery Plate from Core SWX enables you to continuously power any camera with a V-mount battery plate, such as the RED V-RAPTOR cinema camera, using two V-mount batteries. The sharkfin design mounts two batteries side by side, enabling you to remove a depleted battery while leaving the remaining battery connected, resulting in no camera downtime. This plate incorporates two D-Tap output ports for powering accessories.
The batteries can power the camera by discharging at the same time, or you can choose to discharge them one at a time and use the hot swap function. Since the ports on some cameras such as the RED V-RAPTOR are on the back, to prevent blocking them, the plate can slide away from the back of the camera to make room for your cables to plug in. Each D-Tap and power output to the camera is unregulated 11 to 17 VDC.
- Description
- Compatibility
- Sharkfin Design
- Hot Swappable
- Parallel Discharge

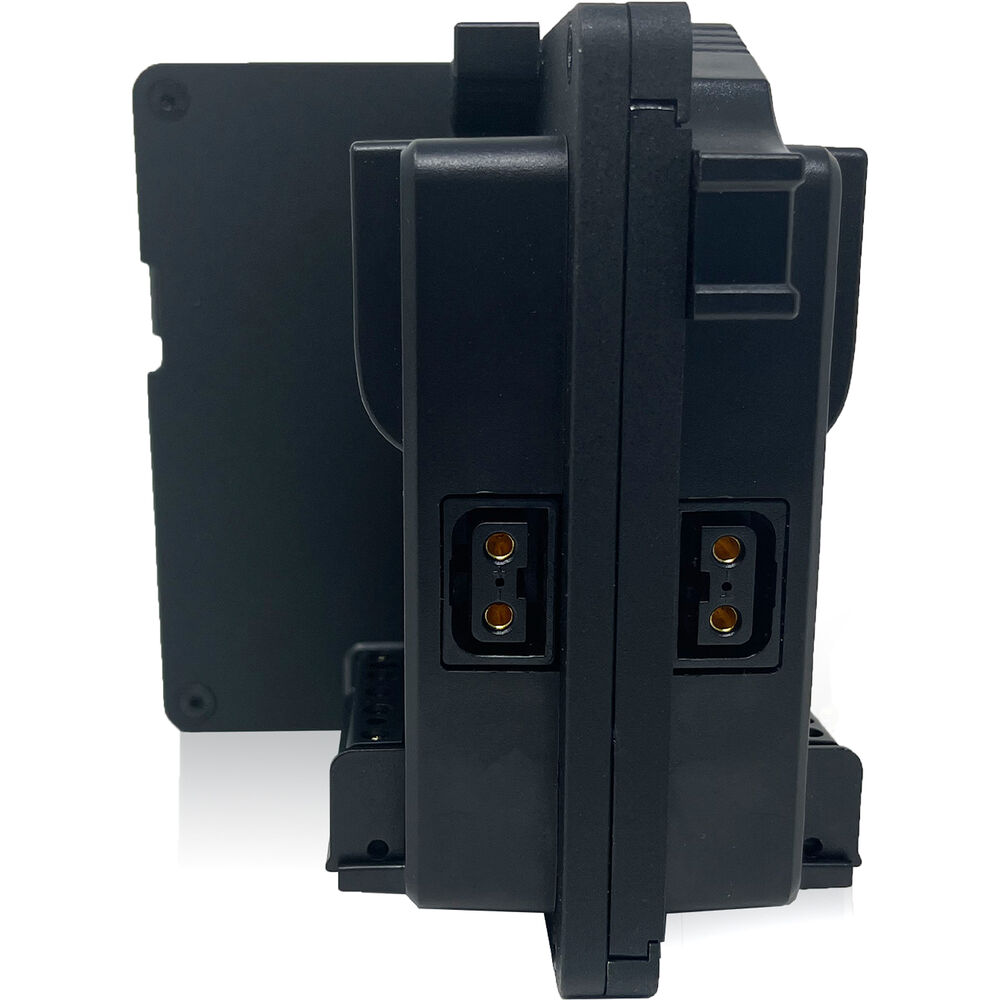

- D-Tap Outputs
- Sliding Design
Core SWX CXV-TS-VRAP Specs
| Power Input | V-Mount: 11 to 17 VDC |
| Power Output | V-Mount: 11 to 17 VDC D-Tap: 11 to 17 VDC at 7.2 A |
| Camera Power Method | Battery Plate Mount Type |
| Inputs/Outputs | 2 x D-Tap |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | V-Mount Battery Plate |
| Number of Battery Bays | 2 |
| Hot-Swap Support | Yes |
| Material of Construction | Aluminum |
| Dimensions | 3.7 x 3.6 x 3.5" / 9.4 x 9.1 x 8.9 cm |
| Weight | 1.2 lb / 544 g |
| Package Weight | 1.485 lb |
| Box Dimensions (LxWxH) | 8 x 7.6 x 3.8" |
Core SWX CXV-TS-VRAP Reviews
Does NOT fit the V Raptor
I just received this and it will NOT fit the V Raptor if you have the RED tactical top place and V lock battery adaptor. The 2 battery lugs on either side of the battery adaptor won't allow the Skarkfin plate to mount. Have to send it back.
Great Build Quality - Doesn't fit Ursa V-Mount Plate
There's very little information out there on this - but I purchased it to test out with my Ursa 12K. The build quality is great - very heavy, which is nice for counter balancing. Love the adjustments you can make to it - and how the batteries should sit on the back, an even weight distribution for shoulder mounting - nothing banging into the side of your head... The Battery Locks are more secure than the majority of V-Mount plates I've seen (always an issue). All of this was great. However.... the V-Mount connection for the Camera is too wide to slide into the Ursa V-Mount plate, which is pretty standard. For this reason, I give it 4 stars - and am sending it back.
