Texas Instruments BQ24050DSQT BQ24050DSQT Battery Charger for 1 Cell of Li-Ion Li-Pol 6.45V Input 4.2V / 1A Charge WSON-10

The BQ24050DSQT is a highly integrated Li-ion and Li-polymer Linear Charger targeted at space-limited portable applications. The device operates from either an USB port or AC adapter. The high-input voltage range with input overvoltage protection supports low-cost unregulated adapters. The BQ2405x has a single power output that charges the battery. A system load can be placed in parallel with the battery as long as the average system load does not keep the battery from charging fully during the 10-hour safety timer. The battery is charged in three phases: conditioning, constant current and constant voltage. In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold is exceeded. The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current and voltage regulation loops, charge status display and charge termination.

• 1% Charge voltage accuracy
• 10% Charge current accuracy
• Input voltage dynamic power management
• OUT short-circuit protection and ISET short detection
• Status indication - Charging/done
• Green product and no Sb/Br

Applications

Consumer Electronics, Portable Devices, Audio

Other details

Brand	TEXAS INSTRUMENTS
Part Number	BQ24050DSQT
Quantity	Each (Supplied on Cut Tape)

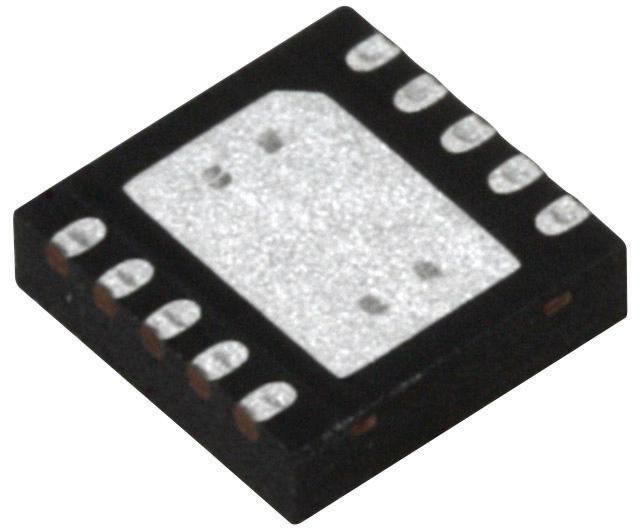

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
