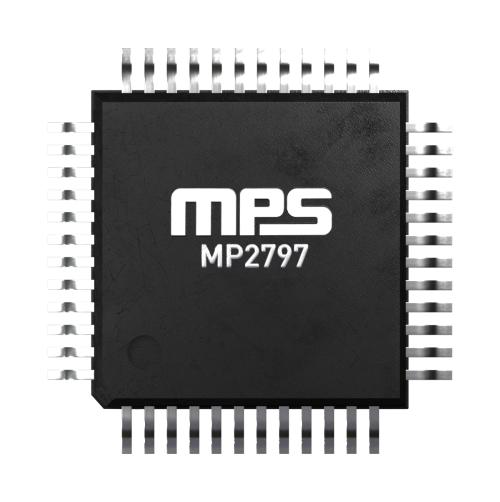

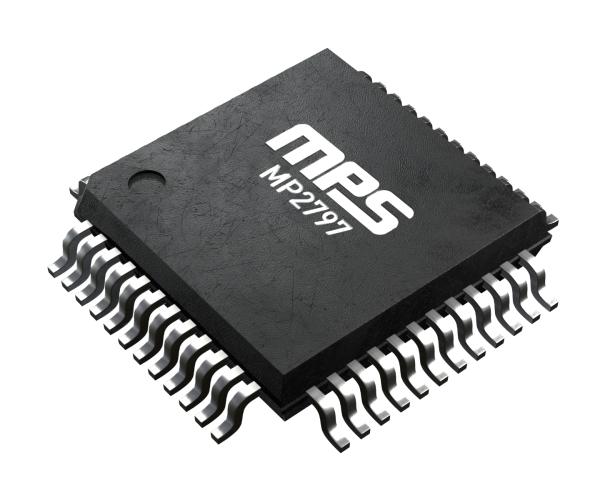

MONOLITHIC POWER SYSTEMS (MPS) MP2797DFP-0002-T Battery Monitor, Multi-Chemistry, 16 Cell, SPI, CRC Disabled, 18 to 75.2 V, -40° to 85° C, TQFP-48

MP2797DFP-0002-T is a robust battery management device, providing a complete analogue front-end (AFE) monitoring and protection solution. It is designed for multiple-cell series battery management systems (BMS). The device can support I²C communication. It supports connections for 7-cell to 16-cell series battery packs, with an absolute voltage exceeding 80V on particular pins. The MP2797 integrates two separate analogue-to-digital converters (ADCs). The first ADC measures each channel�s differential cell voltages (up to 16 channels), die temperature, and 4-channel temperatures via external NTC thermistors. The second ADC measures the charge/discharge current via an external current sense resistor. The dual ADC architecture enables synchronous voltage and current measurements for cell and pack impedance monitoring. Application includes energy storage system, E-Bikes, E-Scooters, light electric vehicles, power and gardening tools, battery backups and UPS.

• SPI, CRC disabled communication
• <±2% state-of-charge (SOC) error with MPF4279x fuel gauge
• Cell voltage measurement error of <5mV, current/coulomb counter error <±0.5%
• Strictly synchronized current/voltage measurement for impedance sensing
• Supports MOSFET soft-start discharge control to eliminate pre-charge circuit
• Drives up to 100A DC with parallel N channel MOSFETs
• Charge/discharge OCP and SCP, cell UVP and OVP, pack UVP and OVP
• Cell low-/high-temperature protection, die high-temperature protection
• Can drive external balancing transistors, automatic or manual control

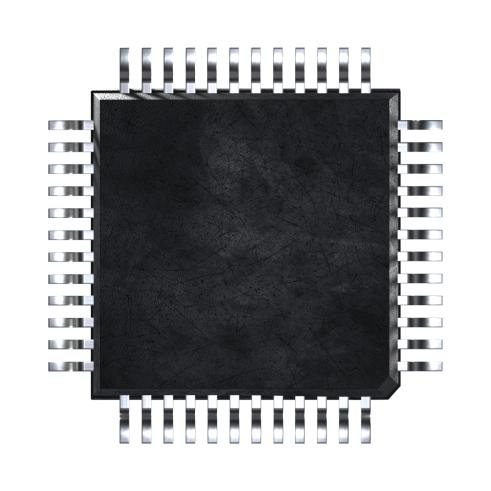

• TQFP-48 package, operating temperature range from -40°C to +85°C

Notes

MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
