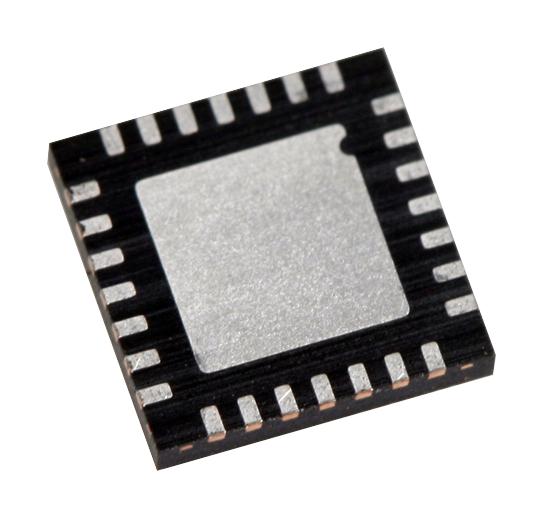

ANALOG DEVICES LTC4013EUFD#PBF Battery Charger, Lead Acid/LiFePO4/Li-Ion/Li-Pol, 0V to 60V/20 A Charge, -40 to 125 Deg C, QFN-EP-28

LTC4013 is a high voltage battery charger that is well suited for charging a wide range of lead-acid batteries including both vented and sealed types. It supports bulk, float, absorption and equalization charging. It also supports termination options for Li-Ion/Polymer and LiFePO4 batteries. Charging is performed with a high efficiency synchronous buck (step-down) converter that uses external N-channel MOSFETs. Switching frequency is resistor programmable or can be synchronized to an external clock. It also includes maximum power point tracking input-voltage regulation for limited power sources such as solar panels. Other features include user-programmable absorption and equalization times, temperature-compensated charge voltage and an external N-channel MOSFET isolation control circuit. It is used in applications such as battery backup for lighting, UPS systems, security cameras, computer control panels, portable medical equipment, solar-powered systems, industrial battery charging.

• Wide input voltage range is 4.5V to 60V
• Wide battery voltage range is 2.4V to 60V
• Built-in charge algorithms for lead-acid and Li-Ion
• Maximum power point tracking input control
• NTC temperature compensated float voltage
• Two open drain status pins
• Float voltage accuracy is ±0.5%, charge current accuracy is ±5%
• Switching frequency is 1050KHz maximum at (RT = 40.2Kohm, TA = 25°C)
• Operating junction temperature is -40°C to 125°C
• Package style is 28-lead plastic QFN
