Description

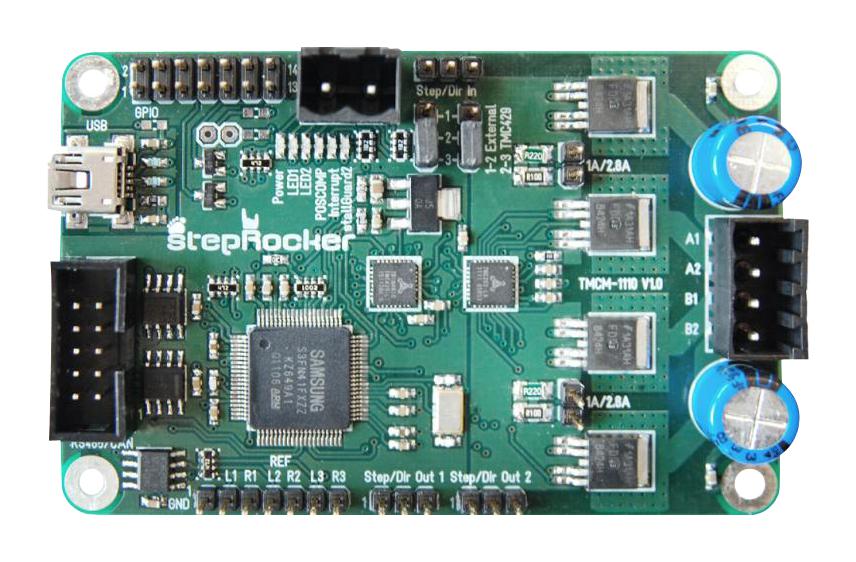

The TMCM-1110 STEPROCKER from Trinamic is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by Trinamic stallGuard2�, coolStep� and spreadCycle� chopper technology and has a trapezoidal ramp generator. The TMCM-1110 is capable of driving up to 4A of current from each output (with proper heatsinking). It provides a RS485, USB, S/D and encoder interface. An integrated protocol processor supplies a high level TMCL communication.
- Motor supply range from 10V to 30V
- 2.8A phase current RMS
- 1 to 256 microsteps
- Dimension is 55mm x 85mm x 15mm (L x W x H)
Applications
Motor Drive & Control
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Control / Drive Type: 1-Axis Controller / Driver Module |
| No. of Phases: Two Phase |
| Output Current Max: 2.8A |
| Supply Voltage Min: 10VDC |
| Supply Voltage Max: 30VDC |
| Product Range: TMCM StepRocker |
Other details
| Brand | TRINAMIC / ANALOG DEVICES |
| Part Number | TMCM-1110-STEPROCKER |
| Quantity | Each |
| Technical Data Sheet EN |  |
