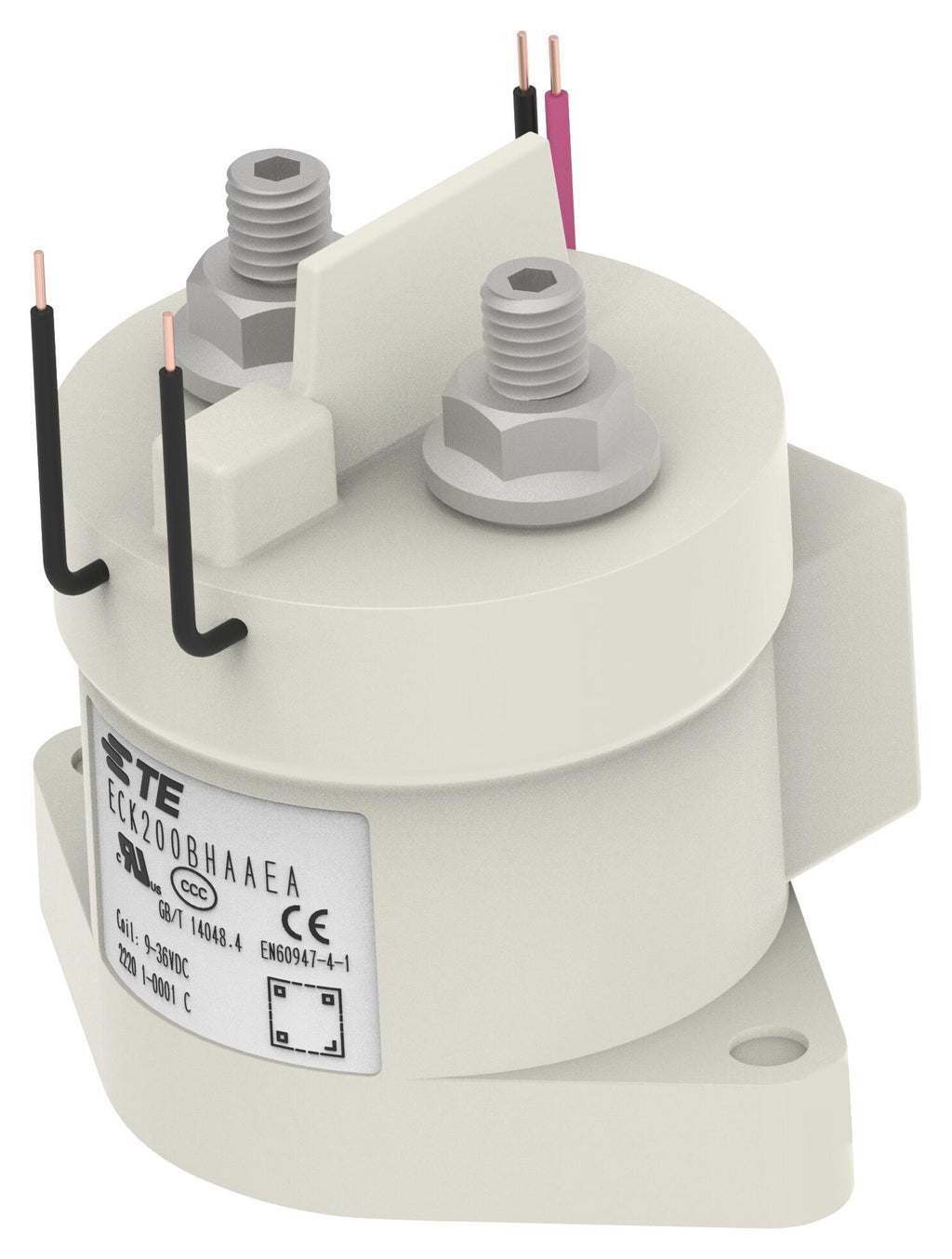

TE CONNECTIVITY 1-2071576-2 Contactor, w/Auxiliary Contact, Flange, 1 kV, SPST-NO-DM, 1 Pole

1-2071576-2 is an ECK200B series, high-voltage DC contactor. It is designed for control in new energy applications. It is an innovative and reliable solution for EV charging stations, solar inverters, battery energy storage systems, automated-guided vehicles (AGV) and e-forklifts. It is hermetically sealed with ceramic technology and enable high switching capability under 1000VDC. The special contacts design makes it allow bi-directional load to improve reliability and connection efficiency. It is used in applications such as DC charging station, electric vehicle, AGV, electric forklift, energy storage systems, photovoltaic inverter, DC converter, battery protection board.

• Hermetically sealed with ceramic technology, 3.6A max starting current
• Allow bi-directional load for main contacts, ?3VDC release voltage
• Designed with built-in economizer, hold power 1.7W
• CCC: 2023960304001474, UL: E82292, TUV: R50616662 approval
• Maximum DC breaking current at 2000A, continuous current carrying capacity of 500A
• 1000VDC maximum switching voltage
• Compatibility with DC-1 utilization category in IEC60947-4-1
• Normally open, with auxiliary contacts (N.O.), bottom mounting position
• Coil voltage range from 9 to 36VDC, external built-in PWM economizer
• Flying leads coil termination, ambient temperature range from -40°C to 85°C
