Description

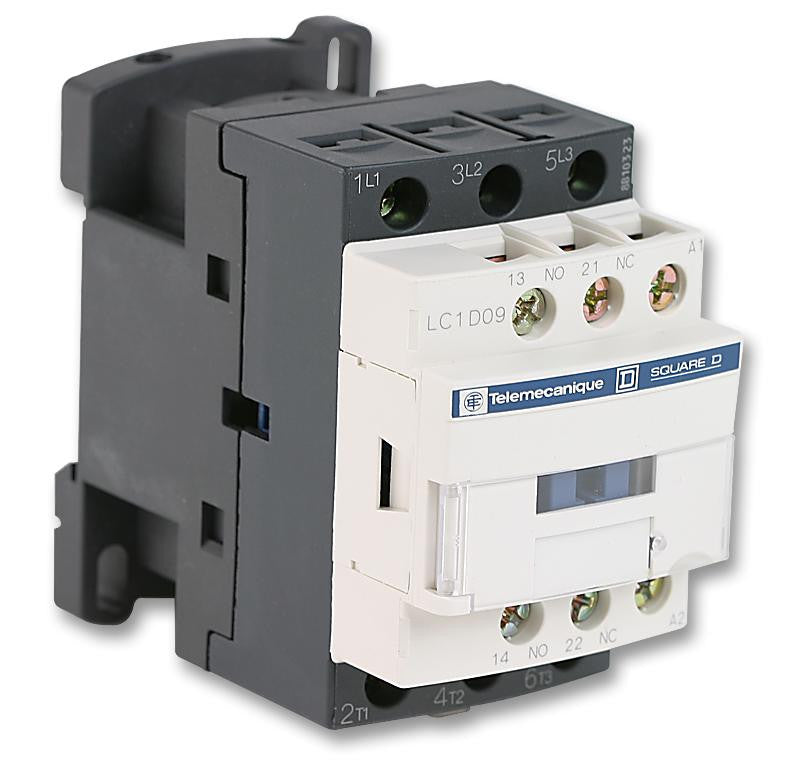

The LC1D09B7 from Schneider Electric is a TeSys D three pole contactor with normally open (NO) contacts. It is approved by UL 508, CSA C22.2, CCC, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1 and IEC 60947-5-1 standards. TeSys D contactors are designed for perfect integration in control systems. They can be used in switching equipments or relay coils, powering control equipments, powering signalling equipments and creating motor starters for any type of application.
- AC-1 and AC-3 utilisation category
- Rated operational voltage of 690VAC at 25Hz to 400Hz and 300VDC for power circuit
- Rated operational current of 25A at <= 440VAC (AC-1) and 9A at <= 440VAC (AC-3 ) for power circuit
- Motor power of 4KW at 415VAC to 440VAC, 50Hz/60Hz
- Control circuit voltage of 24VAC at 50Hz/60Hz
- UL94 V-1 flammability
- Ambient operating temperature range from -5�C to 60�C
- IP2x front face degree of protection conforming to IEC 60529 standard
- Power dissipation per pole is 0.2W (AC-3) and 1.56W (AC-1)
- Rated breaking capacity of 250A at 440V for power circuit conforming to IEC 60947 standard
Applications
Automation & Process Control, Motor Drive & Control, Industrial
Product details
| Relay Mounting | DIN Rail |
| Coil Voltage VDC Nom | - |
| Switching Current AC1 | 25A |
| Load Current Resistive | 25A |
| Product Range | TeSys D Series |
| Switching Current AC3 | 9A |
| Coil Voltage VAC Nom | 24V |
| Operating Voltage | 690VAC |
| No. of Poles | 3 Pole |
| Load Current Inductive | 9A |
| Contact Configuration | 3NO |
| Switching Power AC3 | 5.5kW |
| Switching Power AC1 | 1hp |
Other details
| Brand | SCHNEIDER ELECTRIC / TELEMECANIQUE |
| Part Number | LC1D09B7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
