Description

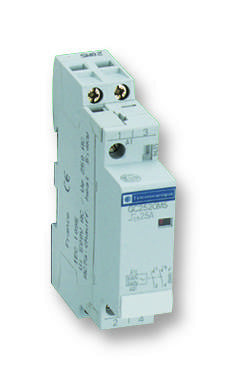

The GC1620M5 from Schneider Electric is a TeSys GC two pole modular contactor with normally open contacts (NO). TeSys GC contactors are designed for use in modular panels and enclosures. These contactors provide quick clip-on fixing and easy connection by means of ready to tighten, captive, pozidrive screw terminals. TeSys GC contactors locks onto 35mm omega rail and provides complete safe operation to user.
- AC-7A and AC-7B utilisation category
- Rated operational voltage of <= 250VAC
- Rated operational current of 5A (AC-7B) and 16A (AC-7A)
- Control circuit voltage of 220VAC to 240VAC at 50Hz
- Rated breaking capacity of 40A at 400V for power circuit conforming to IEC 61095 standard
- Approved by IEC 60947-5, VDE and IEC 61095 standards
- IP20 degree of protection conforming to VDE 0106 and IP40 in enclosure conforming to VDE 0106
- Ambient operating air temperature range from -5�C to 50�C
- 30�/vertical operating position
- Clip-on mounting
Applications
Automation & Process Control, Industrial, Motor Drive & Control, Lighting
Product details
| Relay Mounting | DIN Rail |
| Coil Voltage VDC Nom | 240V |
| Switching Current AC1 | 16A |
| Load Current Resistive | - |
| Product Range | TeSys GC Series |
| Switching Current AC3 | - |
| Coil Voltage VAC Nom | 240V |
| Operating Voltage | 250VAC |
| No. of Poles | 2 Pole |
| Load Current Inductive | - |
| Contact Configuration | DPST-NO |
| Switching Power AC3 | - |
| Switching Power AC1 | - |
Other details
| Brand | SCHNEIDER ELECTRIC / TELEMECANIQUE |
| Part Number | GC1620M5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
